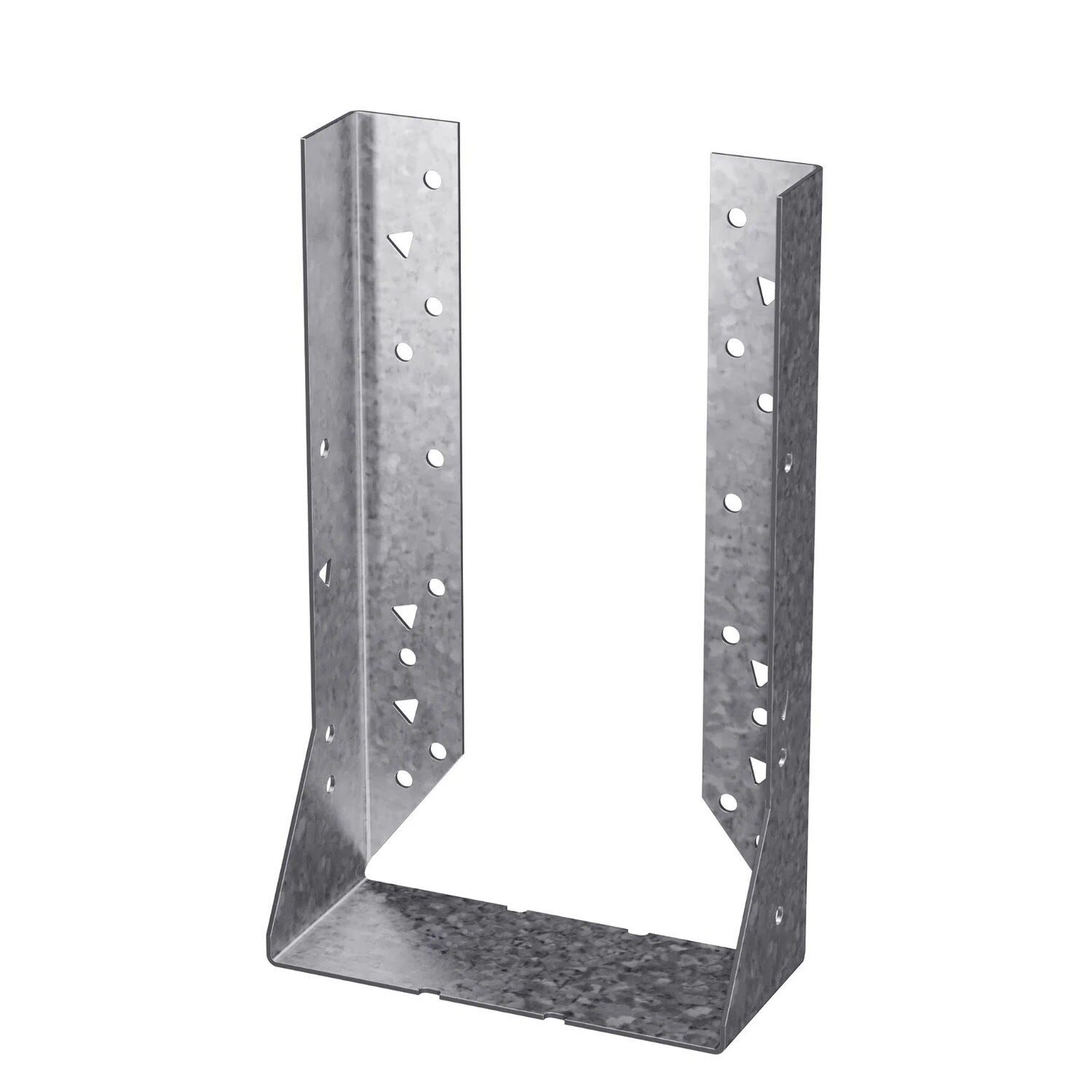

Simpson Strong-Tie HUC610Z Description
The Simpson Strong-Tie HUC610Z is a heavy-duty concealed-flange joist hanger designed for 6x10 joists, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie HUC610Z Includes
- (1) Heavy-Duty Concealed-Flange Joist Hanger for 6x10
Simpson Strong-Tie HUC610Z Features
- Concealed-flange design for clean aesthetics and structural integrity
- ZMAX galvanized coating for corrosion resistance
- Compatible with wood, masonry, and concrete connections
- Tested and code-compliant for structural applications
Simpson Strong-Tie HUC610Z Applications

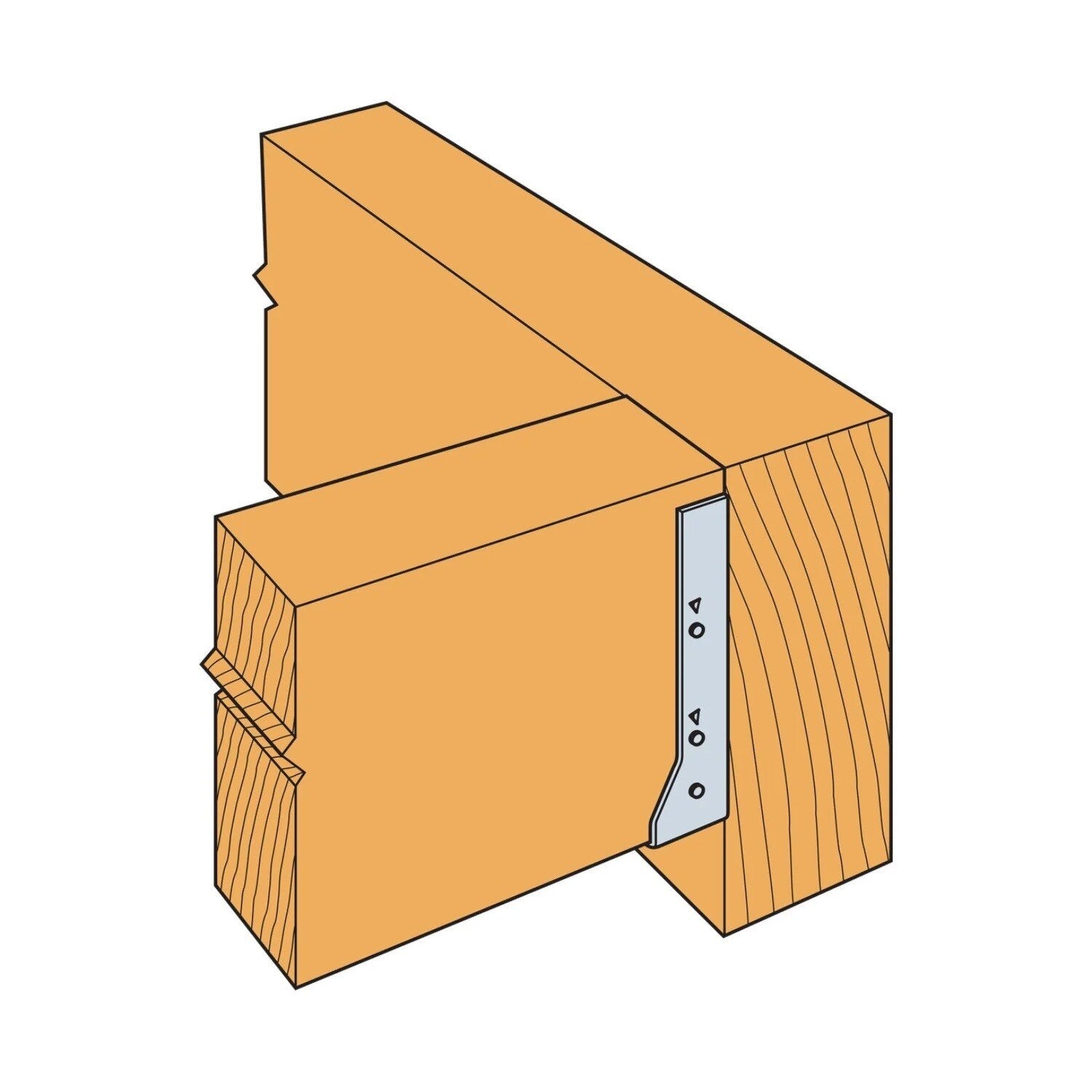

- Decks and outdoor structures: Provides strong, concealed support for wood joists in deck construction, pergolas, and gazebos.
- Timber framing: Ideal for exposed beam connections in architectural and decorative wood framing.
- Treated wood and exterior construction: Corrosion-resistant ZMAX coating makes it suitable for structures exposed to moisture, such as porches, patios, and sheds.
- Masonry and concrete connections: Compatible with various construction scenarios.
Simpson Strong-Tie HUC610Z Installation Overview
- Use hot-dip galvanized nails for ZMAX galvanized hangers.
- Optional triangle holes can be used for additional load capacity.
- Special order options available for skewable and sloped seats.
Simpson Strong-Tie HUC610Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 7-5/8" |
| Joist size | 6" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 5-1/2" |
Toolup Part # :
824612
