Simpson Hangers | SKU:
HUC612
Simpson Strong-Tie HUC612 (6" x 12") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$25.20
$34.49
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson HUC612 Description

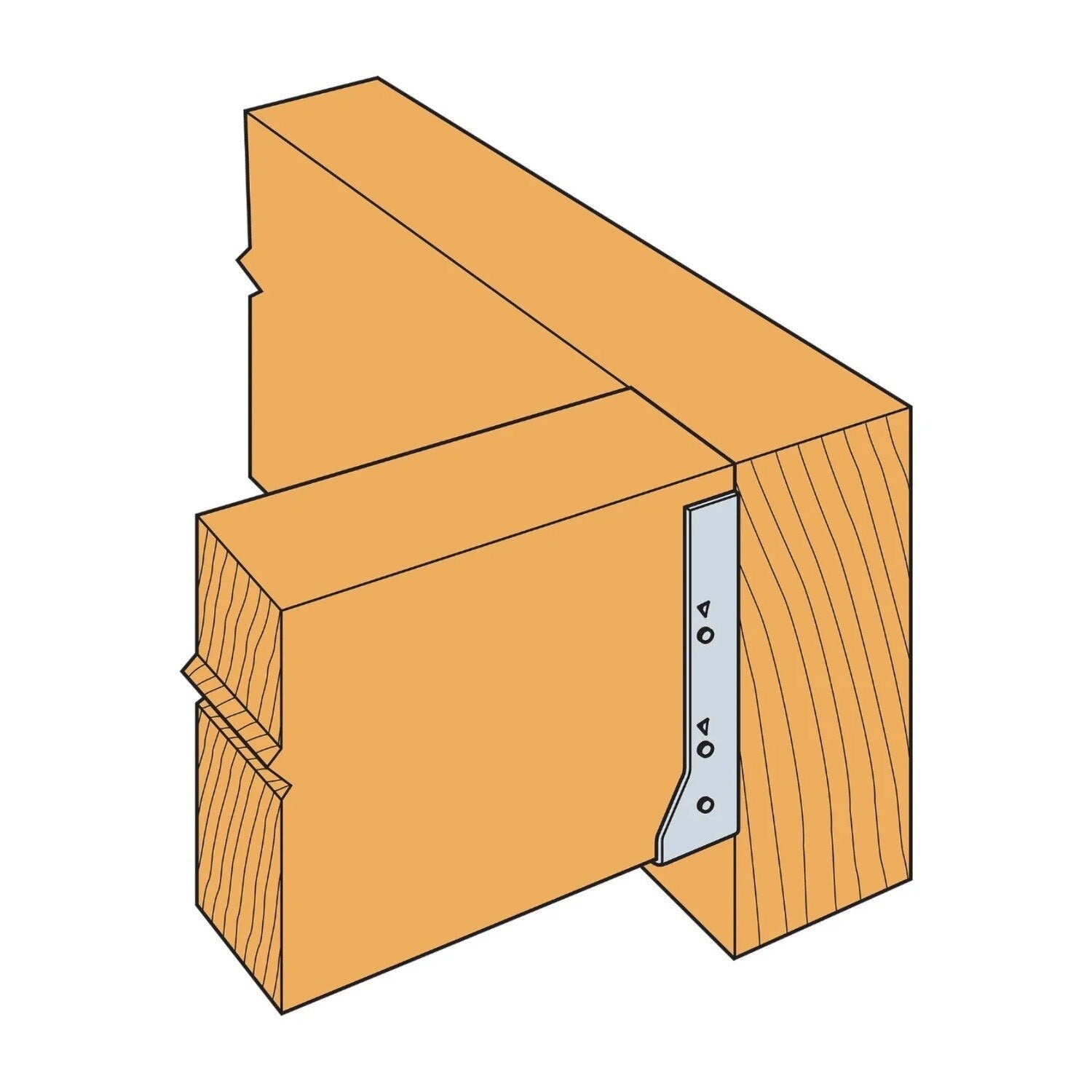

The Simpson HUC612 is a heavy-duty concealed-flange face-mount joist hanger designed for robust support in construction applications.
Simpson HUC612 Includes

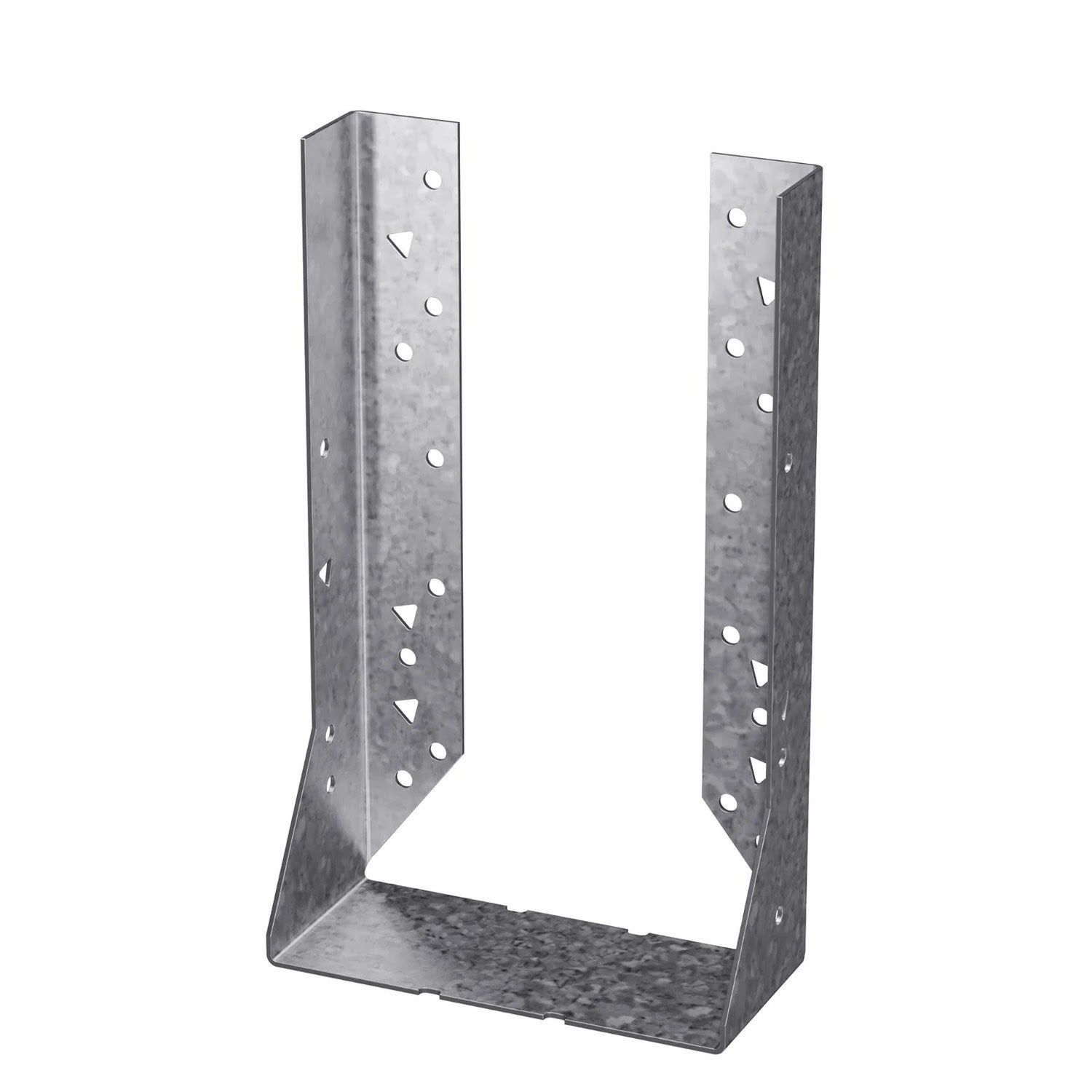

- (1) Galvanized Face-Mount Concealed-Flange Joist Hanger for 6x12
Simpson HUC612 Features
- Concealed Flange Design for clean lines and close installation to beam ends
- G90 Galvanized Finish for corrosion resistance
- Versatile Applications for various joist sizes and materials
- Code Compliance ensuring reliable performance
Simpson HUC612 Applications
- Decks & Outdoor Structures: Provides strong, concealed connections for deck framing, pergolas, and covered porches.
- Floor Joists & Ceiling Framing: Ensures secure joist connections in residential and commercial construction.
- Multi-Family Housing & Commercial Buildings: Used in large-scale framing applications for apartments, offices, and mixed-use buildings.

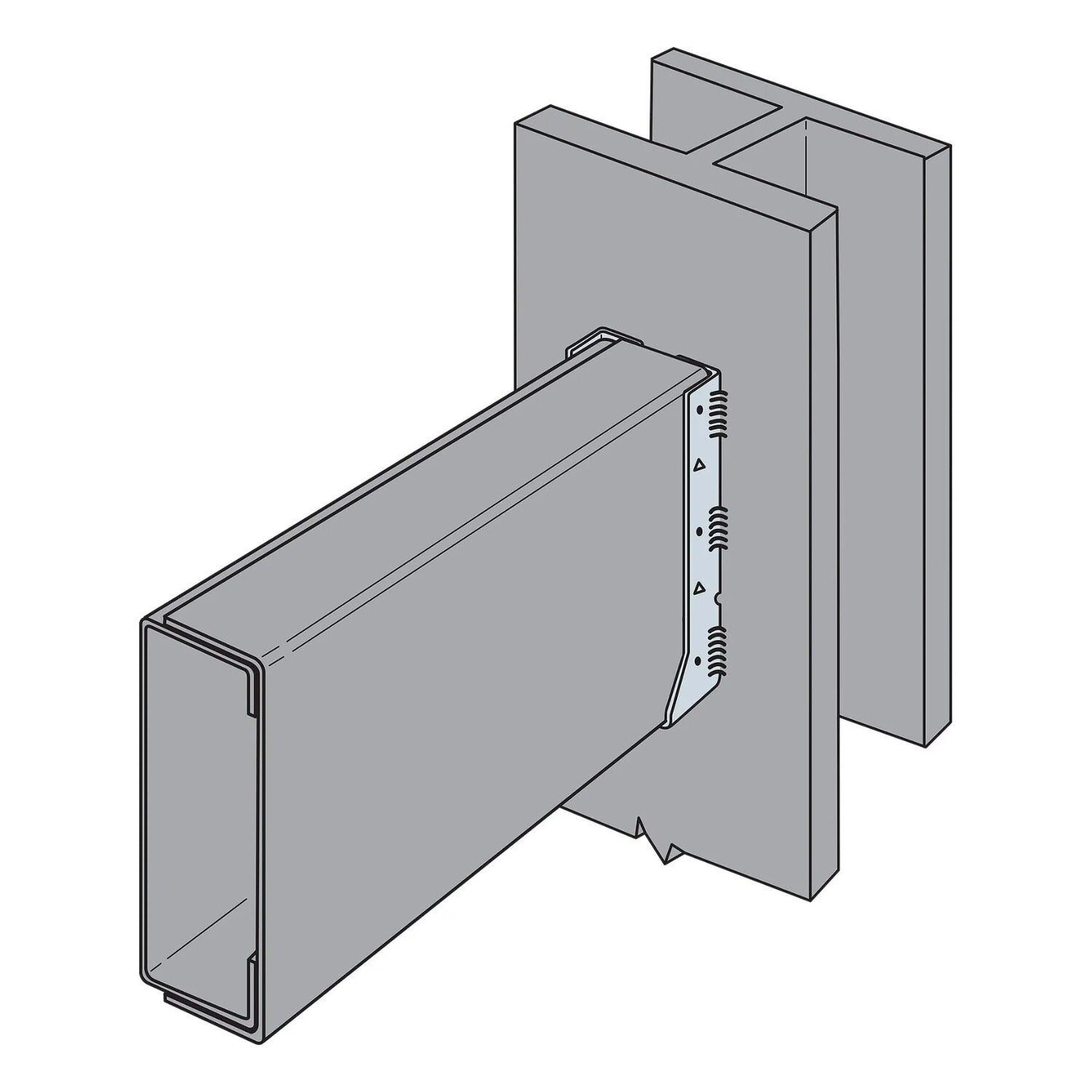

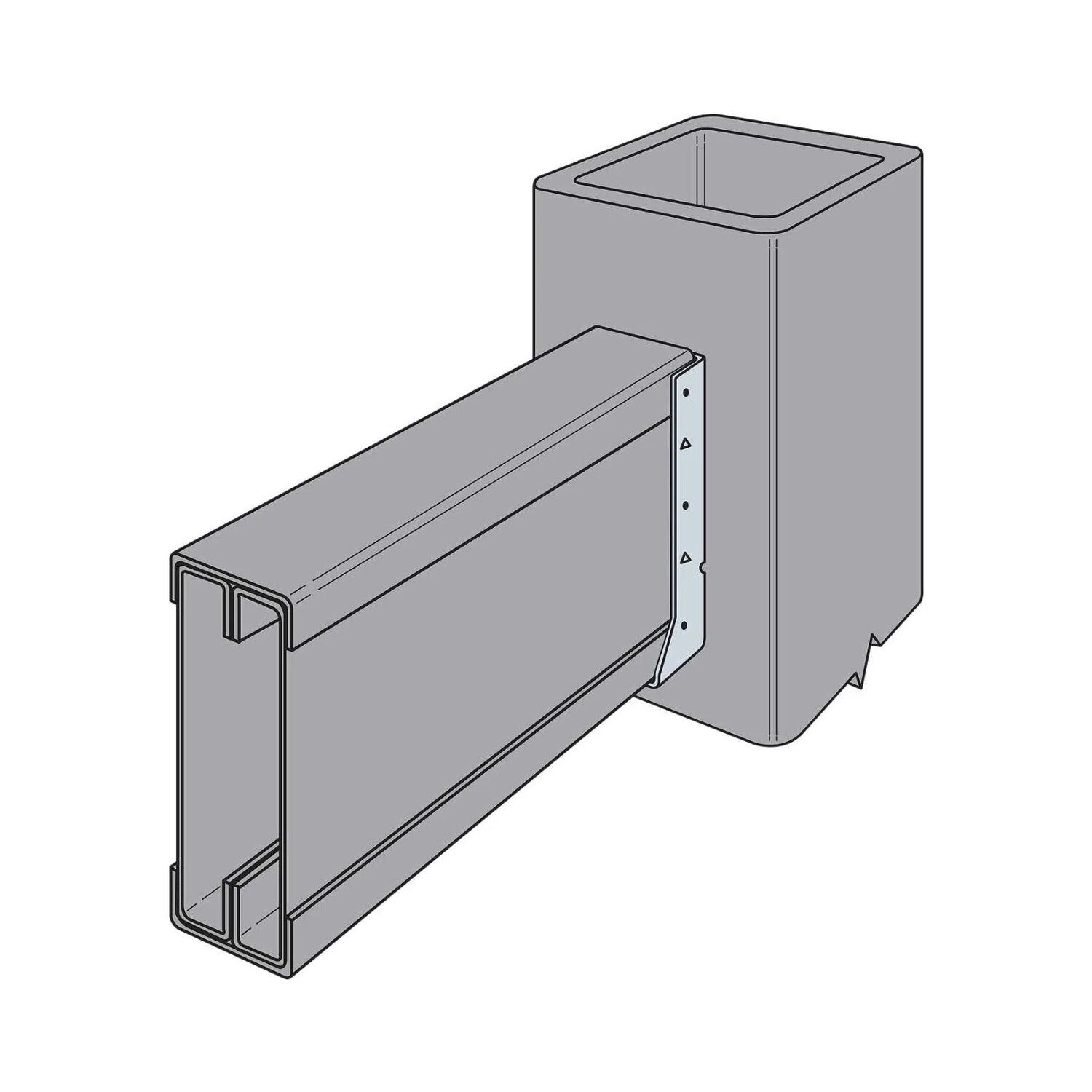

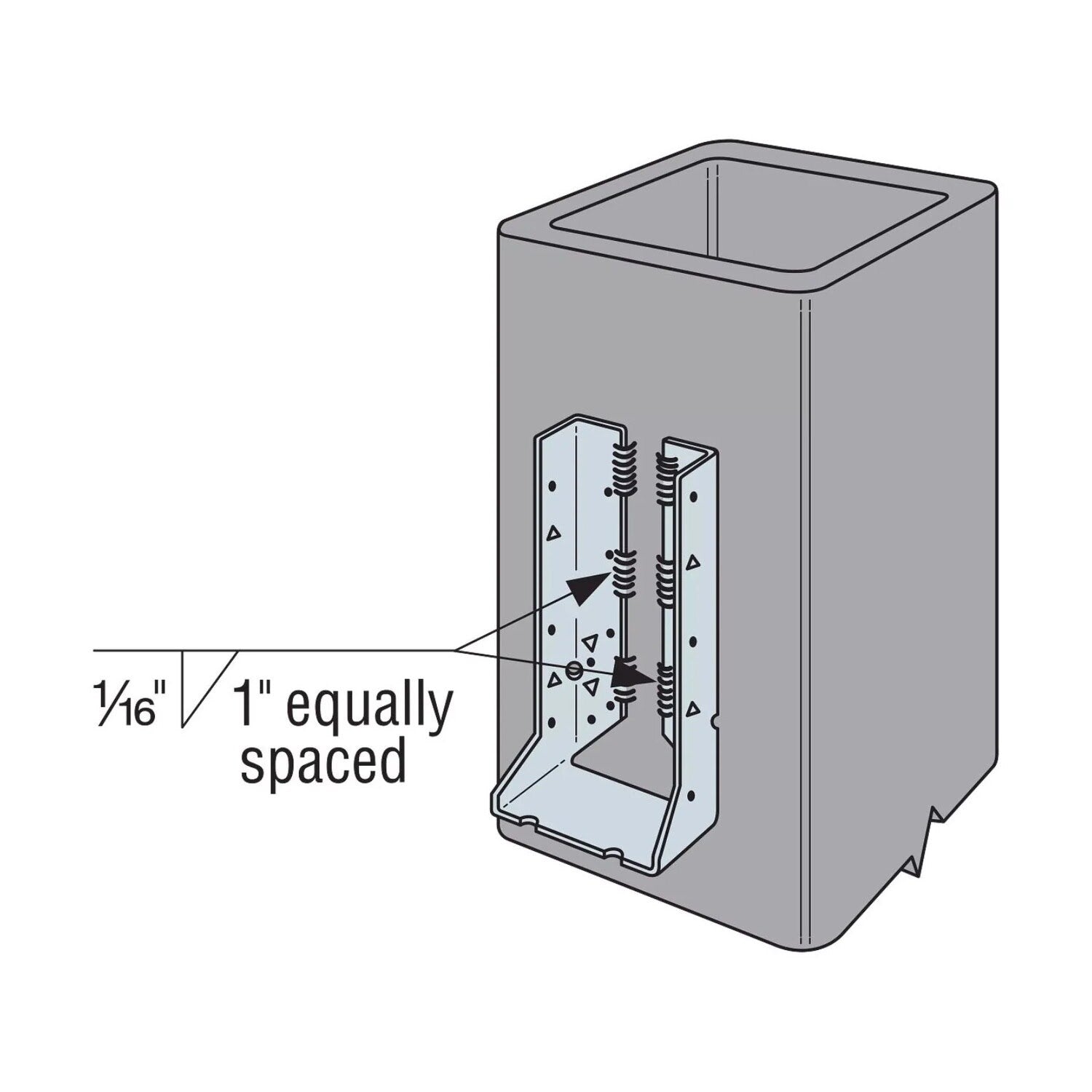

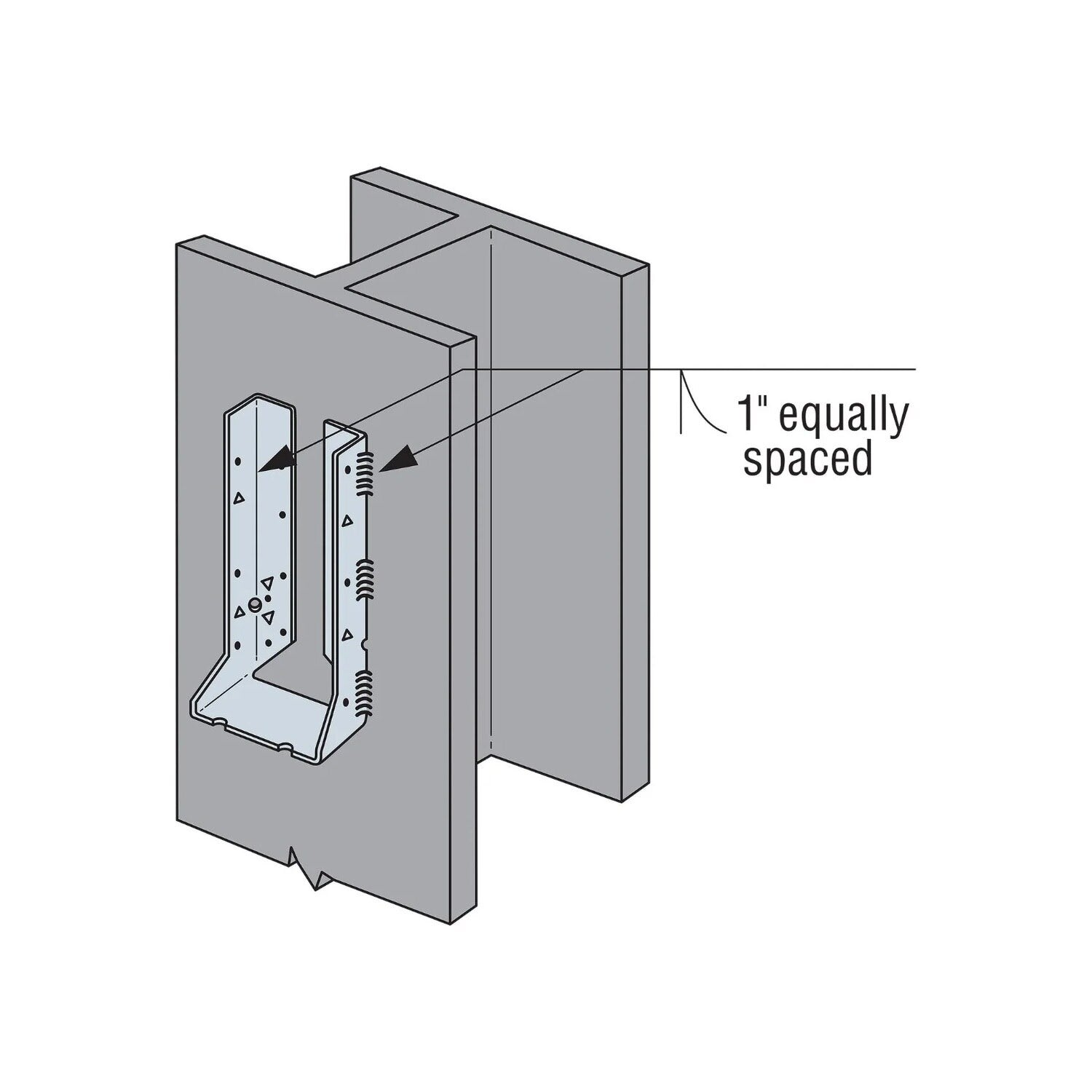

- Engineered Wood & Steel Framing: Compatible with LVL, PSL, and CFS joists for advanced construction needs.
- Retrofitting & Renovation Projects: Ideal for reinforcing existing structures while maintaining a clean, unobtrusive look.
Simpson HUC612 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Fill both round and triangle holes with common nails for maximum load capacity.
Simpson HUC612 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 9-3/8" |
| Joist size | 6" X 12" |
| Thickness | 14 Gauge |
| Width | 5-1/2" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
