Simpson Hangers | SKU:
HUC612TF

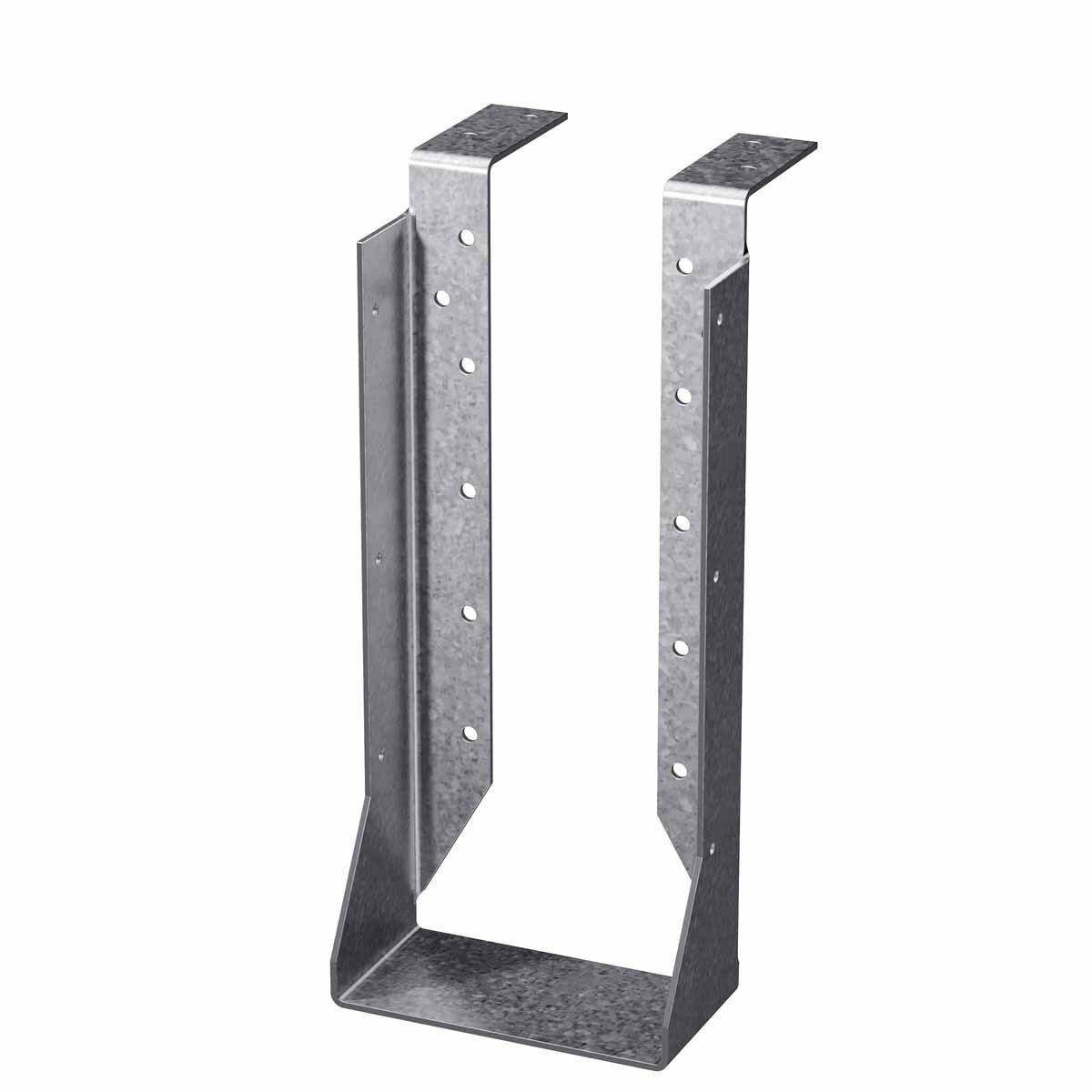

Simpson Strong-Tie HUC612TF (6" x 12") Heavy Top-Flange Hanger with Concealed Flanges
$47.30
$68.02
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC612TF Description
The HUC612TF is a concealed top flange face mount hanger designed for structural wood framing, offering durability and compliance with building codes.
Simpson Strong-Tie HUC612TF Includes
- (1) HUC612TF Concealed Top Flange Face Mount Hanger
Simpson Strong-Tie HUC612TF Features
- Rough beam sizes are available by special order
- The hanger can be sloped a maximum of 45°, with no skew options available
- HUCTF-series hangers are tested, load rated and code compliant
Simpson Strong-Tie HUC612TF Applications
- Engineered wood framing
- Structural wood construction
Simpson Strong-Tie HUC612TF Installation Overview
- Use all specified fasteners as per guidelines
- Not suitable for nailer or welded applications
Simpson Strong-Tie HUC612TF Specifications
| Material | 12 ga. |
| Finish | Galvanized, G90 |
| Joist Size | 6x12 |
| Width | 5 1/2 in. |
| Height | 11 in. |
| Base | 2 1/2 in. |
| Top Flange | 2 1/2 in. |
