Simpson Hangers | SKU:
HUC614TF

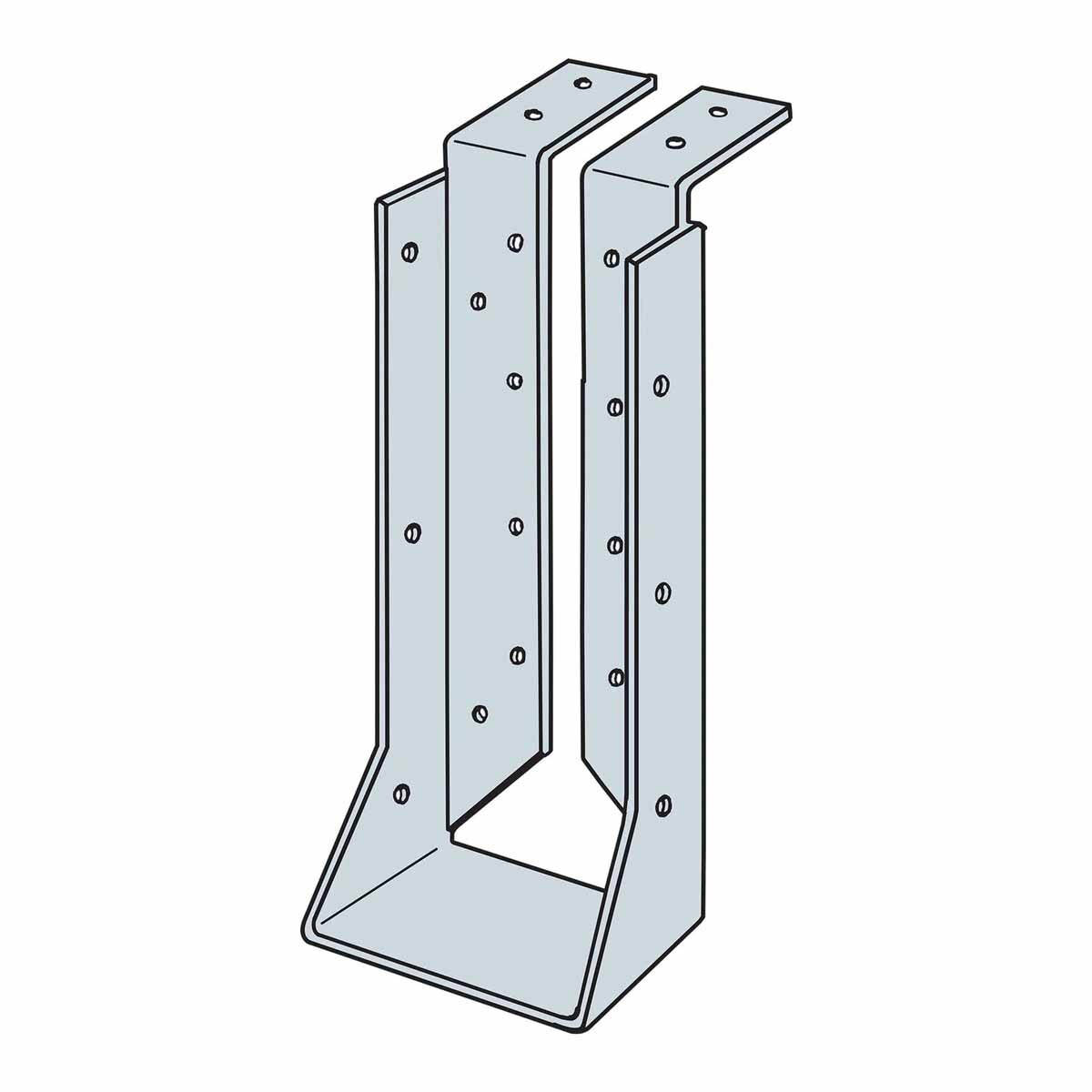

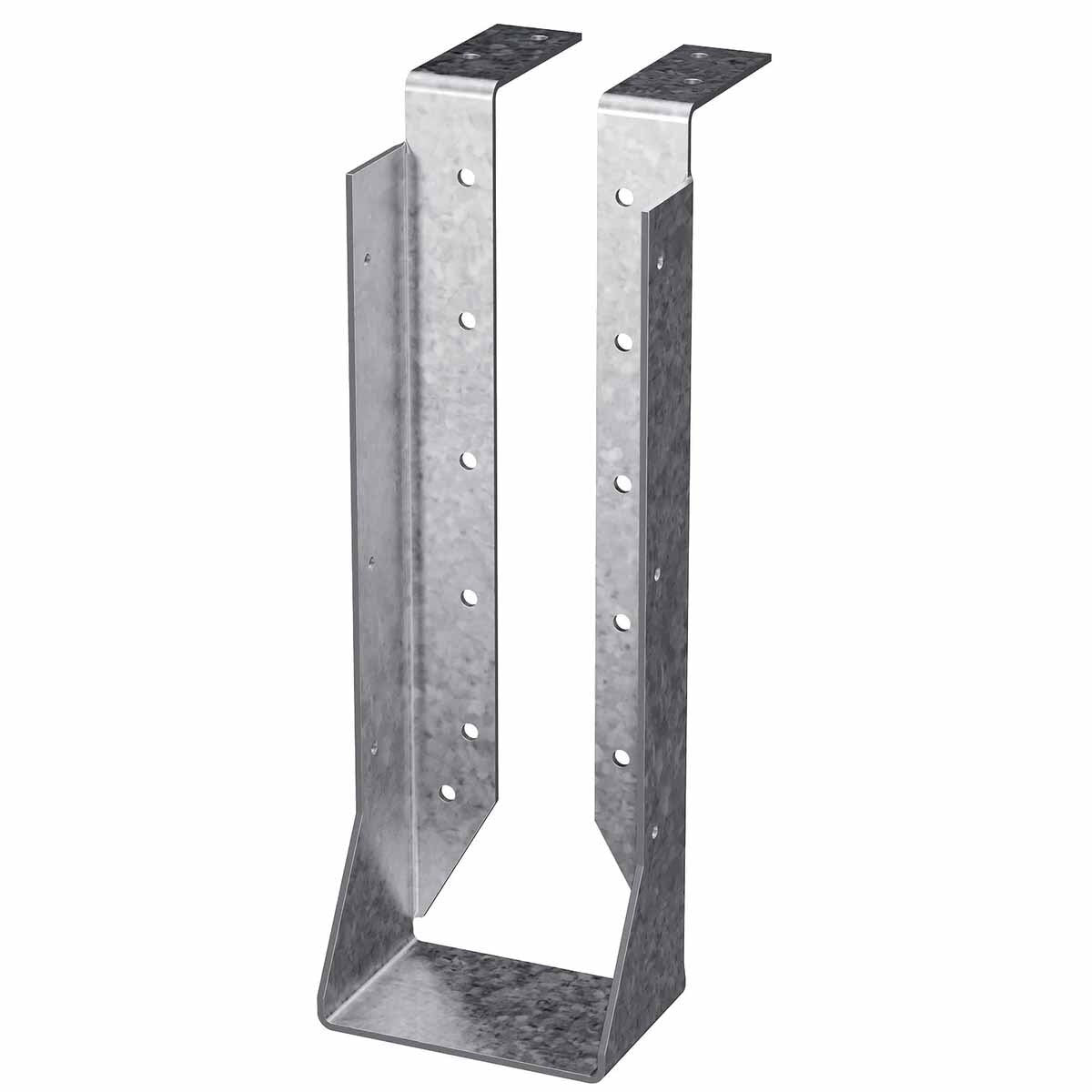

Simpson Strong-Tie HUC614TF (6x14) Heavy Top-Flange Hanger with Concealed Flanges
$55.45
$79.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC614TF Description
The HUC614TF Heavy Top-Flange Hanger with Concealed Flanges provides a robust solution for securely attaching joists to beams or ledgers, ensuring even load distribution and structural integrity.
Simpson Strong-Tie HUC614TF Includes
- (1) Heavy Top-Flange Hanger
Simpson Strong-Tie HUC614TF Features
- Concealed Flange Design for seamless aesthetic
- Heavy-Duty 12-Gauge Steel Construction
- G90 Galvanized Finish for corrosion resistance
- Tested, load rated, and code compliant
Simpson Strong-Tie HUC614TF Applications
- Residential and Commercial Use: Suitable for structural projects like floors, ceilings, and roofs.
- End-of-Wall Installations: Designed for joists terminating at the end of a wall.
- Corner Joist Connections: Ensures stability in corner placements.
Simpson Strong-Tie HUC614TF Installation Overview
- Use all specified fasteners according to manufacturer guidelines.
- Ensure a minimum header or ledger size of 3 1/2 inches.
- Not suitable for sloped or skewed seat applications.
Simpson Strong-Tie HUC614TF Specifications
| Material | 12 Gauge Carbon Steel |
| Finish | G90 Galvanized |
| Joist Size | 6" X 14" |
| Width | 5-1/2" |
| Height | 13" |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
