Simpson Hangers | SKU:
HUC616
Simpson Strong-Tie HUC616 (6x16) Galvanized Face-Mount Concealed-Flange Joist Hanger
$41.38
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC616 Description

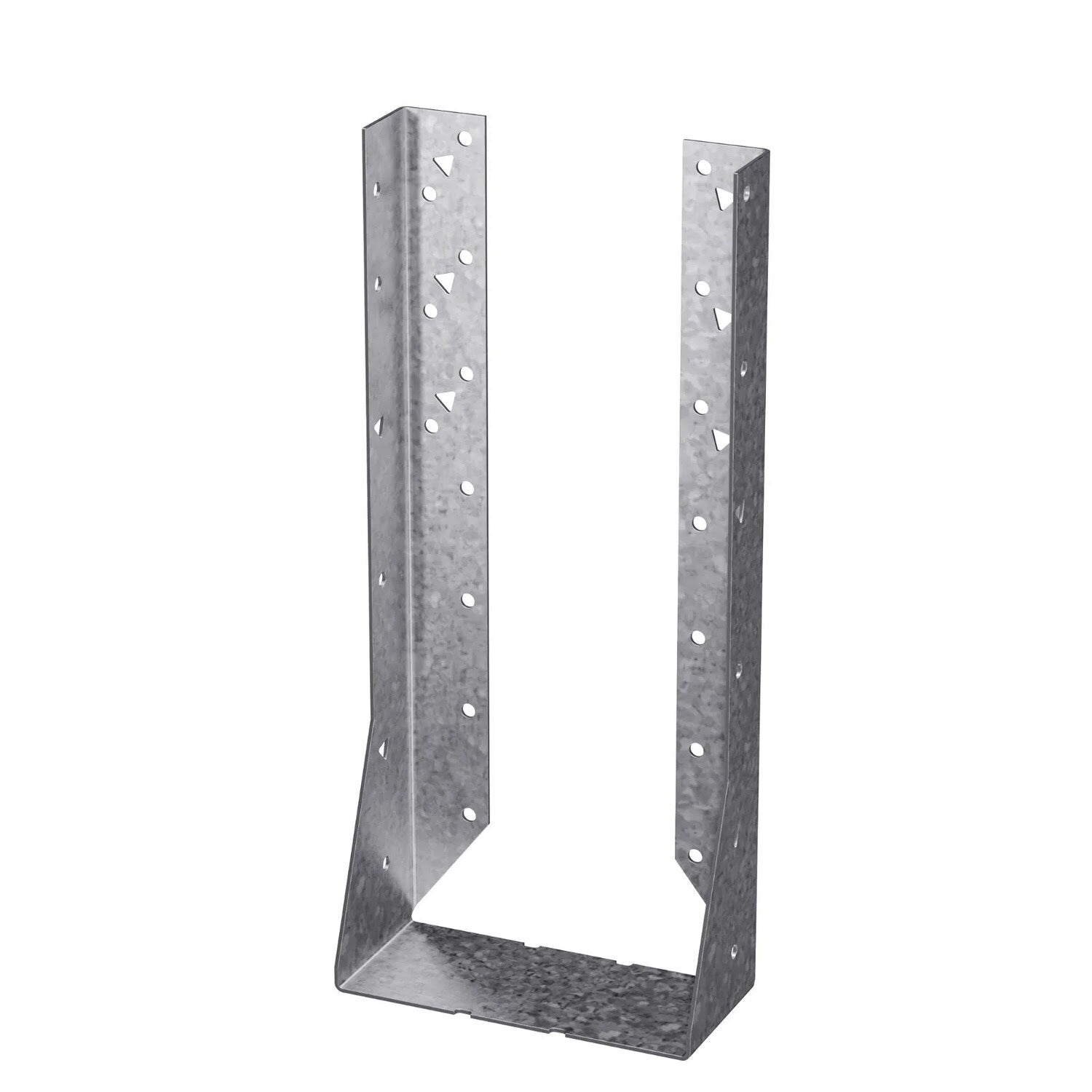

The Simpson Strong-Tie HUC616 is a heavy-duty concealed-flange face-mount joist hanger designed for robust support in construction applications.
Simpson Strong-Tie HUC616 Includes
- (1) Concealed-Flange Joist Hanger
Simpson Strong-Tie HUC616 Features
- Concealed flange design for clean lines and aesthetic appeal
- G90 galvanized finish for corrosion resistance

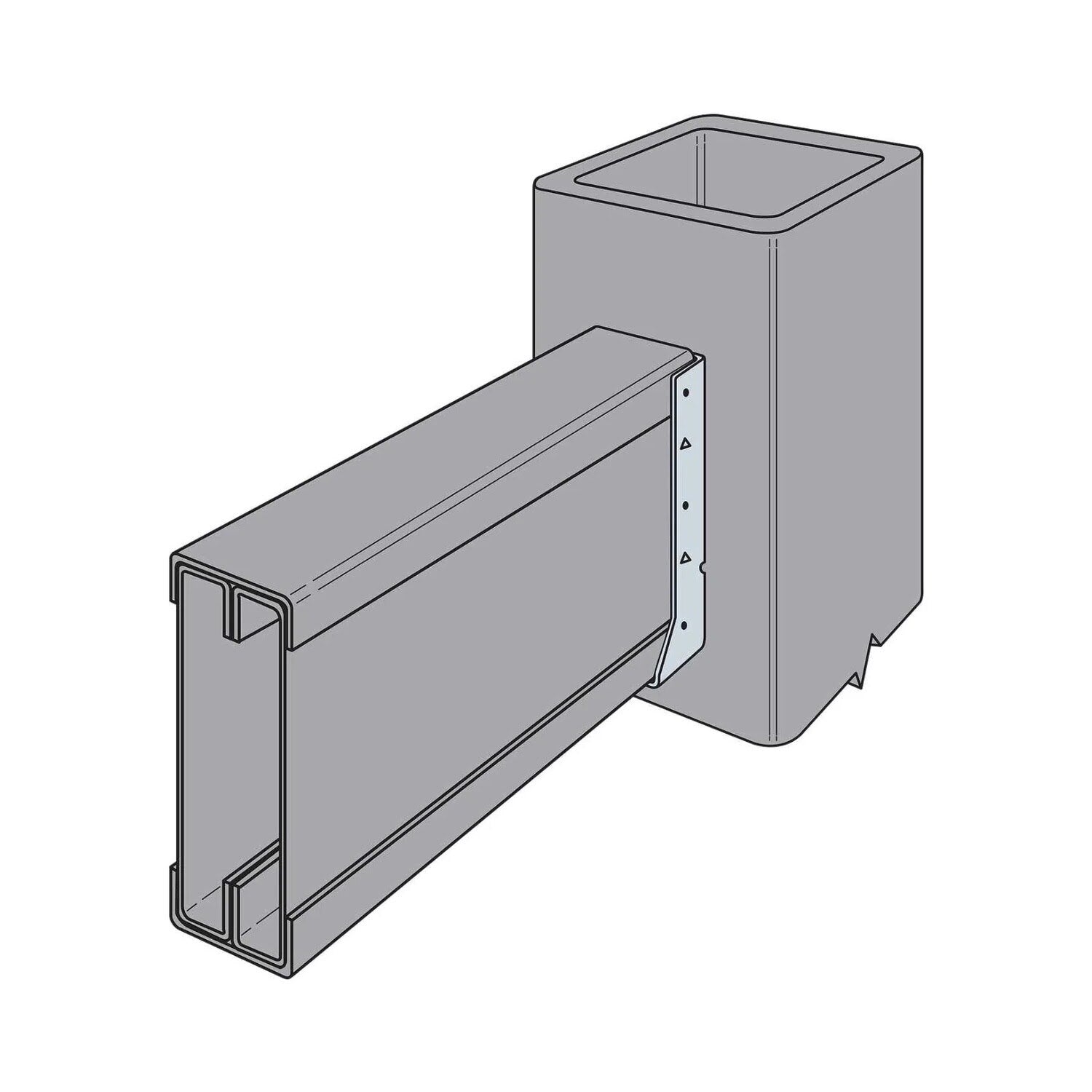

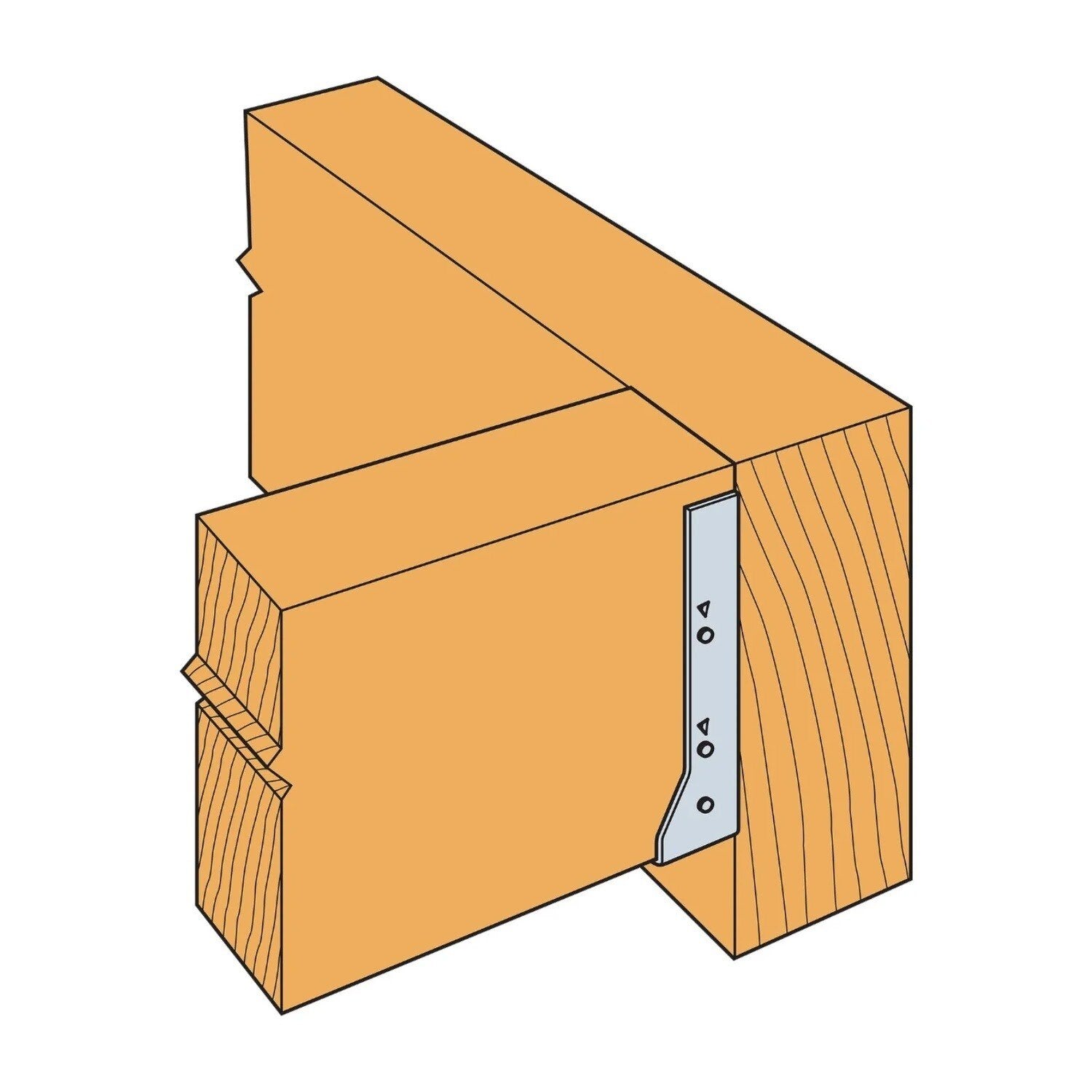

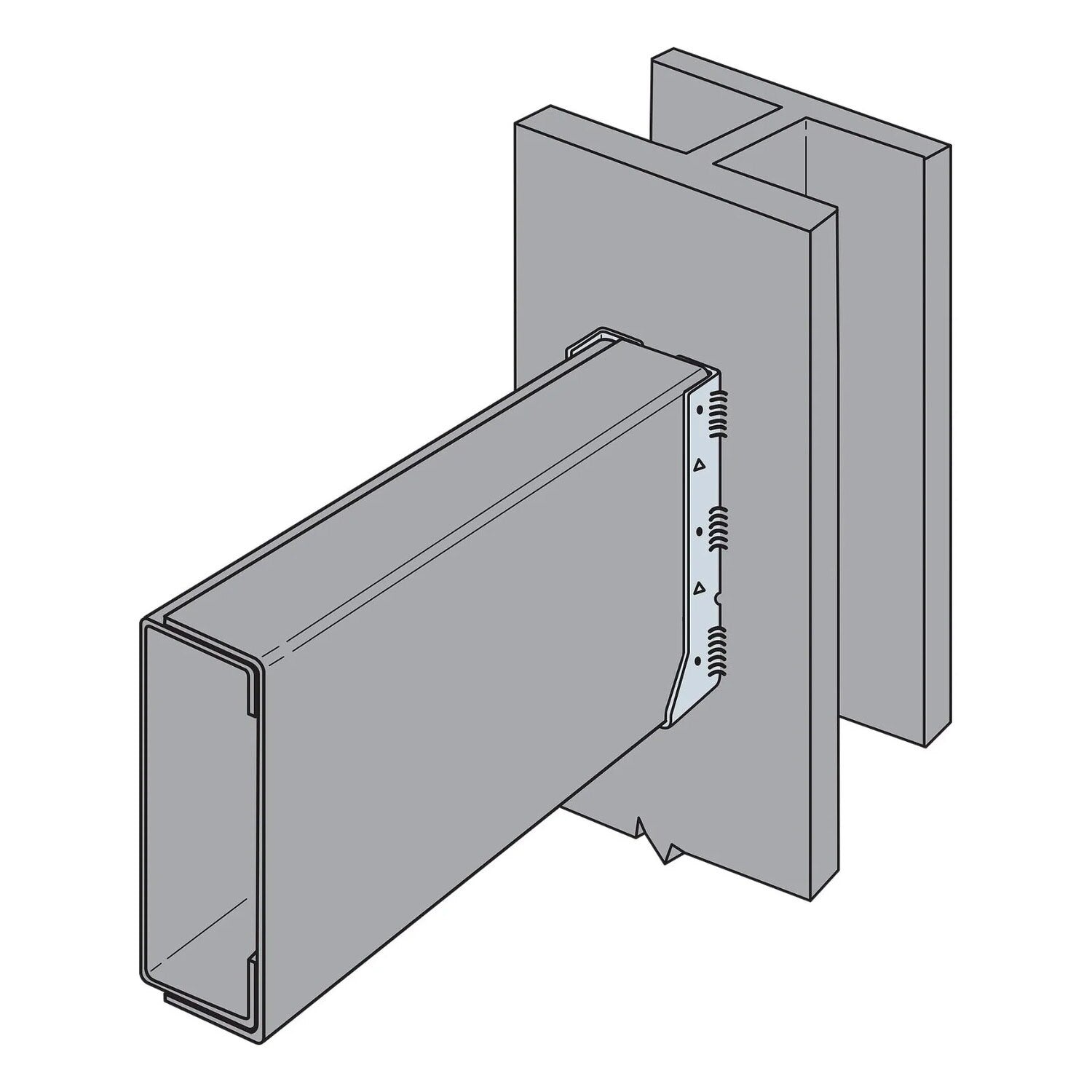

- Compatible with solid sawn lumber, engineered wood, and cold-formed steel joists
- Tested and load-rated for code compliance
Simpson Strong-Tie HUC616 Applications
- Decks and outdoor structures
- Floor joists and ceiling framing
- Multi-family housing and commercial buildings

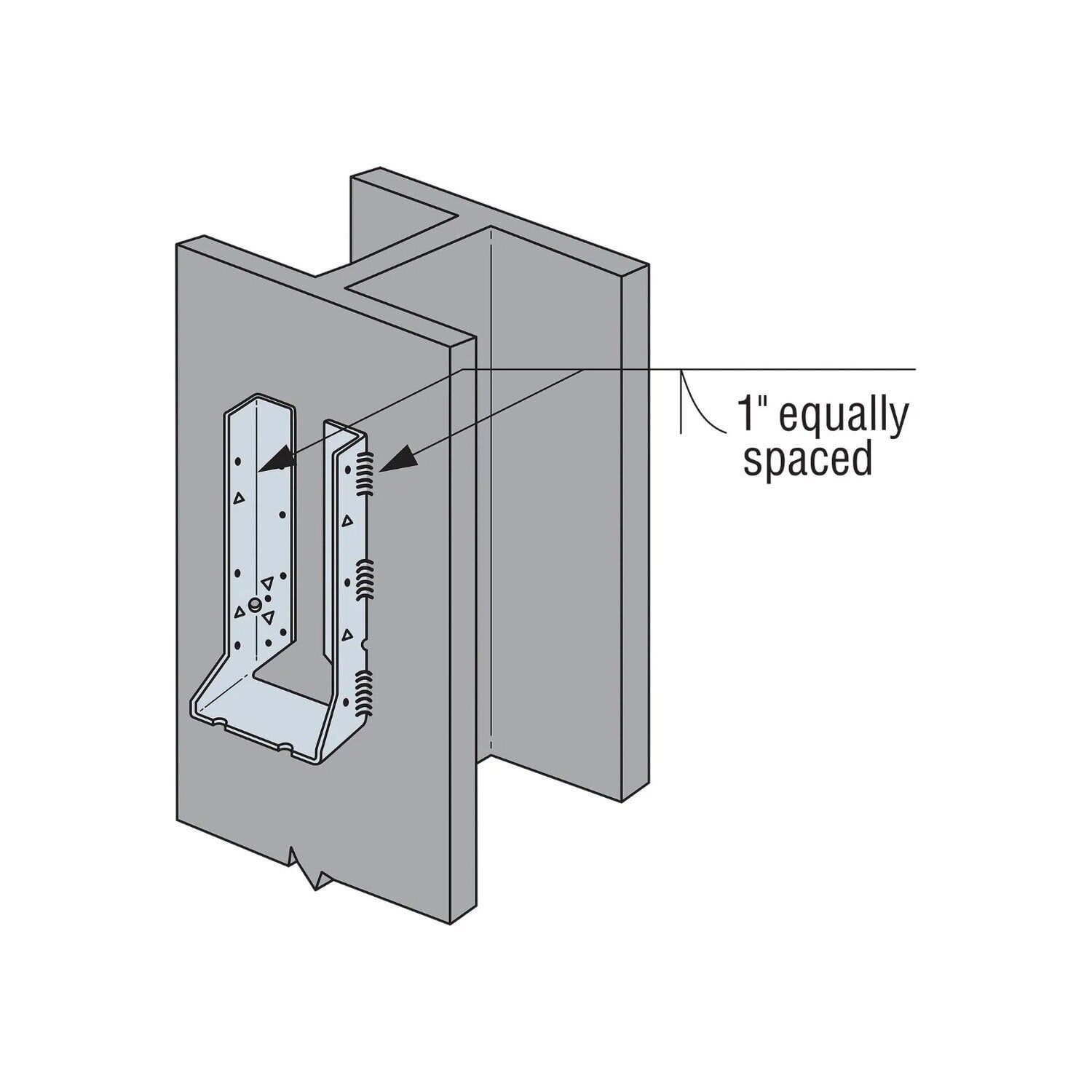

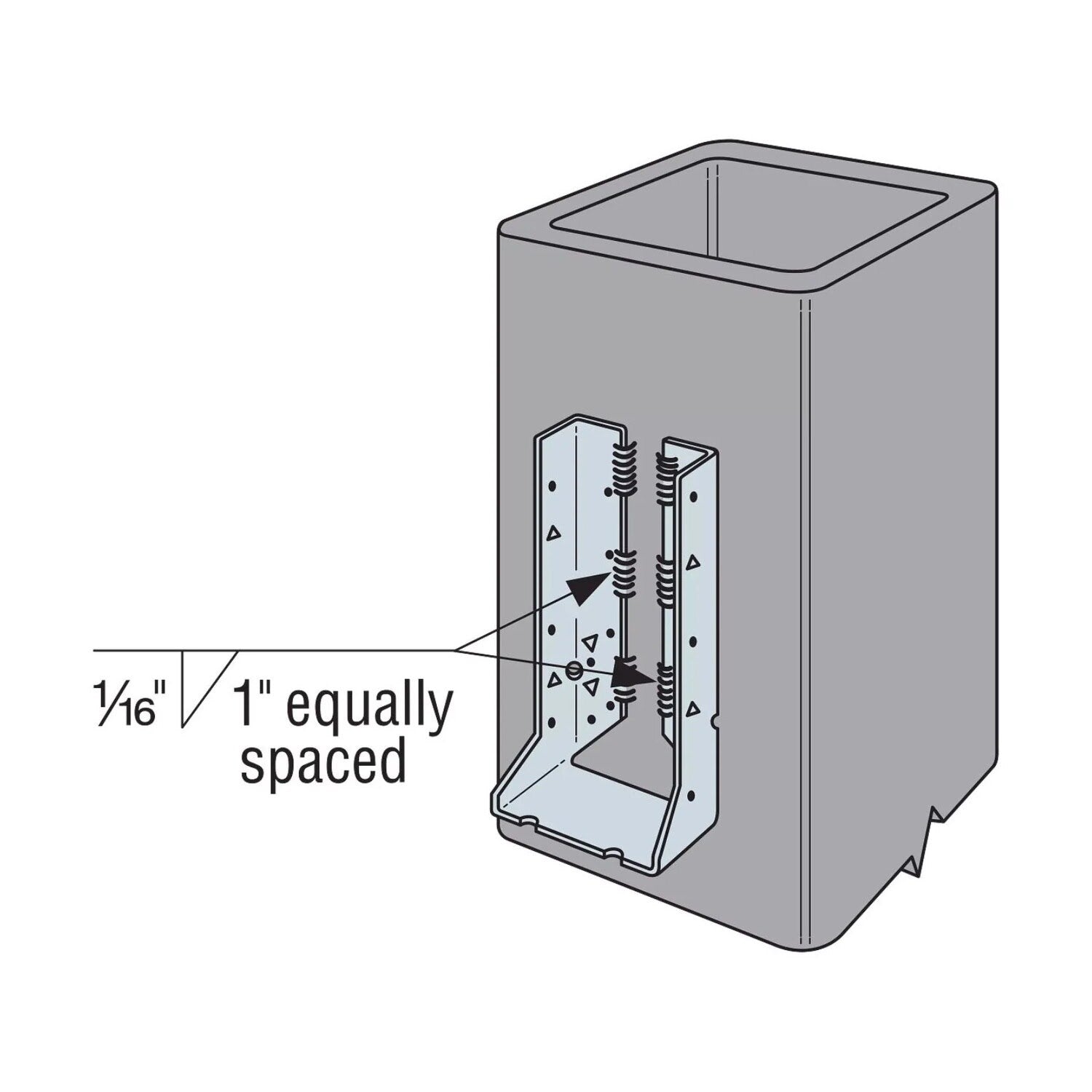

- Engineered wood and steel framing
- Retrofitting and renovation projects
Simpson Strong-Tie HUC616 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance
- Fill both round and triangle holes with common nails for maximum load capacity
Simpson Strong-Tie HUC616 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (26) 0.162" x 3-1/2" Nails, Joist - (12) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 13-3/8" |
| Joist size | 6" X 16" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 5-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
