Simpson Hangers | SKU:
HUC66
Simpson Strong-Tie HUC66 (6x6) 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$13.42
$19.94
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC66 Description

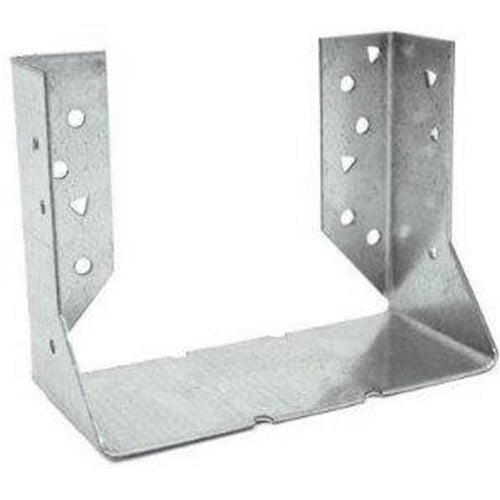

The HUC66 is a galvanized face-mount concealed-flange joist hanger designed for 6x6 joists, offering robust support and a clean aesthetic for structural projects.
Simpson Strong-Tie HUC66 Includes
- (1) HUC66 Joist Hanger
Simpson Strong-Tie HUC66 Features
- Concealed flange design for a seamless aesthetic
- Heavy-duty 12-gauge steel construction
- G90 galvanized finish for corrosion resistance
Simpson Strong-Tie HUC66 Applications
- Residential and commercial structural projects
- End-of-wall joist installations
- Corner joist connections
Simpson Strong-Tie HUC66 Installation Overview
- Use all specified fasteners according to manufacturer guidelines
- Ensure a minimum header or ledger size of 3 1/2 inches
- Do not modify for sloped or skewed seat applications
Simpson Strong-Tie HUC66 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (10) 0.162" x 3-1/2" Nails, Joist - (4) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 5-3/8" |
| Joist size | 6" X 6" |
| Thickness | 12 Gauge |
| Width | 5-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
