Simpson Hangers | SKU:
HUC66TF

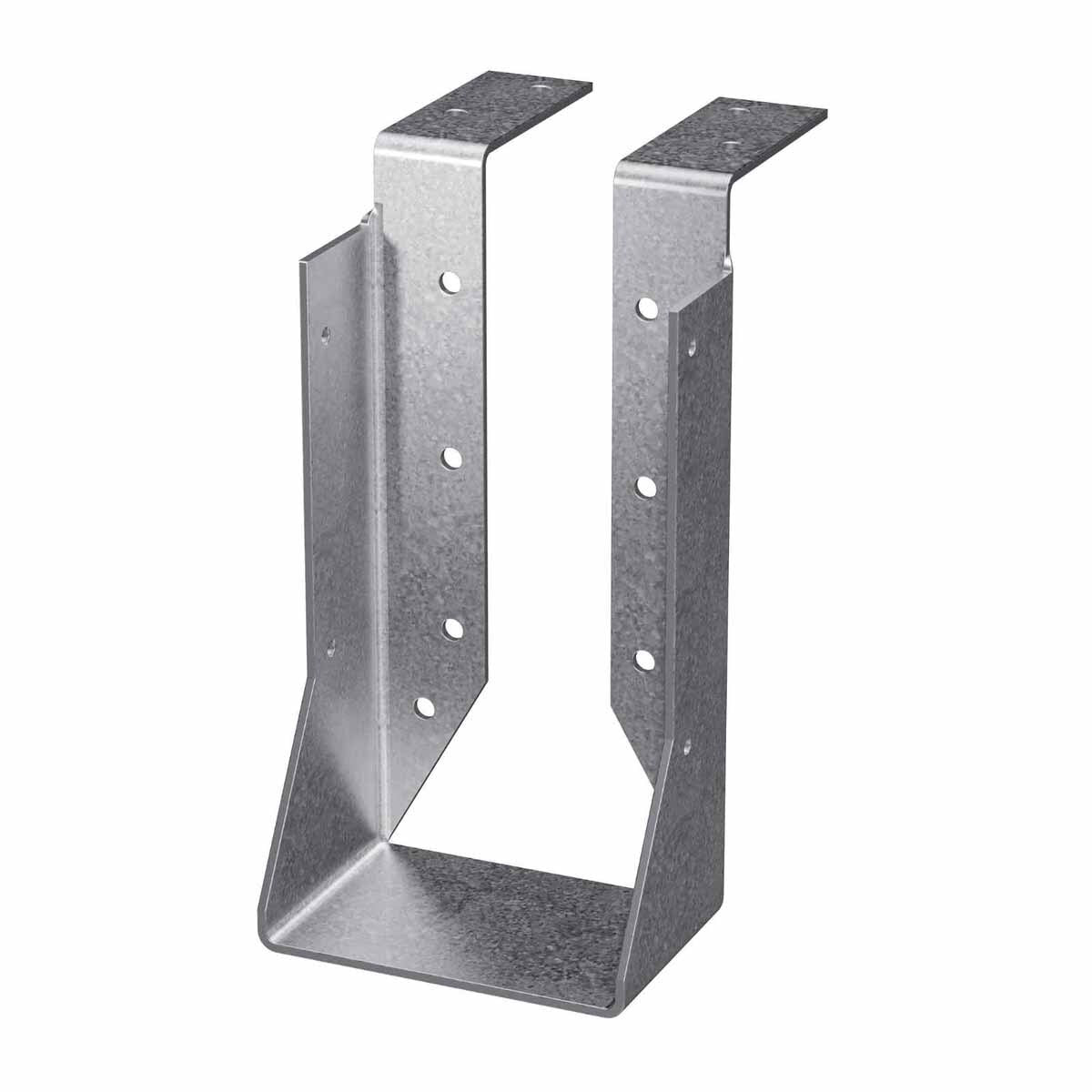

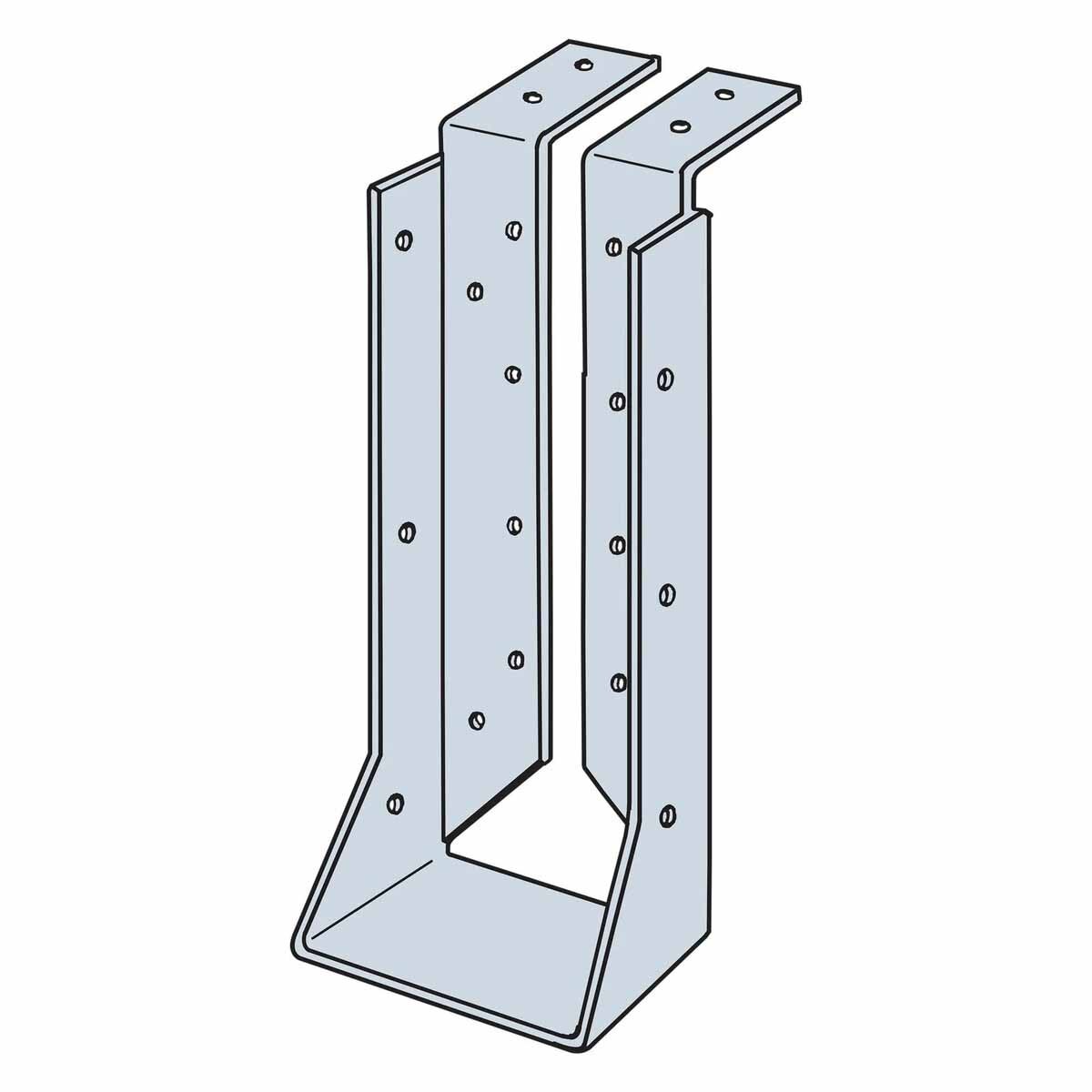

Simpson Strong-Tie HUC66TF (6x6) Heavy Top-Flange Hanger with Concealed Flanges
$34.44
$49.52
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC66TF Description
The HUC66TF Concealed Top Flange Face Mount Hanger is designed for securely attaching joists to beams or ledgers, providing enhanced structural integrity and a clean aesthetic.
Simpson Strong-Tie HUC66TF Includes
- (1) 6x6 Concealed Top Flange Face Mount Hanger
Simpson Strong-Tie HUC66TF Features
- Concealed Flange Design for seamless aesthetic
- Heavy-Duty Construction with 12-gauge steel
- G90 Galvanized Finish for corrosion resistance
- Engineered for strength and durability
- Tested, load rated, and code compliant
Simpson Strong-Tie HUC66TF Applications
- Residential and Commercial Use: Suitable for floors, ceilings, and roofs
- End-of-Wall Installations: Maintains strong concealed connections
- Corner Joist Connections: Ensures stability with a clean look
Simpson Strong-Tie HUC66TF Installation Overview
- Use all specified fasteners according to manufacturer guidelines
- Minimum recommended header or ledger size is 3 1/2 inches
- Cannot be modified for sloped or skewed seat applications
Simpson Strong-Tie HUC66TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (10) 0.162" x 3-1/2" Nails, Joist - (4) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 5-3/8" |
| Joist size | 6" X 6" |
| Thickness | 12 Gauge |
| Width | 5-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
