Simpson Hangers | SKU:
HUC68TF

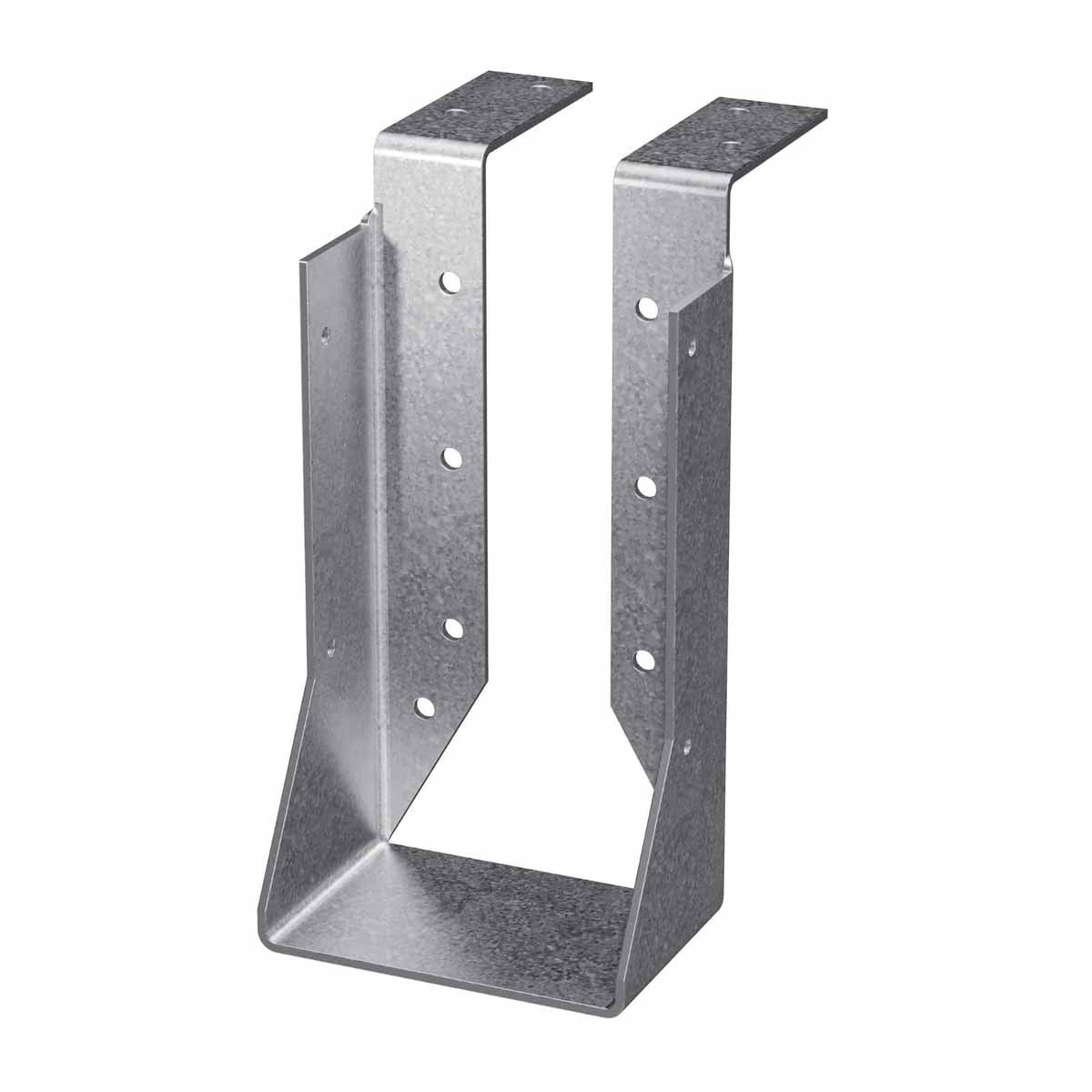

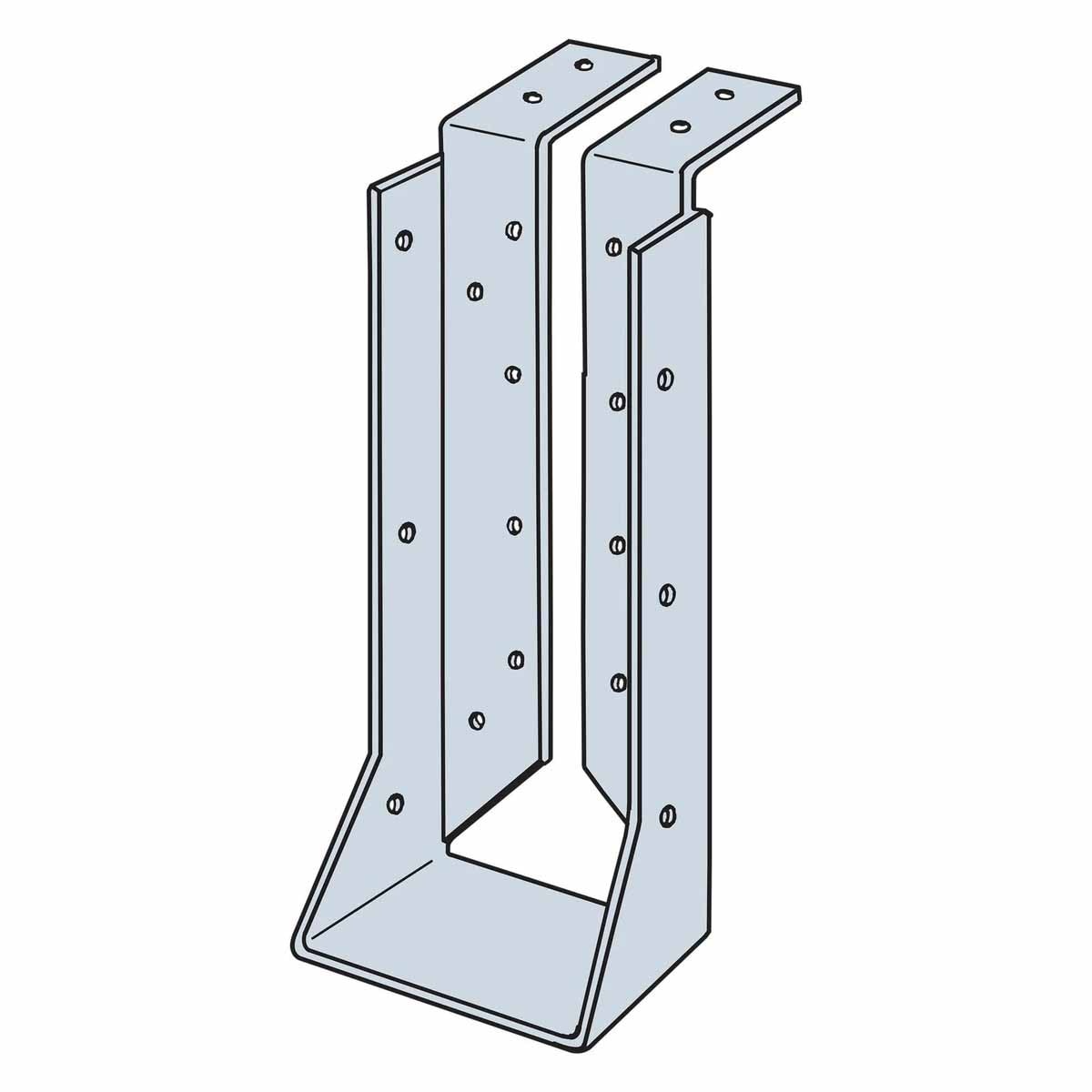

Simpson Strong-Tie HUC68TF (6x8) Heavy Top-Flange Hanger with Concealed Flanges
$37.73
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC68TF Description
The HUC68TF Concealed Top Flange Face Mount Hanger is designed for securely attaching joists to beams or ledgers, providing strength and durability for structural projects.
Simpson Strong-Tie HUC68TF Includes
- (1) Concealed Top Flange Face Mount Hanger
Simpson Strong-Tie HUC68TF Features
- Concealed Flange Design for clean aesthetics
- Heavy-Duty Construction with 12-gauge steel
- G90 Galvanized Finish for corrosion resistance
- Engineered for strength and durability
- Suitable for interior and exterior applications
Simpson Strong-Tie HUC68TF Applications
- Residential and Commercial Use: Suitable for structural projects including floors, ceilings, and roofs.
- End-of-Wall Installations: Designed for joists terminating at the end of a wall.
- Corner Joist Connections: Ensures structural stability in corner placements.
Simpson Strong-Tie HUC68TF Installation Overview
- Use all specified fasteners according to manufacturer guidelines.
- Minimum recommended header or ledger size is 3 1/2 inches.
- Cannot be modified for sloped or skewed seat applications.
Simpson Strong-Tie HUC68TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (4) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 7-1/8" |
| Joist size | 6" X 8" |
| Thickness | 12 Gauge |
| Width | 5-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
