Simpson Hangers | SKU:
HUC68Z
Simpson Strong-Tie HUC68Z (6" x 8") Face-Mount Concealed-Flange Joist Hanger
$30.17
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC68Z Description

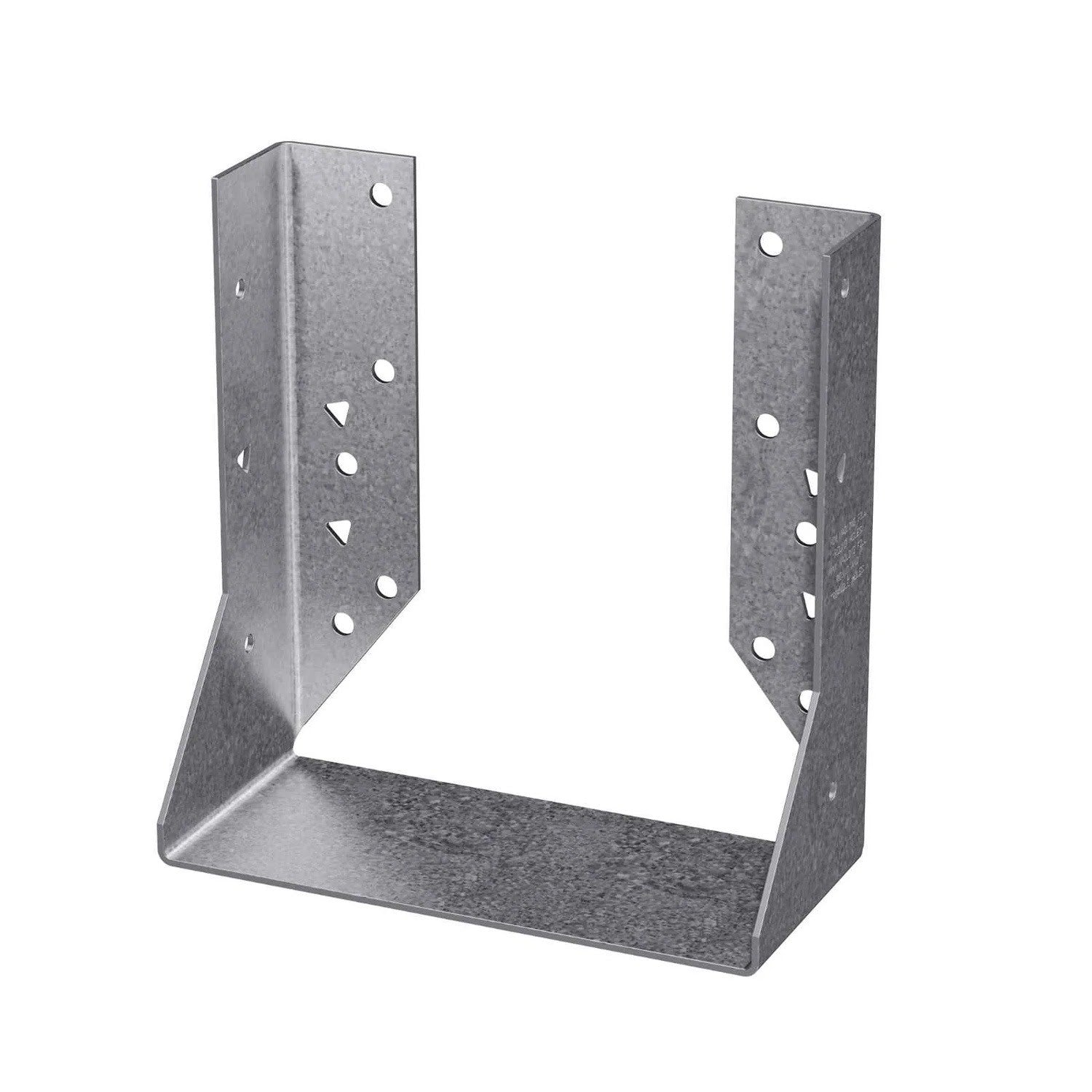

The Simpson Strong-Tie HUC68Z is a concealed flange heavy face mount hanger designed for 6x8 joists, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie HUC68Z Includes
- (1) Concealed Flange Heavy Face Mount Hanger
Simpson Strong-Tie HUC68Z Features
- Concealed flange design for a clean appearance
- ZMAX galvanized finish for corrosion resistance
- Compatible with 6x8 joists
- Heavy-duty construction for structural applications
- Supports joists sloped up to 1/4:12
Simpson Strong-Tie HUC68Z Applications
- Structural framing requiring concealed flange hangers
- Use in schools and other structures needing additional strength
- Joist connections for 6x8 dimensions

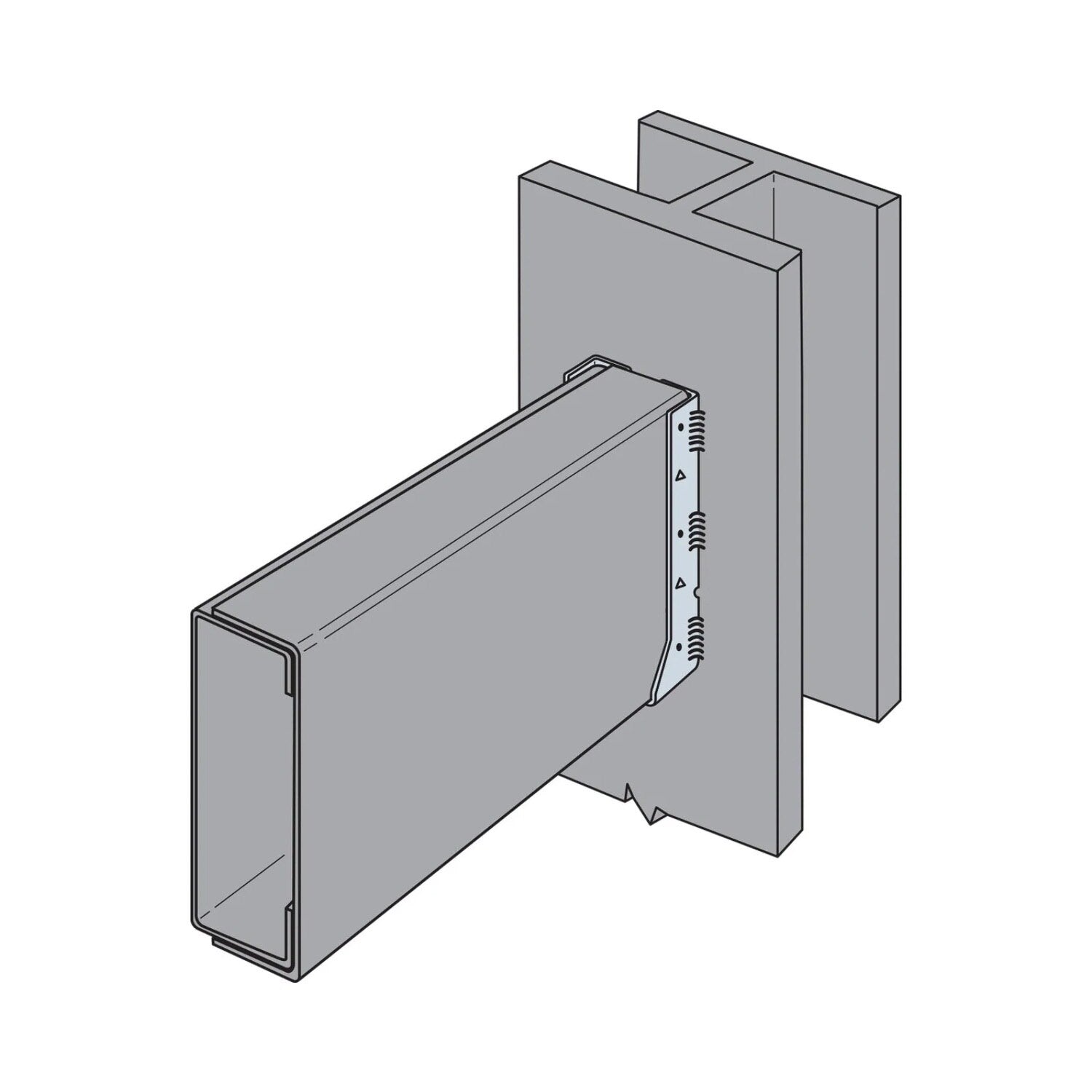

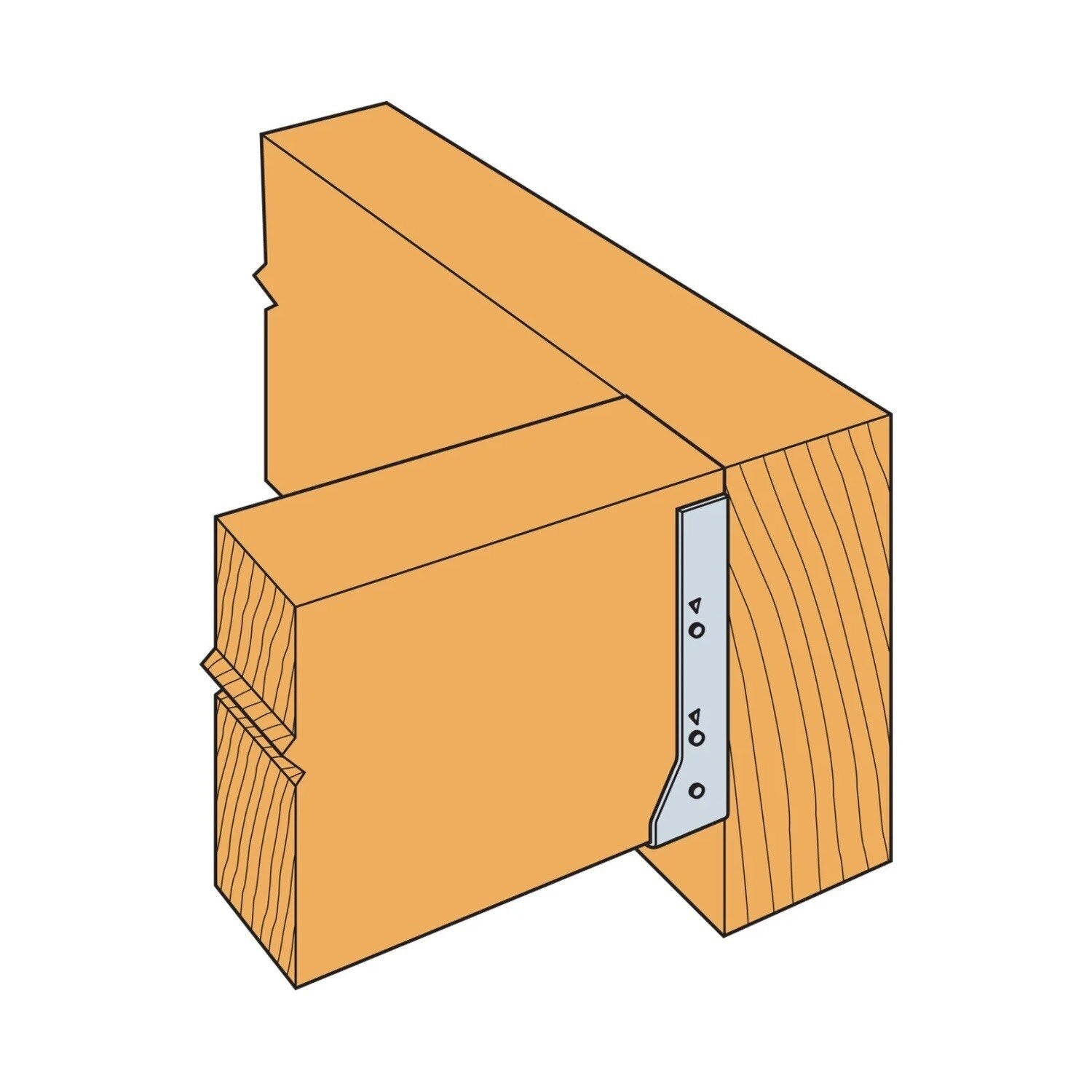

Simpson Strong-Tie HUC68Z Installation Overview
- Use all specified fasteners for installation
- Fill round and triangle holes for maximum load values
- Compatible with joists sloped up to 1/4:12

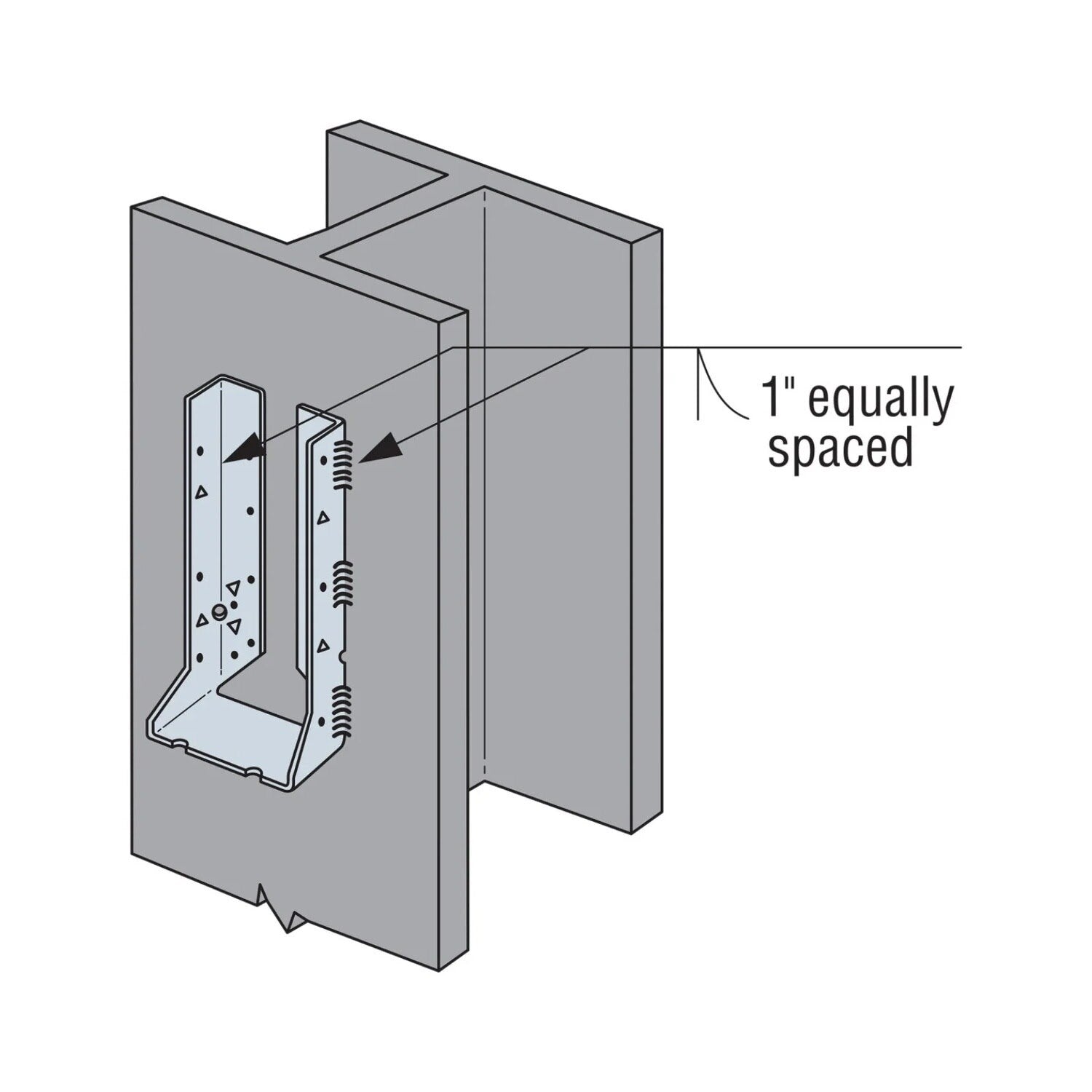

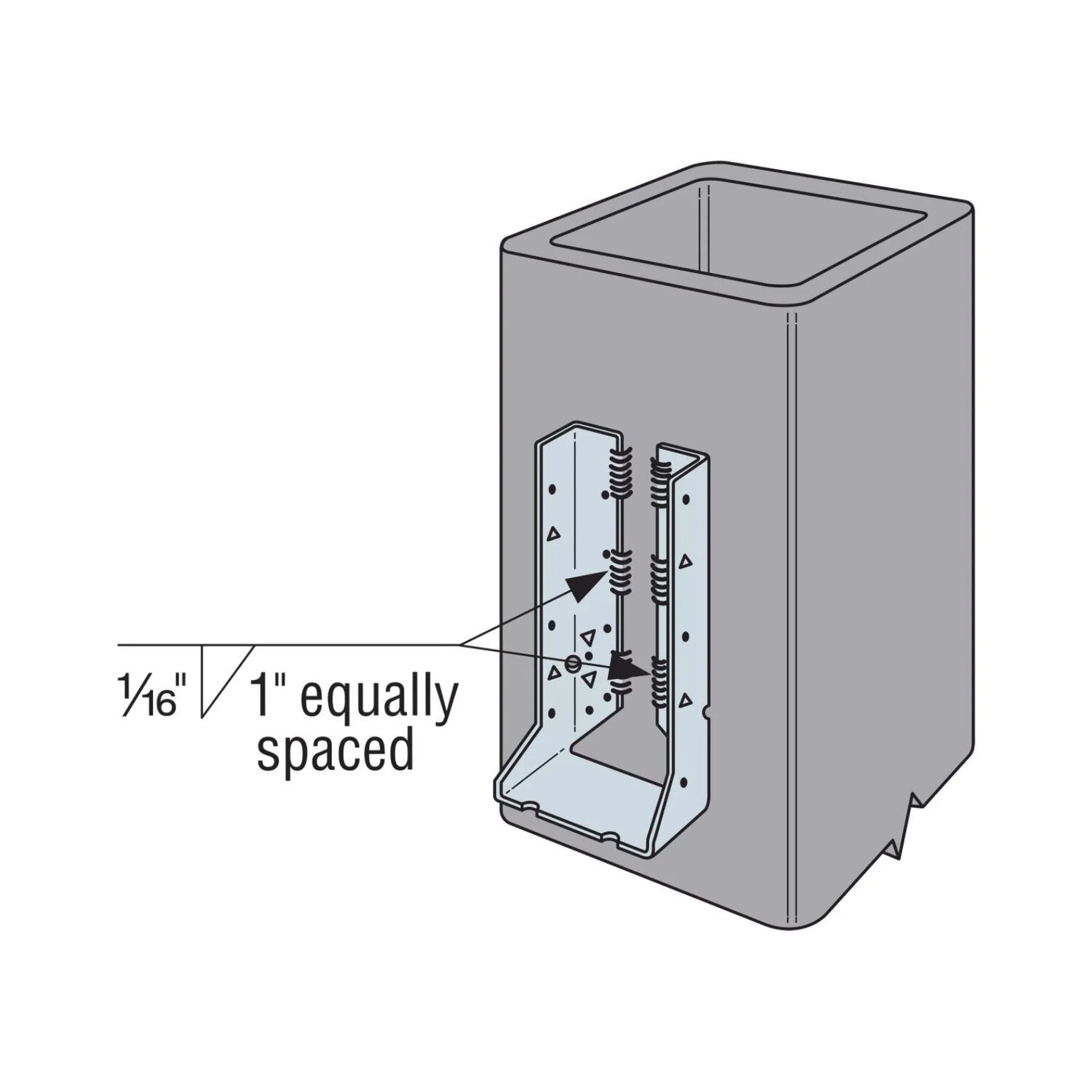

- Can be welded to steel members following technical guidelines
Simpson Strong-Tie HUC68Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 5-13/16" |
| Joist size | 6" X 8" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 5-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
