Simpson Hangers | SKU:
HUC88
Simpson Strong-Tie HUC88 (8x8) 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$29.13
Unit price
/
Unavailable
Description
Description

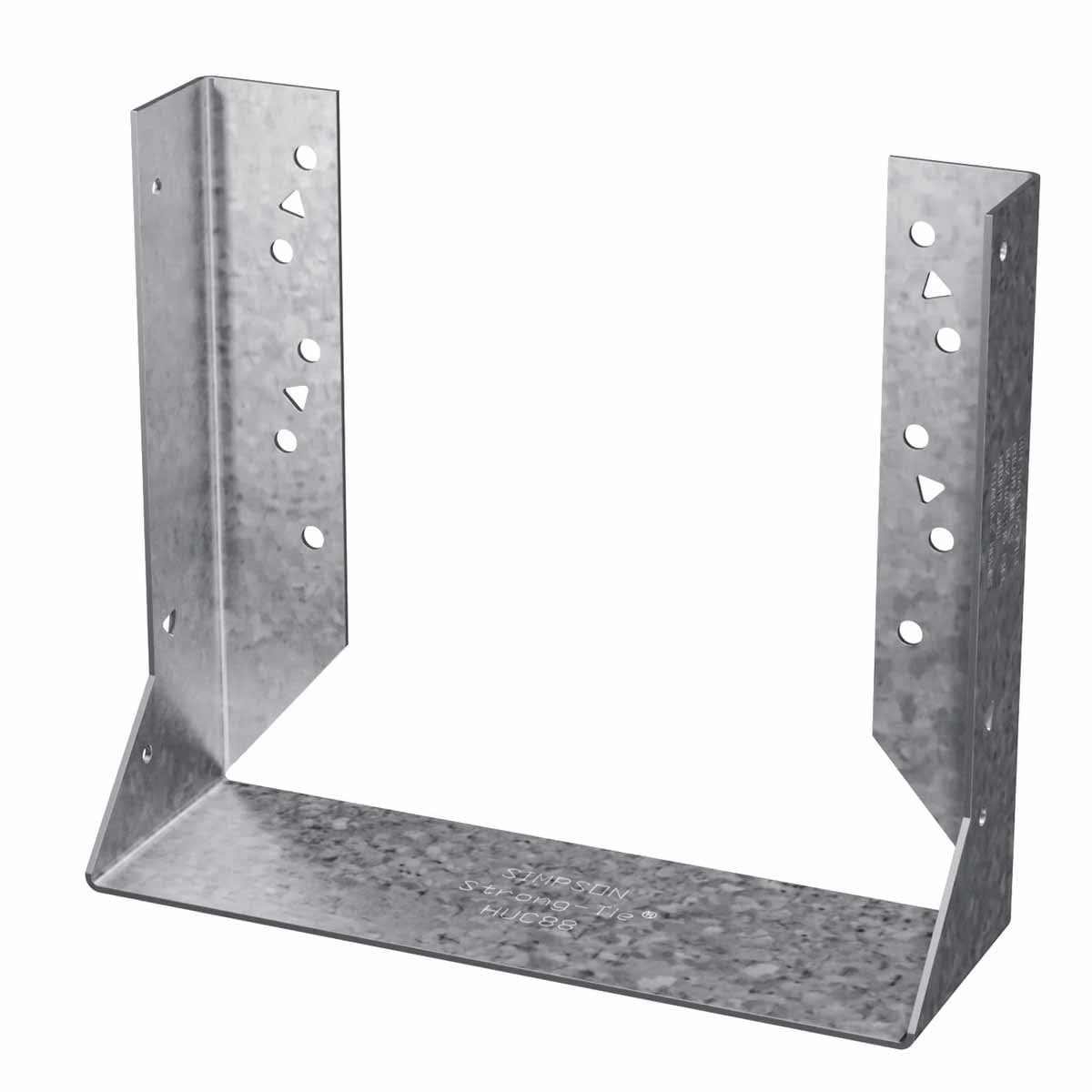

Simpson Strong-Tie HUC88 Description
The Simpson Strong-Tie HUC88 is a heavy-duty concealed flange face mount hanger designed for 8x8 joists. It features a G90 galvanized finish for durability and is suitable for applications requiring additional strength and safety.
Simpson Strong-Tie HUC88 Includes
- (1) HUC88 Concealed Flange Face Mount Hanger
Simpson Strong-Tie HUC88 Features
- Heavy-duty construction for enhanced strength
- Concealed flange design for a clean look
- G90 galvanized finish for corrosion resistance
- Compatible with 8x8 joists
- Tested and code compliant
Simpson Strong-Tie HUC88 Applications
- Structural framing for schools and other buildings

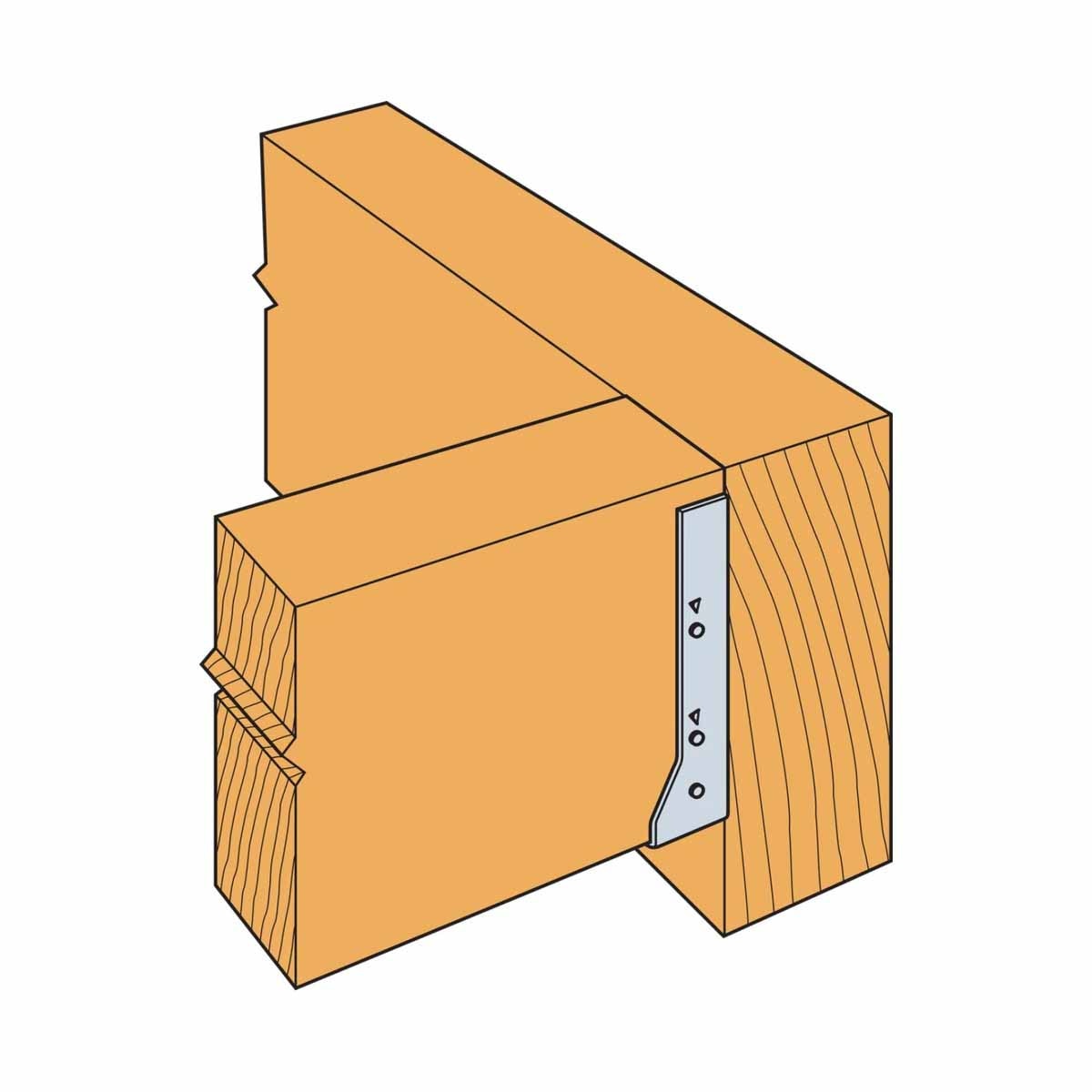

- Wood-to-wood connections requiring concealed flange hangers
- Projects needing high load capacity and durability

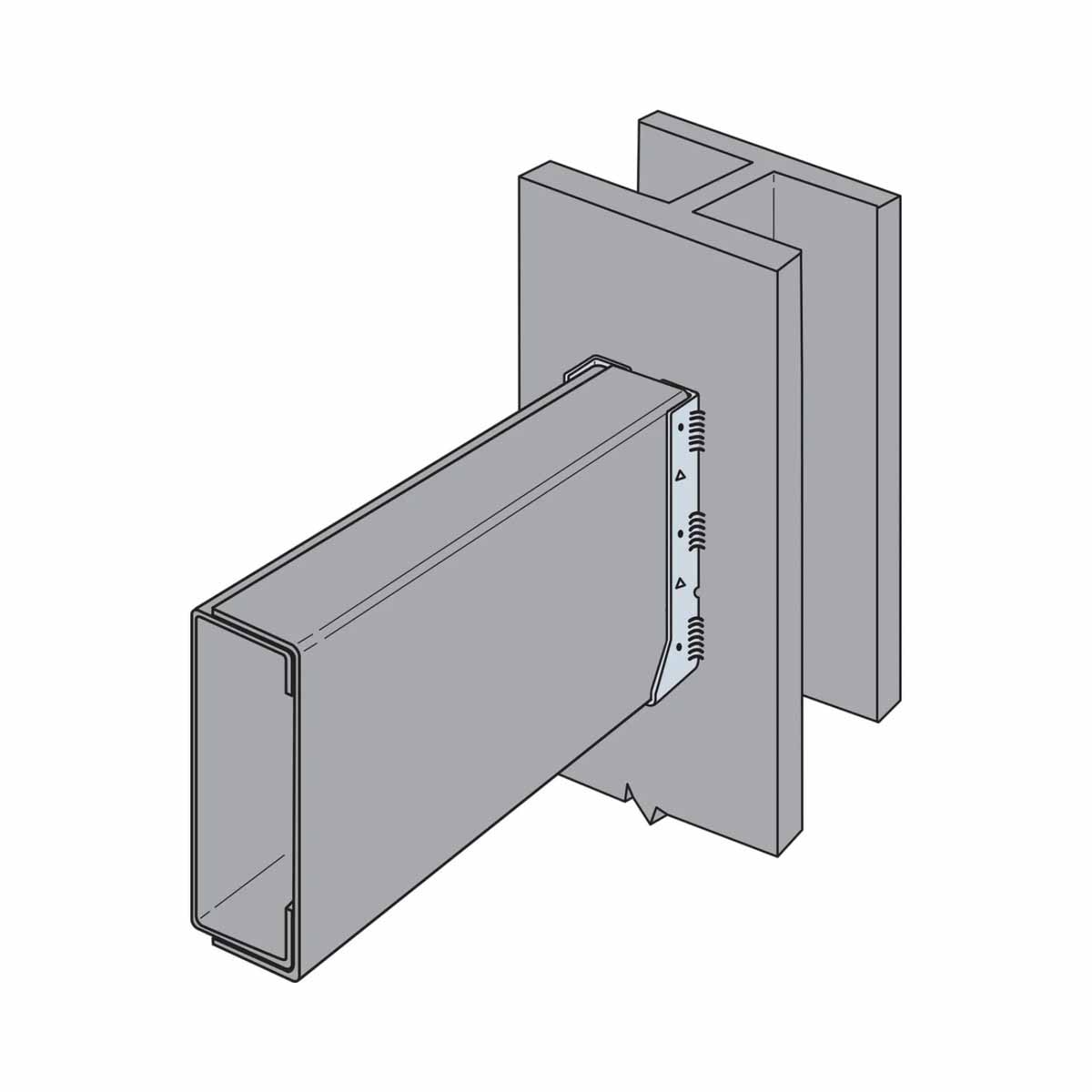

Simpson Strong-Tie HUC88 Installation Overview
- Use all specified fasteners as per guidelines
- Install by filling round and triangle holes for maximum load
- Compatible with joists sloped up to 1/4:12

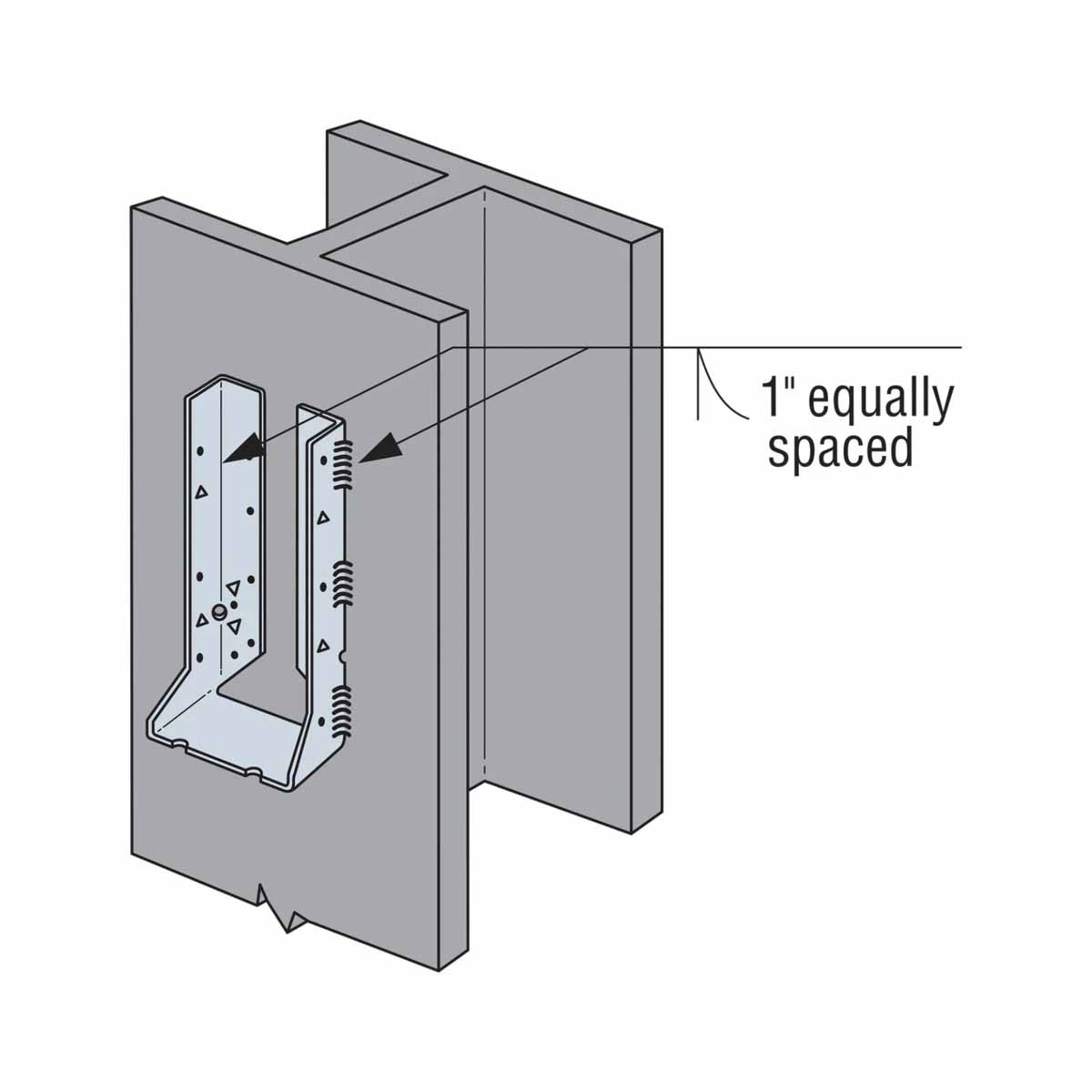

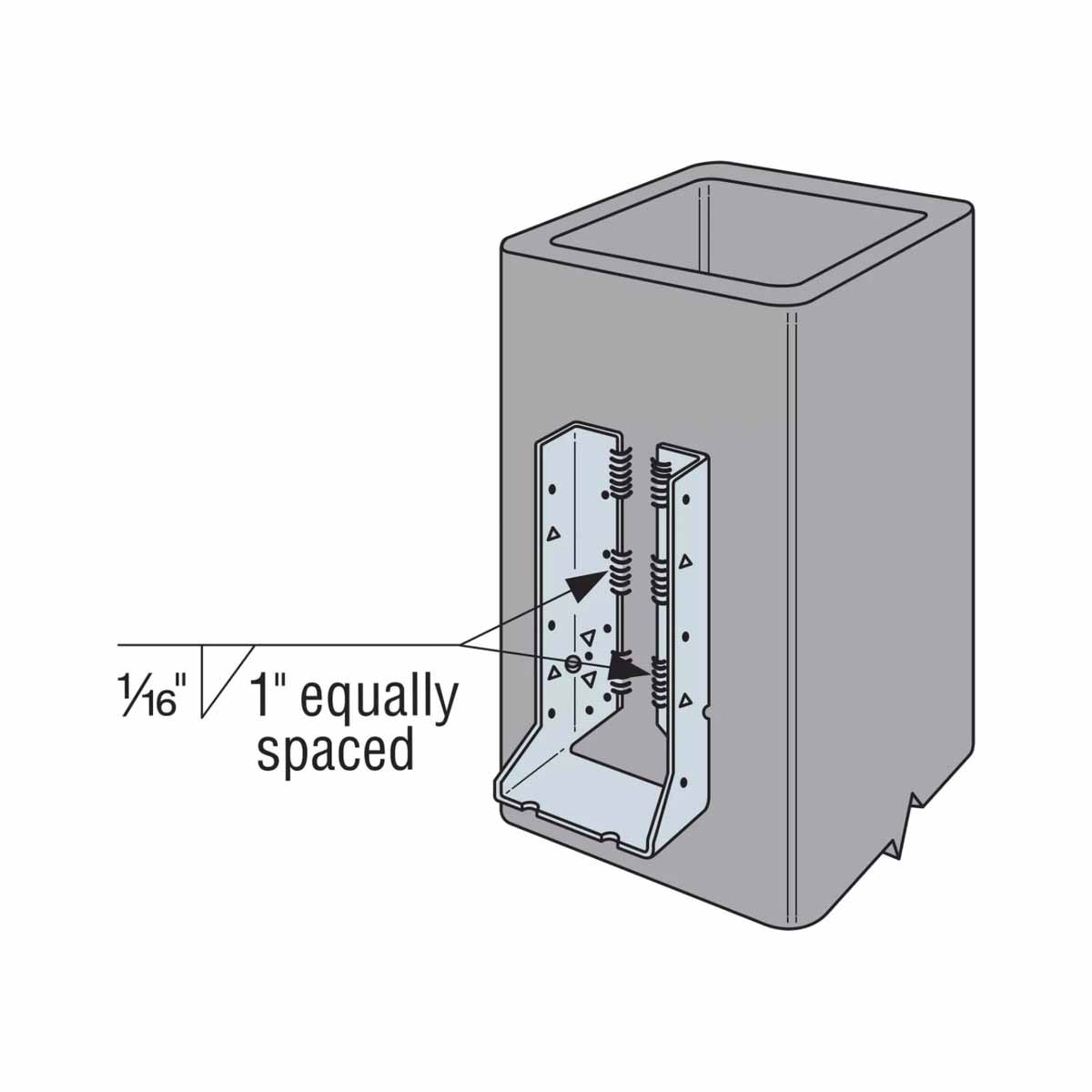

- Can be welded to steel members following technical guidelines
- Ensure proper alignment and secure fastening
Simpson Strong-Tie HUC88 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 7-1/2" |
| Height | 6-5/8" |
| Joist size | 8" X 8" |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
