Simpson Hangers | SKU:
HUCQ210-2Z-SDS
Simpson Strong-Tie HUCQ210-2Z-SDS (Double 2x10) Heavy Concealed Flange Face-Mount Joist Hanger with SDS Screws - Zmax Finish
$74.37
Unit price
/
Unavailable
Description
Description

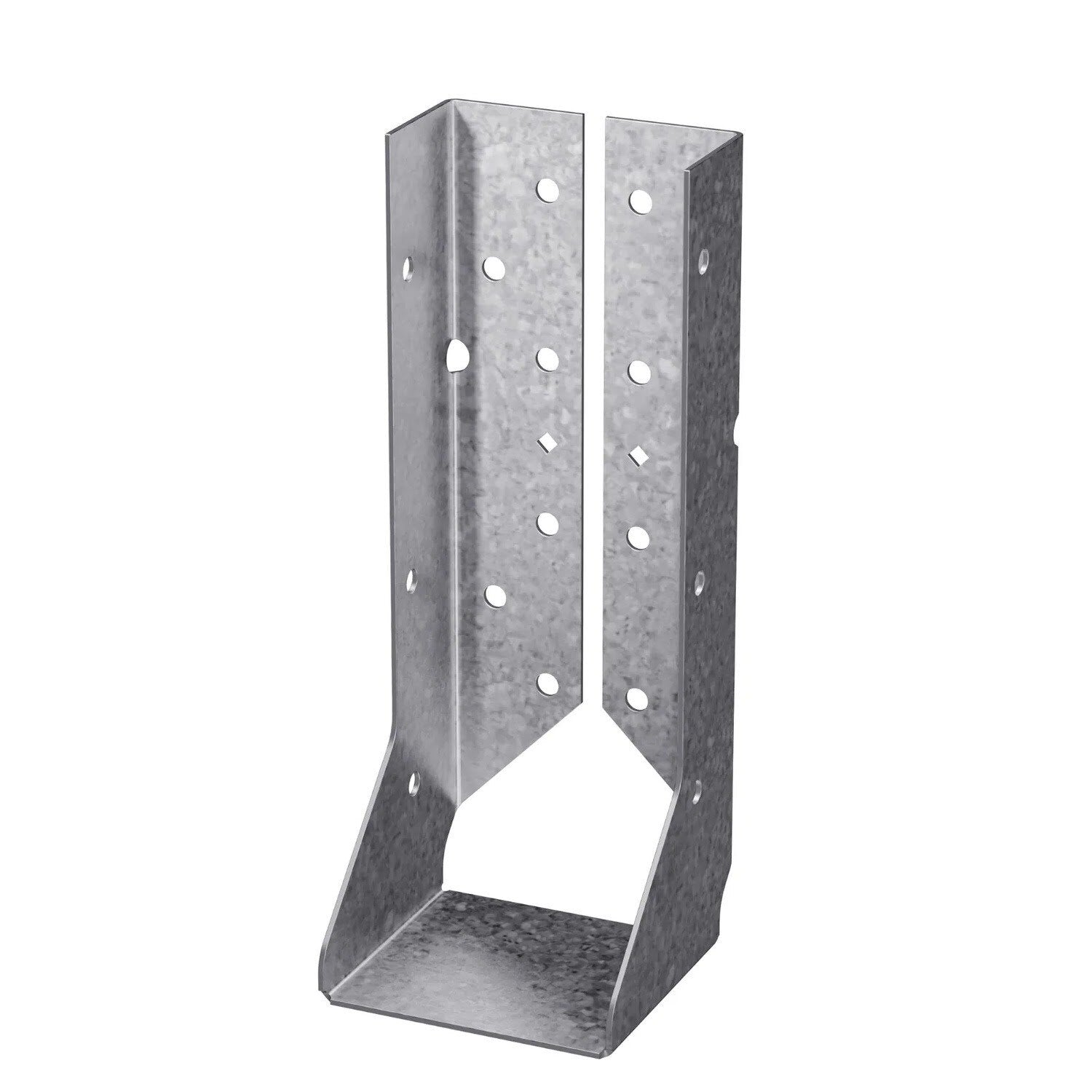

Simpson Strong-Tie HUCQ210-2Z-SDS Description
The Simpson Strong-Tie HUCQ series offers heavy-duty, concealed-flange face-mount joist hangers designed for superior structural support in wood-framed constructions.
Simpson Strong-Tie HUCQ210-2Z-SDS Includes
- (1) Double 2x10 Concealed Flange Heavy Hanger
- (1) Set of SDS Heavy-Duty Connector Screws
Simpson Strong-Tie HUCQ210-2Z-SDS Features
- Concealed Flanges for clean appearance
- ZMAX Galvanized Coating for corrosion resistance
- Includes Strong-Drive SDS Heavy-Duty Connector Screws
- Designed for superior structural support
Simpson Strong-Tie HUCQ210-2Z-SDS Applications
- Decks and outdoor structures
- Residential and commercial framing
- Treated lumber applications
- Exposed timber and architectural framing
- Masonry and concrete connections
Simpson Strong-Tie HUCQ210-2Z-SDS Installation Overview
- Utilize the provided SDS screws for optimal performance
- No predrilling required for installation
- Ensure correct positioning of fasteners for load values
Simpson Strong-Tie HUCQ210-2Z-SDS Specifications
| Finish | Zmax Finish |
| Material | Carbon Steel |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | Yes |
| Height | 9" |
| Joist size | Double 2" X 10" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
