Simpson Hangers | SKU:
HUCQ210-3Z-SDS
Simpson Strong-Tie HUCQ210-3Z-SDS (Triple 2" x 10") Heavy Concealed Flange Face-Mount Joist Hanger with SDS Screws
$80.19
Unit price
/
Unavailable
Description
Description
Simpson HUCQ210-3Z-SDS Description

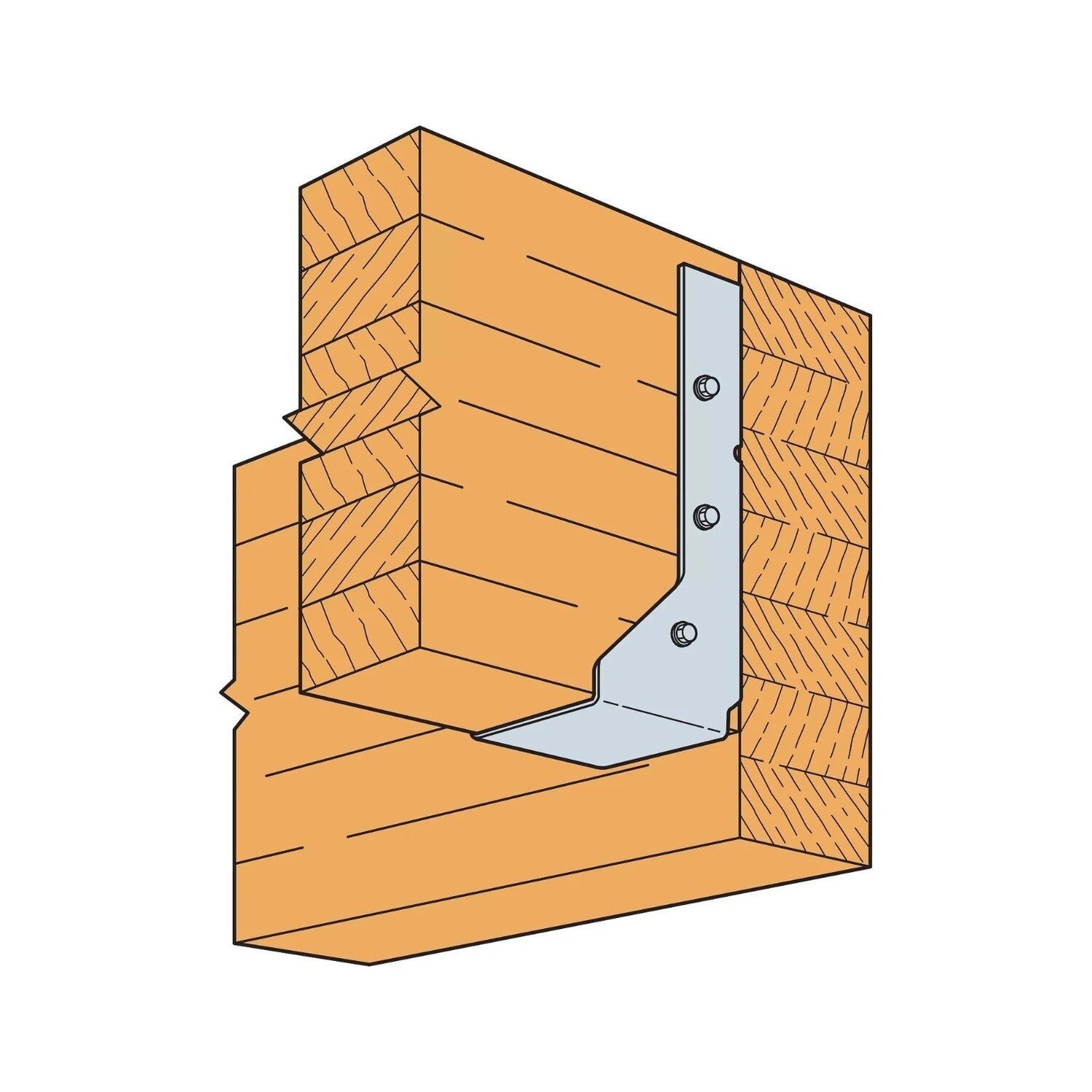

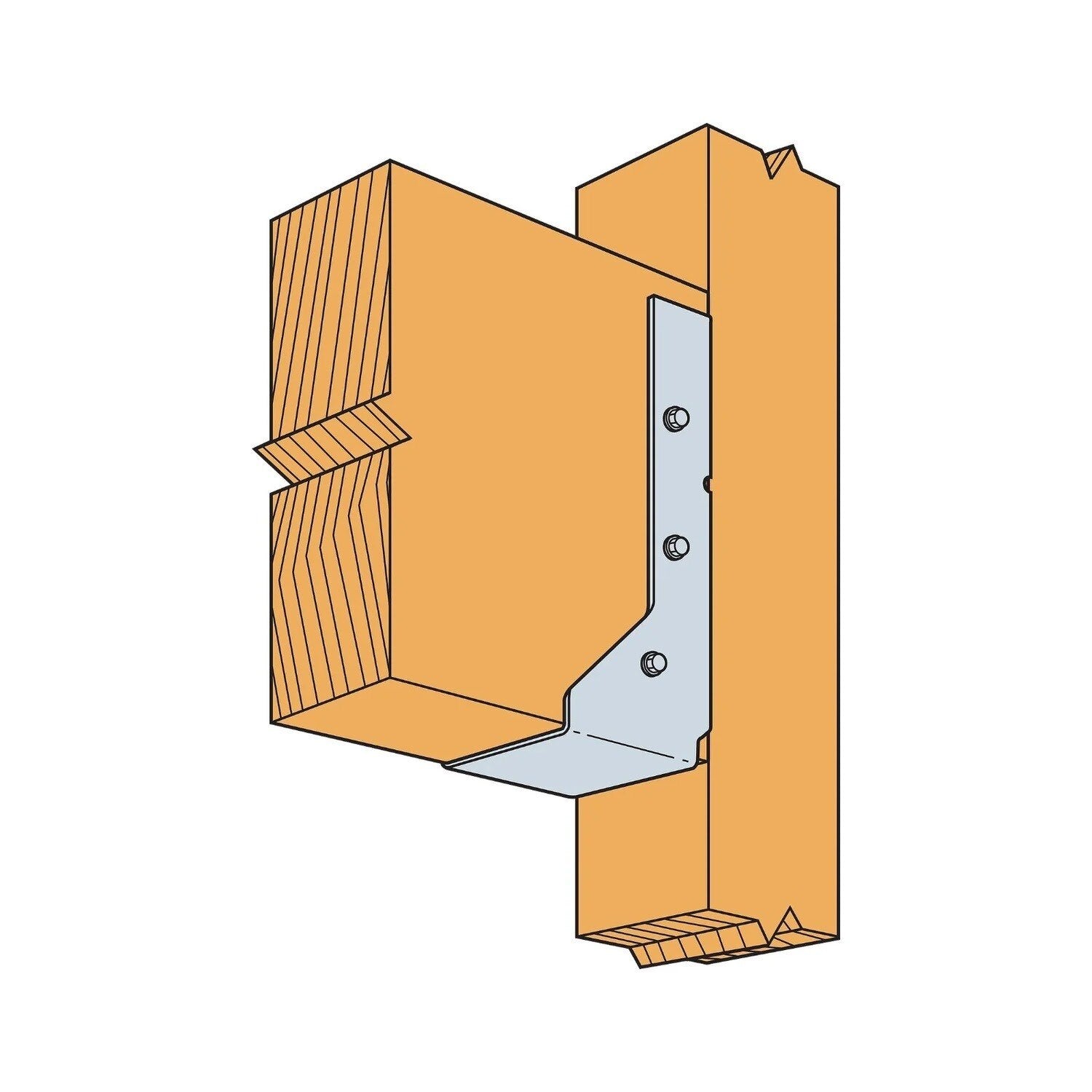

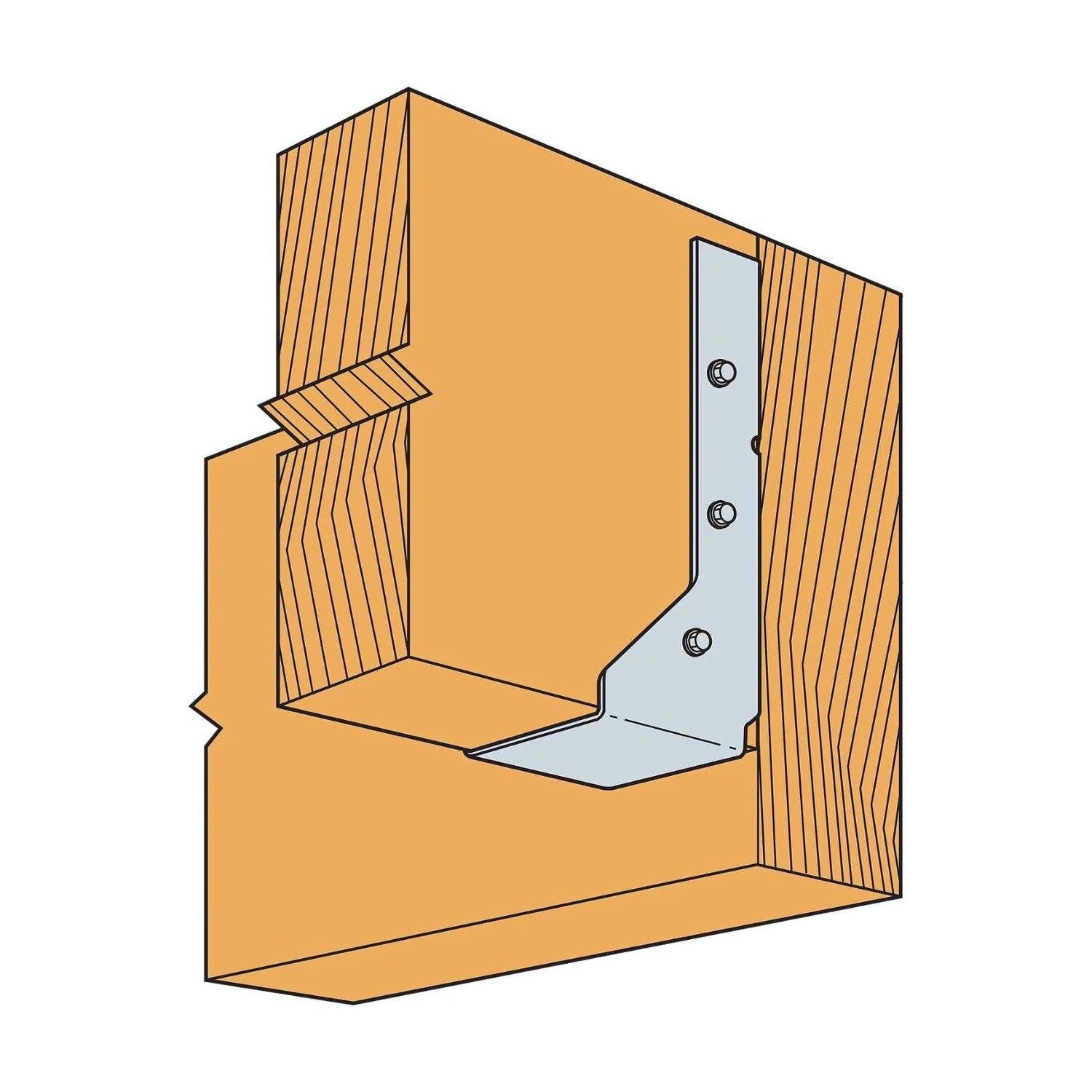

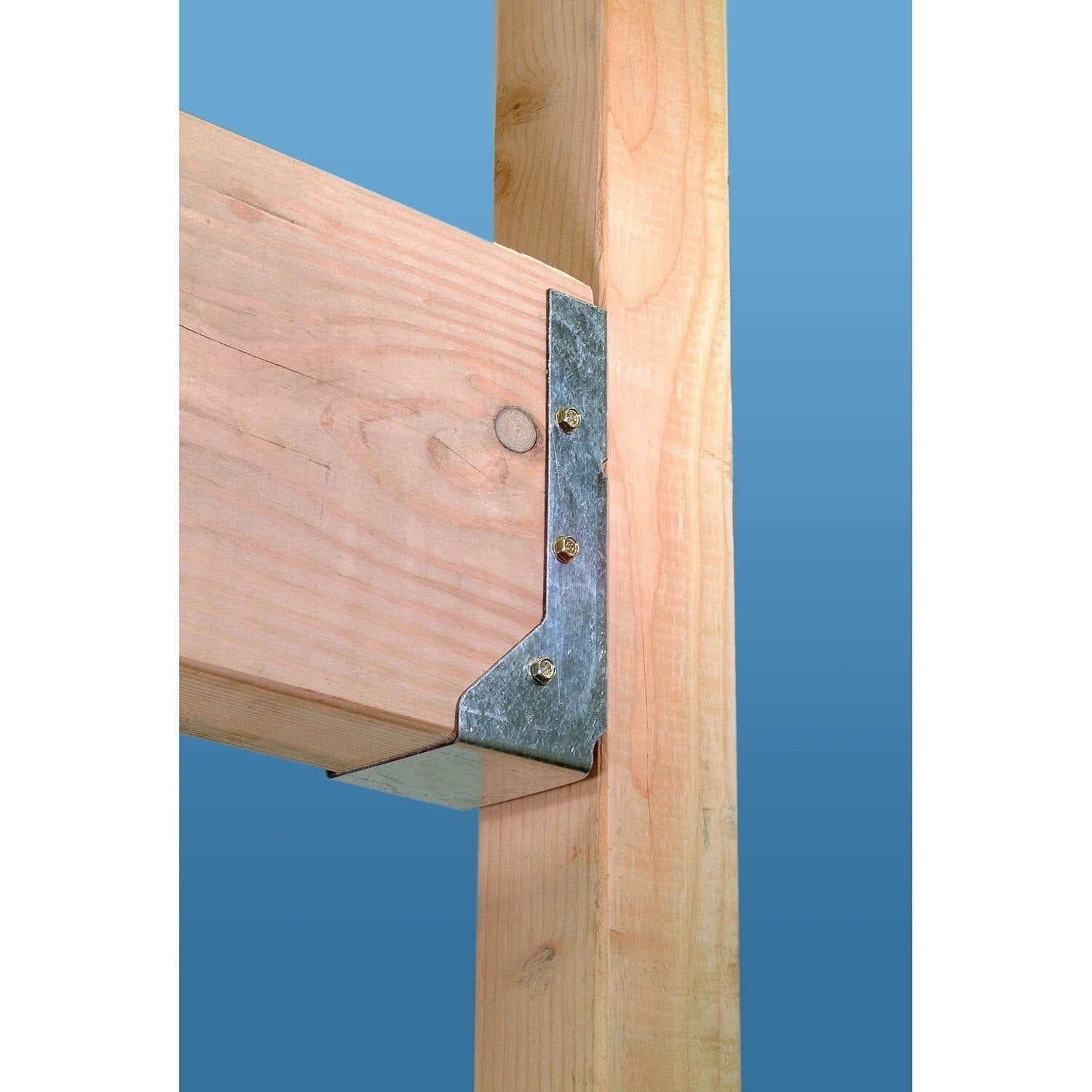

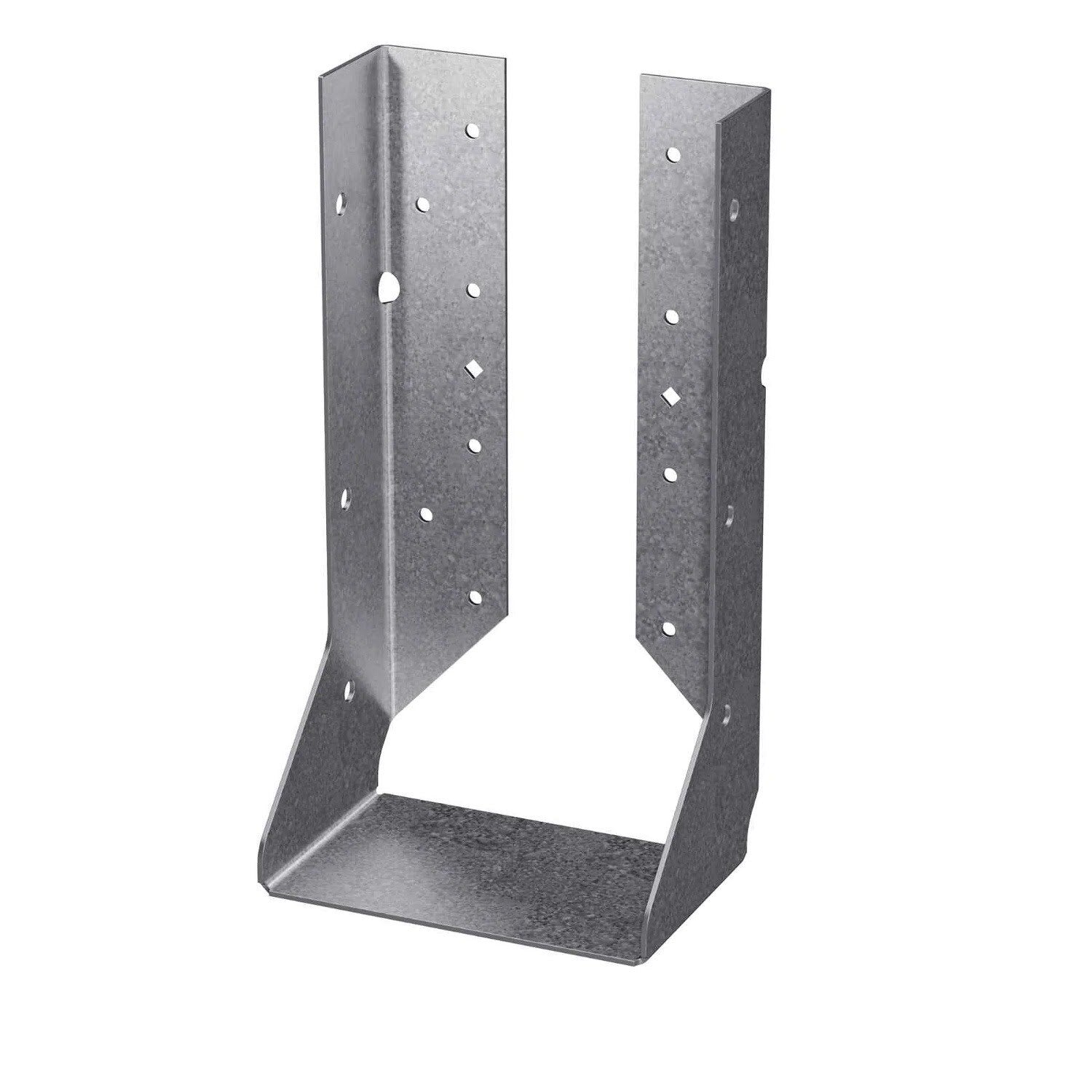

The Simpson HUCQ210-3Z-SDS is a heavy-duty concealed flange hanger designed for triple 2x10 joists, featuring a ZMAX finish for enhanced corrosion resistance.
Simpson HUCQ210-3Z-SDS Includes
- (1) Triple 2x10 Concealed Flange Heavy Hanger
- (1) Set of SDS Heavy-Duty Connector Screws
Simpson HUCQ210-3Z-SDS Features
- Concealed flange design for clean appearance
- ZMAX galvanized coating for corrosion resistance
- Includes SDS Heavy-Duty Connector Screws for easy installation
Simpson HUCQ210-3Z-SDS Applications
- Decks and outdoor structures
- Residential and commercial framing
- Treated lumber applications

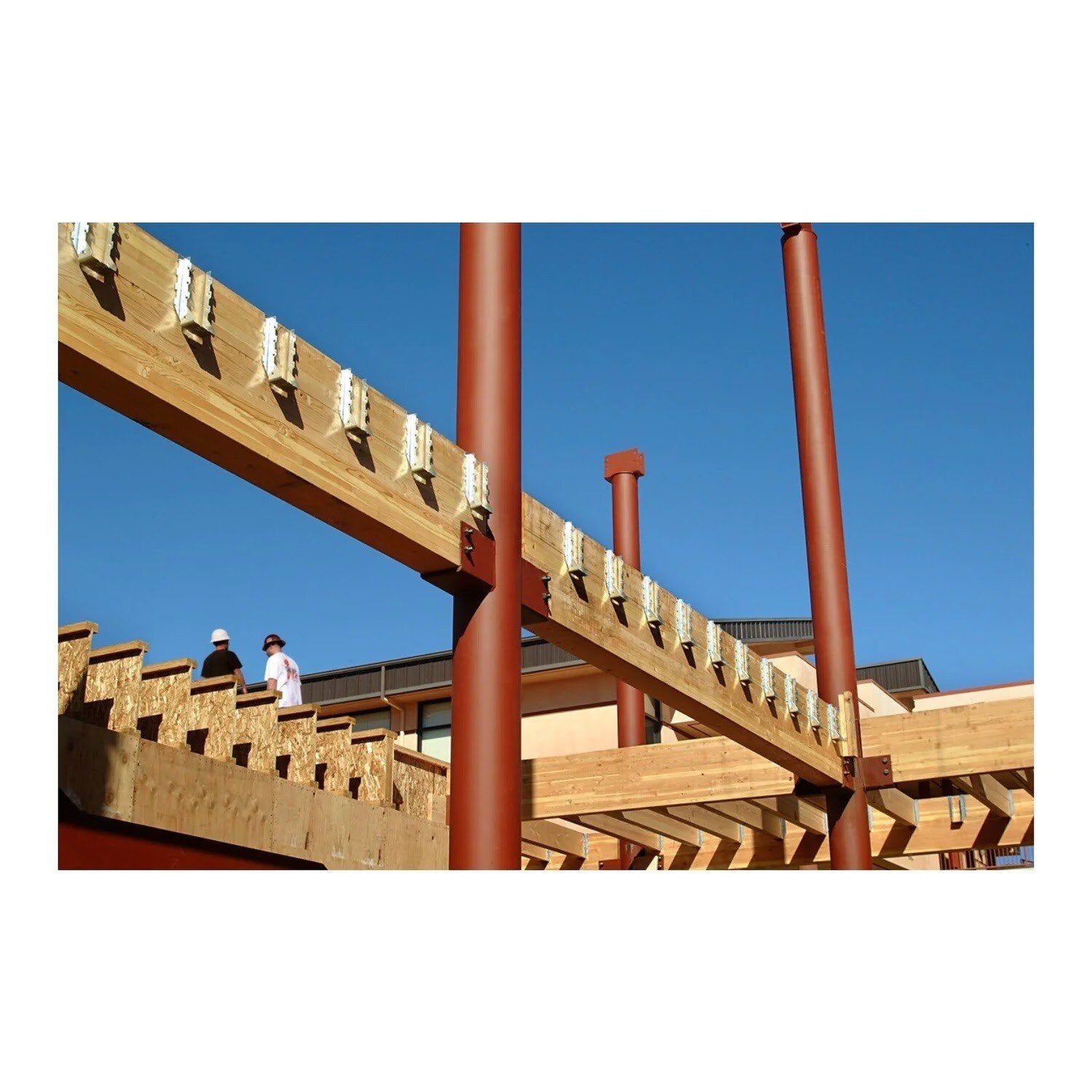

- Exposed timber and architectural framing
- Masonry and concrete connections
Simpson HUCQ210-3Z-SDS Installation Overview
- Use provided SDS screws for optimal performance
- No predrilling required for installation
- Ensure correct positioning of fasteners for load values
Simpson HUCQ210-3Z-SDS Specifications
| Finish | Zmax Finish |
| Material | Carbon Steel |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | Yes |
| Height | 9" |
| Joist size | Triple 2" X 10" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
