Simpson Hangers | SKU:
HUCQ412Z-SDSG
Simpson Strong-Tie HUCQ412Z-SDSG (4x12) Heavy Concealed Flange Face-Mount Joist Hanger with SDS Screws - ZMAX
$85.85
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUCQ412Z-SDSG Description

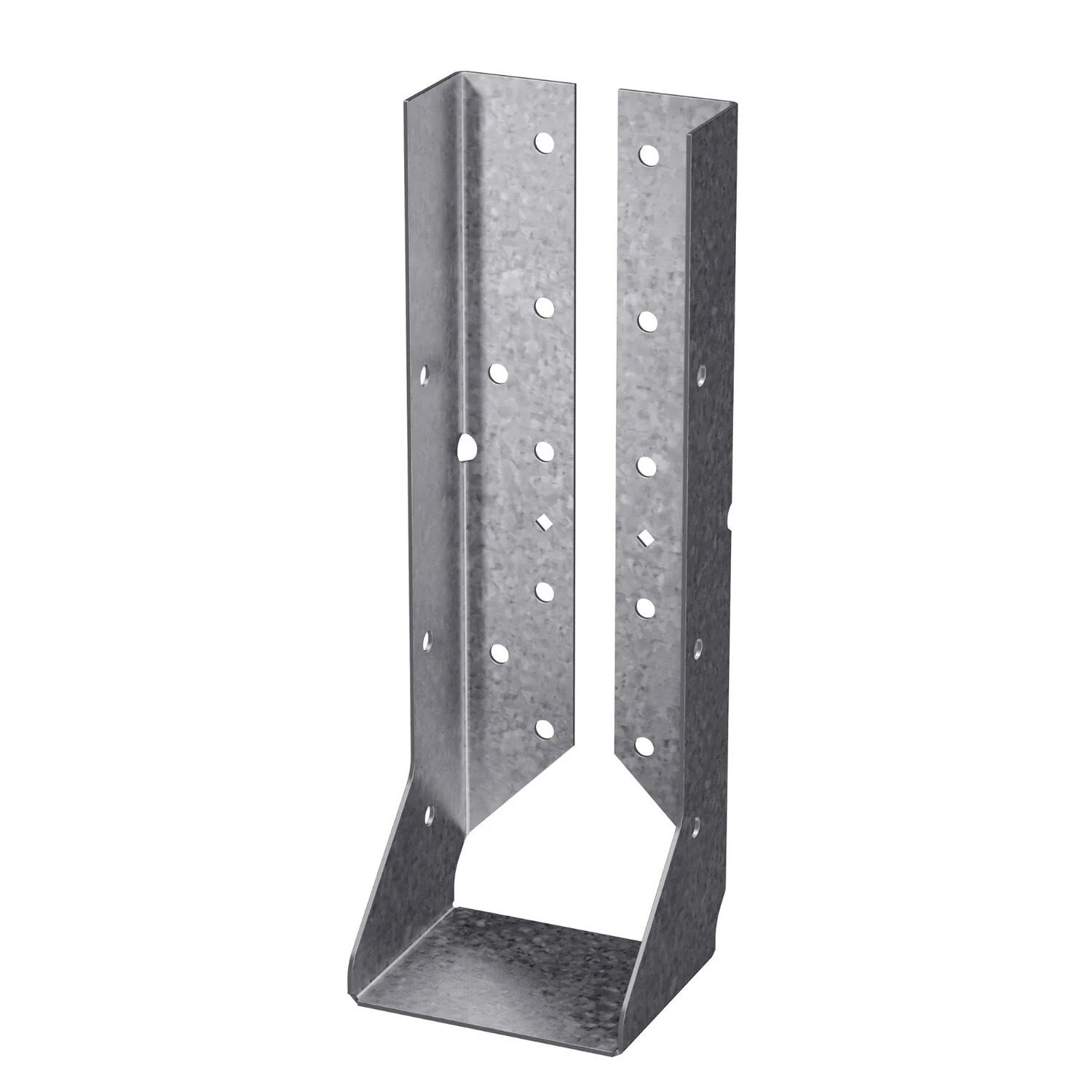

The Simpson Strong-Tie HUCQ412Z-SDSG is a heavy-duty concealed-flange face-mount joist hanger designed for superior structural support in wood-framed constructions. Featuring a ZMAX galvanized coating, it provides enhanced corrosion resistance for both indoor and outdoor applications.
Simpson Strong-Tie HUCQ412Z-SDSG Includes
- (1) Heavy Face-Mount Concealed-Flange Joist Hanger
- (1) Set of Strong-Drive SDS Heavy-Duty Connector Screws
Simpson Strong-Tie HUCQ412Z-SDSG Features

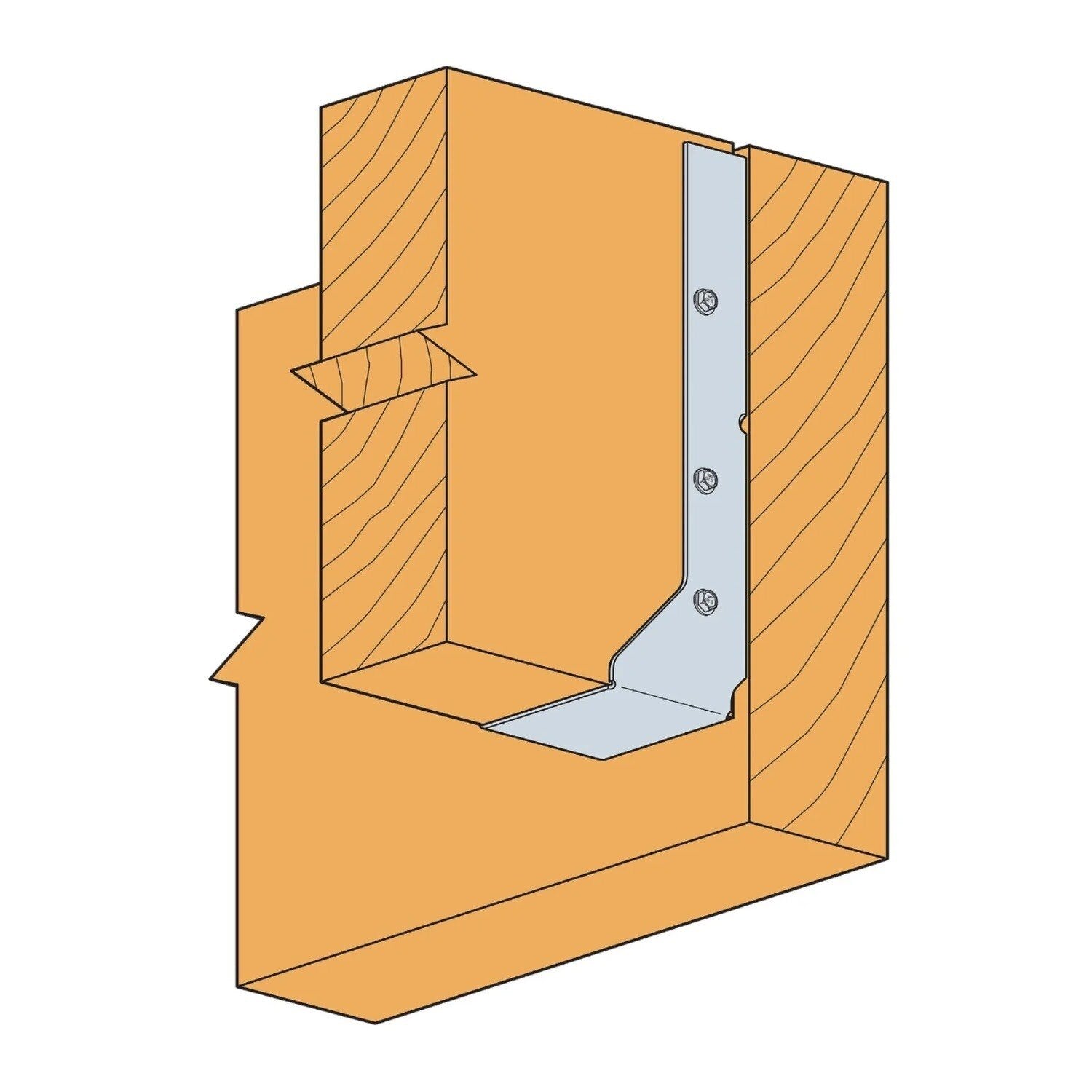

- Concealed flanges for clean appearance and close-to-end beam installation
- ZMAX galvanized coating for superior corrosion resistance
- Includes Strong-Drive SDS Heavy-Duty Connector Screws for quick installation
- Designed for high-strength support in wood-framed constructions
Simpson Strong-Tie HUCQ412Z-SDSG Applications
- Decks and outdoor structures such as pergolas and gazebos

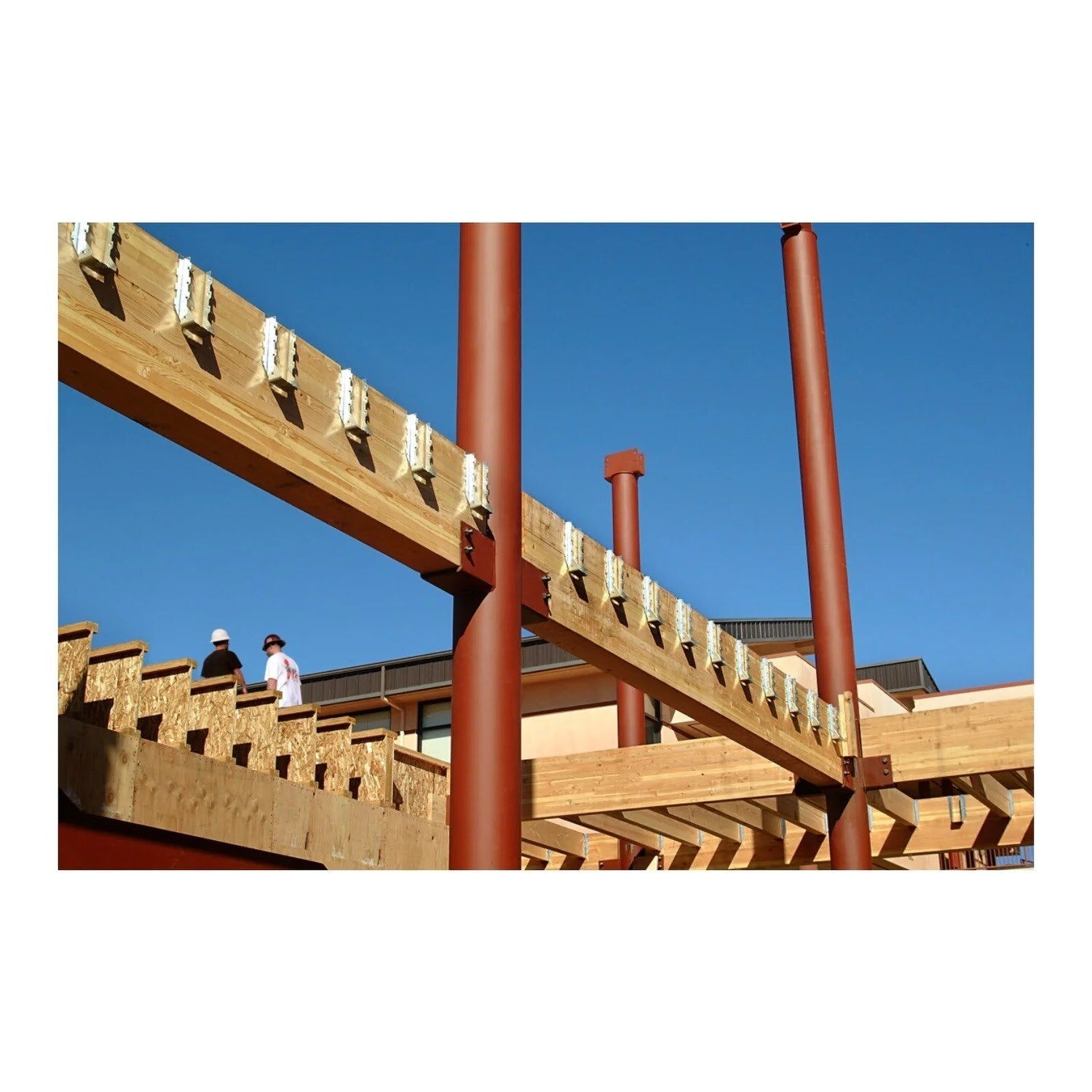

- Residential and commercial framing for beams and joists
- Treated lumber applications in moisture-prone environments
- Exposed timber and architectural framing for clean connections
- Masonry and concrete connections in structural framing

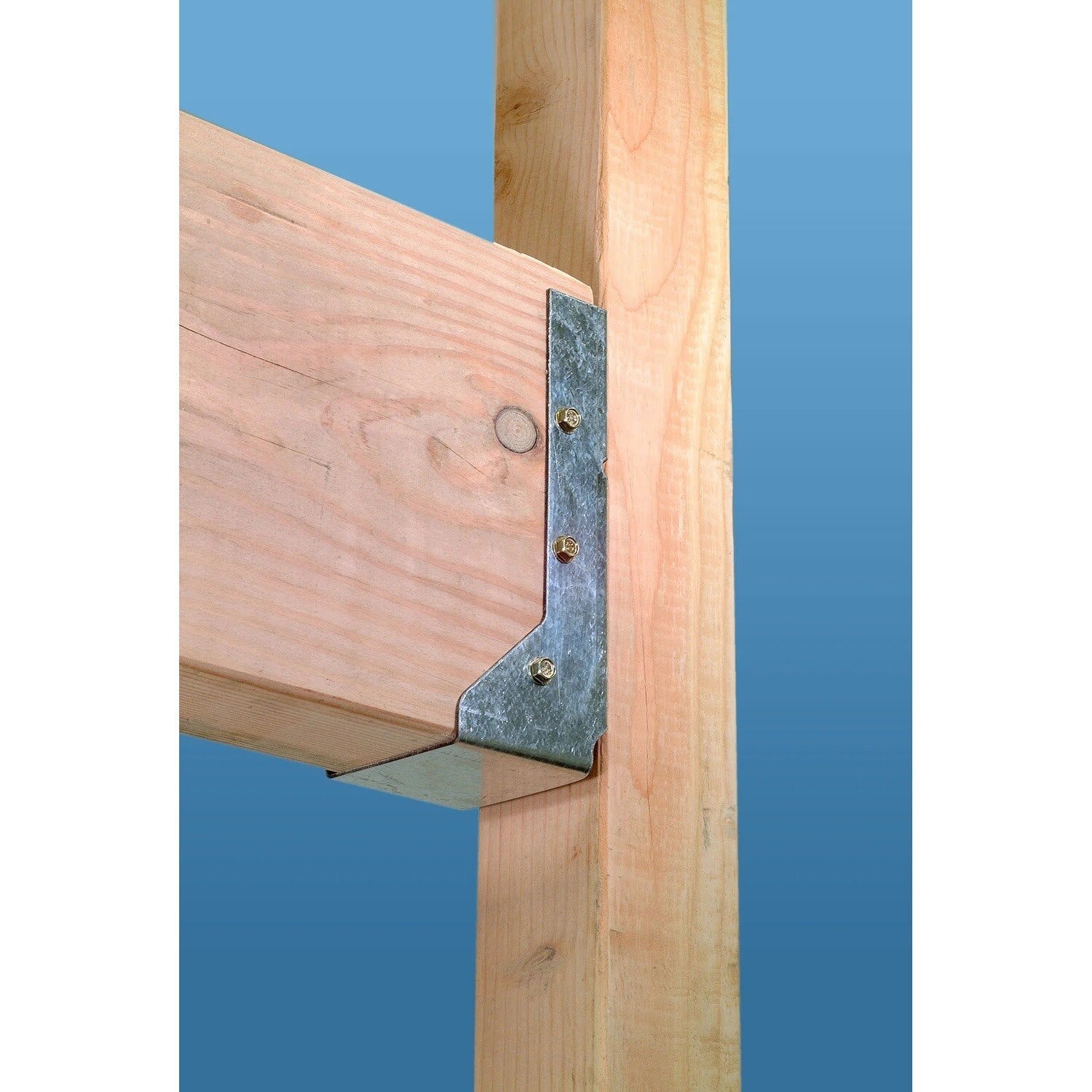

Simpson Strong-Tie HUCQ412Z-SDSG Installation Overview
- Utilize the provided Strong-Drive SDS Heavy-Duty Connector screws
- Position the hanger and align with the supporting beam
- Fasten securely using the included screws
- Ensure all fasteners are installed correctly to achieve load values

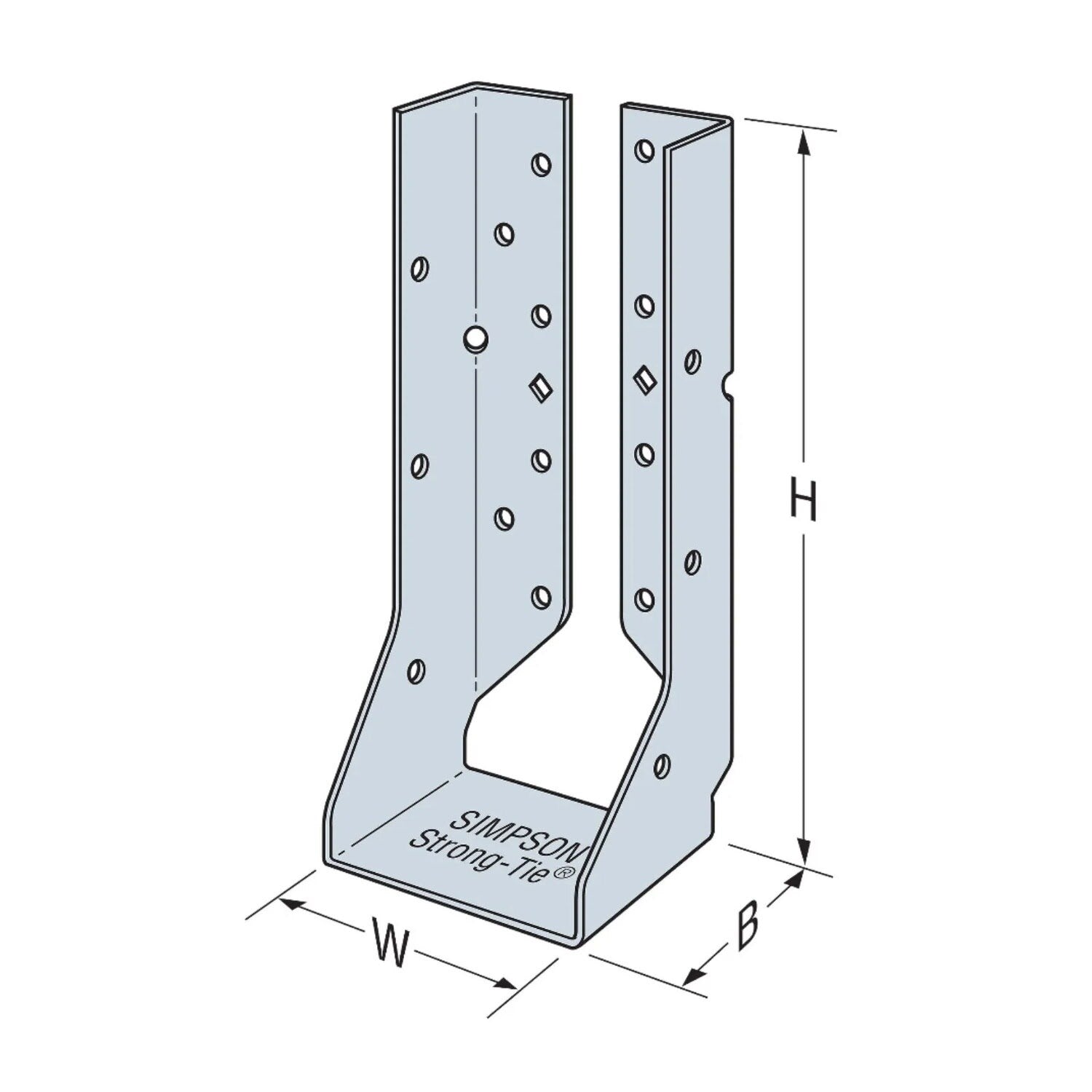

Simpson Strong-Tie HUCQ412Z-SDSG Specifications
| Finish | ZMAX Finish |
| Material | Carbon Steel |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | Yes |
| Height | 11" |
| Joist size | 4" X 12" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
