Simpson Hangers | SKU:
HUS212-2TF
Simpson Strong-Tie HUS212-2TF (Double 2" x 12") Galvanized Top-Flange Joist Hanger
$32.70
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUS212-2TF Description

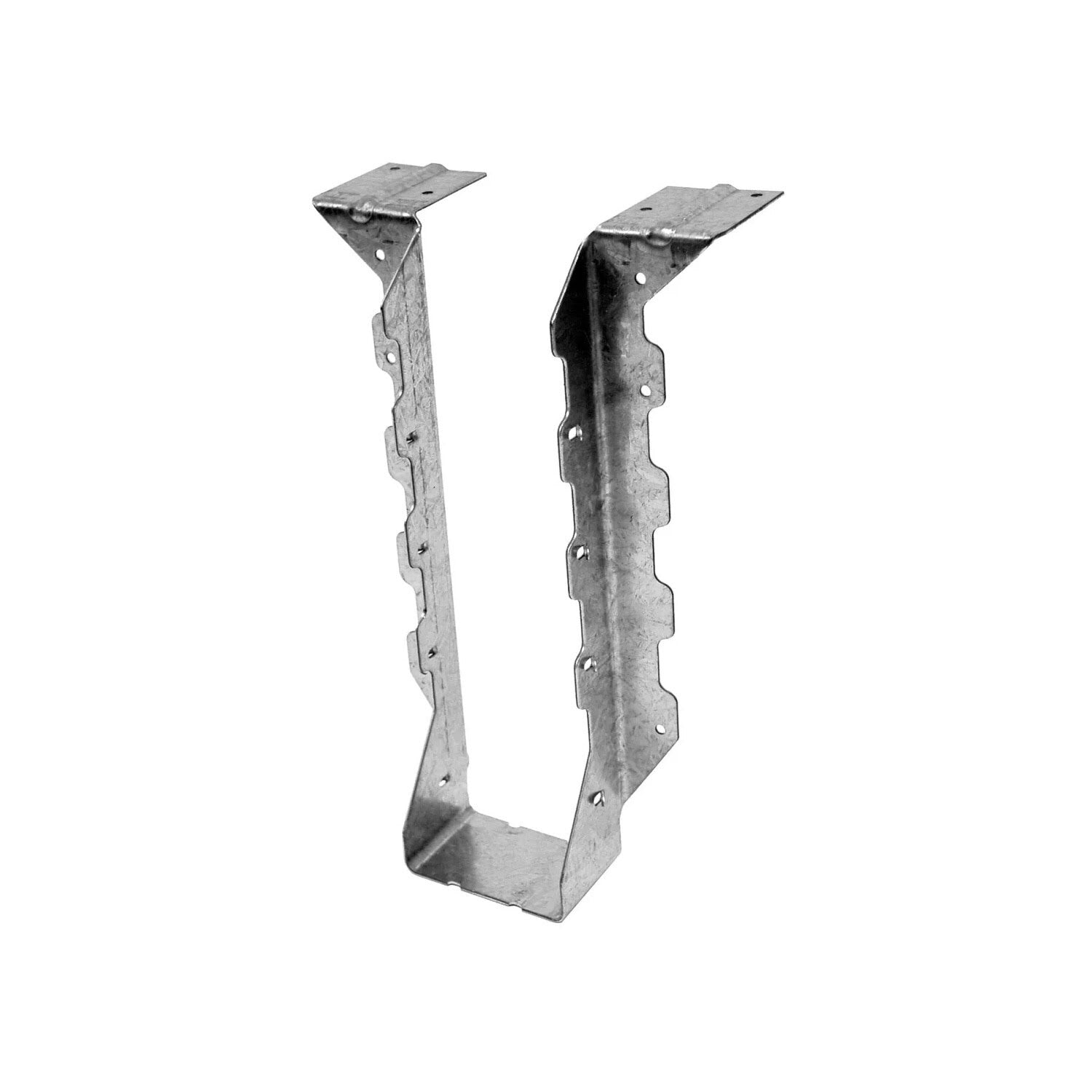

The HUS212-2TF is a heavy-duty top-flange joist hanger designed for double 2x12 beams, providing superior strength and stability in wood-to-wood connections.
Simpson Strong-Tie HUS212-2TF Includes
- (1) Double 2x12 Top Flange Joist Hanger
Simpson Strong-Tie HUS212-2TF Features
- Heavy-duty construction for high-load conditions
- G90 galvanized coating for corrosion resistance
- Full U-shaped wrap for optimal load distribution
- Optimized for solid sawn lumber
- Top flange design for secure installation
Simpson Strong-Tie HUS212-2TF Applications
- Floor framing: Securely connects joists to beams for enhanced floor system stability.
- Roof trusses and rafters: Provides strong, load-rated connections in roof framing applications.
- Commercial construction: Used in heavy-duty structural applications where strength and reliability are essential.
- Industrial wood structures: Supports engineered wood beams and joists.

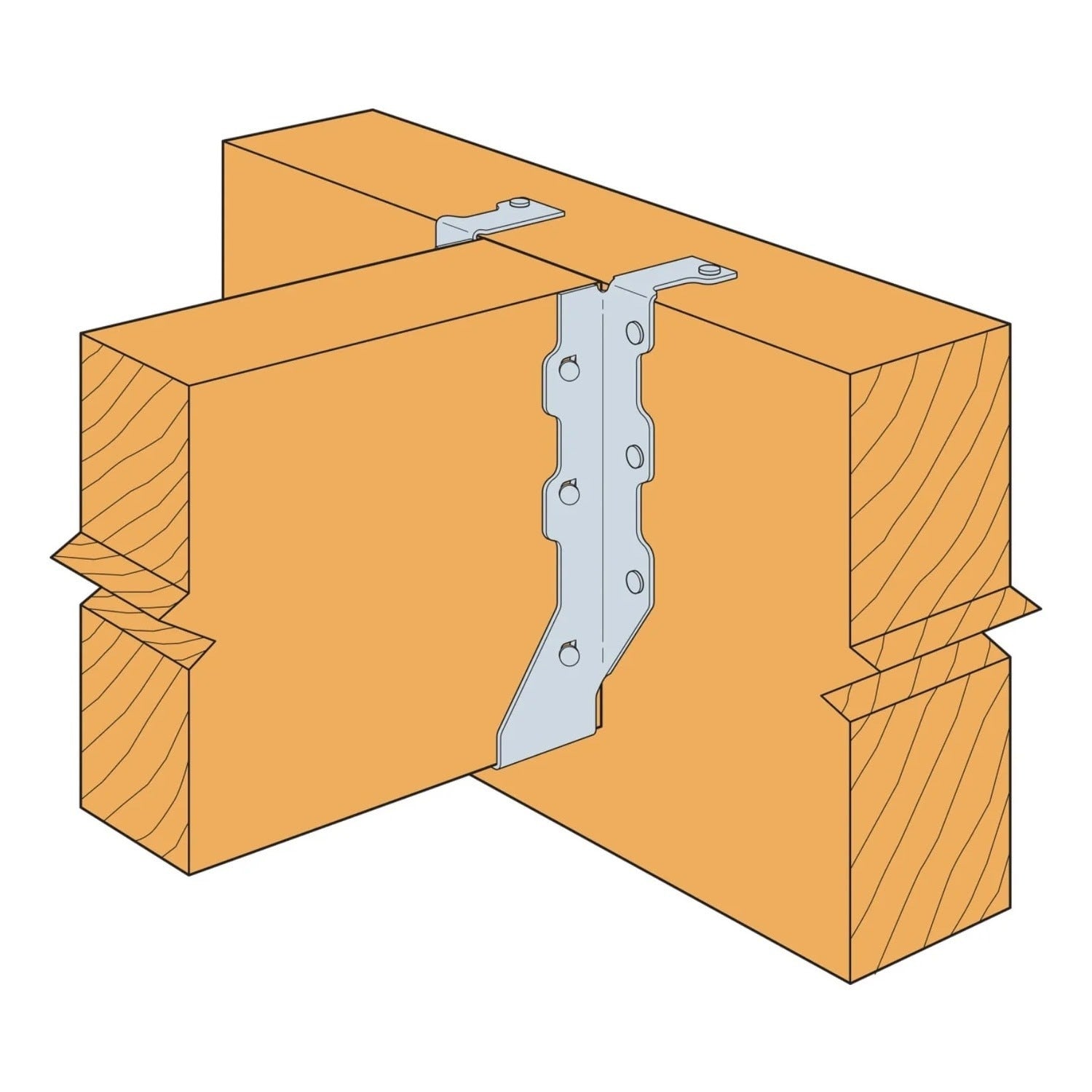

Simpson Strong-Tie HUS212-2TF Installation Overview
- Flange fastening: Install using face nails or structural screws for a secure connection.
- Joist fastening: Use nails or screws in the designated side holes to fasten the joist securely.
- Ensure flush installation: The top flange should sit flush against the supporting member.
- Follow manufacturer's load tables: Reference Simpson Strong-Tie’s published load values for verification.
Simpson Strong-Tie HUS212-2TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (10) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 11-1/8" |
| Joist size | Double 2" X 12" |
| Thickness | 14 Gauge |
| Width | 3-1/8" |
