Simpson Hangers | SKU:
HUS26-2
Simpson Strong-Tie HUS26-2 (Double 2" x 6") Galvanized Face-Mount Joist Hanger
$9.40
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUS26-2 Description

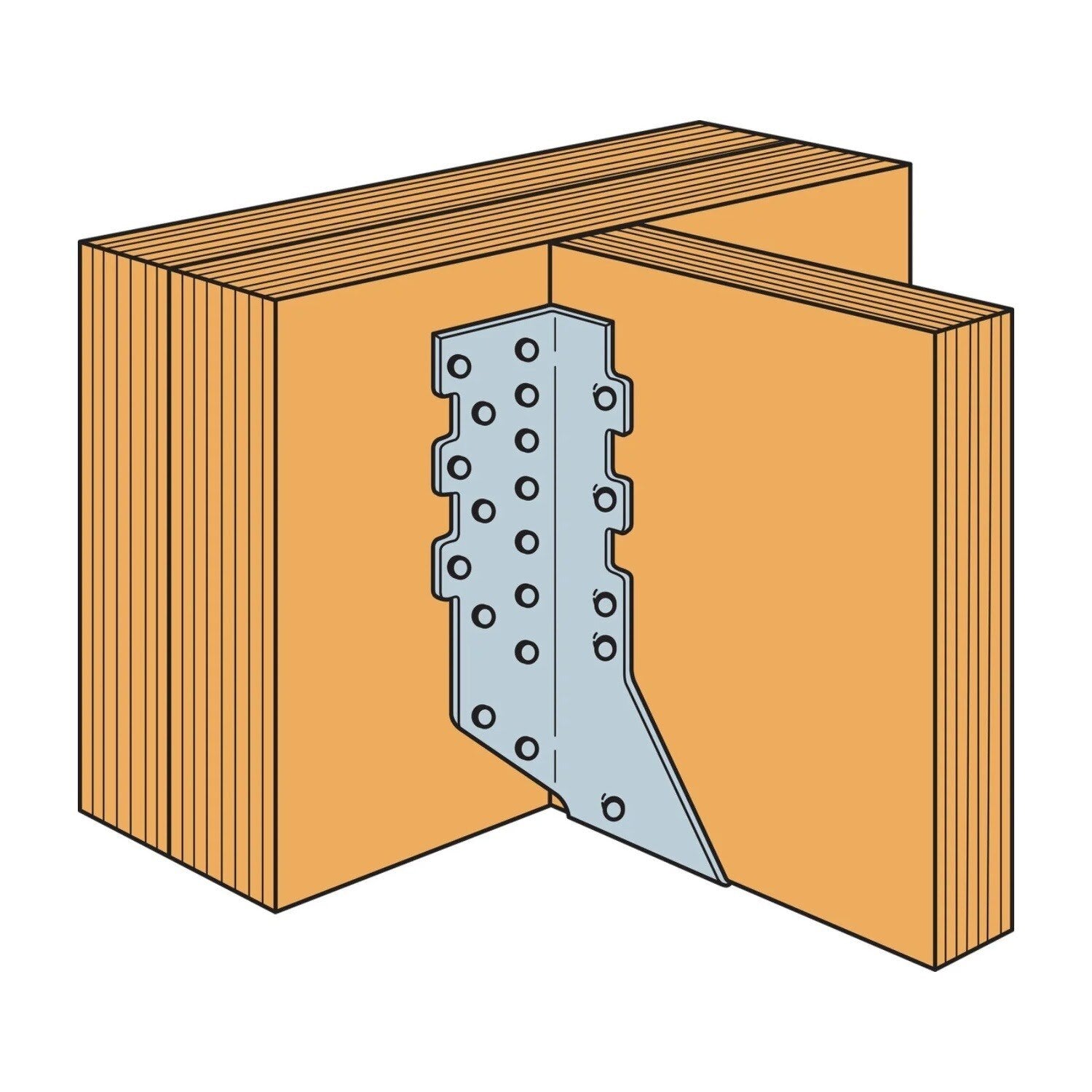

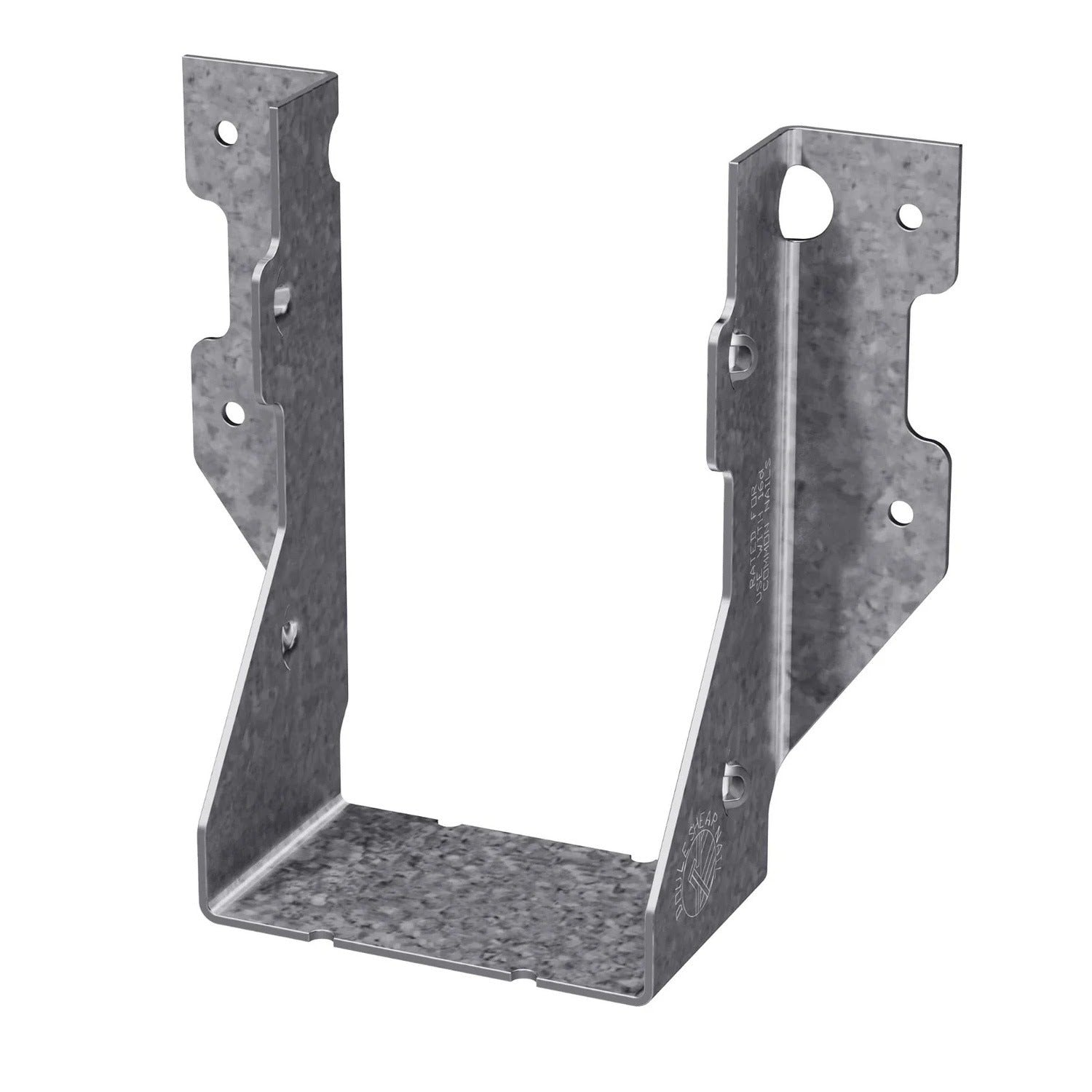

The HUS26-2 is a heavy-duty face-mount joist hanger designed for double 2x6 lumber, offering high load capacity and corrosion resistance with its G90 galvanized steel construction.
Simpson Strong-Tie HUS26-2 Includes
- (1) Galvanized Face-Mount Joist Hanger for Double 2x6
Simpson Strong-Tie HUS26-2 Features
- Heavy-duty construction for high load capacity
- G90 galvanized coating for corrosion resistance
- Versatile installation for various wood types
- Code-compliant design for safety
- Precision engineering for accurate installation
Simpson Strong-Tie HUS26-2 Applications
- Floor and roof framing: Securing joists to beams or ledgers in deck, attic, and ceiling applications
- Multi-family and commercial construction: Providing strong, code-compliant support for load-bearing structures
- Engineered wood installations: Supporting LVL, PSL, and LSL beams in framing systems
- Truss-to-beam connections: Ensuring stability in plated truss configurations
Simpson Strong-Tie HUS26-2 Installation Overview
- Use 10d or 16d common nails for solid wood applications
- Use Strong-Drive SD Structural Screws for engineered wood connections
- Ensure full bearing contact between the joist and hanger seat
- Use the correct fasteners in all designated holes to achieve listed load ratings
Simpson Strong-Tie HUS26-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (4) 0.162" x 3-1/2" Nails, Joist - (4) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 5-3/16" |
| Joist size | Double 2" X 6" |
| Thickness | 14 Gauge |
| Width | 3-1/8" |
NOTE: Ensure full bearing contact between the joist and hanger seat. Use the correct fasteners in all designated holes to achieve listed load ratings.
