Simpson Hangers | SKU:
HUS28Z
Simpson Strong-Tie HUS28Z (2x8) 14Ga Heavy Concealed-Flange Face-Mount Joist Hanger - ZMAX Finish
$10.20
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUS28Z Description

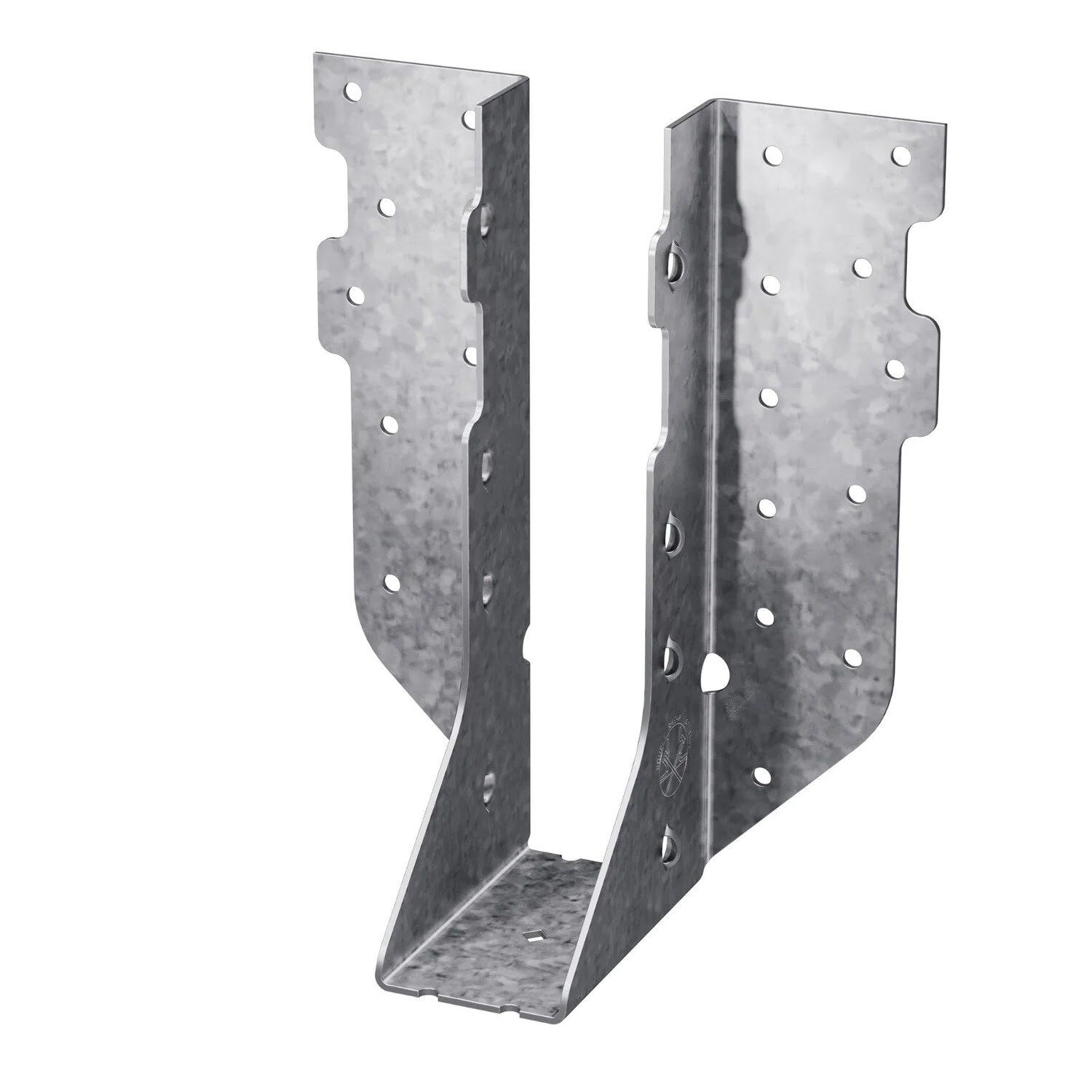

The Simpson Strong-Tie HUS28Z is a heavy-duty U-shaped joist hanger designed for 2x8 lumber, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie HUS28Z Includes
- (1) Heavy-Duty U-Shaped Joist Hanger for 2x8
Simpson Strong-Tie HUS28Z Features
- ZMAX Corrosion Protection for durability in outdoor and high-moisture environments
- Heavy-Duty U-Shaped Design for strong connections
- Compatible with solid sawn lumber, plated truss, and engineered wood

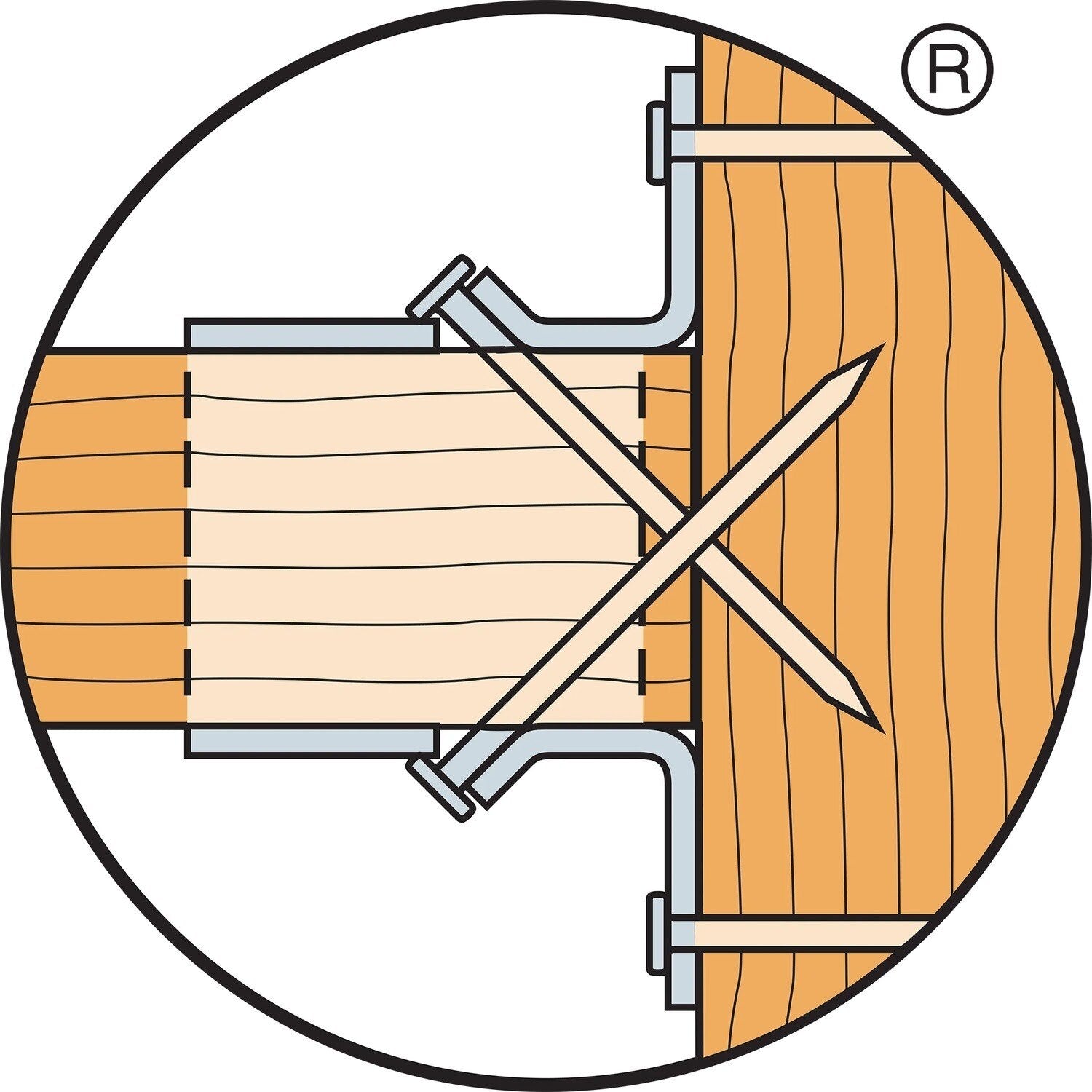

- Double-Shear Nailing Technology for increased stability
- Code-Compliant Performance meeting ICC-ES ESR-2523 and ESR-3096
Simpson Strong-Tie HUS28Z Applications
- Deck Framing: Provides strong, moisture-resistant connections for deck joists and beams
- Multi-Family and Residential Construction: Supports floor joists and roof framing
- Post-and-Beam Structures: Connects beams to posts for barns and shelters
- Trusses and Rafter Support: Reinforces roof trusses and rafters
- Timber-Framed Buildings: Enhances stability of heavy timber construction
Simpson Strong-Tie HUS28Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 7" |
| Joist size | 2" X 8" |
| Thickness | 16 Gauge |
| Width | 1-5/8" |
