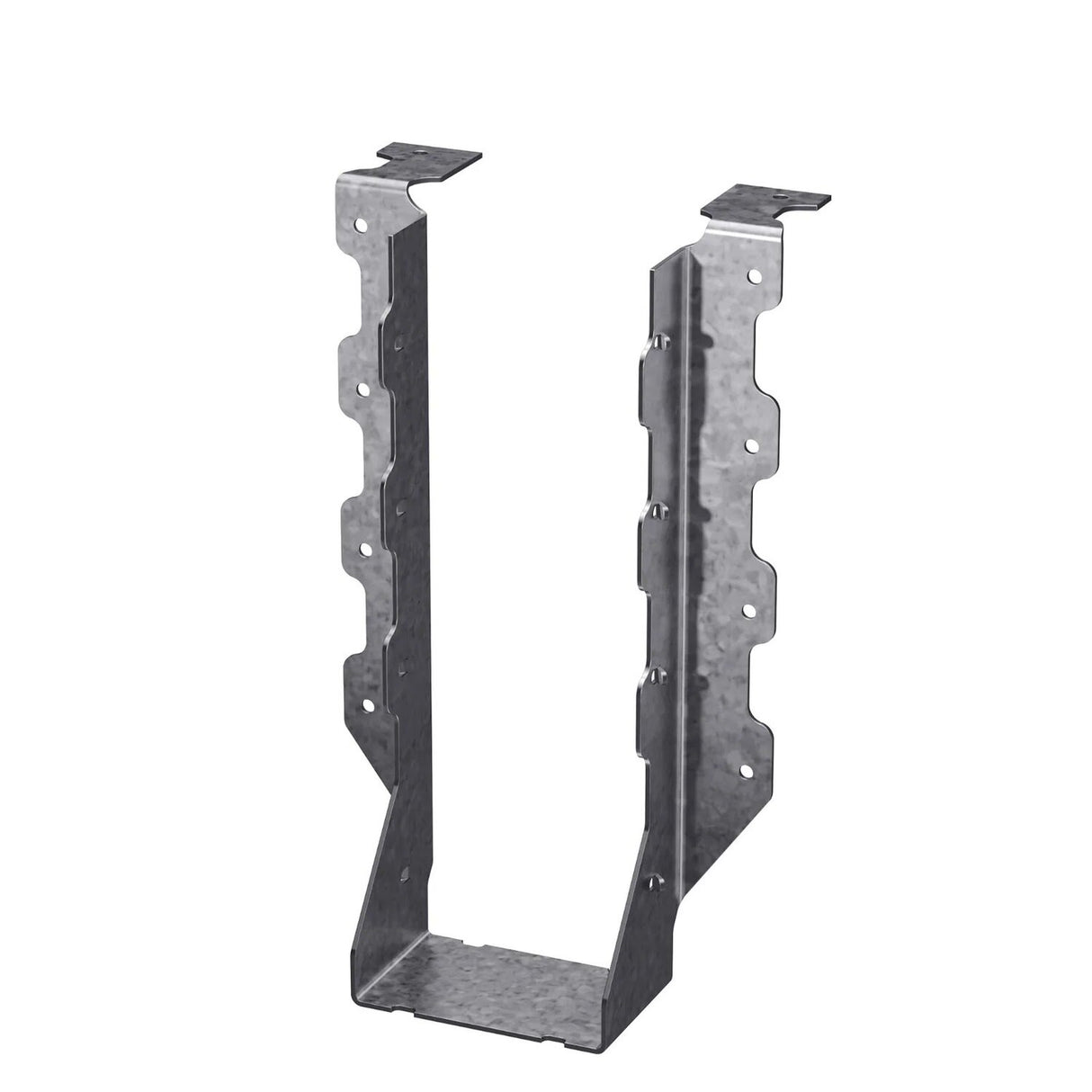

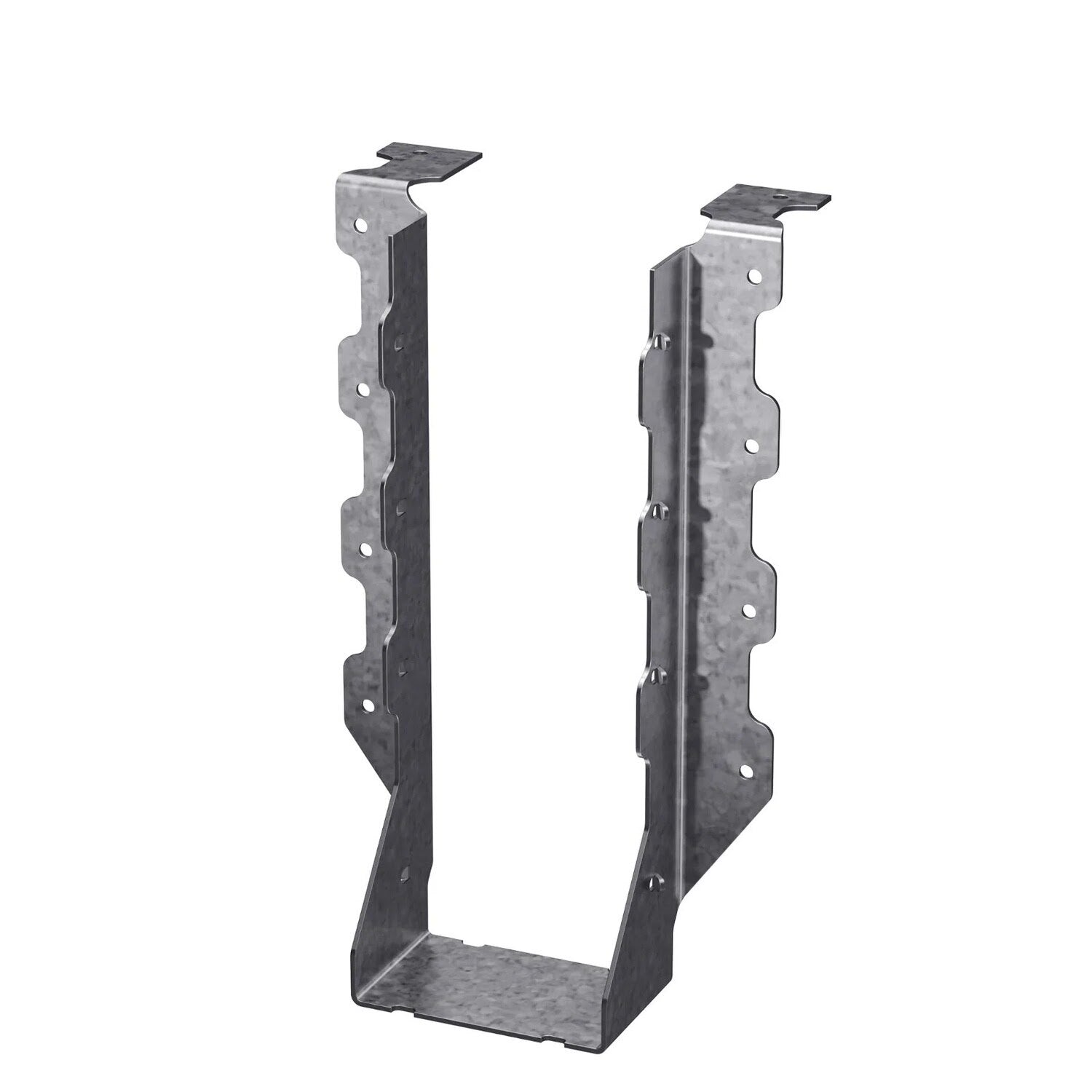

Simpson Strong-Tie HUS410TF (4" x 10") Top Flange Face Mount Hanger G90 Galvanized

Simpson Strong-Tie HUS410TF Features

• Heavy-Duty Construction: Engineered for high-load conditions and demanding structural applications.
• G90 Galvanized Coating: Provides corrosion resistance suitable for indoor and dry-use environments.
• Full U-Shaped Wrap: Securely encases the carried beam for optimal load distribution and stability.
• Optimized for Solid Sawn Lumber: Designed to support various beam widths and depths while ensuring a snug, load-rated connection.
• Top Flange Design: Allows for secure installation on supporting members, improving structural integrity.

Simpson Strong-Tie HUS410TF Applications

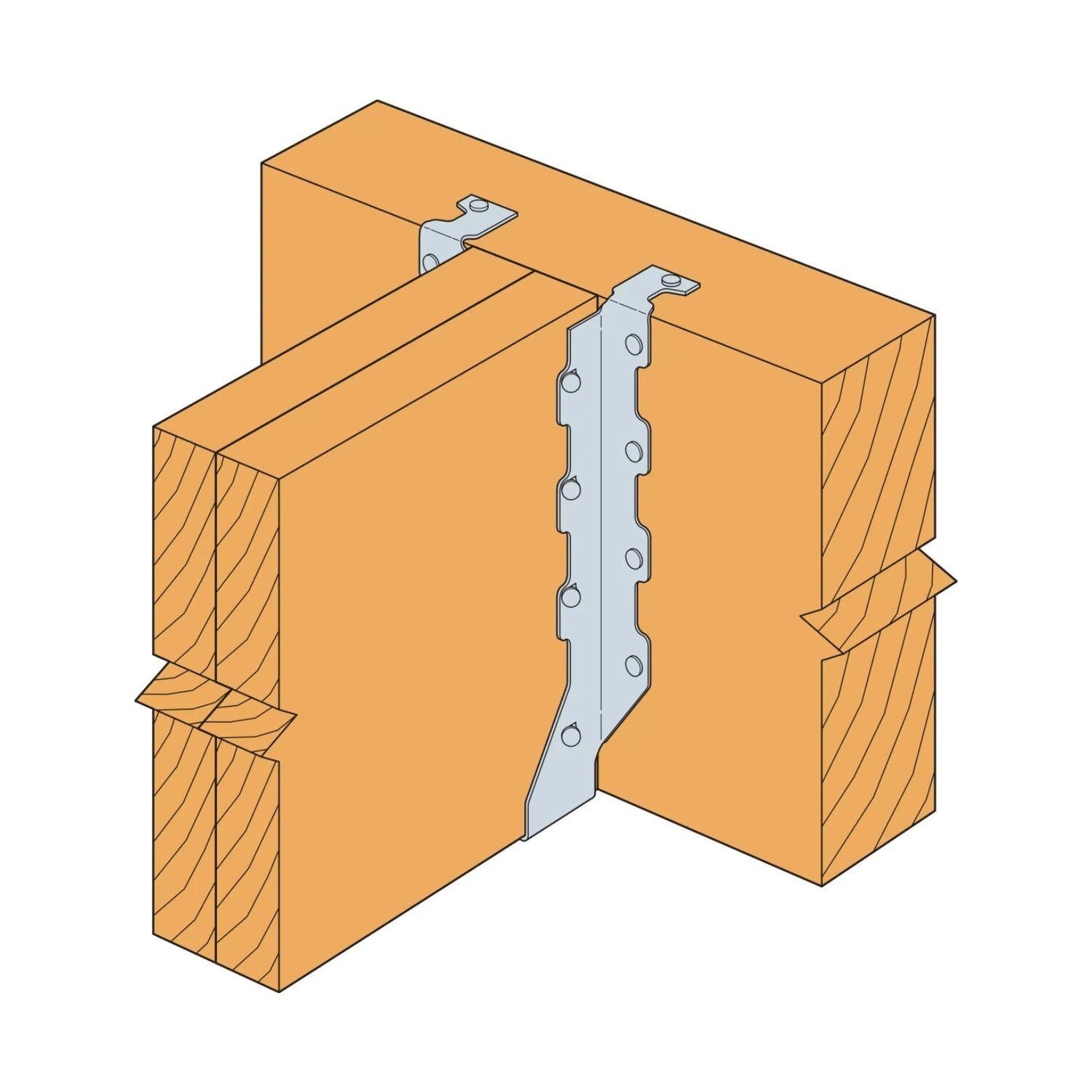

• Floor Framing: Securely connects joists to beams for enhanced floor system stability.
• Roof Trusses & Rafters: Provides strong, load-rated connections in roof framing applications.
• Commercial Construction: Used in heavy-duty structural applications where strength and reliability are essential.
• Industrial Wood Structures: Supports engineered wood structures in industrial settings.

Simpson Strong-Tie HUS410TF Installation Overview

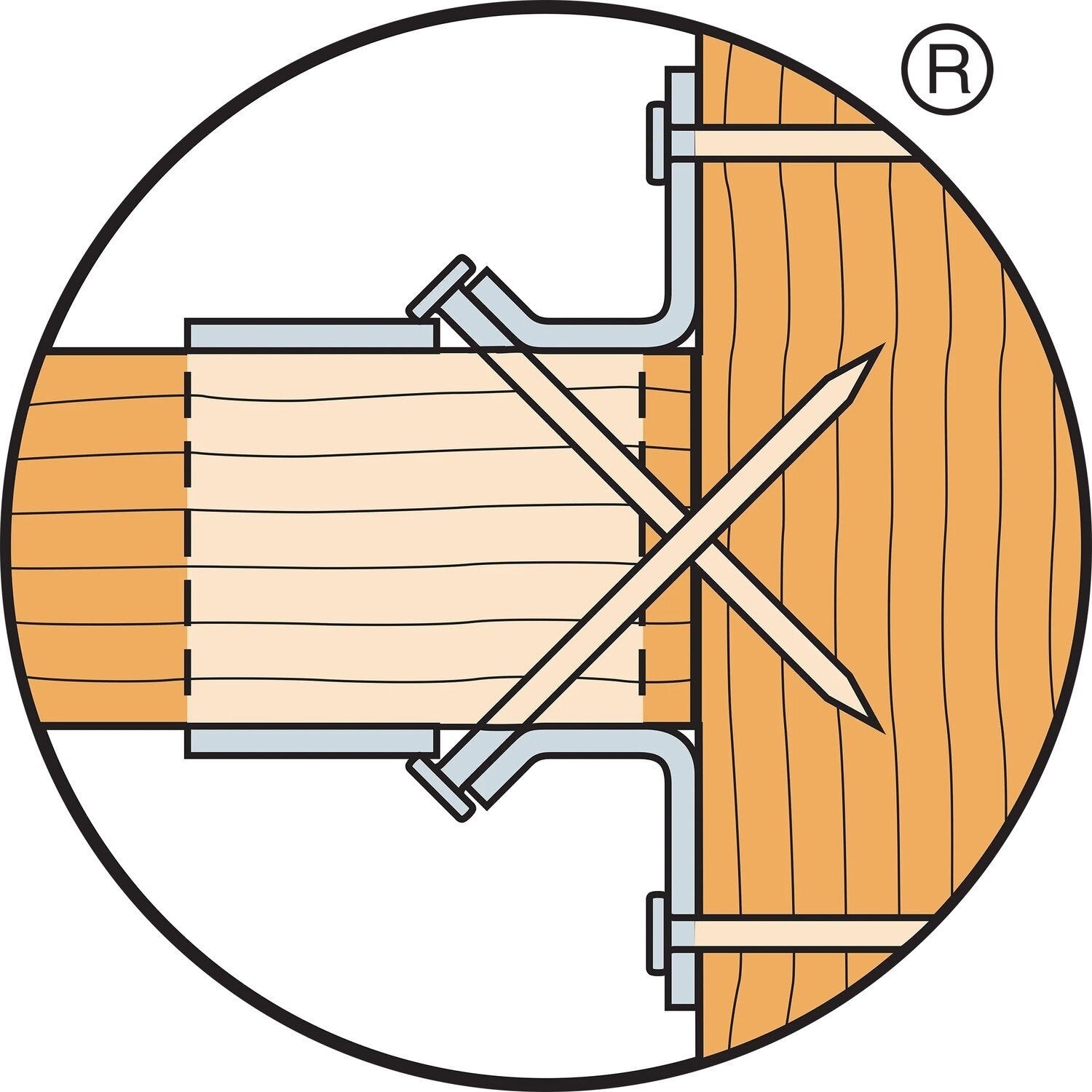

1. Flange Fastening: Installed using face nails or structural screws for a secure connection to the support beam.
2. Joist Fastening: Requires nails or screws in the designated side holes to fasten the joist securely within the hanger.
3. Ensure Flush Installation: The top flange should sit flush against the supporting member to maximize load distribution.
4. Follow Manufacturer’s Load Tables: Always reference Simpson Strong-Tie’s published load values to verify hanger performance for your specific application.
