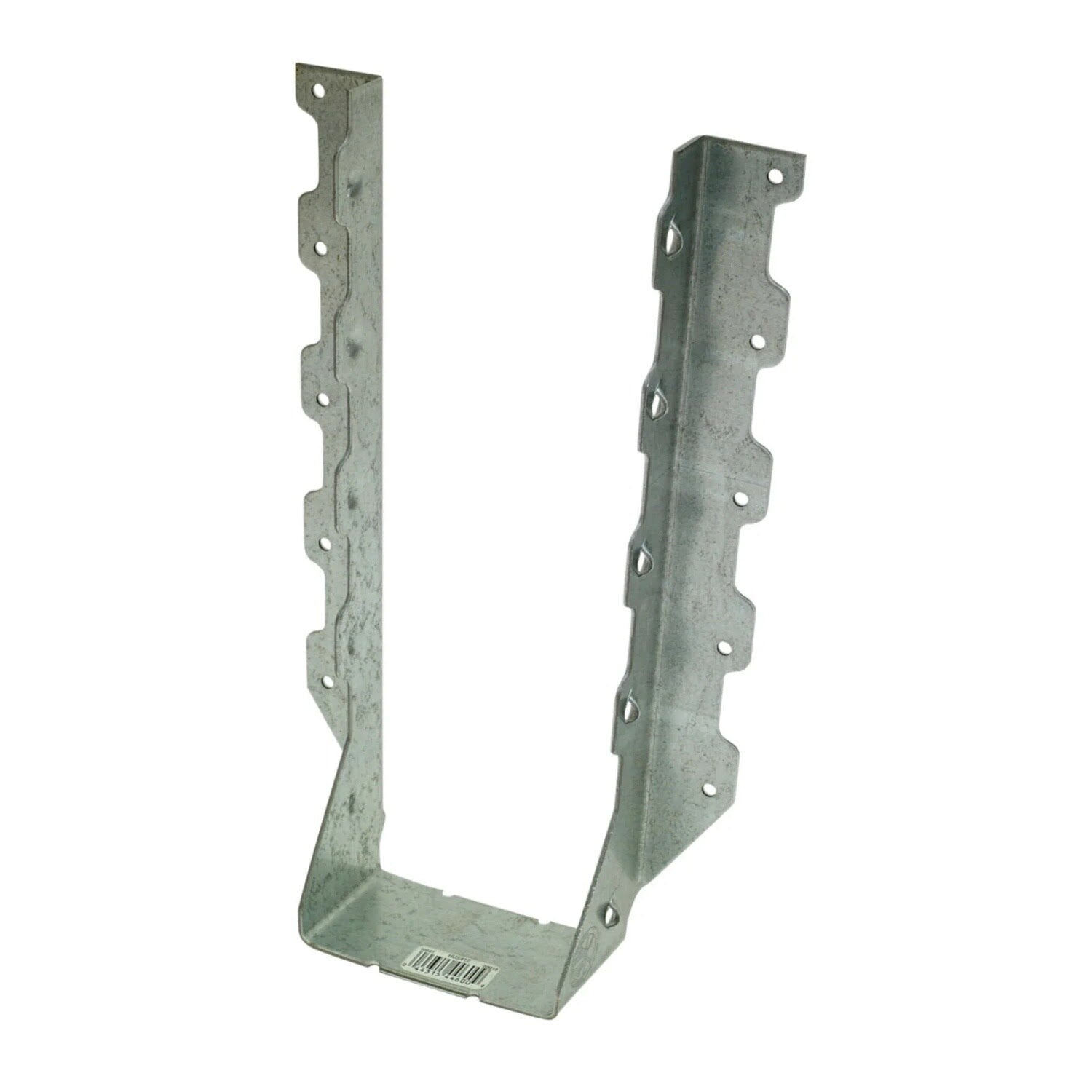

Simpson Strong-Tie HUS412 (4" x 12") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger

Name: Simpson Strong-Tie HUS412 (4" x 12") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 248829
Price: 11.87 USD
Availability: InStock

$11.87 ~~$17.08~~

NOTE: This item is ineligible for free shipping

Description

Simpson HUS412 Description

The Simpson HUS412 is a heavy-duty face-mount joist hanger designed for 4x12 lumber, featuring G90 galvanized steel for enhanced corrosion resistance and high-load capacity.

Simpson HUS412 Includes

(1) Heavy-Duty 4x12 Face-Mount Joist Hanger

Simpson HUS412 Features

Heavy-Duty Construction: Engineered to support high loads while maintaining structural integrity.
G90 Galvanized Coating: Provides corrosion resistance for long-lasting durability in dry and damp environments.
Versatile Installation: Compatible with solid sawn lumber, engineered wood, and plated trusses for diverse framing applications.
Code-Compliant Design: Meets applicable building codes for safe and reliable performance.
Precision Engineering: Enhances installation accuracy and ensures a snug, secure fit for optimal load transfer.

Simpson HUS412 Applications

Floor and Roof Framing: Securing joists to beams or ledgers in deck, attic, and ceiling applications.
Multi-Family and Commercial Construction: Providing strong, code-compliant support for load-bearing structures.
Engineered Wood Installations: Supporting LVL, PSL, and LSL beams in framing systems.
Truss-to-Beam Connections: Ensuring stability in plated truss configurations.

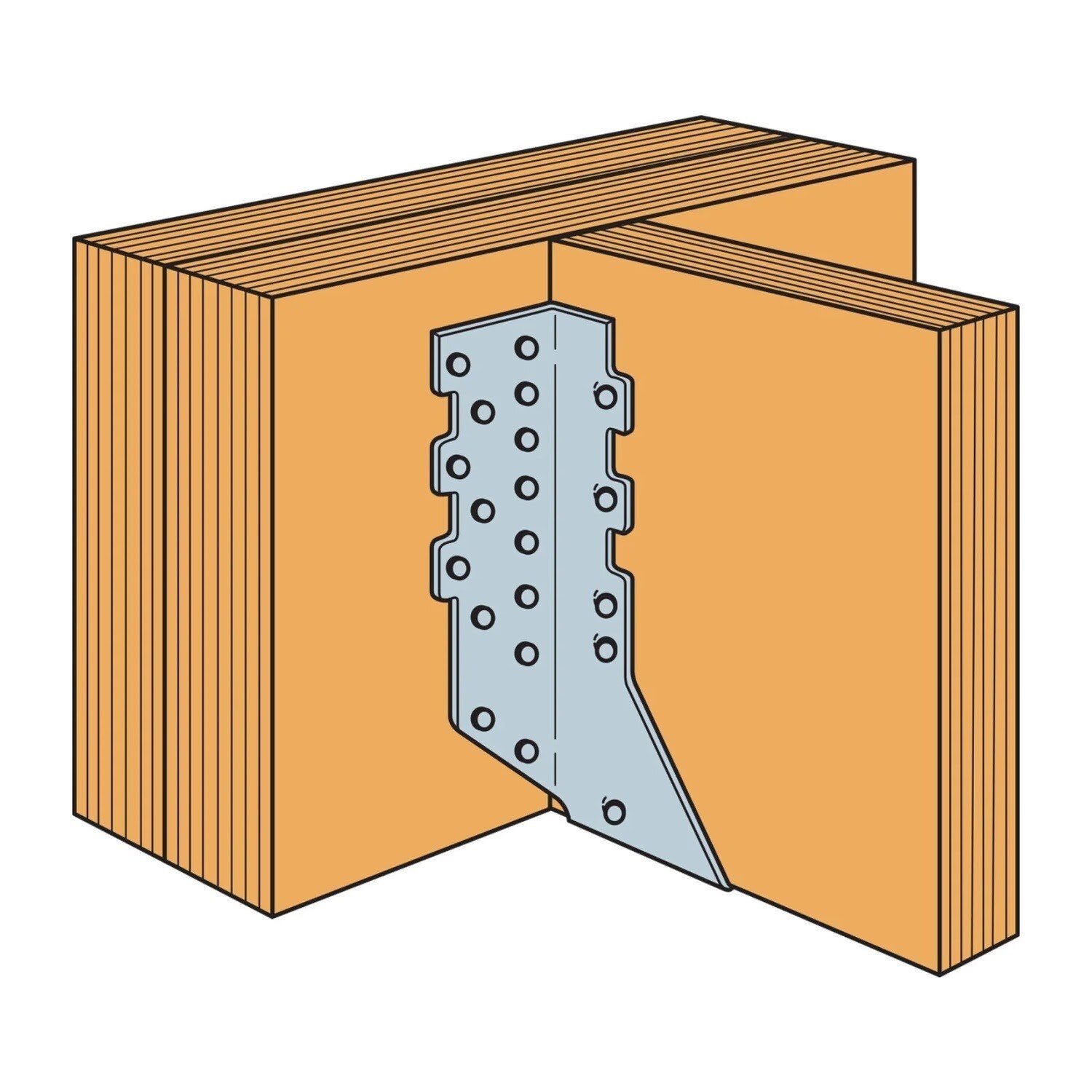

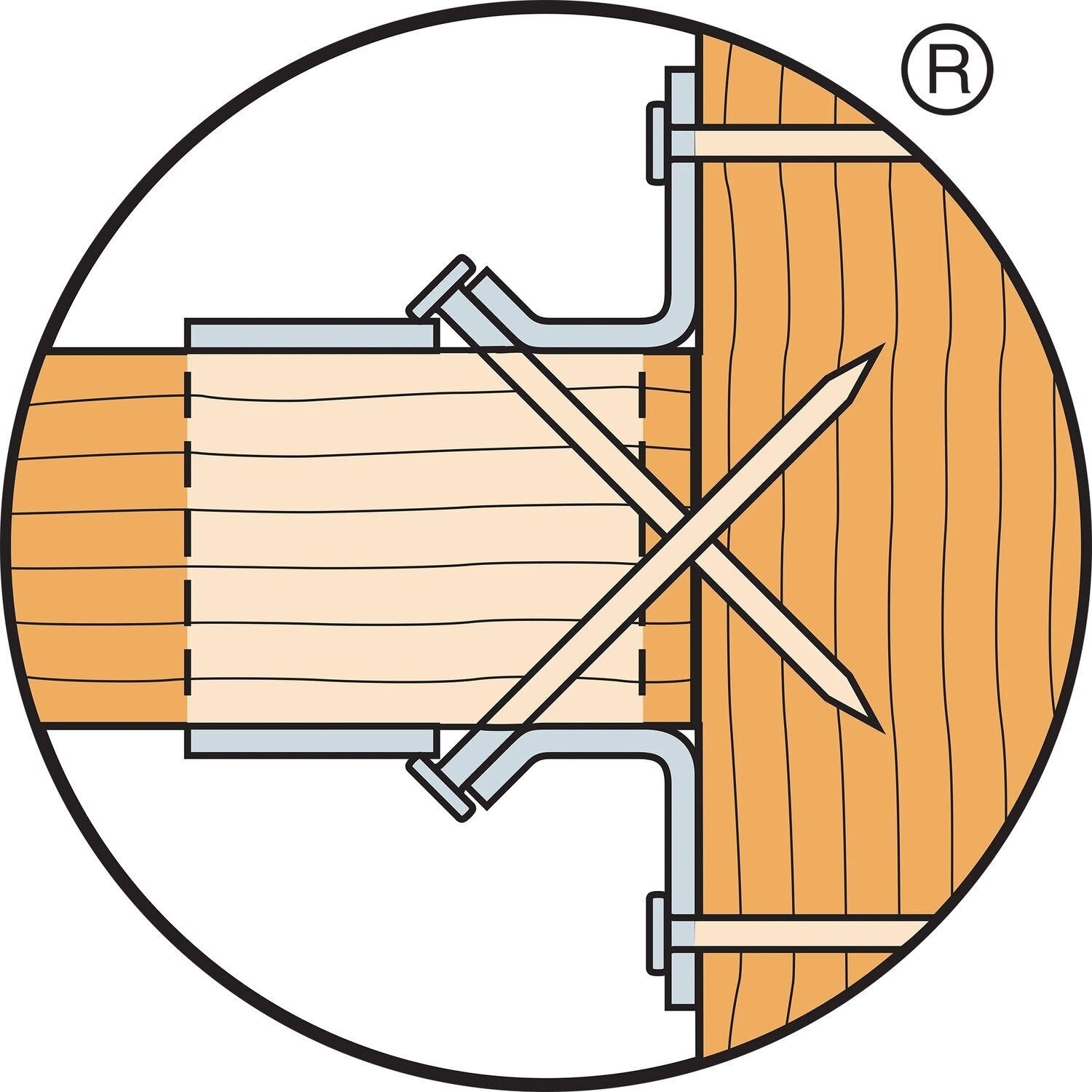

Simpson HUS412 Installation Overview

Use 10d or 16d common nails for solid wood applications.
For engineered wood connections, use Strong-Drive SD Structural Screws.
Ensure full bearing contact between the joist and hanger seat.
Use the correct fasteners in all designated holes to achieve listed load ratings.

Simpson HUS412 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Face - (10) 0.162" x 3-1/2" Nails, Joist - (10) 0.162" x 3-1/2" Nails
For Treated Lumber	No
Height	10-1/2"
Joist size	4" X 12"
Thickness	14 Gauge
Width	3-9/16"

NOTE: Ensure full bearing contact between the joist and hanger seat and use the correct fasteners in all designated holes to achieve listed load ratings.
