Shop Simpson Hangers Store
SKU: HUS46  |  Barcode: 044315448003

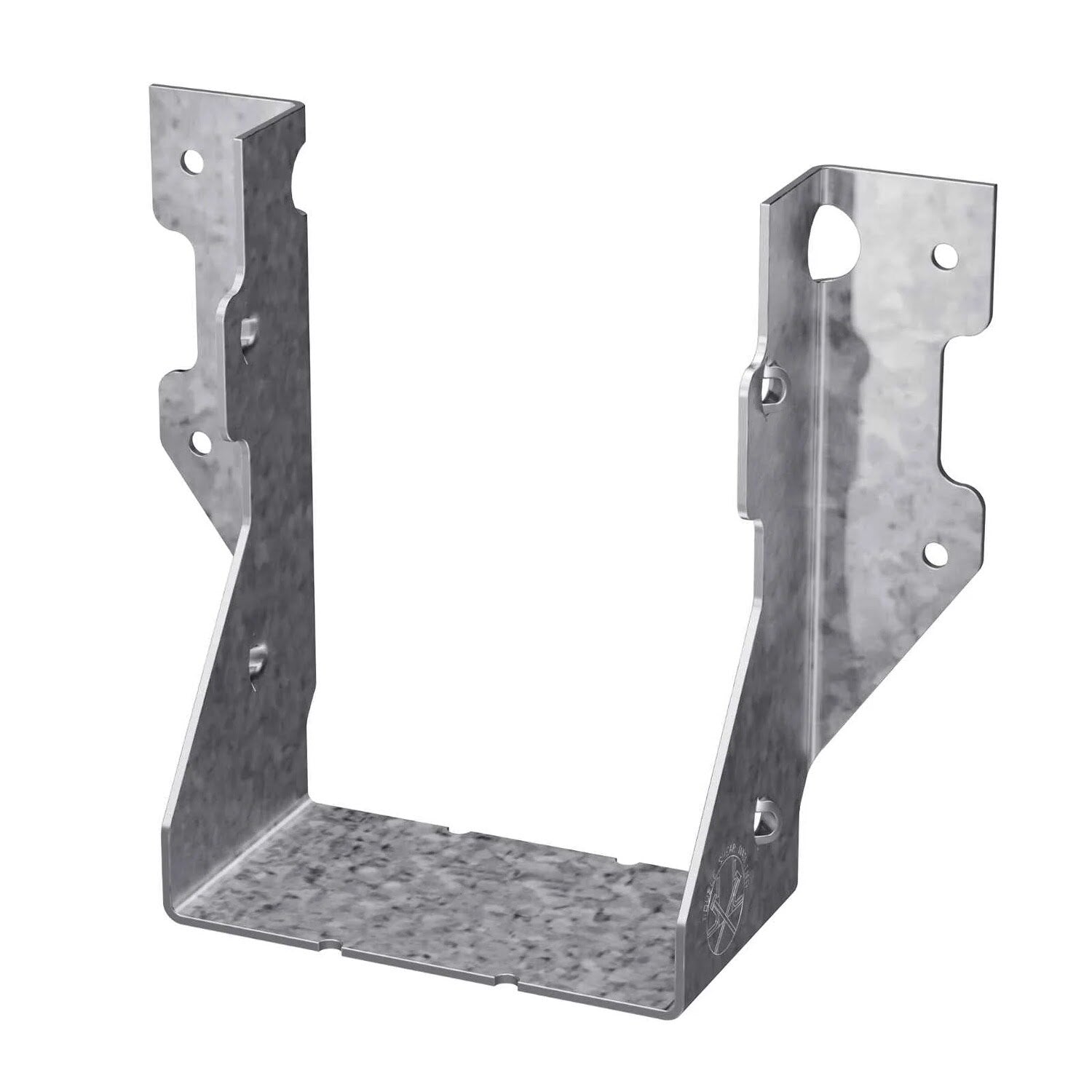

Simpson Strong-Tie HUS46 (4" x 6") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger

$10.20 $13.25
POWERED BY

We've got you covered.

Package Protection gives you peace of mind while saving you time and money.

  • Package Protection

    Coverage in case your package is damaged in transit, stolen, or doesn't arrive.

  • Instant Issue Resolution

    Get a refund or replacement in just a few clicks.

  • 24/7 Claim Support

    Route is here for you whenever an issue arises — with an average response time of under an hour.

Route Package Protection extends coverage for online purchases that are lost or damaged in transit, or stolen immediately after the carrier's proof of delivery where Route traces the transportation. Route App, Inc. (Route) is the named insured on the package insurance policy ("Policy"); Route Insurance Solutions ("RIS"), Route's licensed producer entity, procures the Policy from SEG Insurance Ltd. Route, through RIS, may receive compensation for its services.

Description

Simpson Strong-Tie HUS46 Description

The HUS46 Heavy-Duty Joist Hanger is designed for high-load capacity connections, providing exceptional support for various framing applications.

Simpson Strong-Tie HUS46 Includes

  • (1) Heavy-Duty 4x6 Face-Mount Joist Hanger

Simpson Strong-Tie HUS46 Features

  • Heavy-Duty Construction: Engineered to support high loads while maintaining structural integrity.
  • G90 Galvanized Coating: Provides corrosion resistance for long-lasting durability in dry and damp environments.
  • Versatile Installation: Compatible with solid sawn lumber, engineered wood, and plated trusses for diverse framing applications.
  • Code-Compliant Design: Meets applicable building codes for safe and reliable performance.
  • Precision Engineering: Enhances installation accuracy and ensures a snug, secure fit for optimal load transfer.

Simpson Strong-Tie HUS46 Applications

  • Floor and Roof Framing: Securing joists to beams or ledgers in deck, attic, and ceiling applications.
  • Multi-Family and Commercial Construction: Providing strong, code-compliant support for load-bearing structures.
  • Engineered Wood Installations: Supporting LVL, PSL, and LSL beams in framing systems.
  • Truss-to-Beam Connections: Ensuring stability in plated truss configurations.

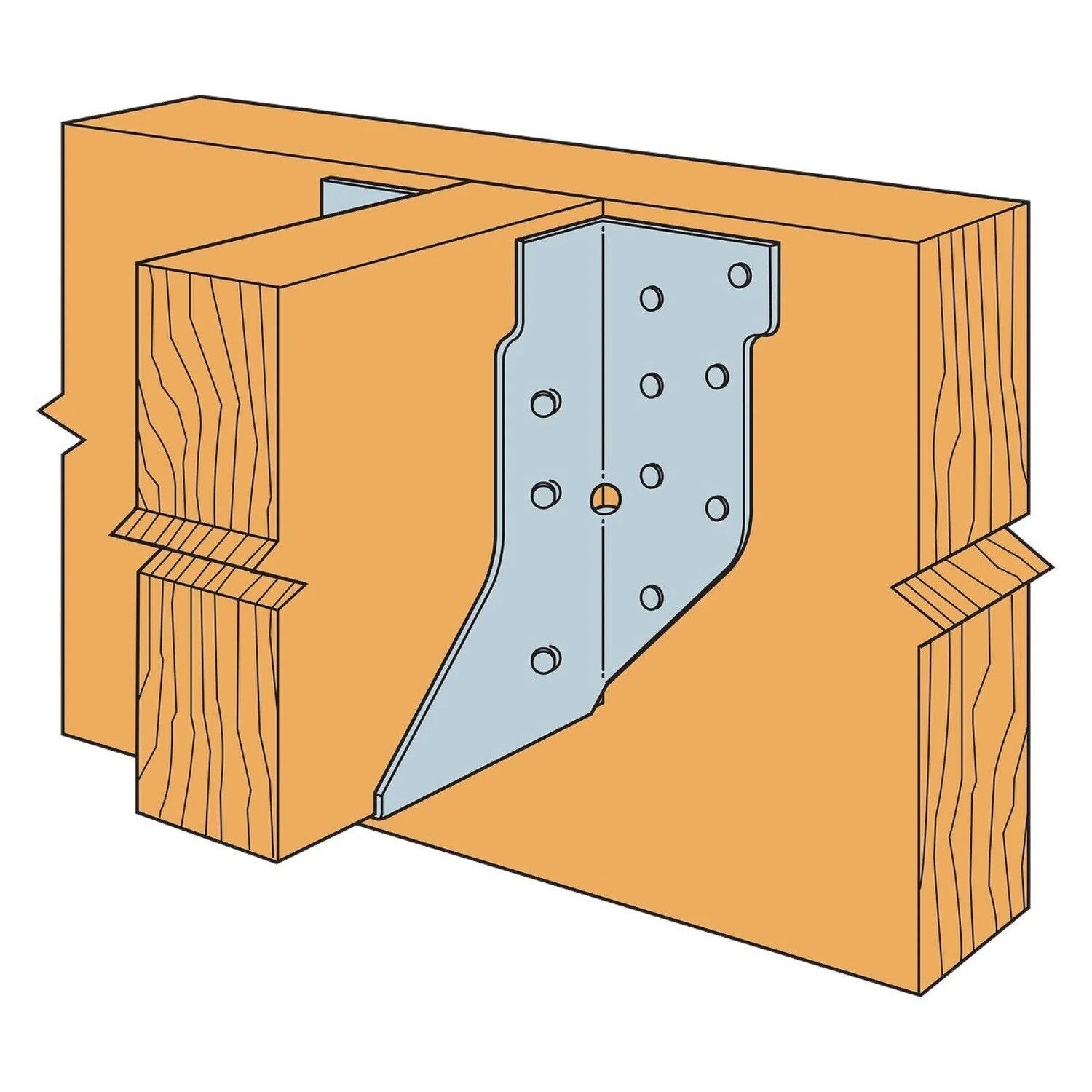

Simpson Strong-Tie HUS46 Installation Overview

  1. Use 10d or 16d common nails for solid wood applications.
  2. For engineered wood connections, use Strong-Drive SD Structural Screws.
  3. Ensure full bearing contact between the joist and hanger seat.
  4. Use the correct fasteners in all designated holes to achieve listed load ratings.

Simpson Strong-Tie HUS46 Specifications

Finish G90 Galvanized
Material Carbon Steel
Fasteners required Face - (4) 0.162" x 3-1/2" Nails, Joist - (4) 0.162" x 3-1/2" Nails
For Treated Lumber No
Height 5"
Joist size 4" X 6"
Thickness 14 Gauge
Width 3-9/16"

NOTE: Ensure full bearing contact between the joist and hanger seat. Use the correct fasteners in all designated holes to achieve listed load ratings.

Toolup Part # : 248830
