Simpson Hangers | SKU:
HUS46TF
Simpson Strong-Tie HUS46TF Galvanized Top-Flange Joist Hanger for 4x6
$23.68
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUS46TF Description

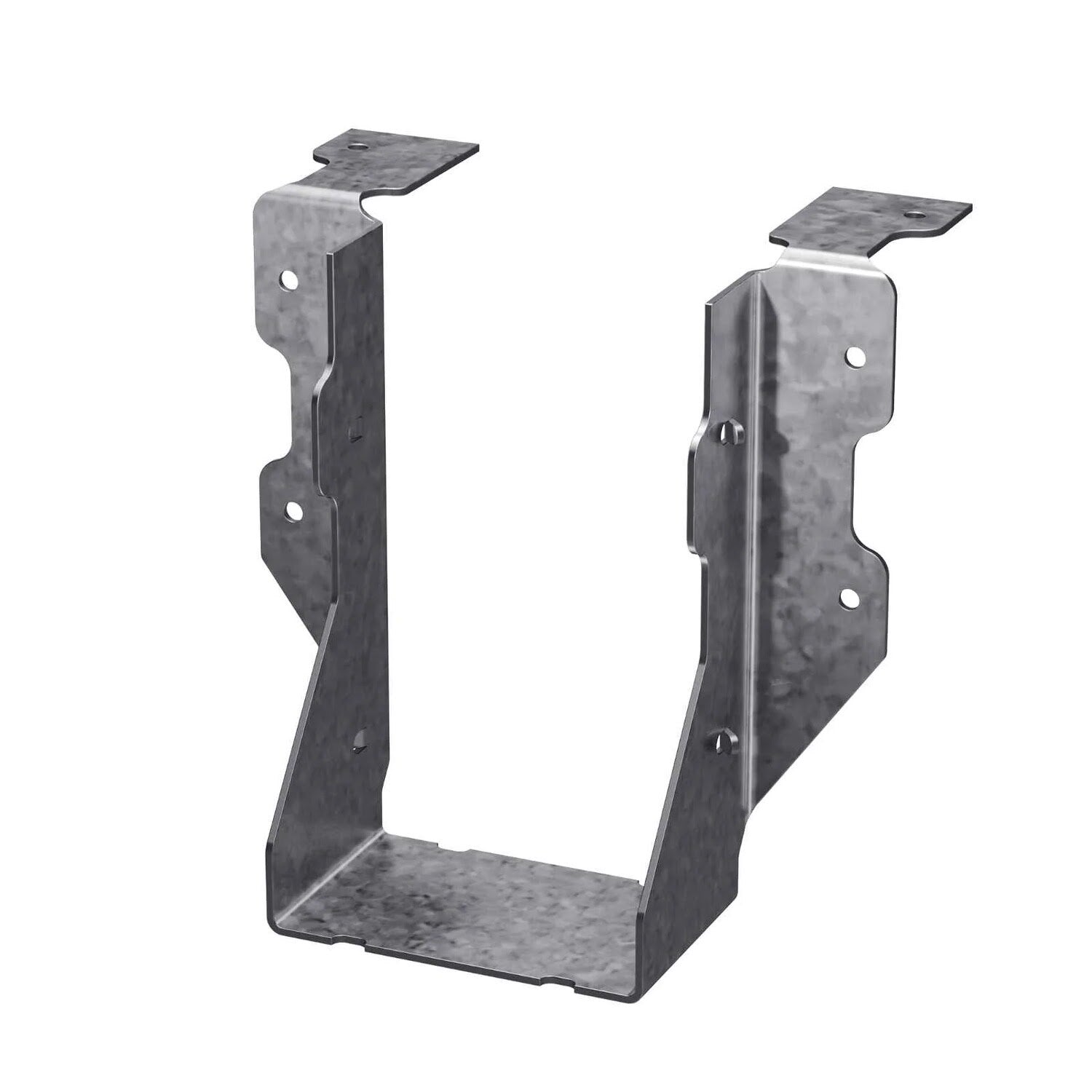

The HUS46TF is a heavy-duty top-flange joist hanger designed for 4x6 solid sawn lumber, offering superior strength and corrosion resistance with its G90 galvanized steel construction.
Simpson Strong-Tie HUS46TF Includes
- (1) HUS46TF Top-Flange Joist Hanger
Simpson Strong-Tie HUS46TF Features
- Heavy-duty construction for high-load applications
- G90 galvanized coating for corrosion resistance
- U-shaped design for secure beam encapsulation
- Optimized for solid sawn lumber
- Top flange design for secure installation
Simpson Strong-Tie HUS46TF Applications
- Floor framing: Securely connects joists to beams for enhanced floor system stability.
- Roof trusses and rafters: Provides strong, load-rated connections in roof framing applications.
- Commercial construction: Used in heavy-duty structural applications where strength and reliability are essential.
- Industrial wood structures: Supports engineered wood beams and joists.

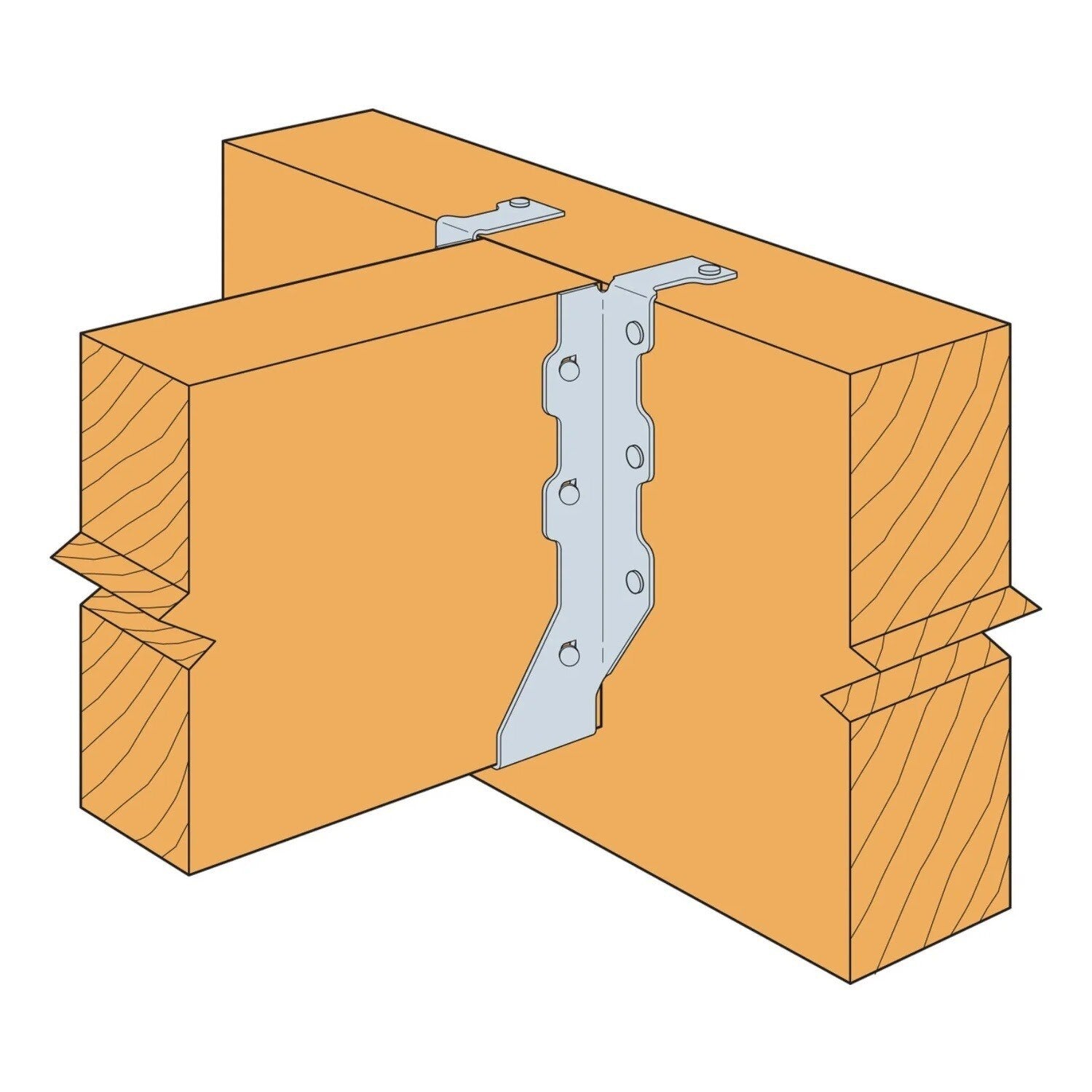

Simpson Strong-Tie HUS46TF Installation Overview
- Install using face nails or structural screws for secure connection.
- Fasten joists using nails or screws in designated side holes.
- Ensure the top flange sits flush against the supporting member.
- Reference Simpson Strong-Tie’s load tables for performance verification.
Simpson Strong-Tie HUS46TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (6) 0.162" x 3-1/2" Nails, Joist - (4) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 5-3/8" |
| Joist size | 4" X 6" |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
