Simpson Hangers | SKU:
HUS48TF

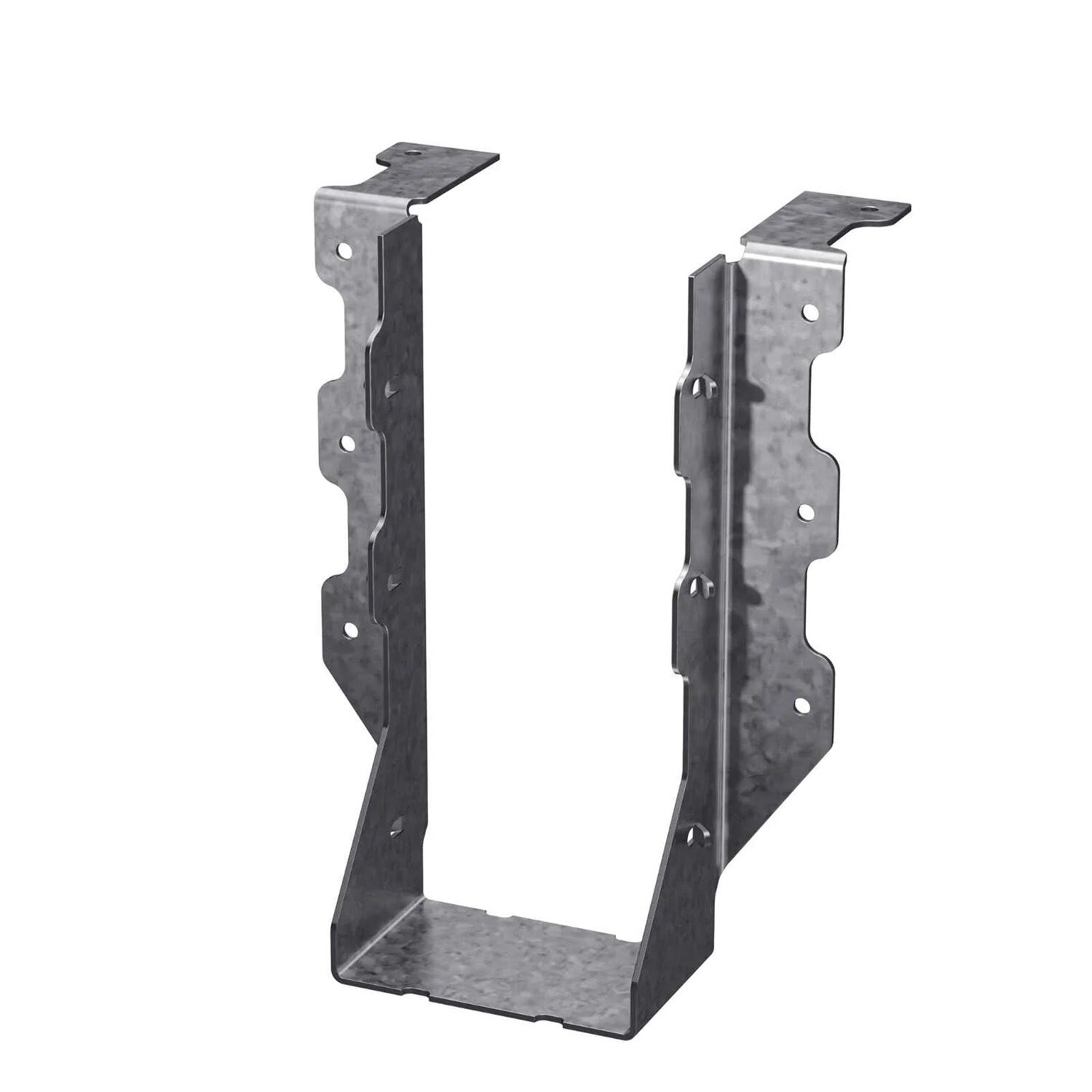

Simpson Strong-Tie HUS48TF (4" x 8") Top Flange Face Mount Hanger - G90 Galvanized
$28.36
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUS48TF Description
The HUS48TF Heavy U-Shaped Top Flange Hanger is engineered for high-load applications, offering superior strength and stability in wood-to-wood connections.
Simpson Strong-Tie HUS48TF Includes
- (1) Heavy-Duty 4x8 Top Flange Face Mount Hanger
Simpson Strong-Tie HUS48TF Features
- Heavy-Duty Construction: Engineered for high-load conditions and demanding structural applications.
- G90 Galvanized Coating: Provides corrosion resistance suitable for indoor and dry-use environments.
- Full U-Shaped Wrap: Securely encases the carried beam for optimal load distribution and stability.
- Optimized for Solid Sawn Lumber: Designed to support various beam widths and depths while ensuring a snug, load-rated connection.
- Top Flange Design: Allows for secure installation on supporting members, improving structural integrity.
Simpson Strong-Tie HUS48TF Applications
- Floor Framing: Securely connects joists to beams for enhanced floor system stability.
- Roof Trusses & Rafters: Provides strong, load-rated connections in roof framing applications.
- Commercial Construction: Used in heavy-duty structural applications where strength and reliability are essential.
- Industrial Wood Structures: Supports engineered wood structures in industrial settings.

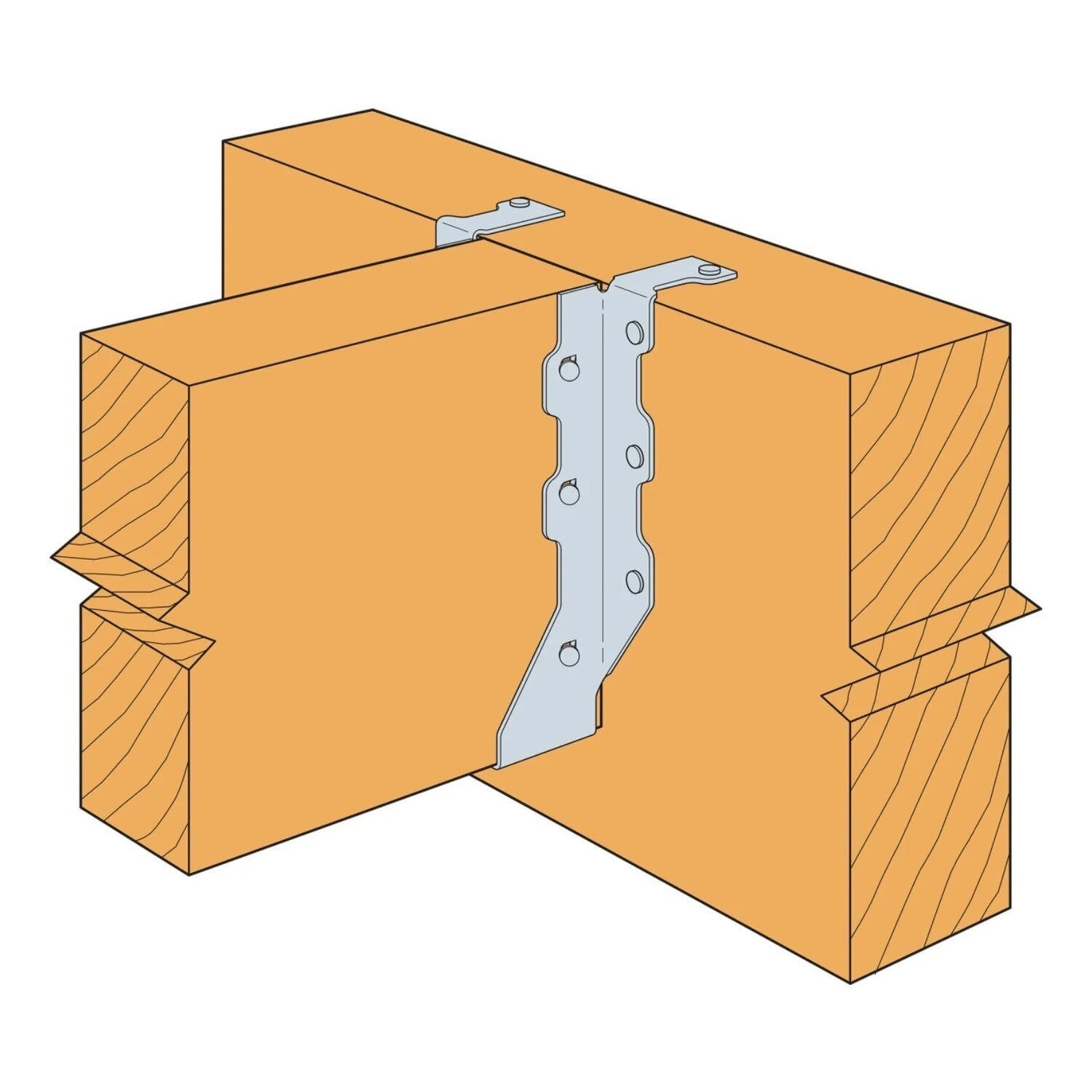

Simpson Strong-Tie HUS48TF Installation Overview
- Flange Fastening: Install using face nails or structural screws for a secure connection to the support beam.

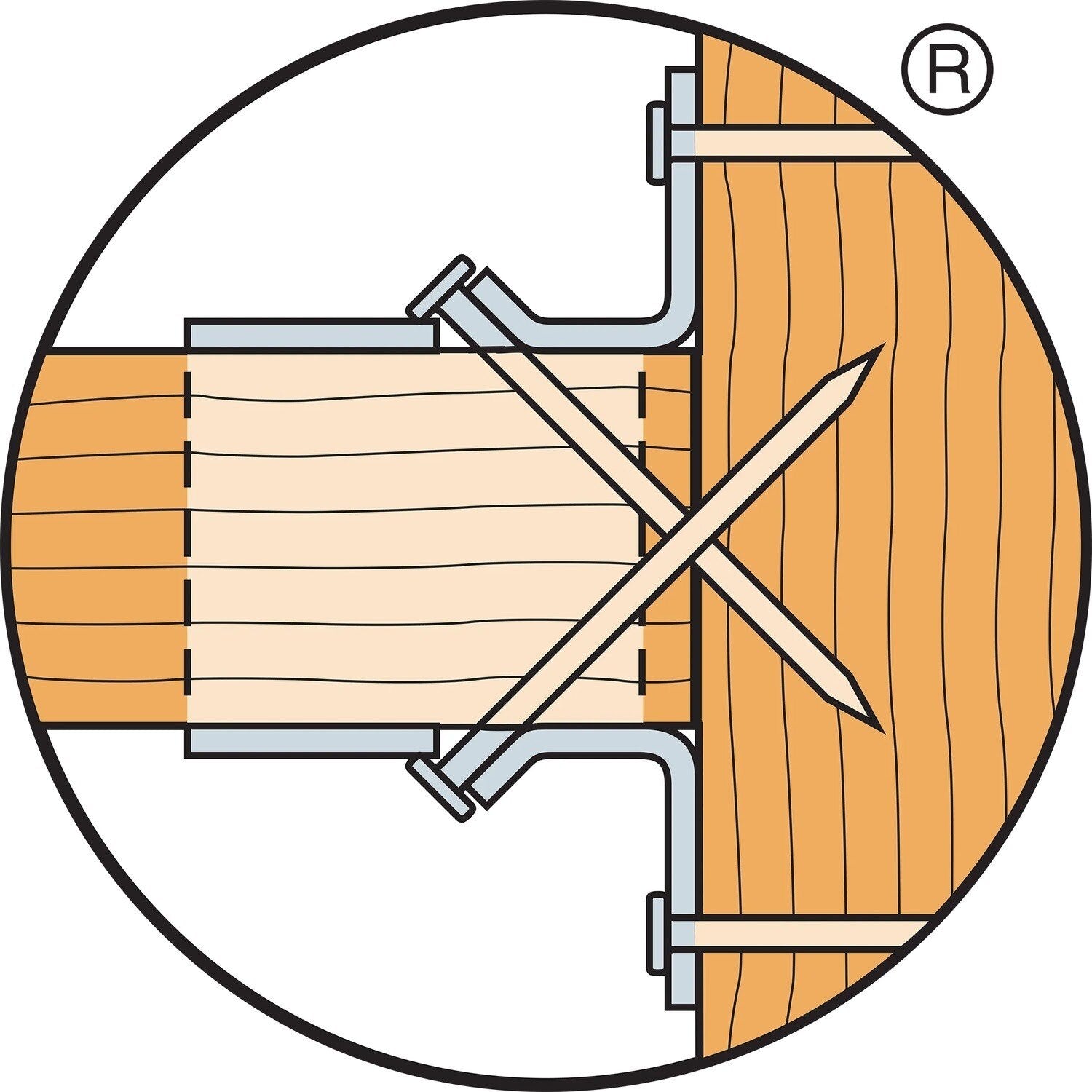

- Joist Fastening: Use nails or screws in the designated side holes to fasten the joist securely within the hanger.
- Ensure Flush Installation: The top flange should sit flush against the supporting member to maximize load distribution.
- Follow Manufacturer’s Load Tables: Reference Simpson Strong-Tie’s published load values to verify hanger performance for your specific application.
Simpson Strong-Tie HUS48TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (8) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 7-1/4" |
| Joist size | 4" X 8" |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: Ensure the top flange sits flush against the supporting member to maximize load distribution.
