Simpson Hangers | SKU:
HWPH414

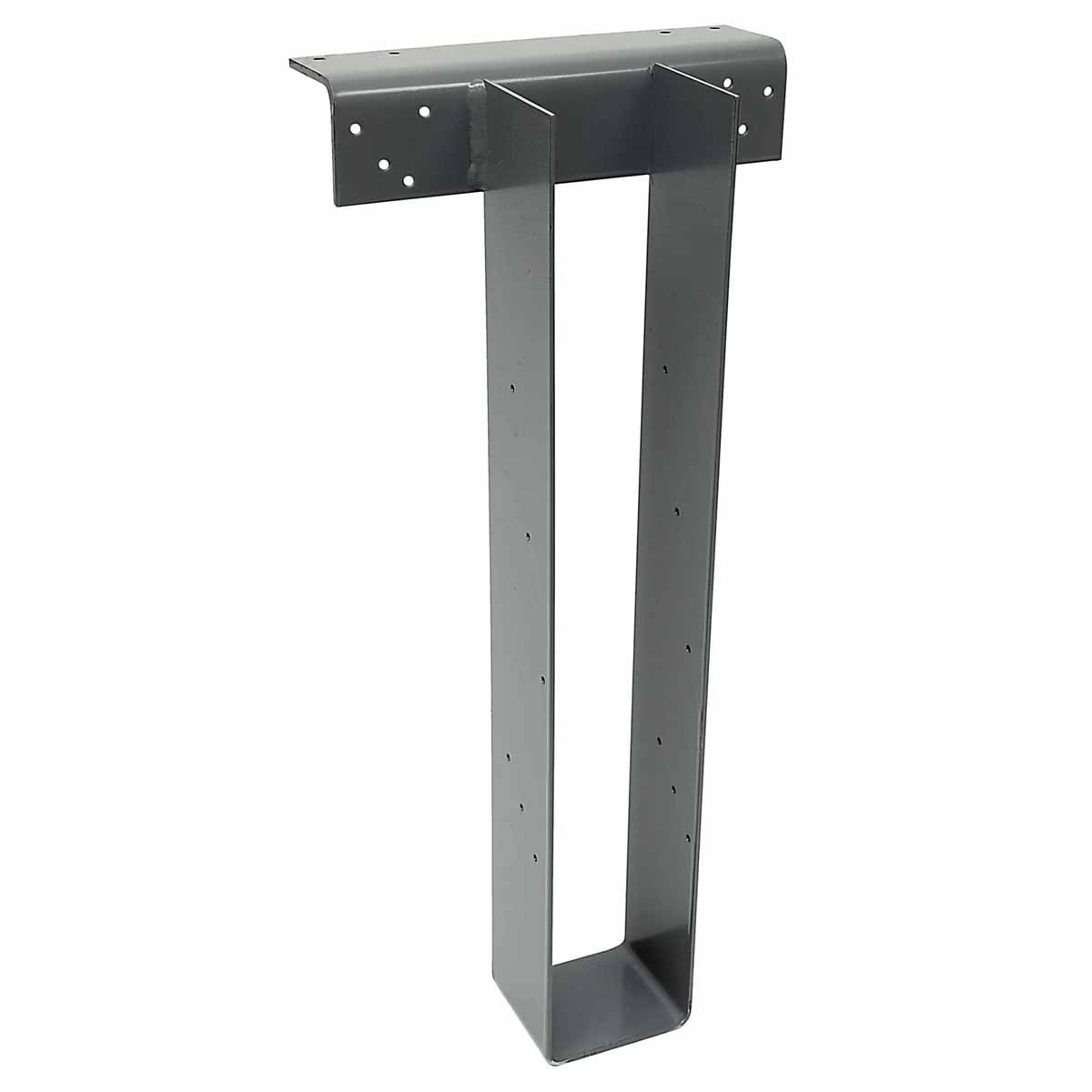

Simpson Strong-Tie HWPH414 High Wind Uplift Purlin Hanger Sol Sawn for Joist-to-Purlin and Beam Connections
$51.73
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HWPH414 Description
The Simpson Strong-Tie HWPH414 High Wind Uplift Purlin Heavy Hanger is designed for joist-to-purlin connections, providing exceptional support and resistance to high-wind forces.
Simpson Strong-Tie HWPH414 Includes
- (1) High Wind Uplift Purlin Heavy Hanger
Simpson Strong-Tie HWPH414 Features
- Enhanced uplift capacity for high-wind forces
- Customizable flange options for design flexibility
- Accommodates sloped headers up to 35° and skewed seats up to 45°
- Heavy-duty steel construction with 3-gauge top flange and 7-gauge stirrup
Simpson Strong-Tie HWPH414 Applications
- High-wind zones requiring added uplift resistance
- Wood and cold-formed steel construction for joist connections
- Panelized roof systems for secure and stable connections

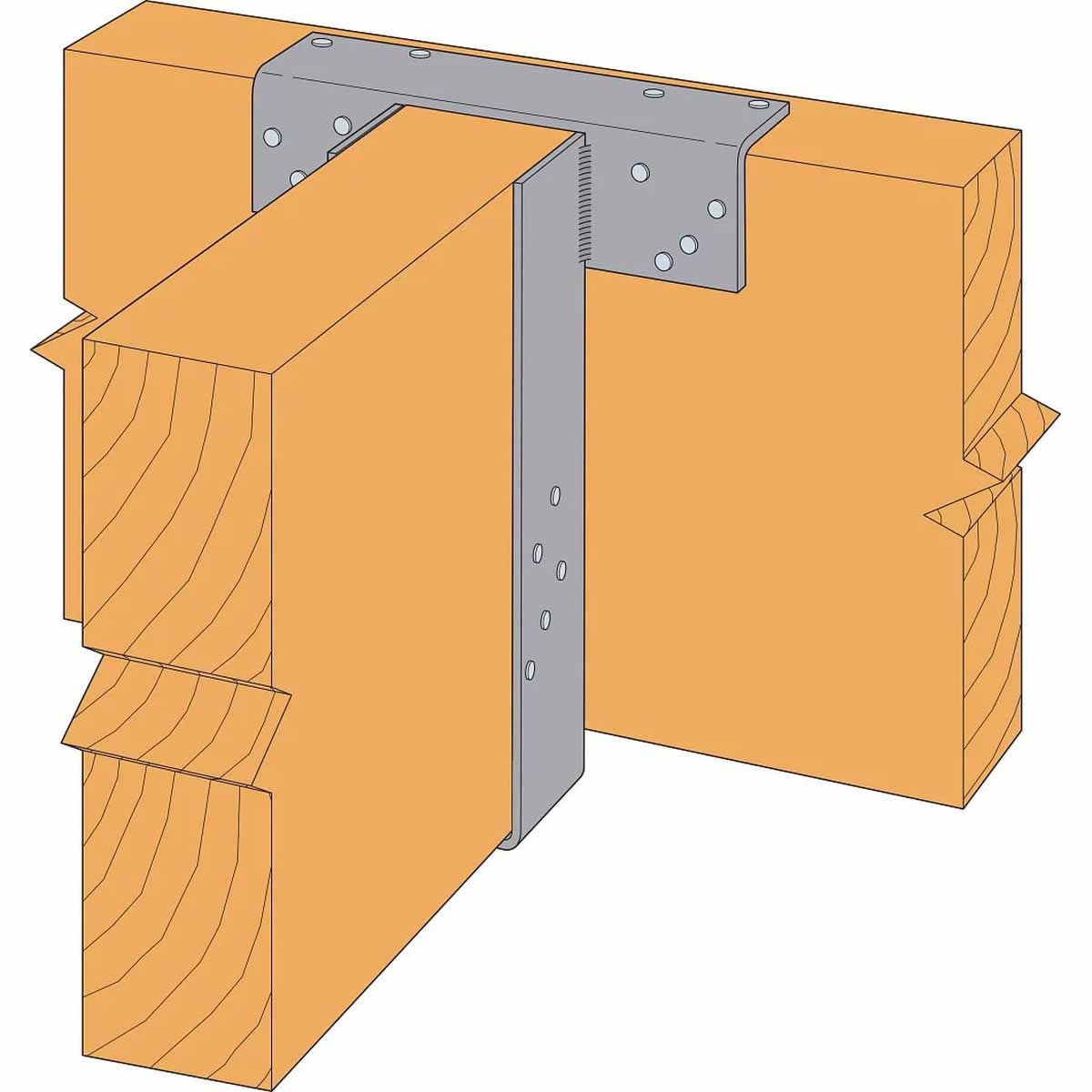

Simpson Strong-Tie HWPH414 Installation Overview
- Use all specified fasteners for secure installation
- Account for natural joist shrinkage during installation
- Compatible with multi-ply carried members, ensuring they are secured together before installation

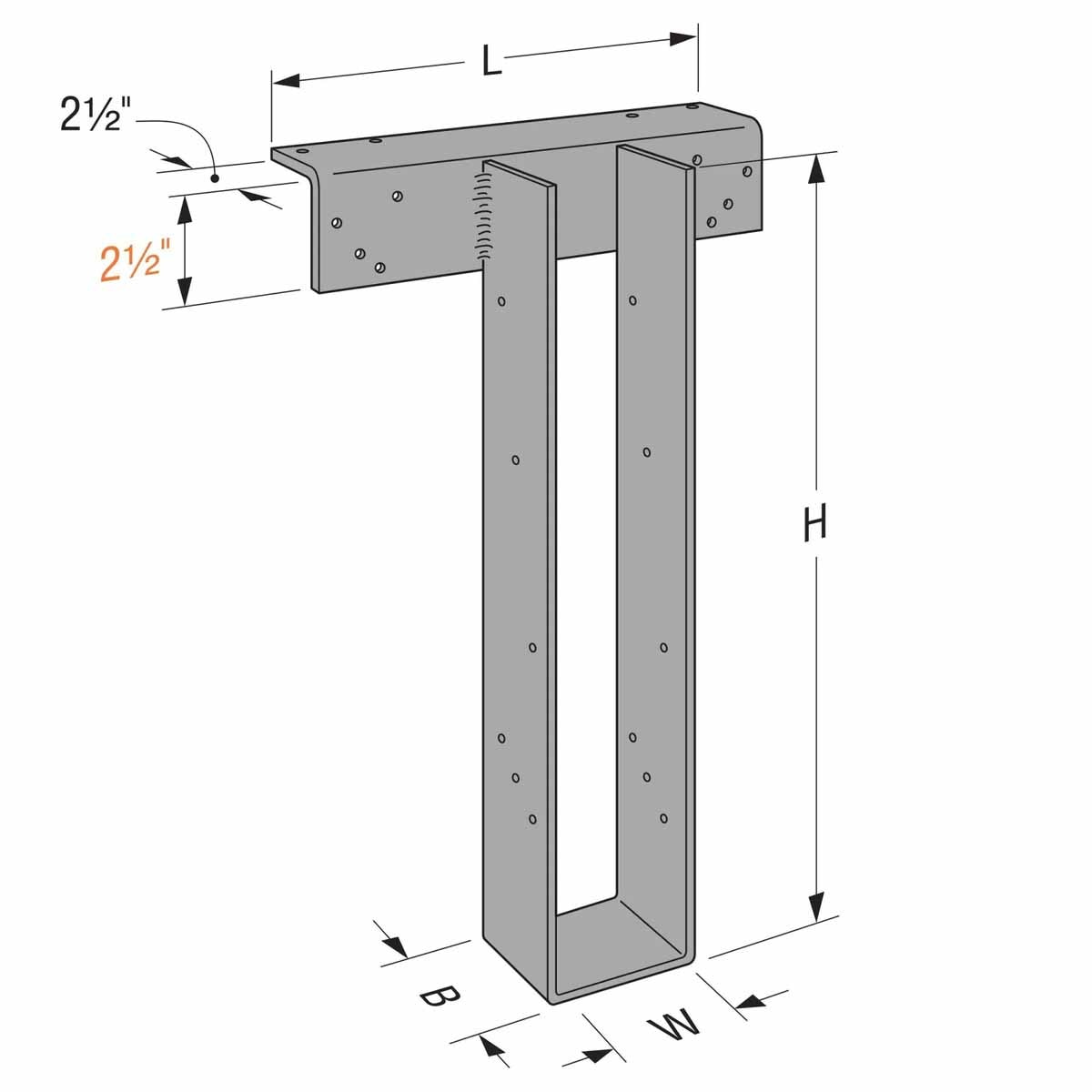

Simpson Strong-Tie HWPH414 Specifications
| Material | Carbon Steel |
| Finish | Gray Paint |
| Joist size | 4" X 14" |
| Thickness | 3 / 12 Gauge Steel |
| For Treated Lumber | No |
| Fasteners required | Hanger Heights From 6 to 15 - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (10) 0.148 x 1 ½ Hanger Heights From 15 ¾ to 32 - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (12) 0.148 x 1 ½ |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
