Simpson Hangers | SKU:
HWPH416

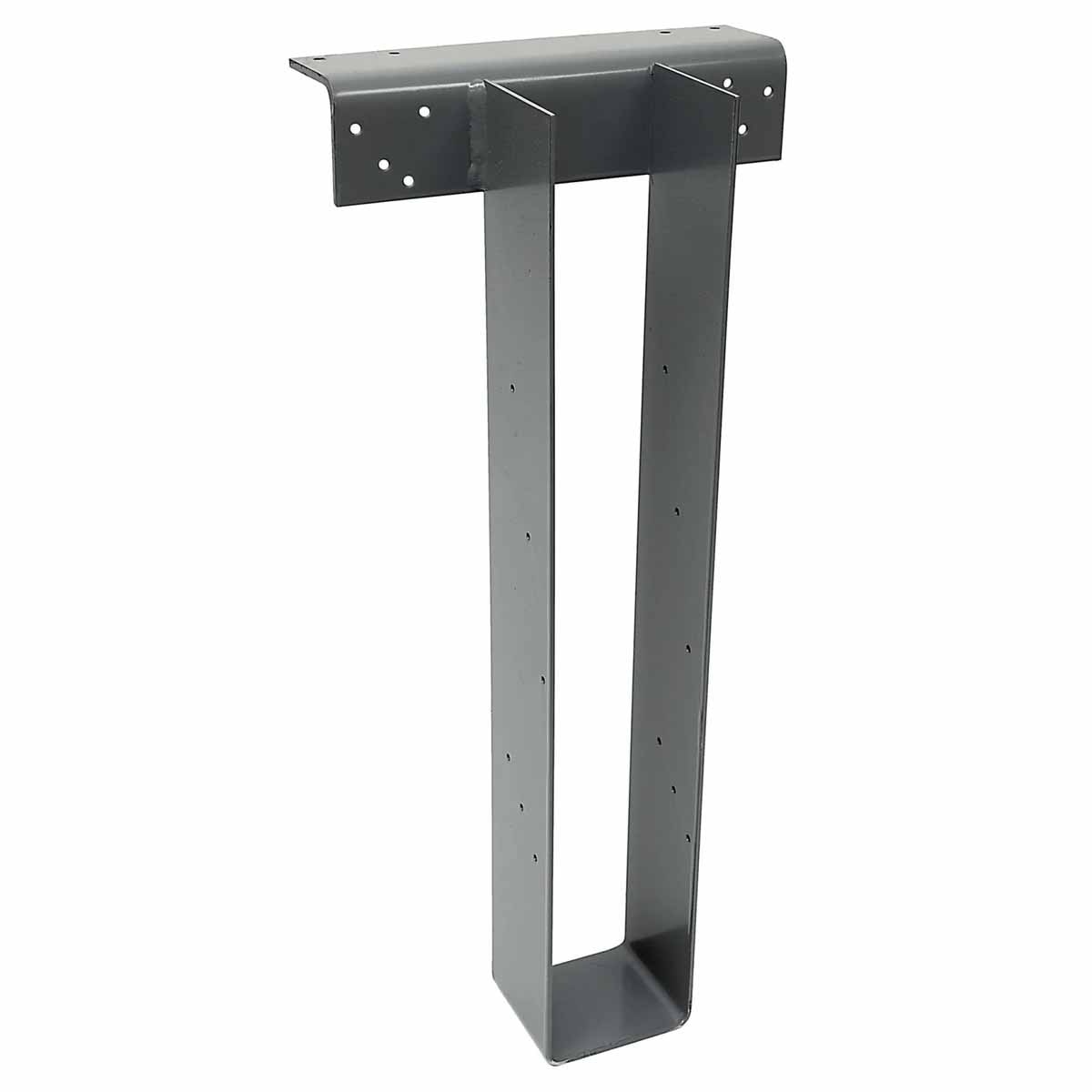

Simpson Strong-Tie HWPH416 (4x16) High Wind Uplift Purlin Hanger Sol Sawn
$54.32
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HWPH416 Description

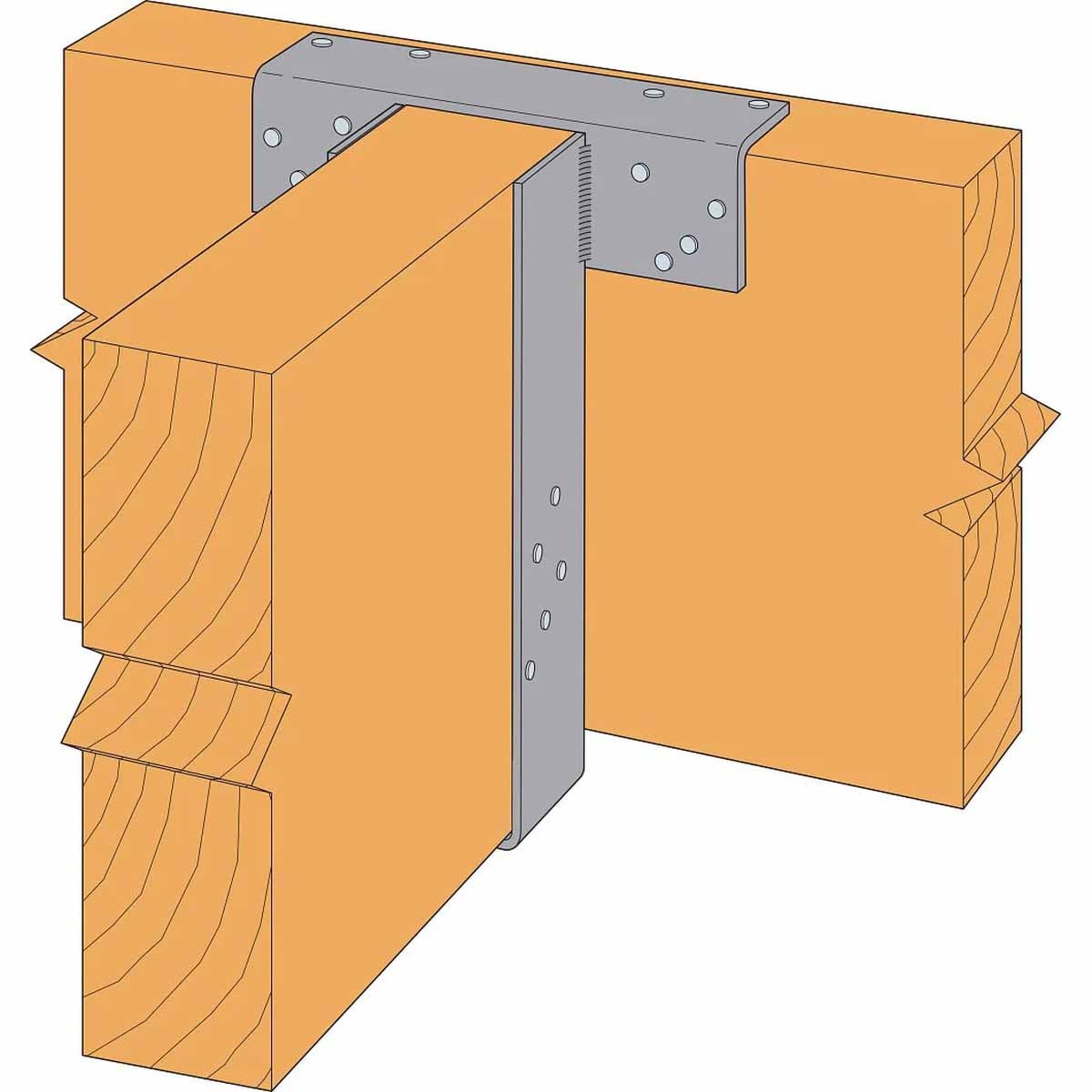

The Simpson Strong-Tie HWPH Heavy High-Wind Purlin Hangers provide exceptional support for joist-to-purlin and joist-to-beam connections in wood and cold-formed steel construction.
Simpson Strong-Tie HWPH416 Includes
- (1) High Wind Uplift Purlin Hanger
Simpson Strong-Tie HWPH416 Features
- Enhanced Uplift Capacity: Designed to provide superior resistance to high-wind uplift forces.
- Customizable Flange Options: Available with open, closed, or offset top flange configurations for flexibility in design.
- Sloped and Skewed Configurations: Can accommodate sloped headers up to 35° and skewed or sloped seats up to 45° for complex framing needs.
- Heavy-Duty Steel Construction: Built with a solid one-piece top flange made from 3-gauge steel and a 7-gauge stirrup for maximum durability.
Simpson Strong-Tie HWPH416 Applications
- High-Wind Zones: Ideal for regions prone to strong winds where added uplift resistance is critical.
- Wood and Cold-Formed Steel Construction: Supports joist connections in both wood and steel frameworks.
- Panelized Roof Systems: Ensures secure, stable connections in large-scale roofing projects.
Simpson Strong-Tie HWPH416 Installation Overview
- Joist Accommodation: Designed to account for natural joist shrinkage, maintaining a secure fit over time.
- Weld-On Applications: Can be welded onto steel members with a minimum 1 1/2-inch-long fillet weld on each side of the top flange, matching the hanger material thickness.
- Multi-Ply Member Support: Compatible with multi-ply carried members, provided they are secured together before installation.

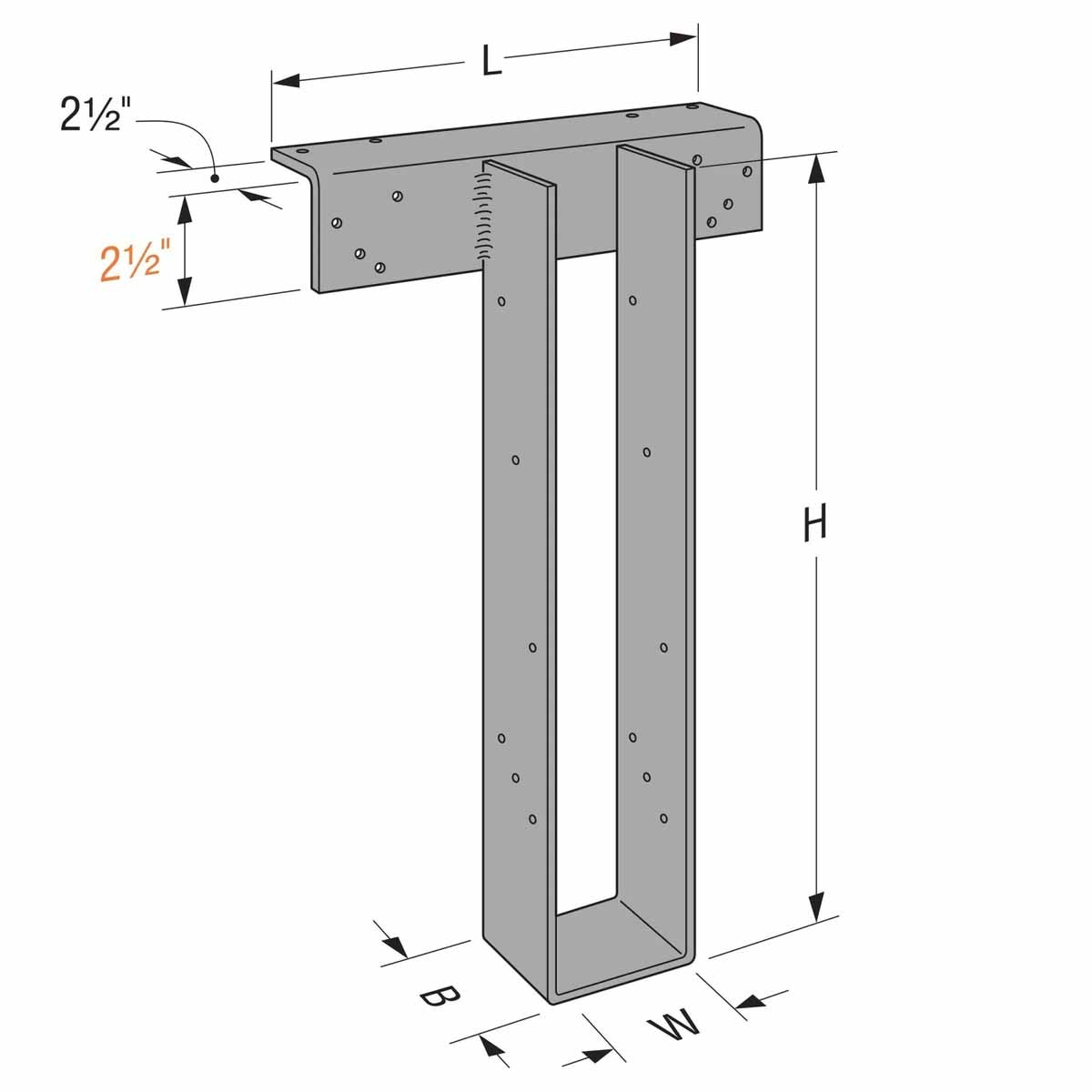

Simpson Strong-Tie HWPH416 Specifications
| Finish | Gray Paint |
| Material | Carbon Steel |
| Fasteners required | Hanger Heights From 6 to 15 - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (10) 0.148 x 1 ½ |
| For Treated Lumber | No |
| Joist size | 4" X 16" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 3 / 12 Gauge Steel |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
