Simpson Hangers | SKU:
HWPH5.37/14

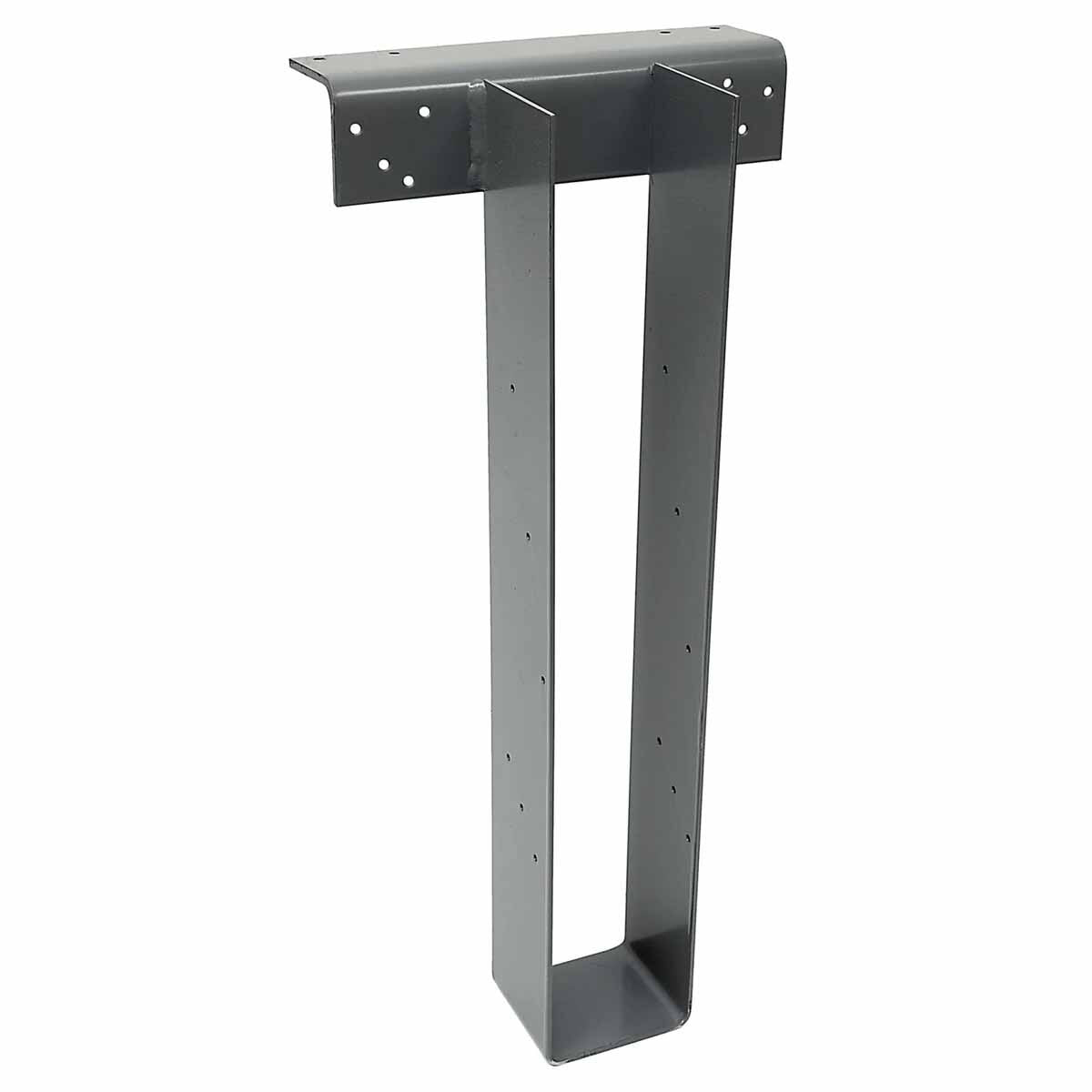

Simpson Strong-Tie HWPH5.37/14 High Wind Uplift Purlin Hanger for Joist-to-Purlin Connections
$55.02
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HWPH5.37/14 Description

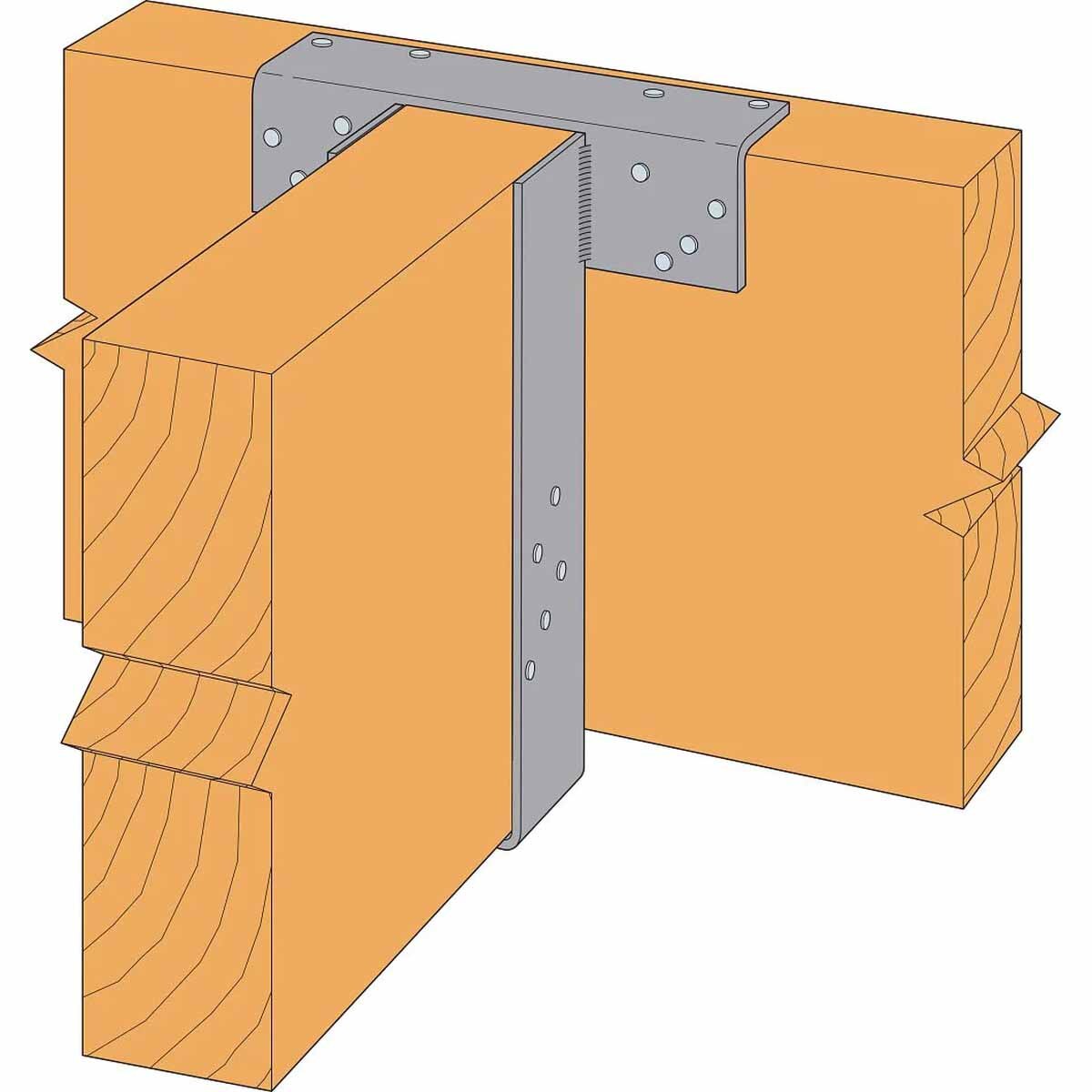

The Simpson Strong-Tie HWPH Heavy High-Wind Purlin Hangers provide exceptional support for joist-to-purlin and joist-to-beam connections in wood and cold-formed steel construction. Designed to withstand high-wind forces, these heavy-duty top-flange hangers enhance structural integrity, making them ideal for demanding environments.
Simpson Strong-Tie HWPH5.37/14 Includes
- (1) HWPH5.37/14 High Wind Uplift Purlin Hanger
Simpson Strong-Tie HWPH5.37/14 Features
- Enhanced Uplift Capacity: Designed to provide superior resistance to high-wind uplift forces.
- Customizable Flange Options: Available with open, closed, or offset top flange configurations for flexibility in design.
- Sloped and Skewed Configurations: Can accommodate sloped headers up to 35° and skewed or sloped seats up to 45° for complex framing needs.
- Heavy-Duty Steel Construction: Built with a solid one-piece top flange made from 3-gauge steel and a 7-gauge stirrup for maximum durability.
Simpson Strong-Tie HWPH5.37/14 Applications
- High-Wind Zones: Ideal for regions prone to strong winds where added uplift resistance is critical.
- Wood and Cold-Formed Steel Construction: Supports joist connections in both wood and steel frameworks.
- Panelized Roof Systems: Ensures secure, stable connections in large-scale roofing projects.
Simpson Strong-Tie HWPH5.37/14 Installation Overview
- Joist Accommodation: Designed to account for natural joist shrinkage, maintaining a secure fit over time.
- Weld-On Applications: Can be welded onto steel members with a minimum 1 1/2-inch-long fillet weld on each side of the top flange, matching the hanger material thickness. Note: Uplift loads do not apply to welded installations.
- Multi-Ply Member Support: Compatible with multi-ply carried members, provided they are secured together before installation.

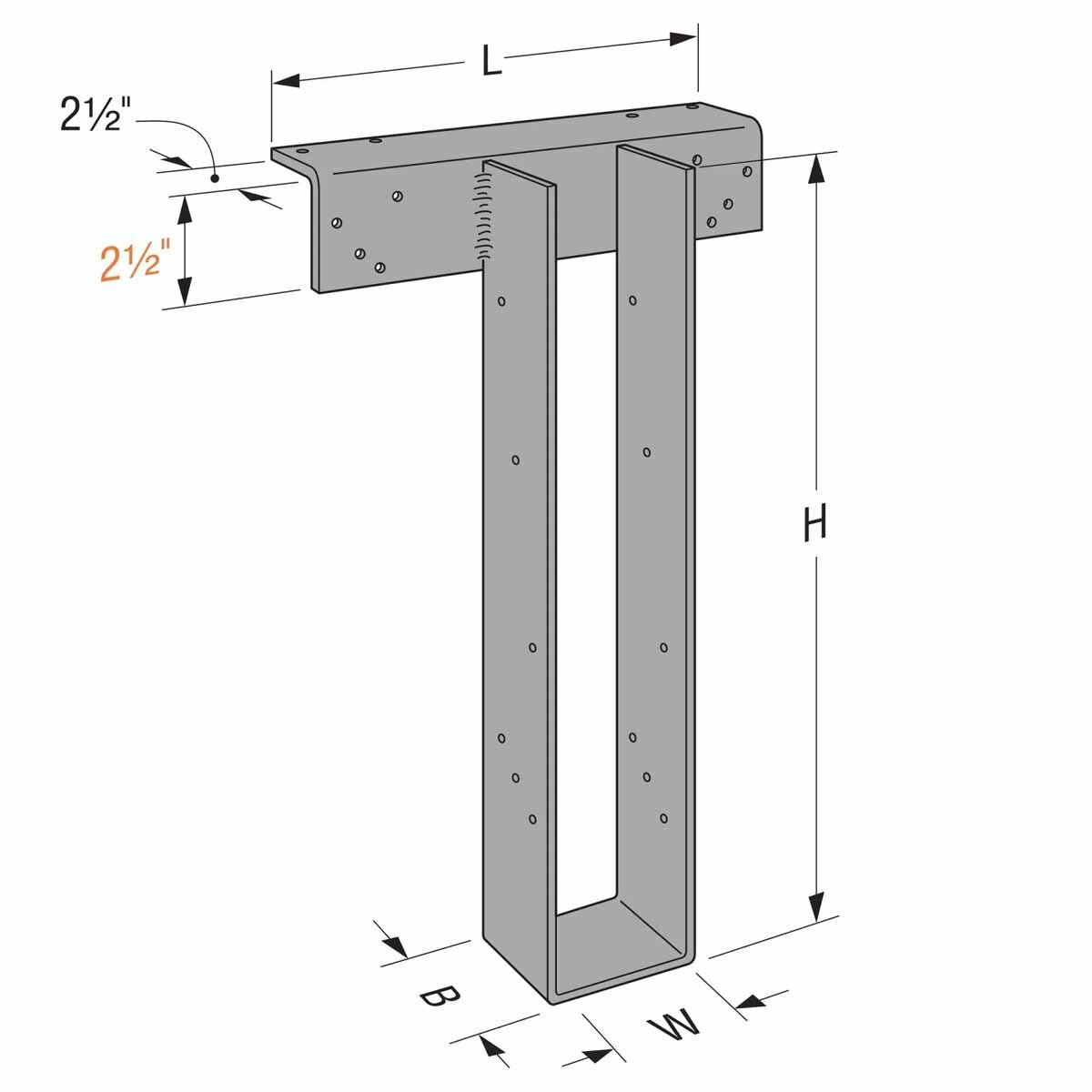

Simpson Strong-Tie HWPH5.37/14 Specifications
| Finish | Gray Paint |
| Height | 14" |
| Width | 5-3/8" |
| For Treated Lumber | No |
| Fasteners required | Hanger Heights From 6 to 15 - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (10) 0.148 x 1 ½ Hanger Heights From 15 ¾ to 32 - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (12) 0.148 x 1 ½ |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
