Simpson Hangers | SKU:
HWPH610
Simpson Strong-Tie HWPH610 High Wind Uplift Purlin Hanger Sol Sawn for Joist-to-Purlin and Beam Connections
$51.97
Unit price
/
Unavailable
Description
Description

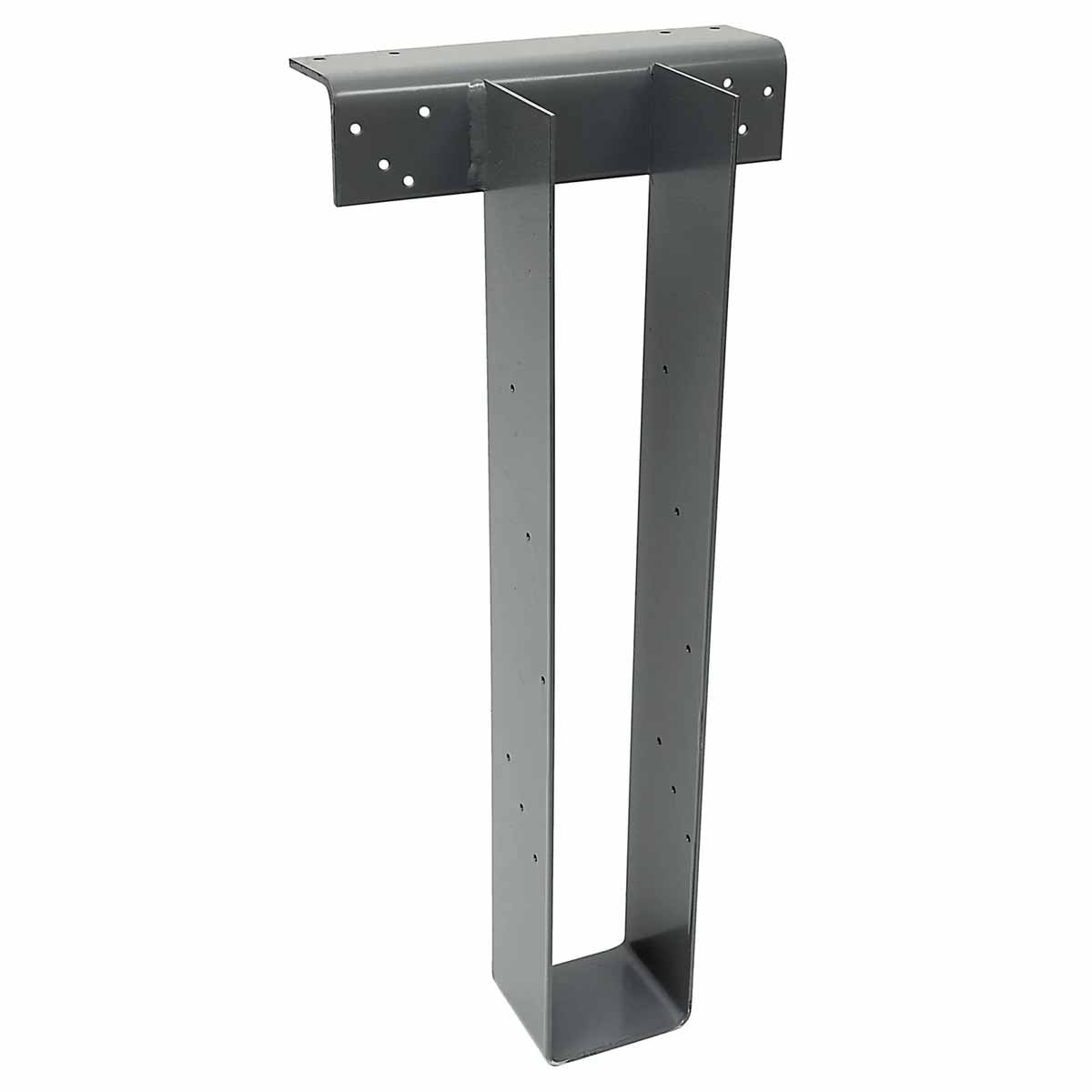

Simpson Strong-Tie HWPH610 Description
The Simpson Strong-Tie HWPH610 High Wind Uplift Purlin Heavy Hanger provides exceptional support for joist-to-purlin and joist-to-beam connections, designed to withstand high-wind forces and enhance structural integrity.
Simpson Strong-Tie HWPH610 Includes
- (1) High Wind Uplift Purlin Heavy Hanger
Simpson Strong-Tie HWPH610 Features
- Enhanced uplift capacity for high-wind resistance
- Customizable flange options for design flexibility
- Accommodates sloped headers up to 35° and skewed seats up to 45°
- Heavy-duty steel construction with 3-gauge top flange and 7-gauge stirrup
Simpson Strong-Tie HWPH610 Applications
- High-wind zones requiring added uplift resistance
- Wood and cold-formed steel construction for joist connections
- Panelized roof systems for secure and stable connections

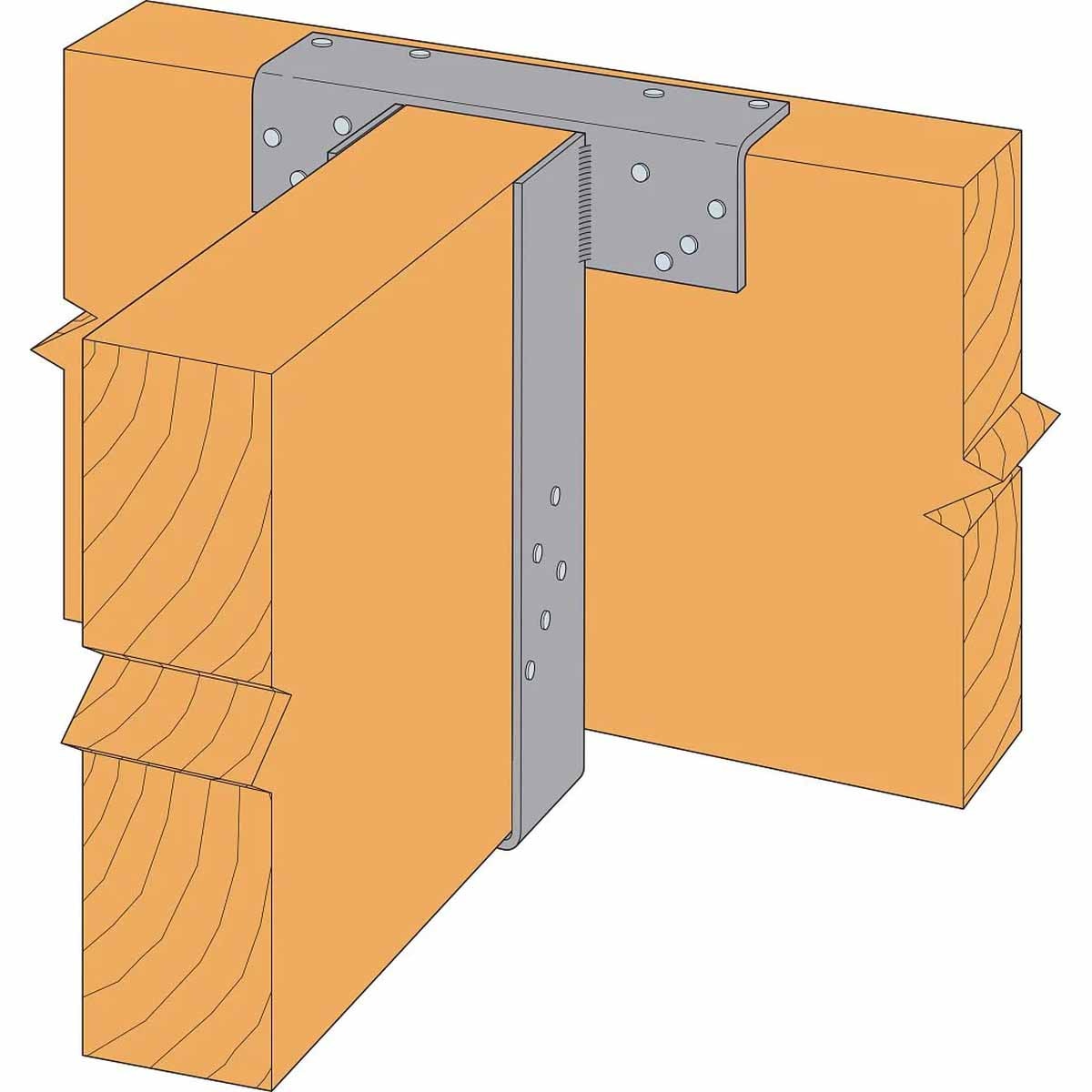

Simpson Strong-Tie HWPH610 Installation Overview
- Use all specified fasteners for secure installation
- Account for natural joist shrinkage to maintain fit
- Compatible with multi-ply carried members when secured together
- Can be welded onto steel members with specified weld dimensions

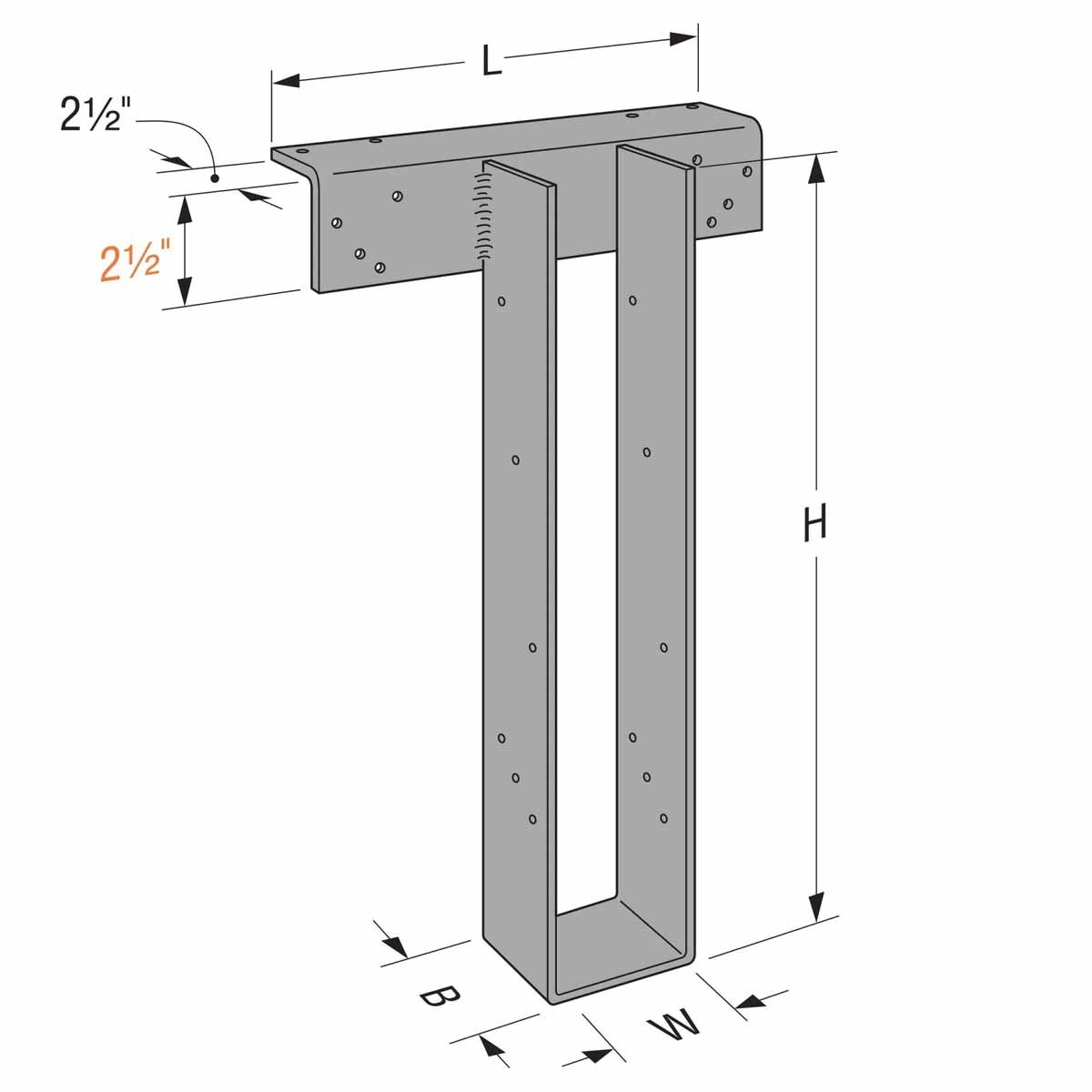

Simpson Strong-Tie HWPH610 Specifications
| Finish | Gray Paint |
| Material | Carbon Steel |
| Fasteners required | Hanger Heights From 6 to 15 - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (10) 0.148 x 1 ½ Hanger Heights From 15 ¾ to 32 - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (12) 0.148 x 1 ½ |
| For Treated Lumber | No |
| Joist size | 6" X 10" |
| Thickness | 3 / 12 Gauge Steel |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
