Simpson Strong-Tie HWPH612 High Wind Uplift Purlin Hanger Sol Sawn for Joist-to-Purlin and Beam Connections

Simpson Strong-Tie HWPH612 Features

• Enhanced Uplift Capacity: Designed to provide superior resistance to high-wind uplift forces.
• Customizable Flange Options: Available with open, closed, or offset top flange configurations for flexibility in design.
• Sloped and Skewed Configurations: Can accommodate sloped headers up to 35° and skewed or sloped seats up to 45° for complex framing needs.

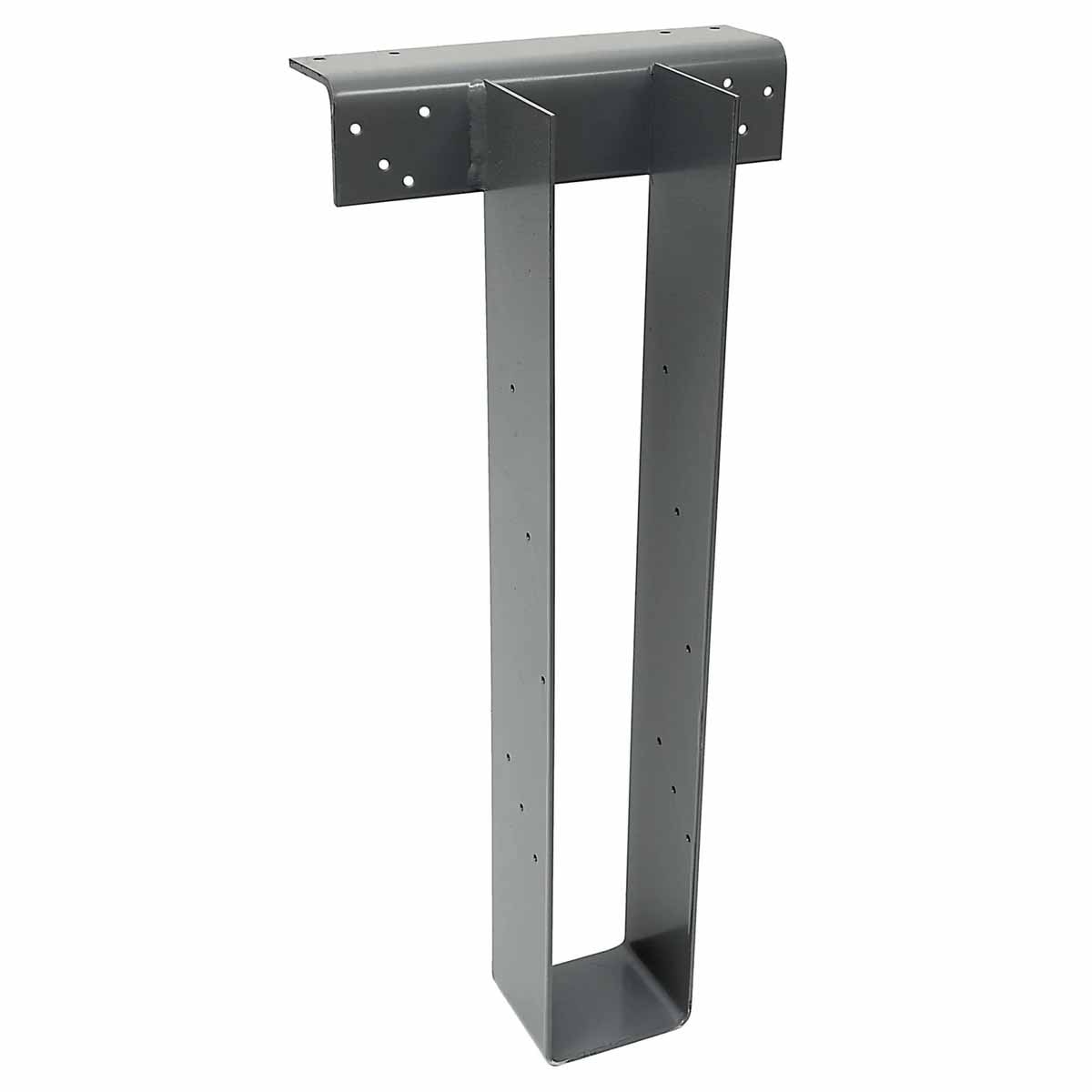

• Heavy-Duty Steel Construction: Built with a solid one-piece top flange made from 3-gauge steel and a 7-gauge stirrup for maximum durability.

Simpson Strong-Tie HWPH612 Applications

• High-Wind Zones: Ideal for regions prone to strong winds where added uplift resistance is critical.
• Wood and Cold-Formed Steel Construction: Supports joist connections in both wood and steel frameworks.
• Panelized Roof Systems: Ensures secure, stable connections in large-scale roofing projects.

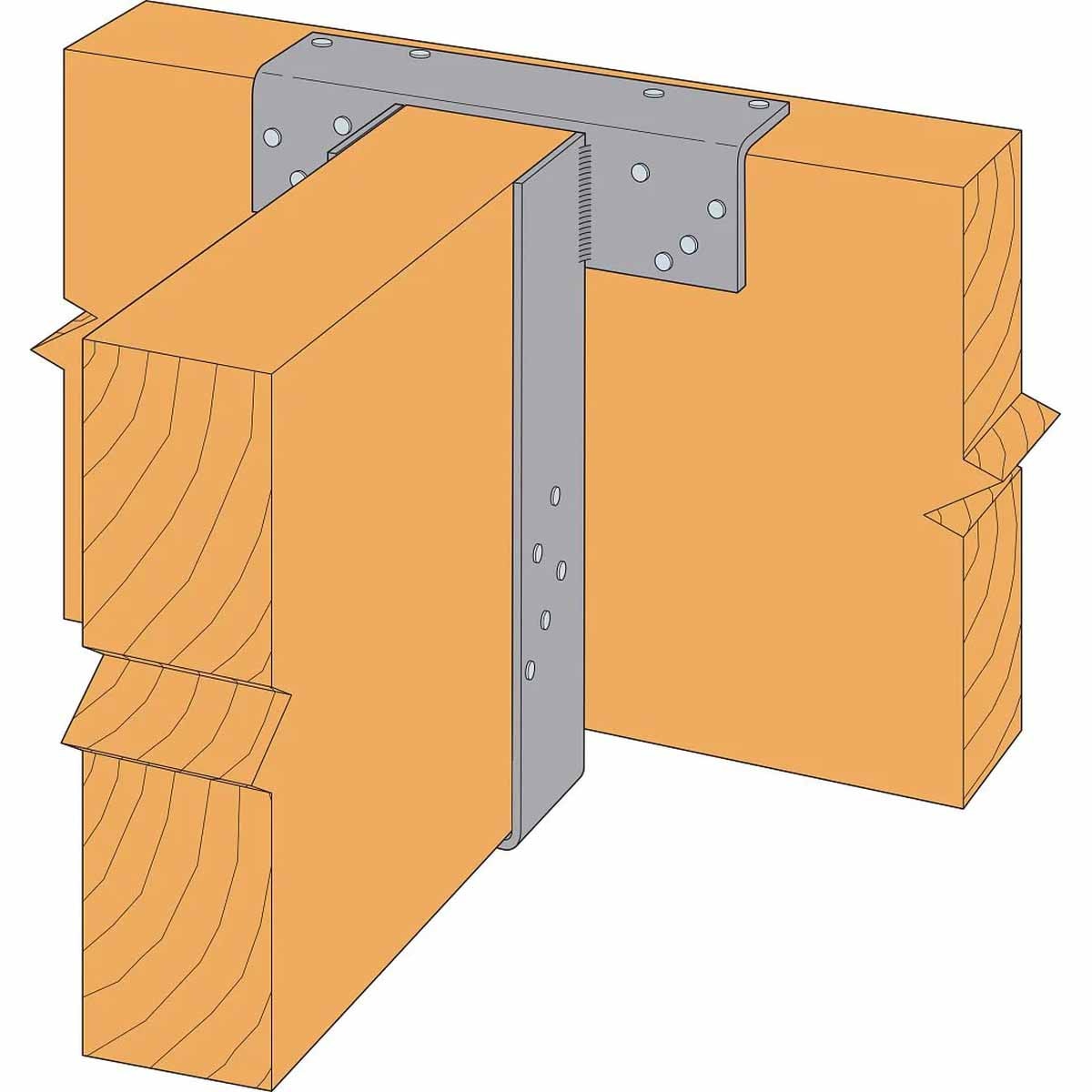

Simpson Strong-Tie HWPH612 Installation Overview

1. Use all specified fasteners.
2. H dimensions are sized to account for normal joist shrinkage.
3. The HWPH may be used for weld-on applications with specified weld sizes.
4. Hangers can support multi-ply carried members, provided they are secured together before installation.
5. Non-modified hangers can support joists sloped up to 1/4:12 using table loads.
6. Web stiffeners are required for these hangers when using engineered wood.
7. For attaching to multi-ply headers in engineered wood applications, refer to technical guidelines.
