Simpson Anchors HWSC362-KT Description

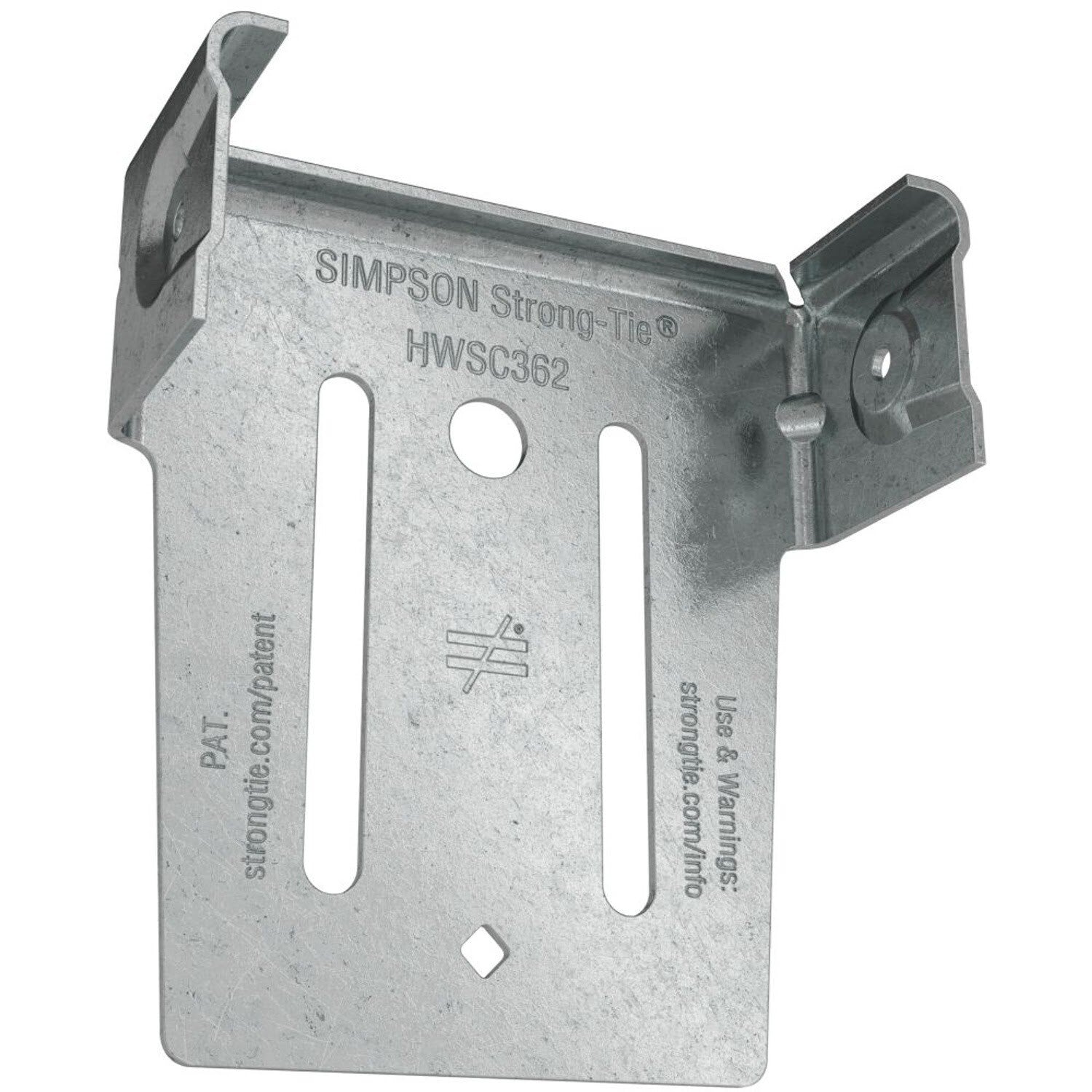

The HWSC362-KT is a head-of-wall slide-clip connector designed for curtain-wall construction, providing up to 1 inch of movement and featuring a galvanized finish for durability.
Simpson Anchors HWSC362-KT Includes
- (50) HWSC362 connectors
- (110) XLSH78B1414 #14 shouldered screws
Simpson Anchors HWSC362-KT Features
- Edge stiffener rolled into the web and flange for added strength
- Unique cone-shaped dimple for alignment and locking
- Replaces slotted track for easier panelization
- Allows up to 1 inch of movement up and down
Simpson Anchors HWSC362-KT Applications

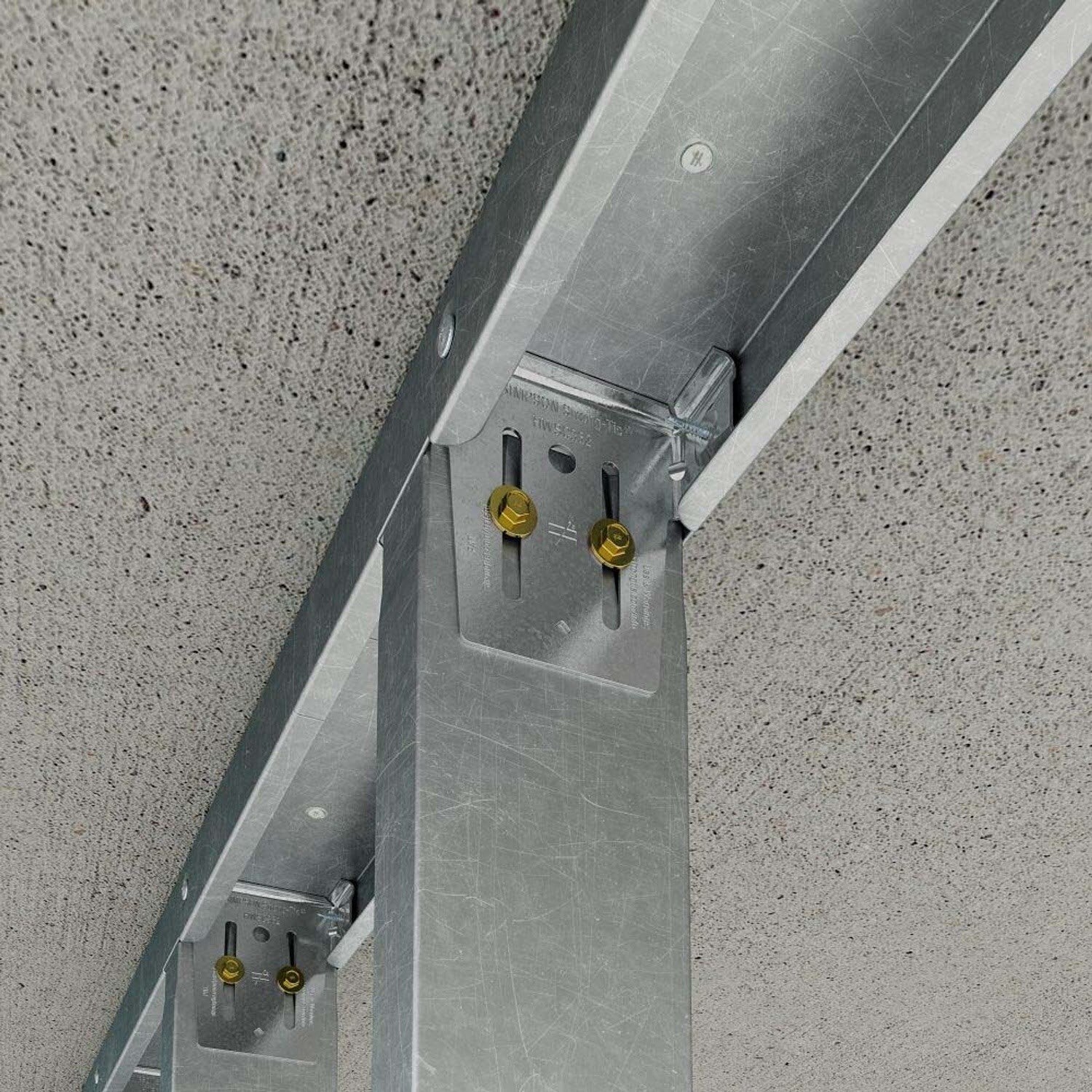

- Curtain-wall construction for structural support
Simpson Anchors HWSC362-KT Installation Overview
- Install with (1) #10-16 screw into each track flange to each flange of clip.
- Use (2) XLSH78B1414 #14 shoulder screws (included). Install screws into the center of the slot at No-Equal logo.

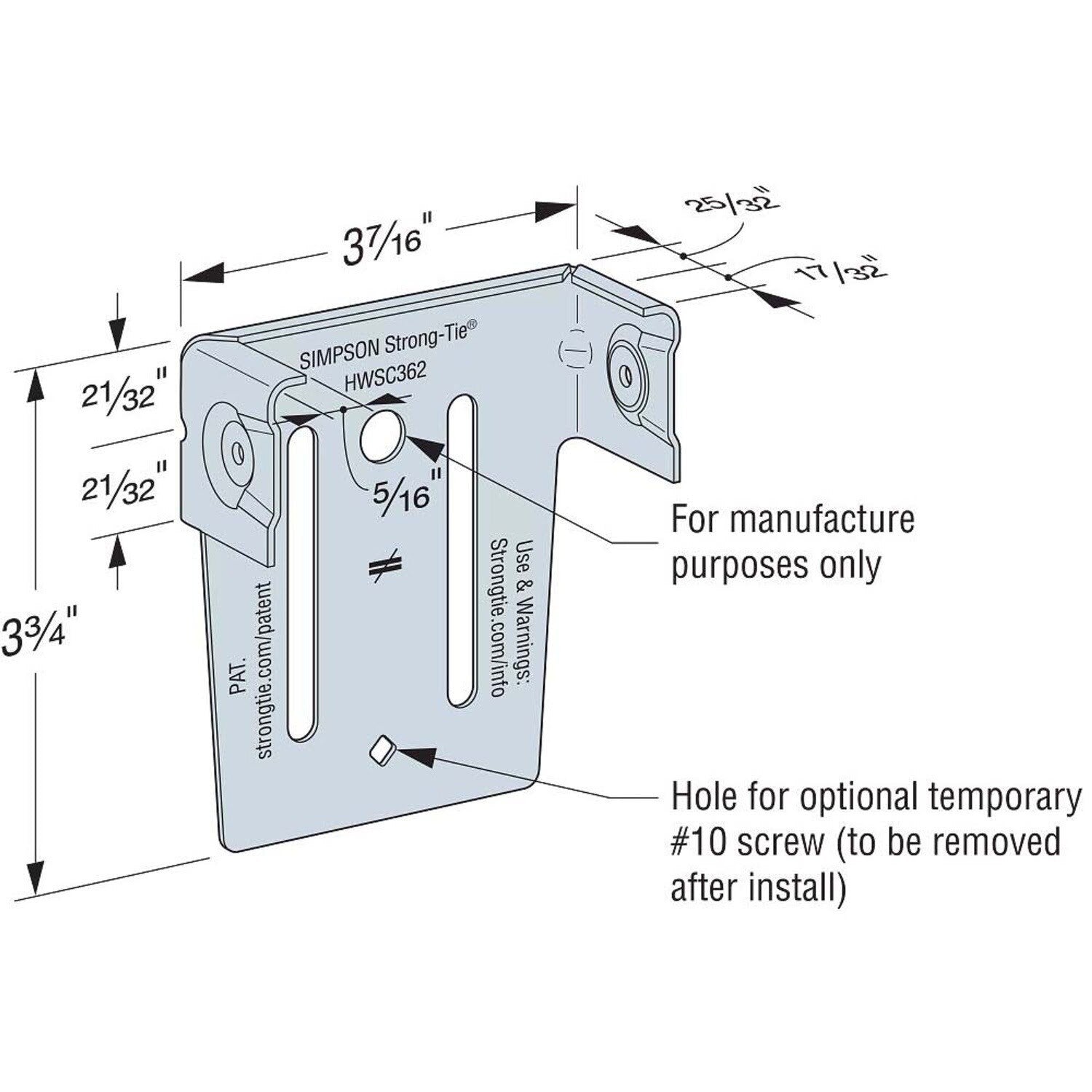

- Use an optional #10 screw to lock deflection gap during panel construction. Remove after installation is complete.
Simpson Anchors HWSC362-KT Specifications
| Material | 54 mil (16 ga.), 50 ksi |
| Finish | Galvanized (G90) |
| Packaging Quantity | 50 |
NOTE: The HWSC connector is specifically designed for use with printed studs and tracks such as FrameCAD, Arkitech, Howick and Pinnacle. Not intended for use with typical manufactured studs and tracks.
Toolup Part # :
825009
