Simpson Anchors | SKU:
HYS12/68-KT25
Simpson Strong-Tie HYS12/68-KT25 (12") 14-Gauge Bypass Hybrid Strut Kit with Screws - Versatile Steel Connector for Slide or Rigid Applications
Free Shipping
$436.03
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HYS12/68-KT25 Description

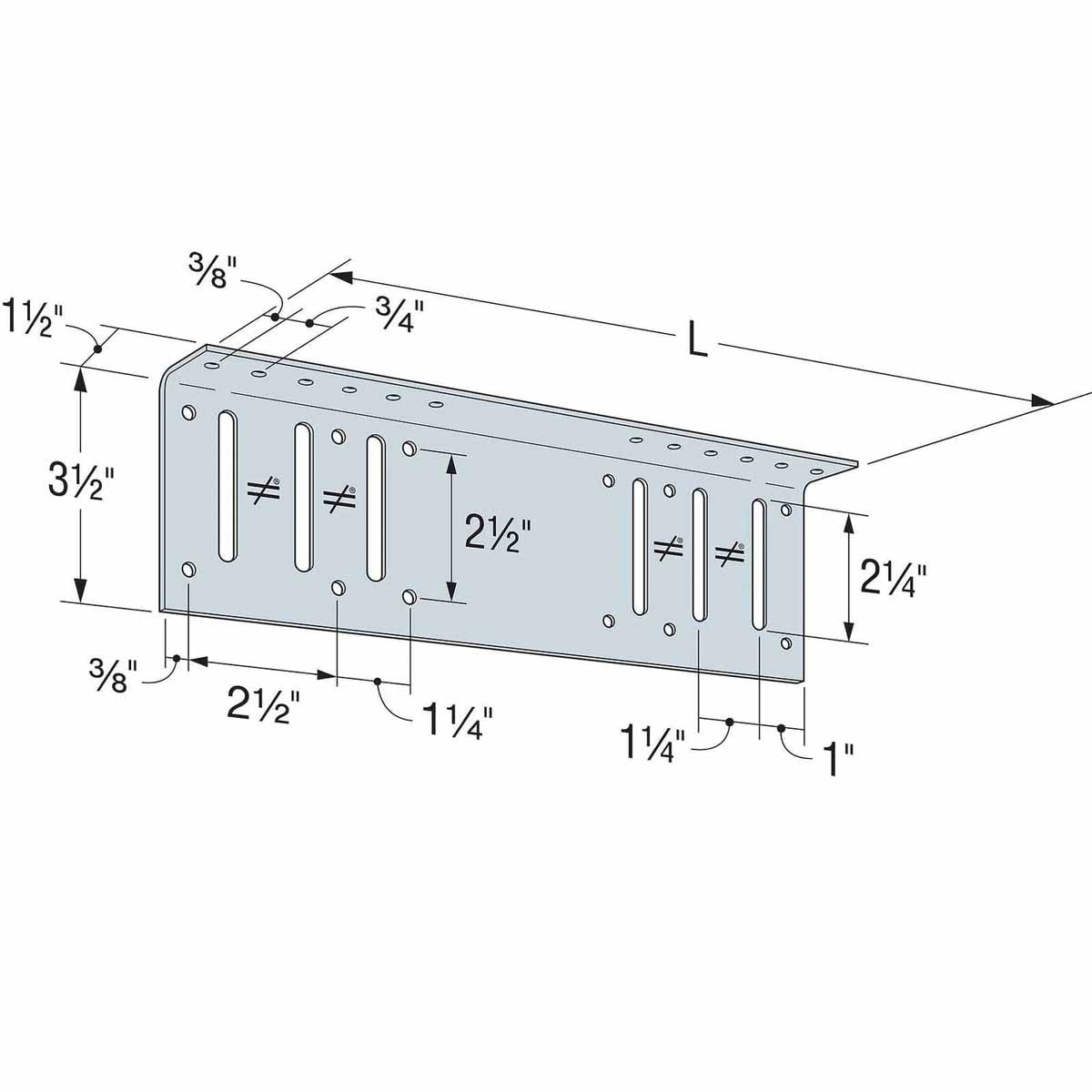

The Simpson Strong-Tie HYS hybrid strut is a versatile steel connector designed for slide or rigid applications, accommodating large standoff conditions.
Simpson Strong-Tie HYS12/68-KT25 Includes
- (25) HYS12/68 connectors
- (83) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie HYS12/68-KT25 Features
- Available in lengths of 12", 15", 24" and 30"
- Slots positioned to minimize eccentric load and maximize capacity
- Allows up to 1" of vertical movement in each direction in slide applications
- No-Equal stamps mark the center of slots for correct screw placement
- Supports gravity and lateral loads with #10 screws through predrilled holes
Simpson Strong-Tie HYS12/68-KT25 Applications
- Used at the bottom of steel beams to accommodate large standoff conditions
- Slide or rigid clip applications in cold-formed steel construction
Simpson Strong-Tie HYS12/68-KT25 Installation Overview
- Attach the HYS using shouldered screws through slotted holes for slide connections
- Use #10 screws through small predrilled holes for rigid connections
- Ensure correct placement of screws using No-Equal stamps
Simpson Strong-Tie HYS12/68-KT25 Specifications
| Finish | G90 Galvanized |
| Length | 12" |
| Thickness | 14 Gauge |
| Quantity | 25 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
