Simpson Strong-Tie HYS15/68-KT25 Description

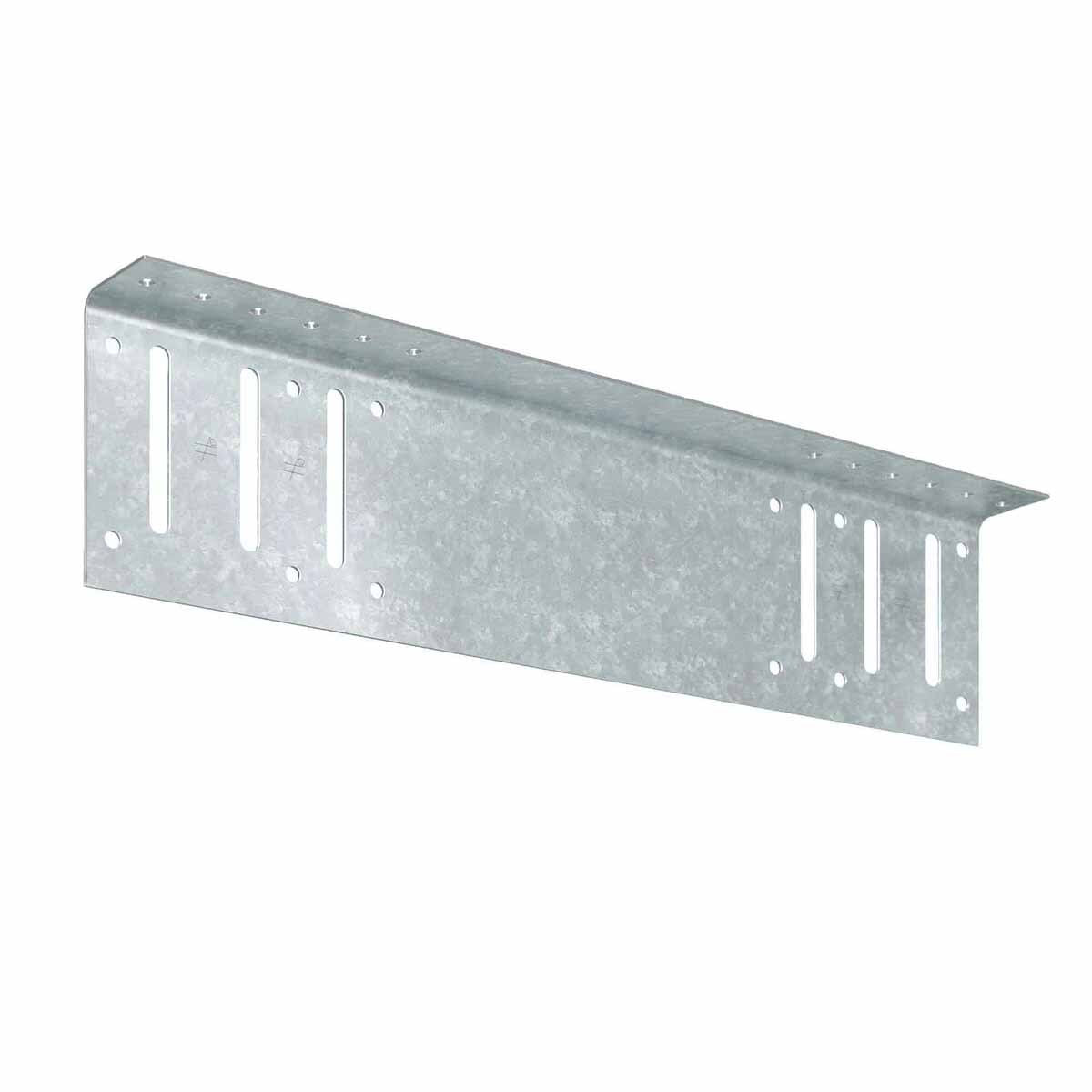

The Simpson Strong-Tie HYS hybrid strut is designed for use as either a slide or rigid clip, accommodating large standoff conditions and supporting gravity and lateral loads.
Simpson Strong-Tie HYS15/68-KT25 Includes
- (25) HYS15/68 connectors
- (83) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie HYS15/68-KT25 Features
- Available in lengths of 12", 15", 24" and 30"
- Slots positioned to minimize eccentric load and maximize capacity
- Allows up to 1" of vertical movement in each direction
- No-Equal stamps mark the center of the slots for correct placement
- Supports gravity and lateral loads with #10 screws
Simpson Strong-Tie HYS15/68-KT25 Applications
- Cold-formed steel construction requiring bypass hybrid struts
- Slide-clip applications for vertical movement
- Rigid clip applications for gravity and lateral loading
Simpson Strong-Tie HYS15/68-KT25 Installation Overview
- Attach the HYS using shouldered screws through the slotted holes for slide connection.
- Use #10 screws through small predrilled holes for rigid connection.
- Ensure correct placement of screws using No-Equal stamps.

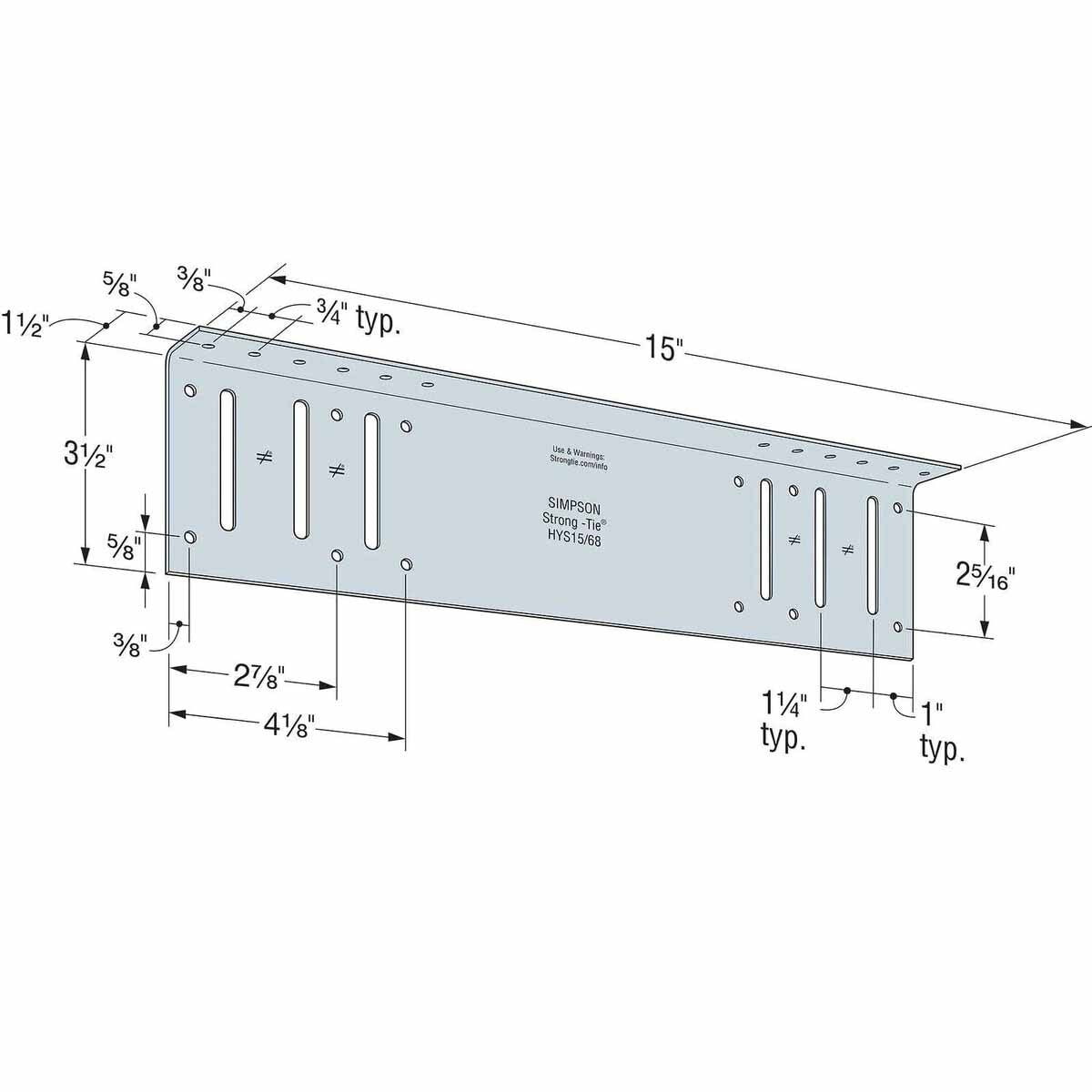

Simpson Strong-Tie HYS15/68-KT25 Specifications
| Finish | G90 Galvanized |
| Length | 15" |
| Thickness | 14 Gauge |
| Quantity | 25 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values.
Toolup Part # :
819169
