Simpson Anchors | SKU:
ICFVL-CW

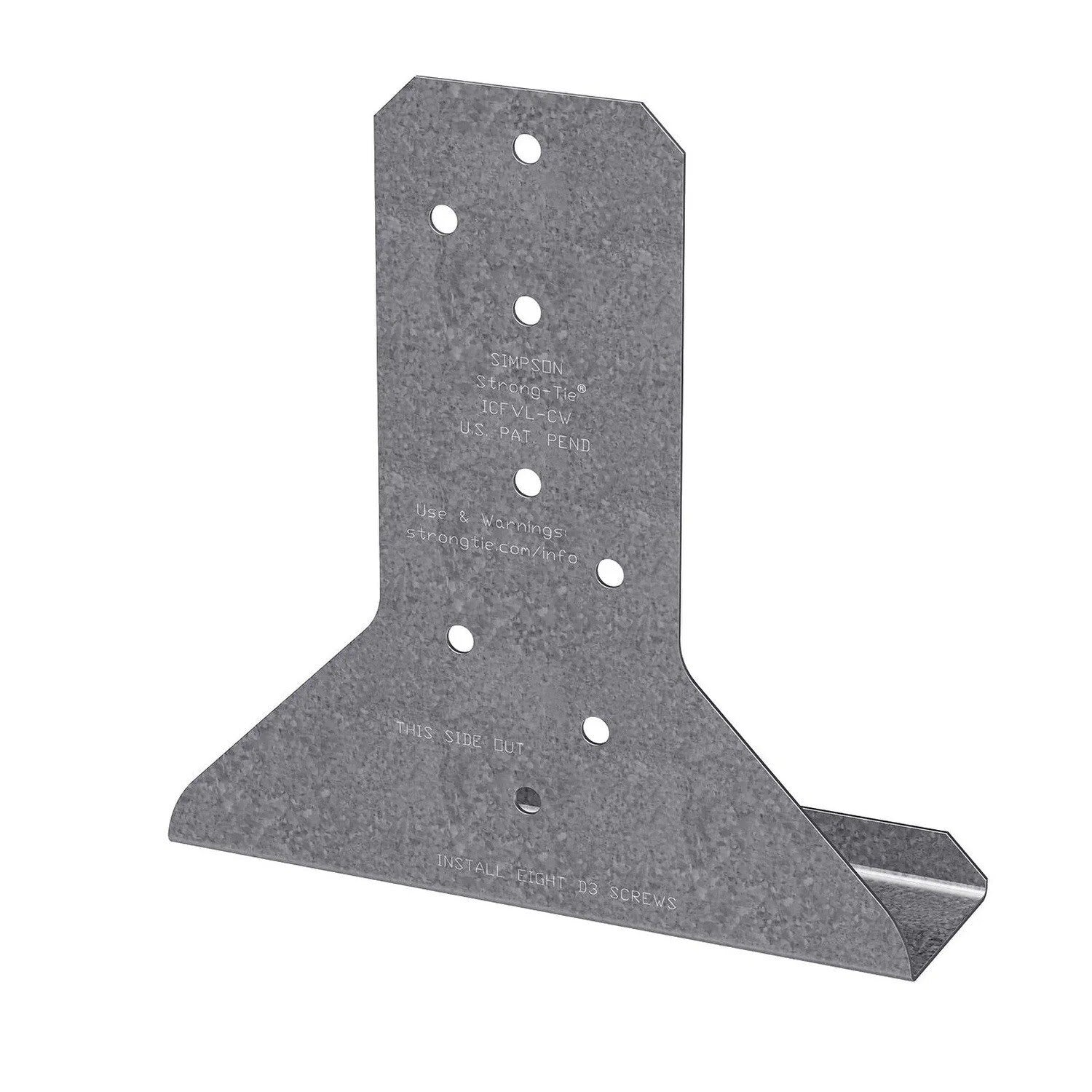

Simpson Strong-Tie ICFVL-CW Ledger Connector System for Composite Wood to ICF Walls (15 Pack)
Free Shipping
$278.39
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ICFVL-CW Description
The ICFVL ledger connector system is designed for mounting wood or steel ledgers to insulated concrete form (ICF) walls, offering improved spacing, faster installation, and no protrusions.
Simpson Strong-Tie ICFVL-CW Includes
- (15) ICFVL Ledger Connectors
Simpson Strong-Tie ICFVL-CW Features
- Engineered for mounting wood or steel ledgers to ICF walls
- Provides both vertical and lateral in-plane performance
- Improved on-center spacing compared to traditional anchor bolting
- Faster installation process
- No protrusions for a cleaner finish
Simpson Strong-Tie ICFVL-CW Applications
- Mounting wood or steel ledgers to insulated concrete form (ICF) walls
- Use in dry environments
Simpson Strong-Tie ICFVL-CW Installation Overview
- Slip the ledger connector underneath the ledger
- Install eight ICF-D3.25 screws partially into the ledger using a low-speed drill
- For dense wood species, predrill the ledger with a 5/32" drill bit
- Position the bottom of the ledger level to the chalk line and drive screws through the wood into the ICFVL
- Attach with four #14 x 3/4", #3 drill-point screws (not provided)
- Ensure screws are at least 1/2" from the edge of the ICFVL and spaced evenly

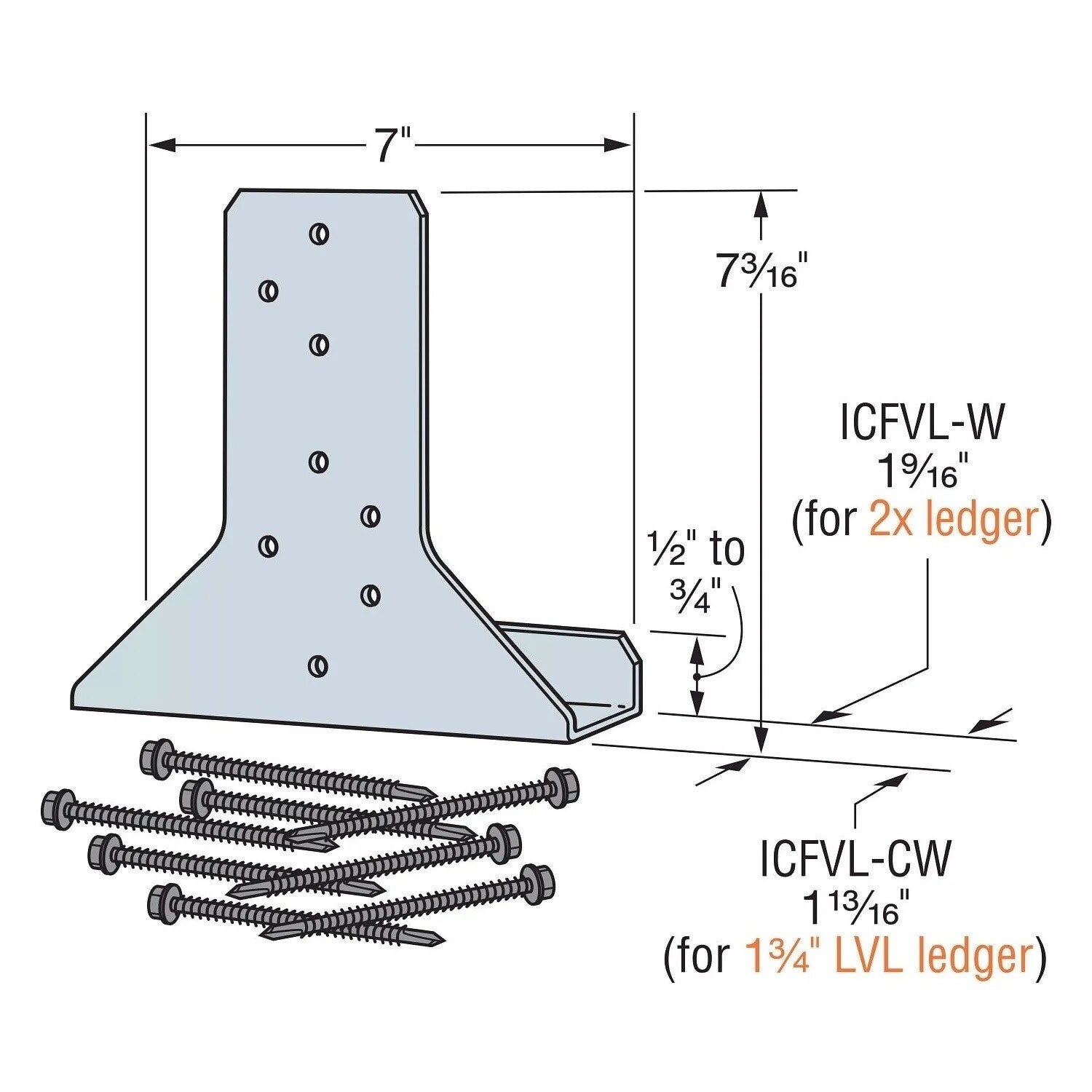

Simpson Strong-Tie ICFVL-CW Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Width | 7" |
NOTE: Use this product in dry environments only.
