Simpson Anchors | SKU:
ICFVL8

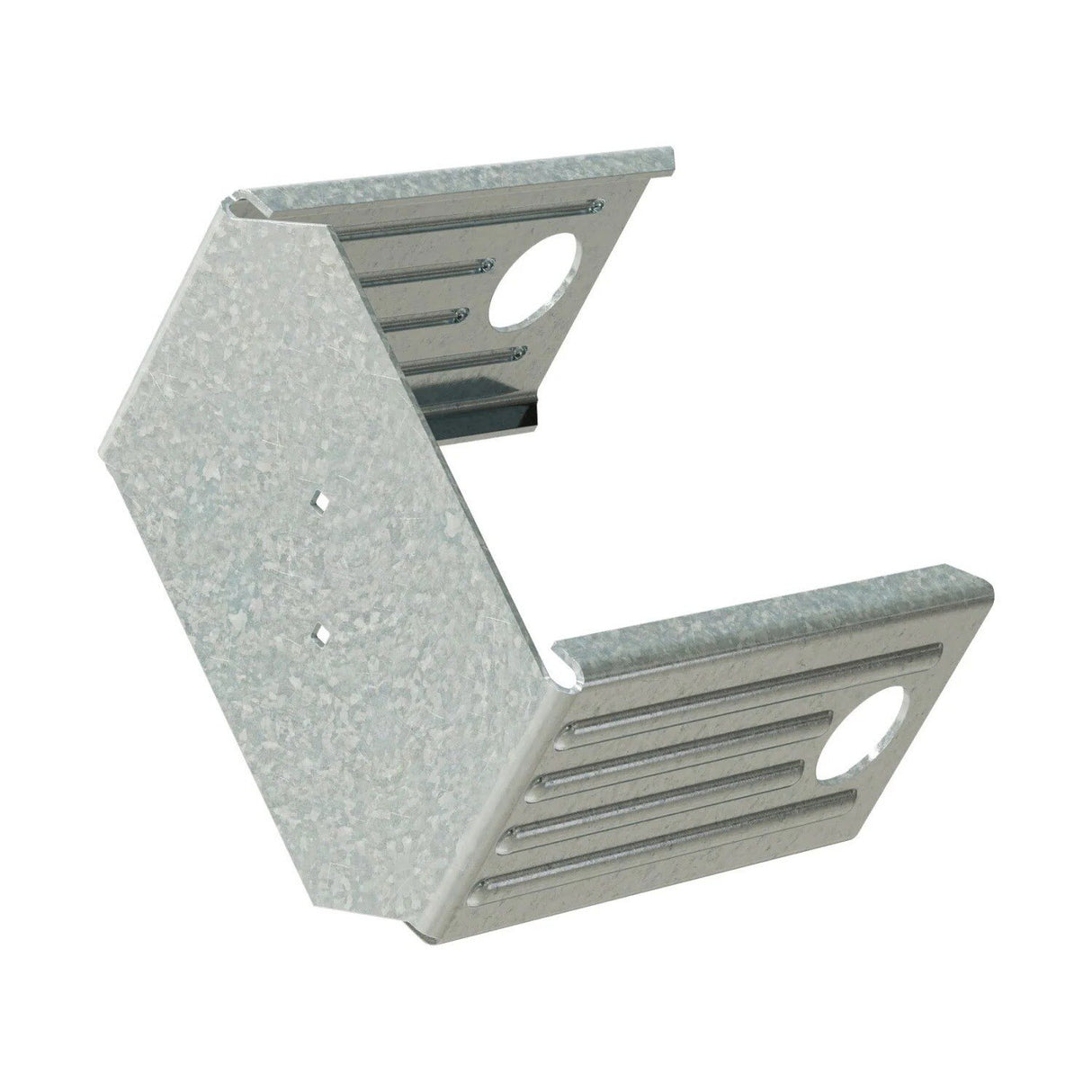

Simpson ICFVL8 Strong-Tie Ledger Connector with 8-inch Legs
$17.96
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ICFVL8 Description

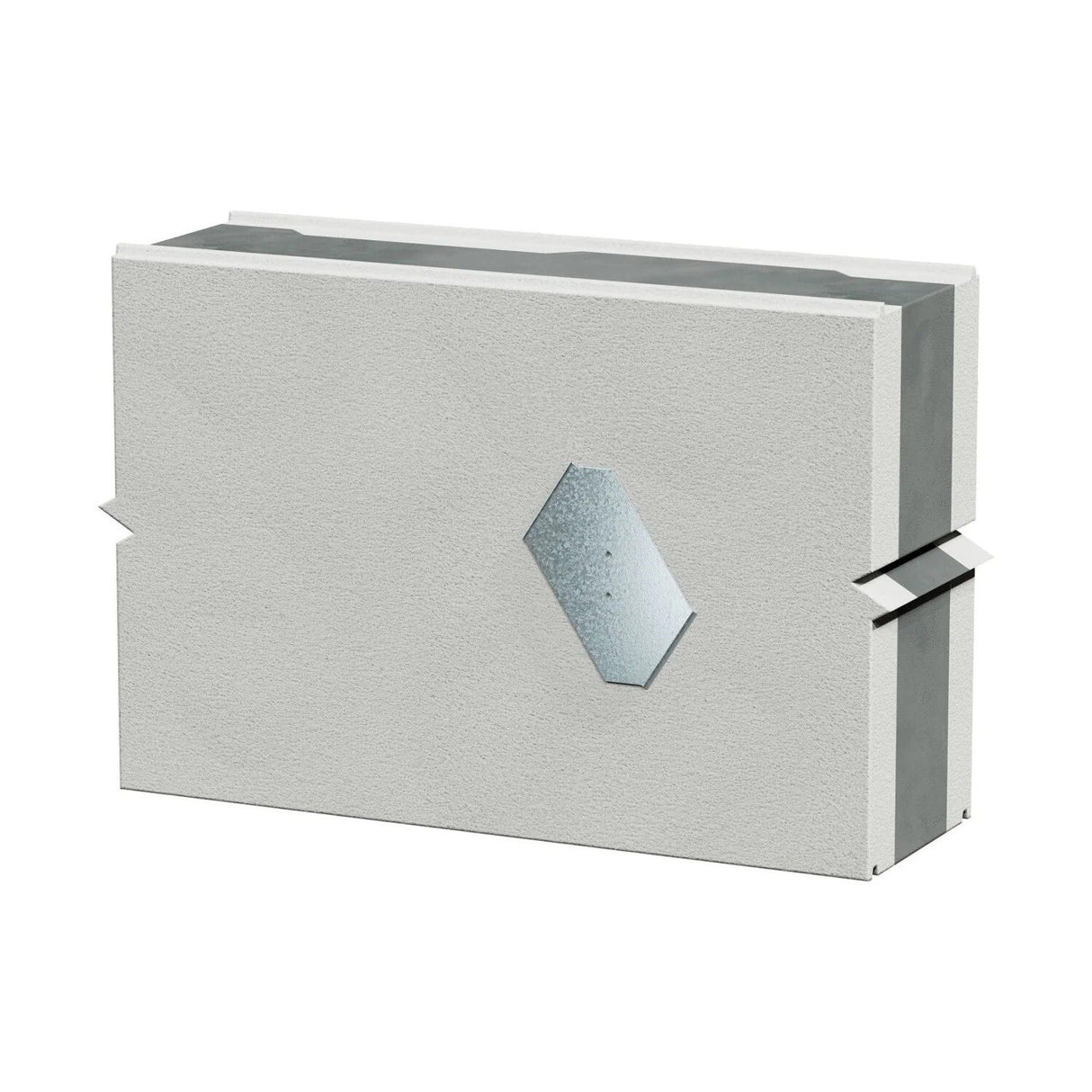

The ICFVL8 ledger connector system is designed for attaching wood or steel ledgers to insulated concrete form (ICF) walls, offering enhanced stiffness and efficient installation.
Simpson Strong-Tie ICFVL8 Includes
- (1) Zinc Galvanized Steel Ledger Connector
Simpson Strong-Tie ICFVL8 Features
- Engineered for attaching wood or steel ledgers to ICF walls
- Supports a maximum ICF wall thickness of 4-1/2 inches
- Embedded legs with embossing for enhanced stiffness
- Strategically positioned hole for concrete flow
- Improved on-center spacing compared to traditional anchor bolting
- Expedited installation process
- No protrusions for a cleaner finish
Simpson Strong-Tie ICFVL8 Applications
- Attaching wood or steel ledgers to insulated concrete form (ICF) walls
- Providing vertical and lateral in-plane performance in construction

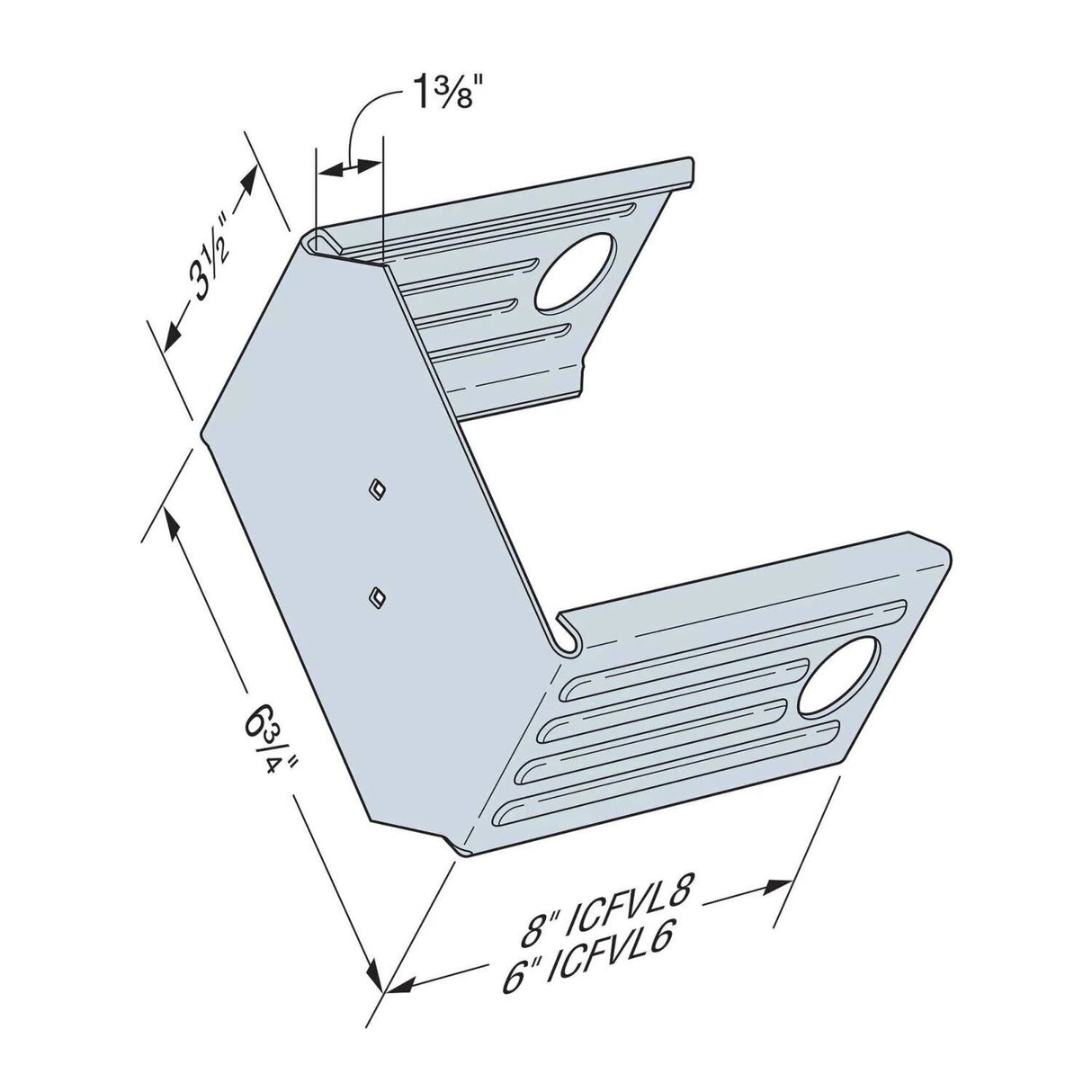

Simpson Strong-Tie ICFVL8 Specifications
| Finish | G90 Galvanized |
| Length | 8" |
| Width | 3-1/2" |
| Weight | 2.1 lb |
