Simpson Anchors | SKU:
IDCB45.5-KT25

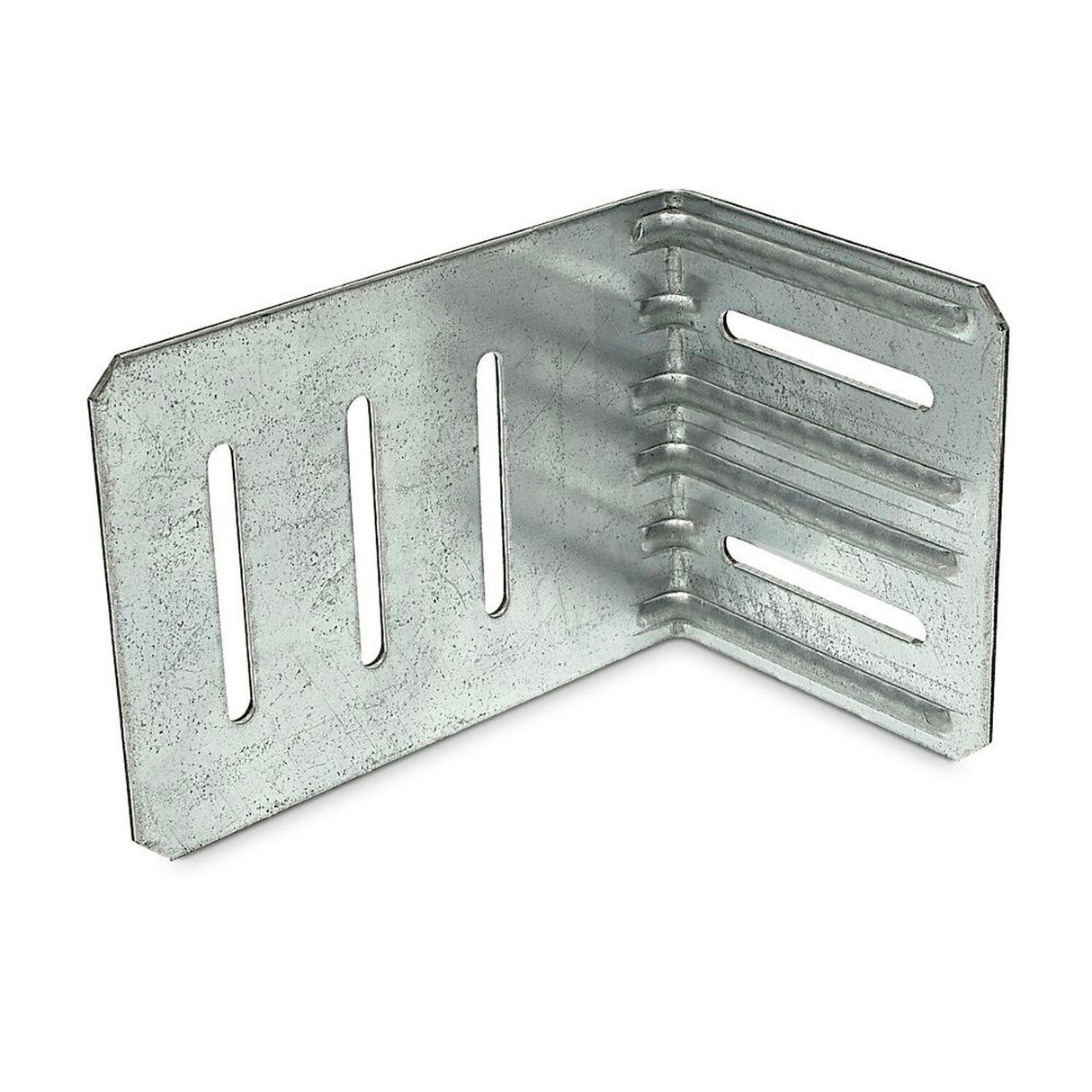

Simpson Strong-Tie IDCB45.5-KT25 Drift Clip Kit for Bypass Framing with Screws (25 Pack)
Free Shipping
$453.31
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie IDCB45.5-KT25 Description
The Simpson Strong-Tie IDCB drift-clip connector is designed to secure bypass stud framing to the edge of a slab, accommodating lateral drift and vertical deflection.
Simpson Strong-Tie IDCB45.5-KT25 Includes
- (25) IDCB45.5 connectors
- (83) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie IDCB45.5-KT25 Features
- Horizontal embossments and corner gussets optimize performance in the F2 load direction
- Precision-manufactured shouldered screws prevent overdriving and ensure proper clip function
- No-Equal stamps mark the center of the slots for correct screw and anchor placement
Simpson Strong-Tie IDCB45.5-KT25 Applications

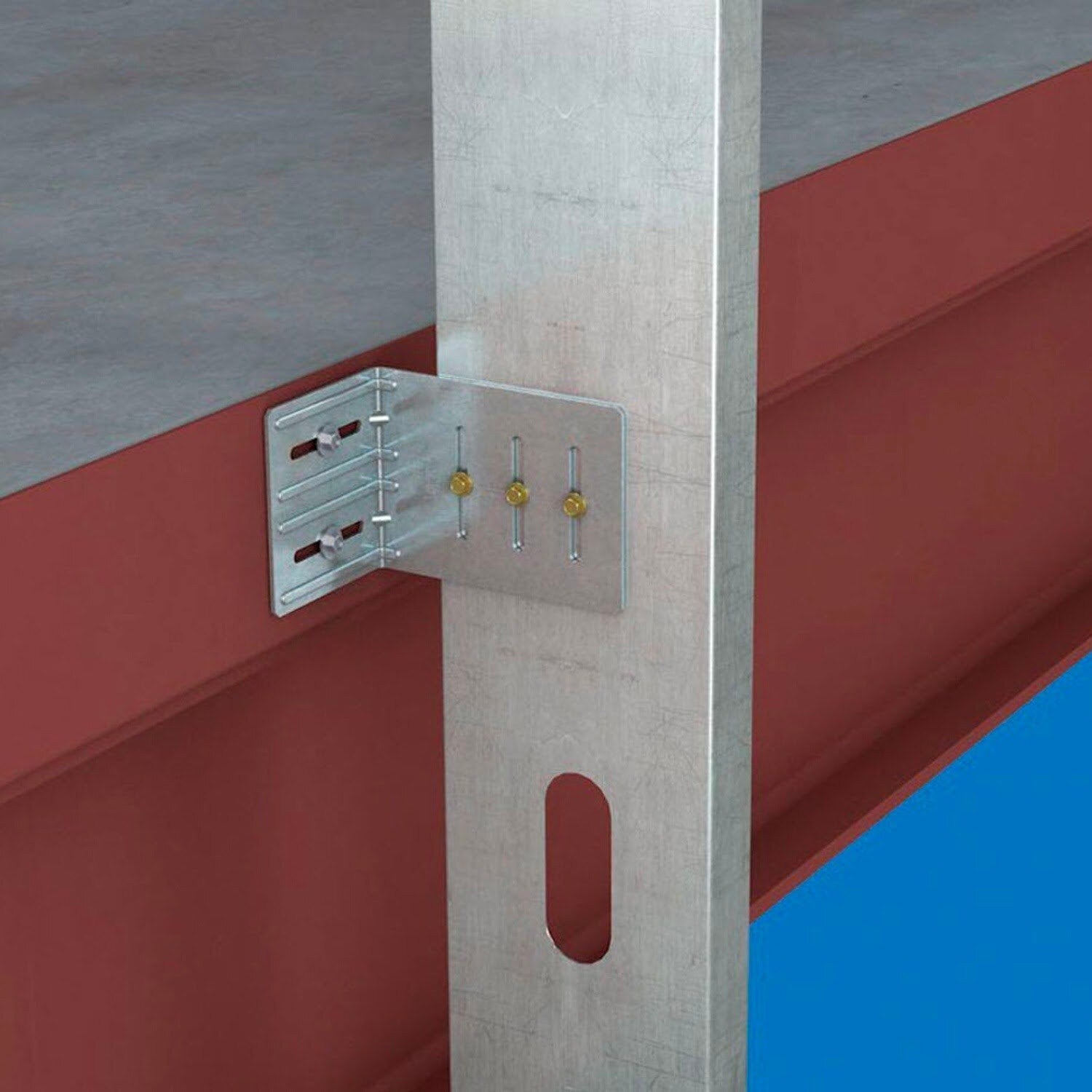

- Securing bypass stud framing to the edge of a slab
- Accommodating lateral drift and vertical deflection in construction
Simpson Strong-Tie IDCB45.5-KT25 Installation Overview
- Use the specified type and number of fasteners and anchors
- Install screws in vertical slots aligning with the No-Equal stamp
- Attach to steel-edge angle using specified screws centered in horizontal slots
- For steel backed by concrete, predrilling may be required

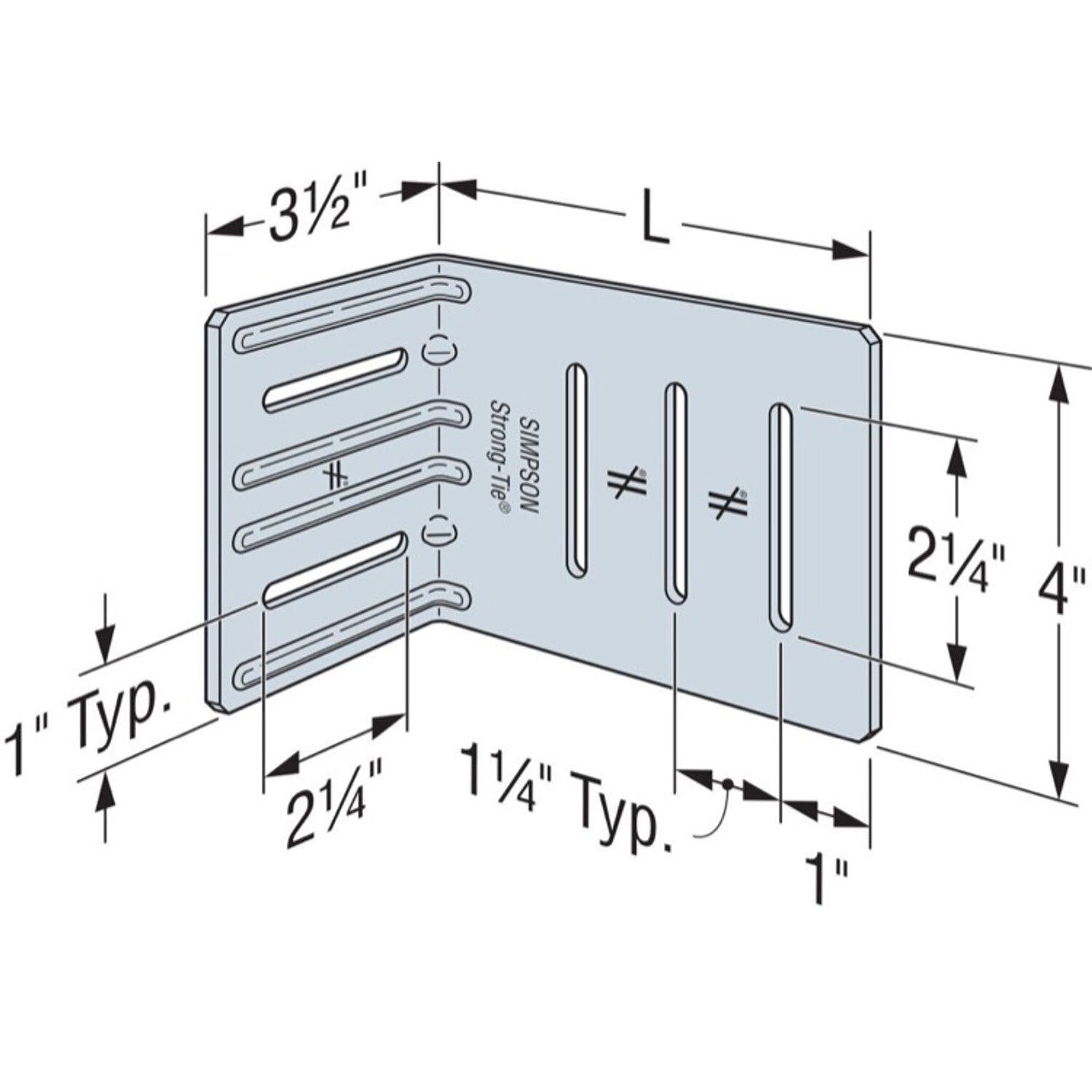

Simpson Strong-Tie IDCB45.5-KT25 Specifications
| Material | 97 mil (12 ga.), 50 ksi |
| Finish | Galvanized (G90) |
| Quantity | 25 |
| Weight | 26.3 lb |
