Simpson Anchors | SKU:
J813
Simpson Strong-Tie J813 Floor Beam Levelers for Wood Construction
$64.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie J813 Description
J/JP Floor Beam Levelers offer unique leveling simplicity during and after construction.
Simpson Strong-Tie J813 Includes
- (1) Floor Beam Leveler
Simpson Strong-Tie J813 Features
- Unique leveling simplicity during and after construction
- Designed for wood framing applications
- Durable 12-gauge plates and steel components
Simpson Strong-Tie J813 Applications
- Wood framing construction
- Leveling beams and structures during and after construction
Simpson Strong-Tie J813 Installation Overview
- Use all specified fasteners as per general notes
- Install using (4) 0.148" x 1 1/2" nails
- Avoid using J/JPs for dynamic jacking of structures
Simpson Strong-Tie J813 Specifications

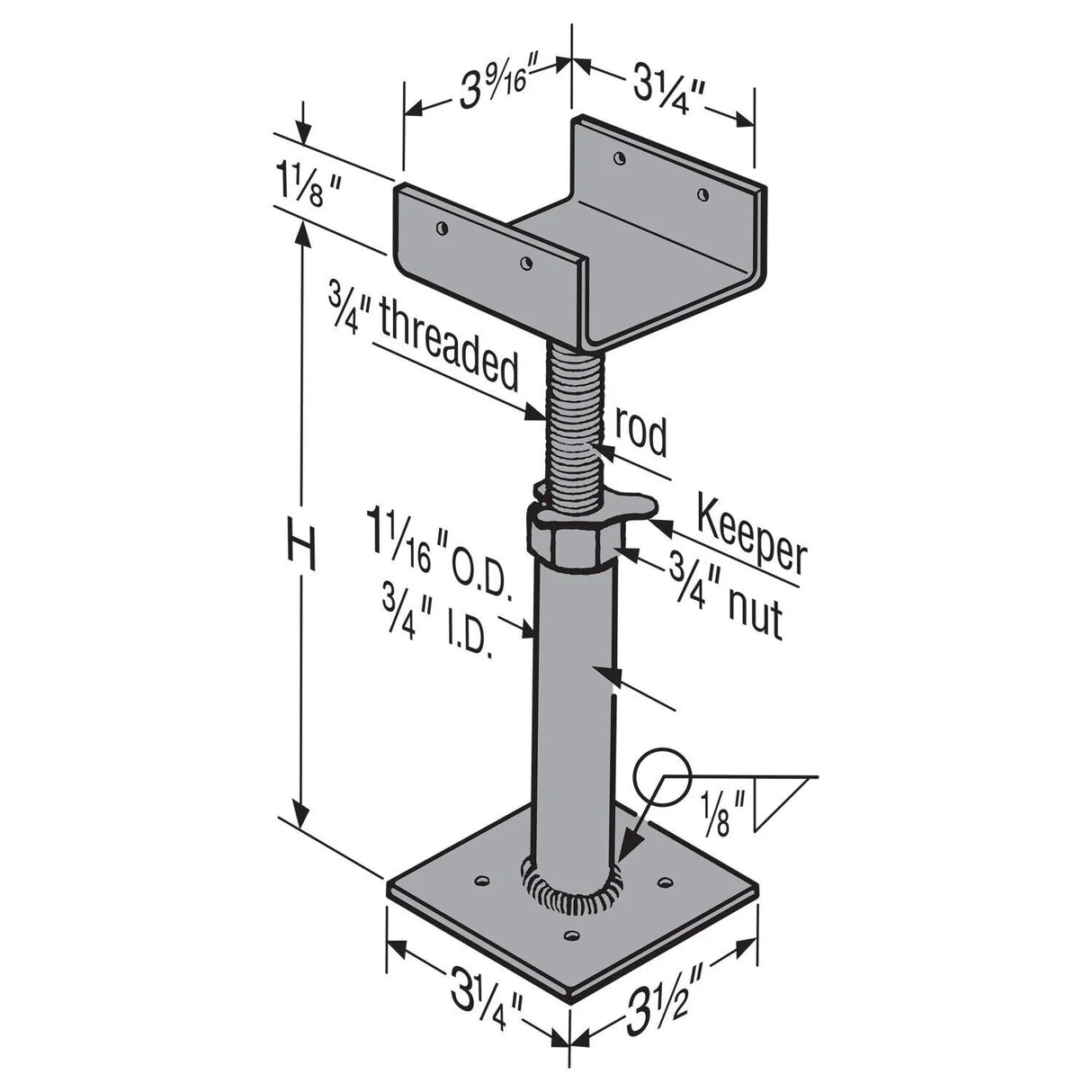

| Material | 12-gauge plates; 3/4" threaded rod; 1 1/16" O.D. steel pipe |
| Application | Framing — Wood |
| Weight | 2.9 lb |
| Fasteners required | (4) 0.148" x 1 1/2" nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
