Simpson JB28 Strong-Tie 2x8 Top Flange Joist Hanger - G90 Galvanized
Description
Description
Simpson Strong-Tie JB28 Description

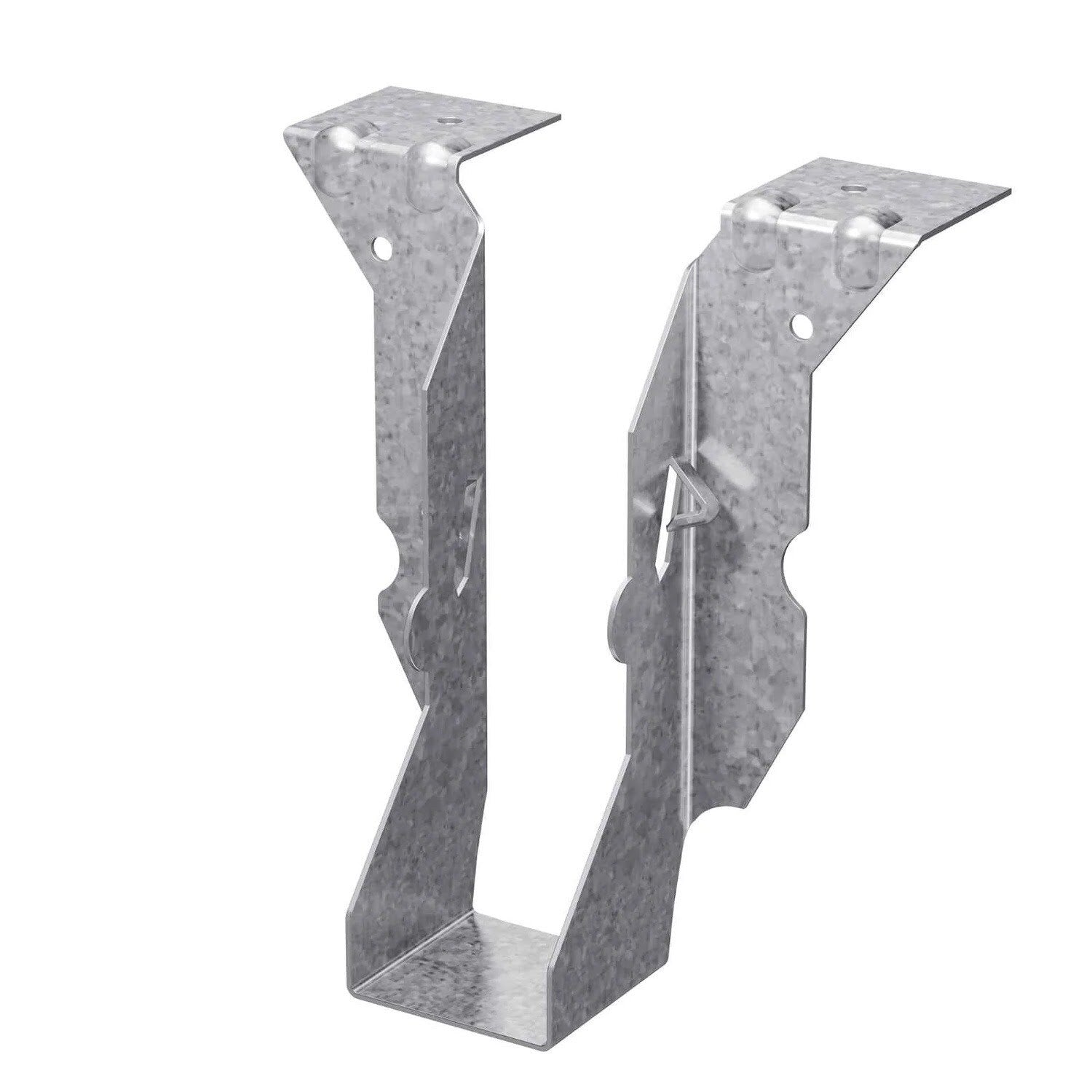

The Simpson JB28 2x8 Top Flange Joist Hanger is designed for secure and compact joist-to-beam connections, made from durable G90 galvanized steel for corrosion resistance.
Simpson Strong-Tie JB28 Includes
- (1) 2x8 Top Flange Joist Hanger
Simpson Strong-Tie JB28 Features
- Top-Flange Mounting: Provides a stable, high-strength connection to beams and headers.
- Compact, Bent Profile: Ideal for framing applications where space is limited.
- Durable G90 Galvanized Steel: Ensures corrosion resistance and long-term performance.
- Designed for Solid Sawn Lumber: Suitable for various wood framing applications.
- Engineered for Strength: Capable of withstanding vertical and lateral loads.
Simpson Strong-Tie JB28 Applications
- Floor Joist Connections: Provides secure attachment for joists in residential and commercial floors.
- Roof Framing: Ideal for connecting rafters or other angled members in space-restricted areas.
- Deck Construction: Supports joist-to-beam connections in deck framing where a bent hanger is required.
- General Wood Framing: Perfect for light-duty framing applications where a compact hanger is necessary.

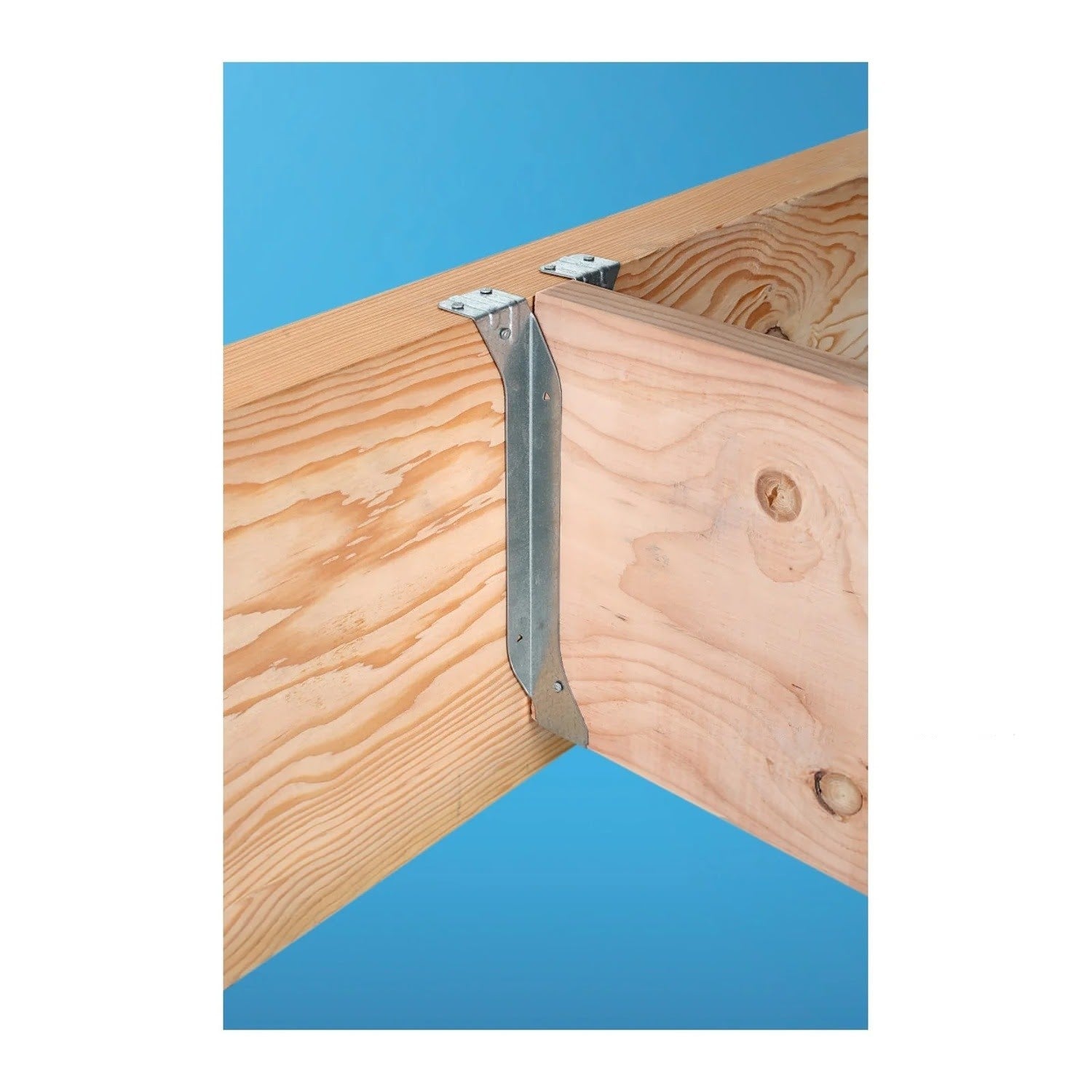

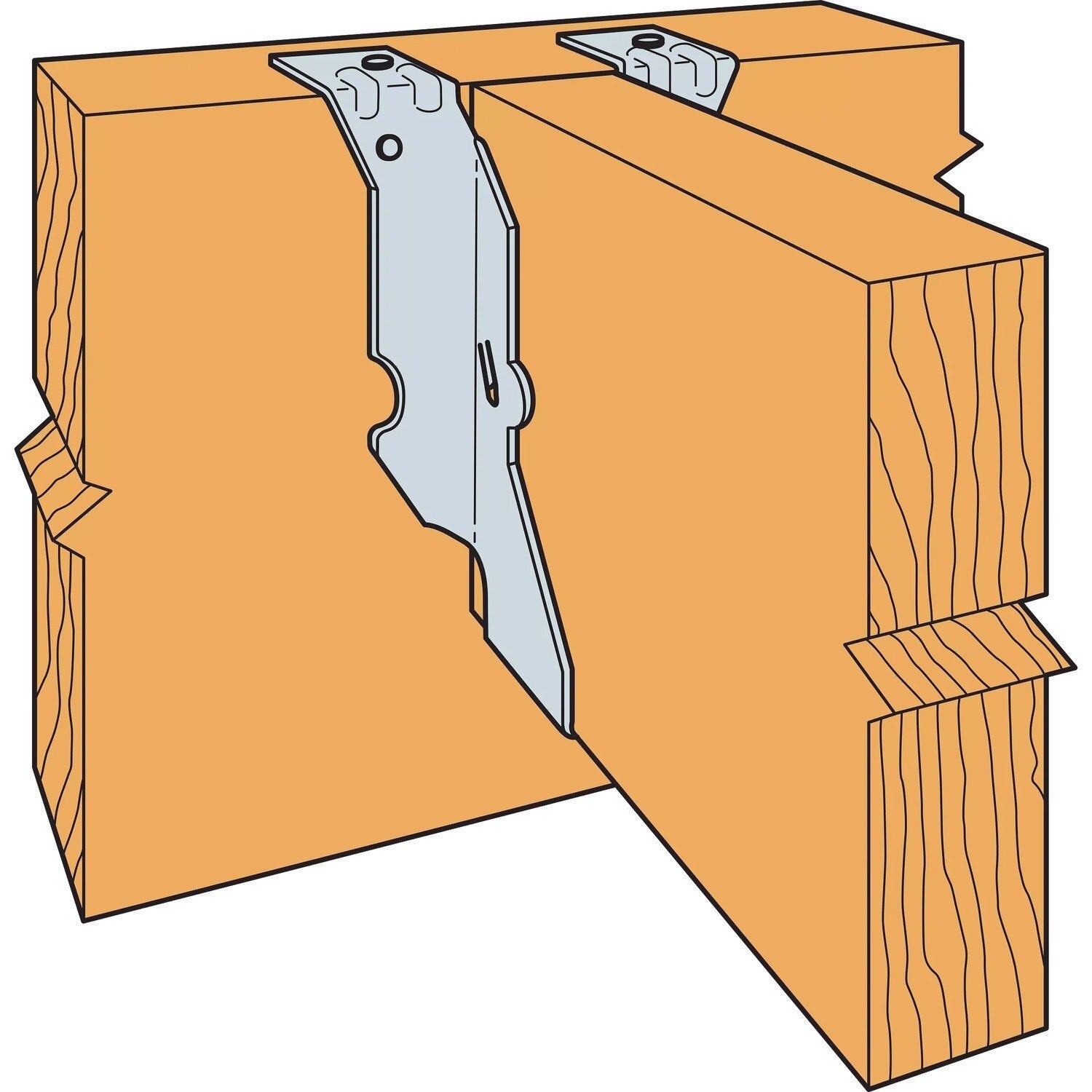

Simpson Strong-Tie JB28 Installation Overview
- Secure the hanger to the supporting beam or header using appropriate nails or structural screws.
- Ensure the joist is properly seated within the hanger to maximize load capacity.
- Suitable for face-mount or top-flange installations, depending on structural needs.
- Always follow local building codes and manufacturer guidelines for fastener selection and placement.
Simpson Strong-Tie JB28 Specifications
Finish | G90 Galvanized |
Material | Carbon Steel |
Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
For Treated Lumber | No |
Height | 7-1/4" |
Joist size | 2" X 8" |
Manufacturer name | Simpson Strong-Tie |
Quantity | 1 |
Thickness | 18 Gauge |
Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
