Simpson Anchors | SKU:
KBS1Z

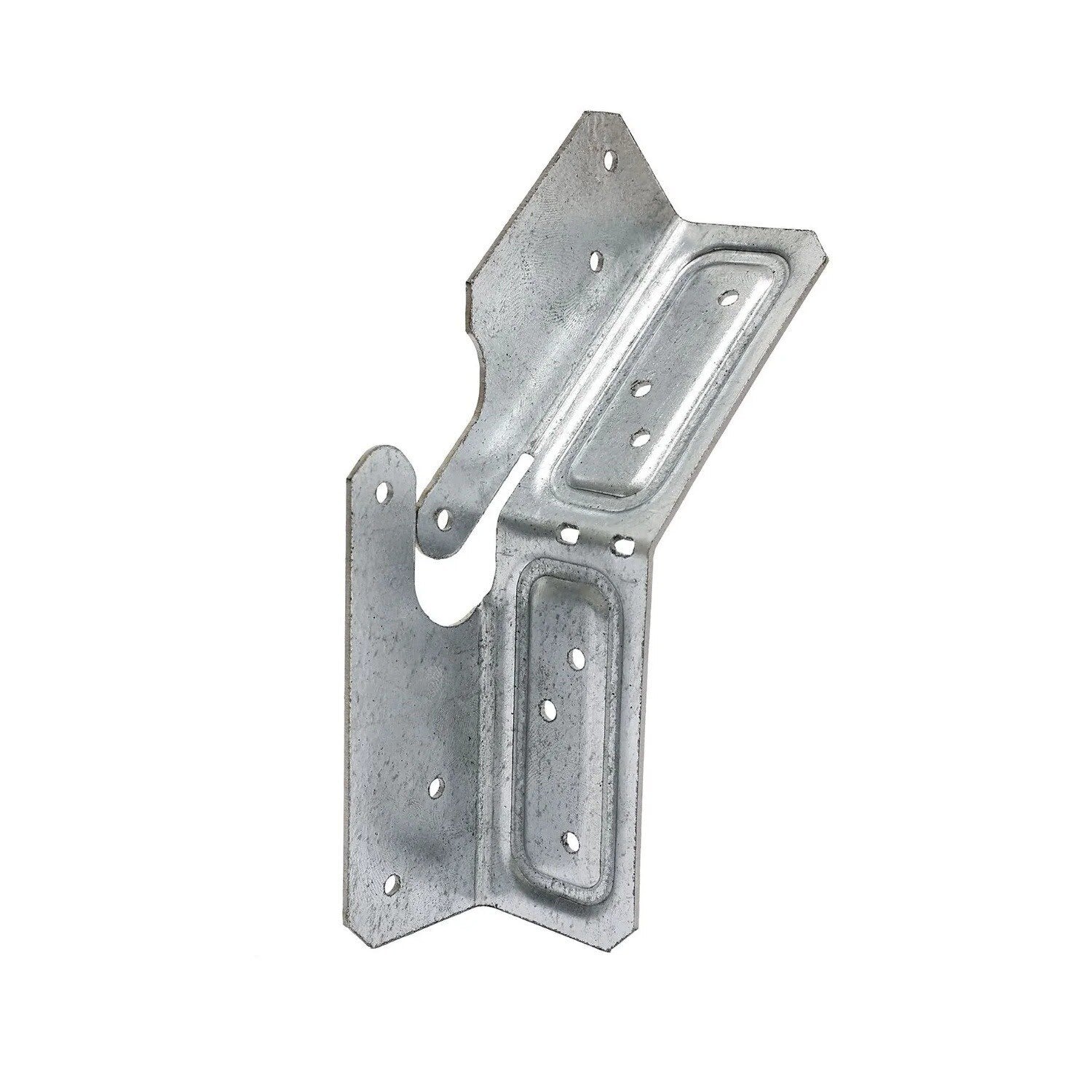

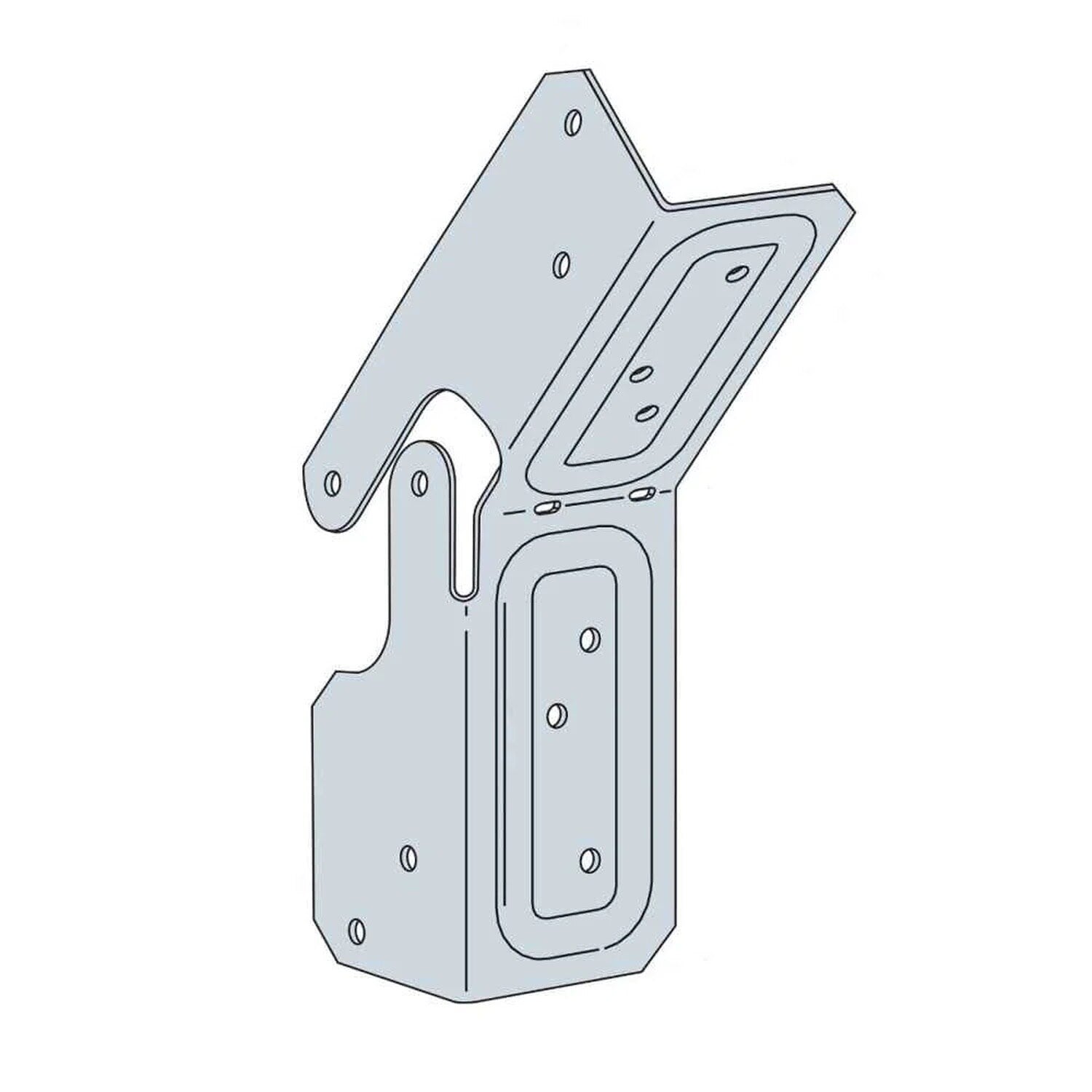

Simpson Strong-Tie KBS1Z Knee Brace Stabilizer - ZMAX Finish
$4.02
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie KBS1Z Description

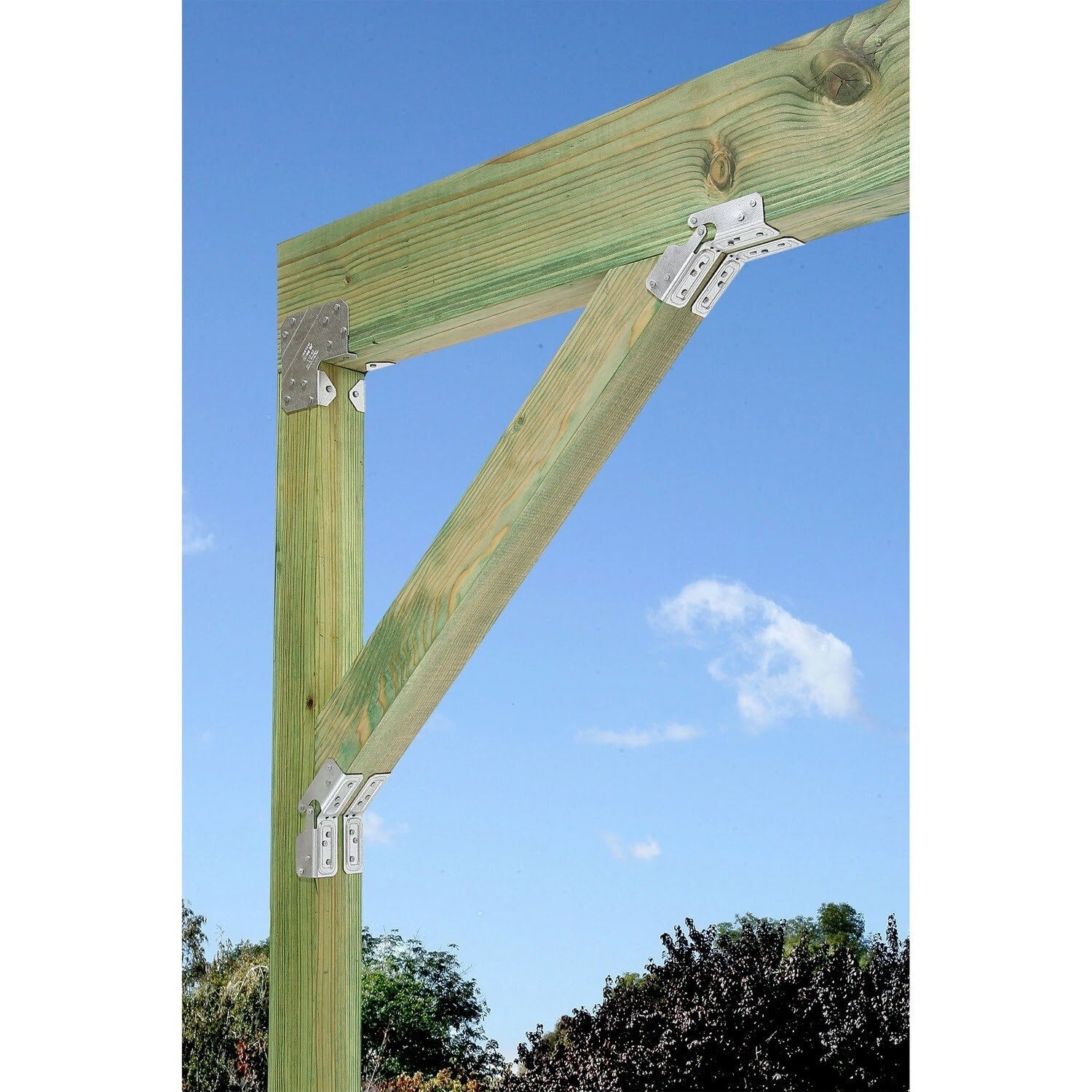

The KBS1Z knee-brace stabilizer provides a secure connection between knee bracing and columns or beams, ensuring stability for free-standing structures and compliance with deck bracing requirements.
Simpson Strong-Tie KBS1Z Includes
- (1) KBS1Z Knee-Brace Stabilizer
Simpson Strong-Tie KBS1Z Features
- Factory-formed at a 45° angle for easy installation
- Compatible with 2x, 4x, and 6x post-to-beam configurations
- ZMAX finish for enhanced corrosion resistance
- Complies with AWC’s DCA6 Prescriptive Residential Wood Deck Construction Guide
Simpson Strong-Tie KBS1Z Applications
- Deck bracing for residential wood decks
- Stabilizing free-standing structures
- Post-to-beam connections in construction
Simpson Strong-Tie KBS1Z Installation Overview
- Use all specified fasteners.
- For angles other than 45°, bend KBS1Z along slots to the desired angle (bend one time only).
- Install (2) KBS1Z on each end of brace for equal-width members.
- Install a single KBS1Z on each end of brace for 2x knee braces.

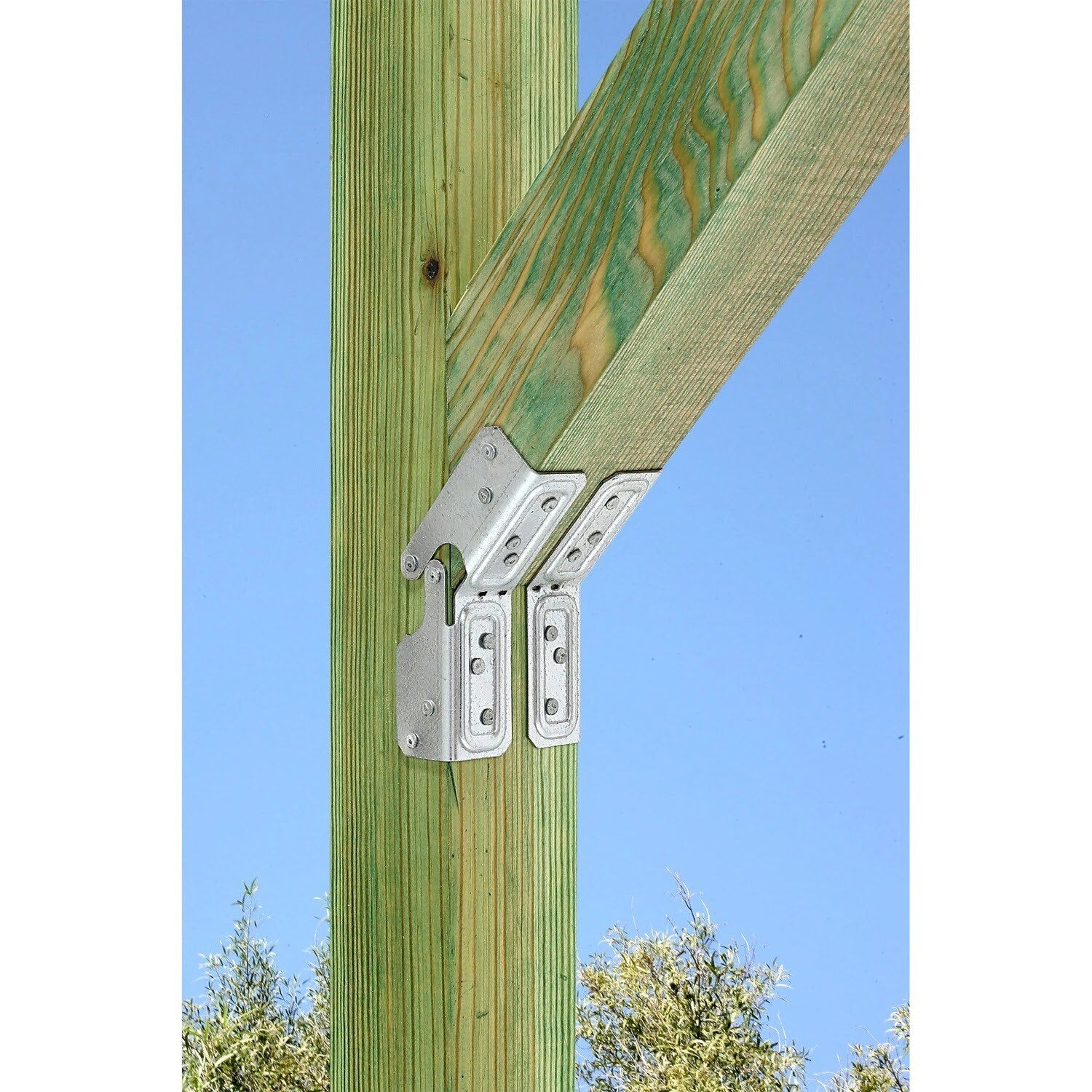

- Install in pairs for beam-to-post connections.
Simpson Strong-Tie KBS1Z Specifications
| Length | 3" |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| Weight | 0.3 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
