Simpson Hangers | SKU:
LB210AZ
Simpson Strong-Tie LB210AZ (2" x 10") Top Flange Joist Hanger ZMAX Finish
$7.19
$11.16
Unit price
/
Unavailable
Description
Description
Simpson LB210AZ Description

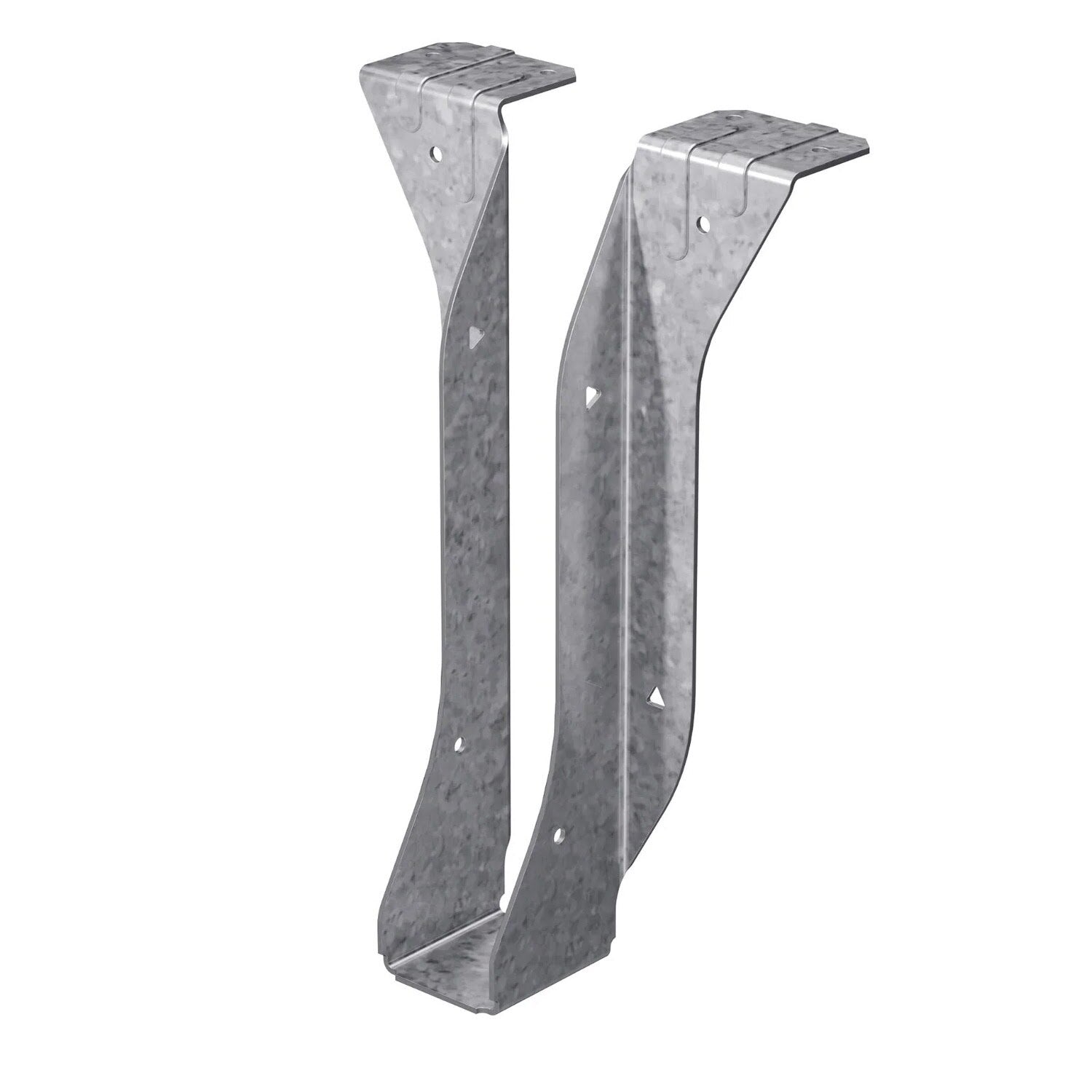

The Simpson LB210AZ 2x10 Top Flange Joist Hanger features a bent top flange design for efficient joist-to-beam connections in wood framing applications. Made from galvanized steel with a ZMAX finish, it offers enhanced corrosion resistance and is ideal for residential and light commercial projects.
Simpson LB210AZ Includes
- (1) 2x10 Top Flange Joist Hanger
Simpson LB210AZ Features
- Bent Top-Flange Design for easy installation in limited-space applications
- Lightweight and strong construction for reliable support
- Durable ZMAX finish for superior corrosion resistance
- Versatile mounting options for solid sawn lumber
- Compact design suitable for tight spaces
Simpson LB210AZ Applications
- Floor Joist Connections: Secure attachment for joists in light-duty floor framing
- Roof Framing: Ideal for connecting rafters or angled members where space is limited
- Deck Construction: Supports joist-to-beam connections in light deck framing applications
- General Wood Framing: Suitable for residential and light commercial construction where a compact hanger is needed

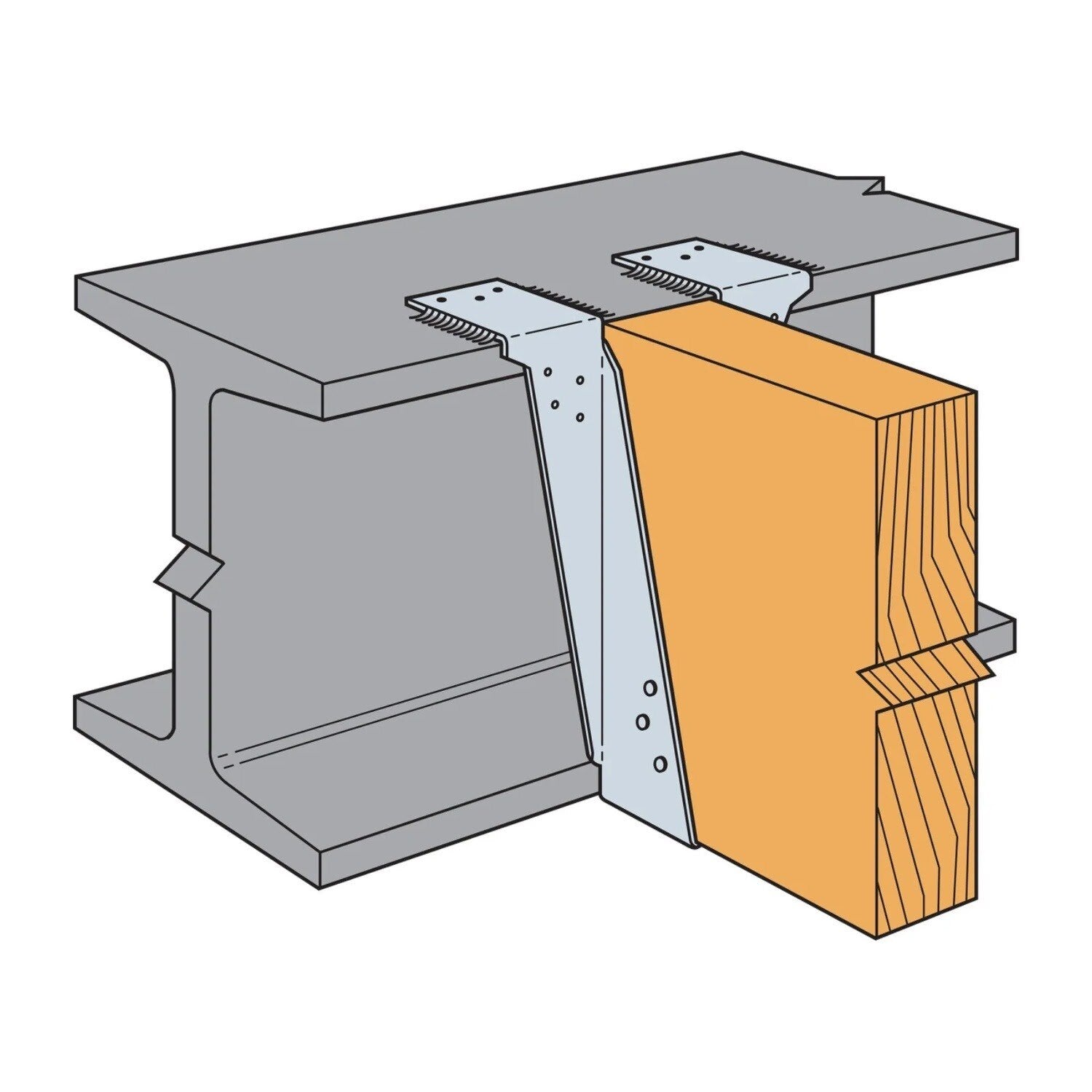

Simpson LB210AZ Installation Overview
- Attach the hanger to the support beam or header using appropriate nails or structural screws as per manufacturer recommendations
- Ensure the joist is properly seated within the hanger to maximize load capacity
- Designed for top-flange mounting, allowing for a strong, stable connection
- Follow local building codes and manufacturer guidelines for fastener selection and placement

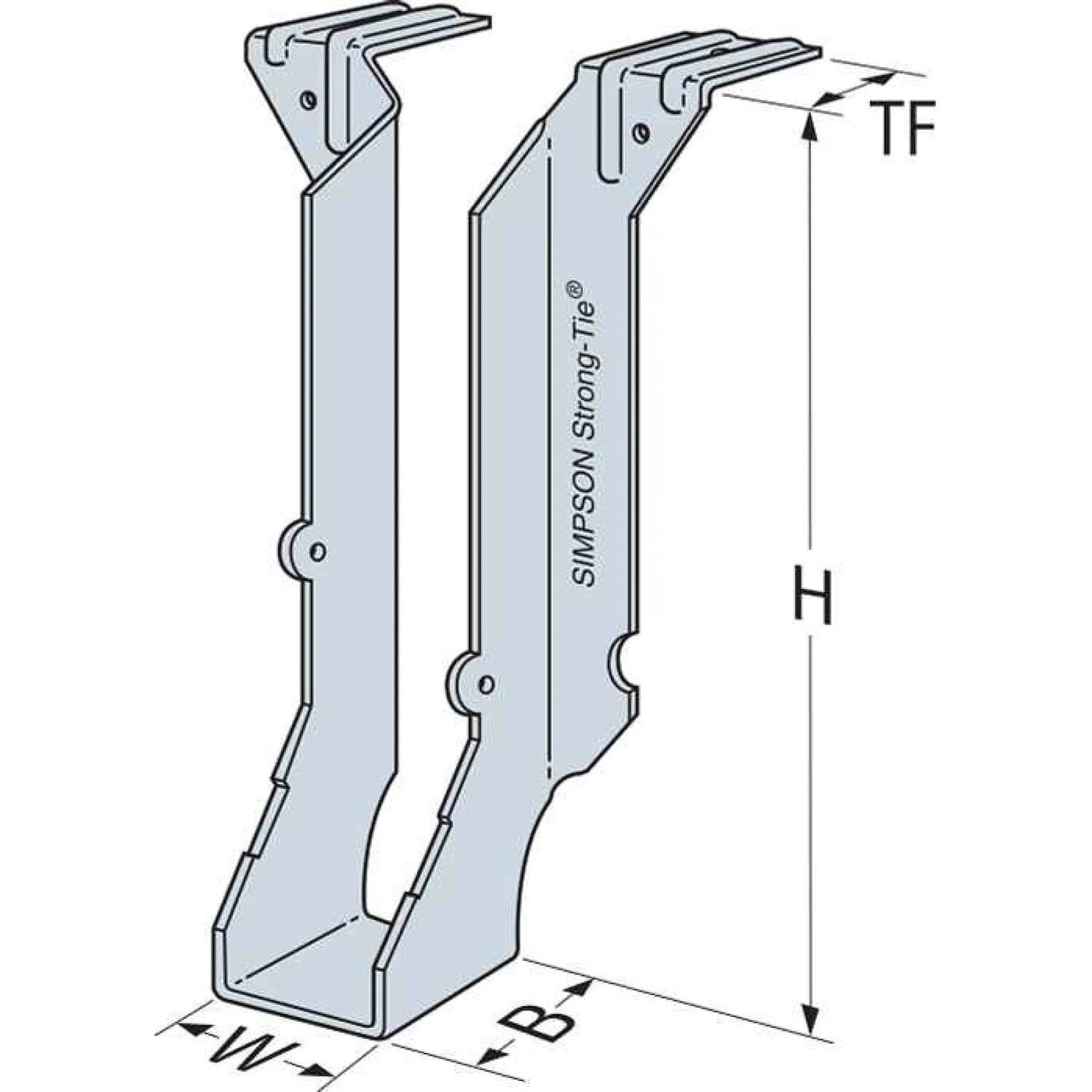

Simpson LB210AZ Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | Yes |
| Height | 9-3/16" |
| Joist size | 2" X 10" |
| Thickness | 14 Gauge |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
