Simpson Hangers | SKU:
LB214AZ

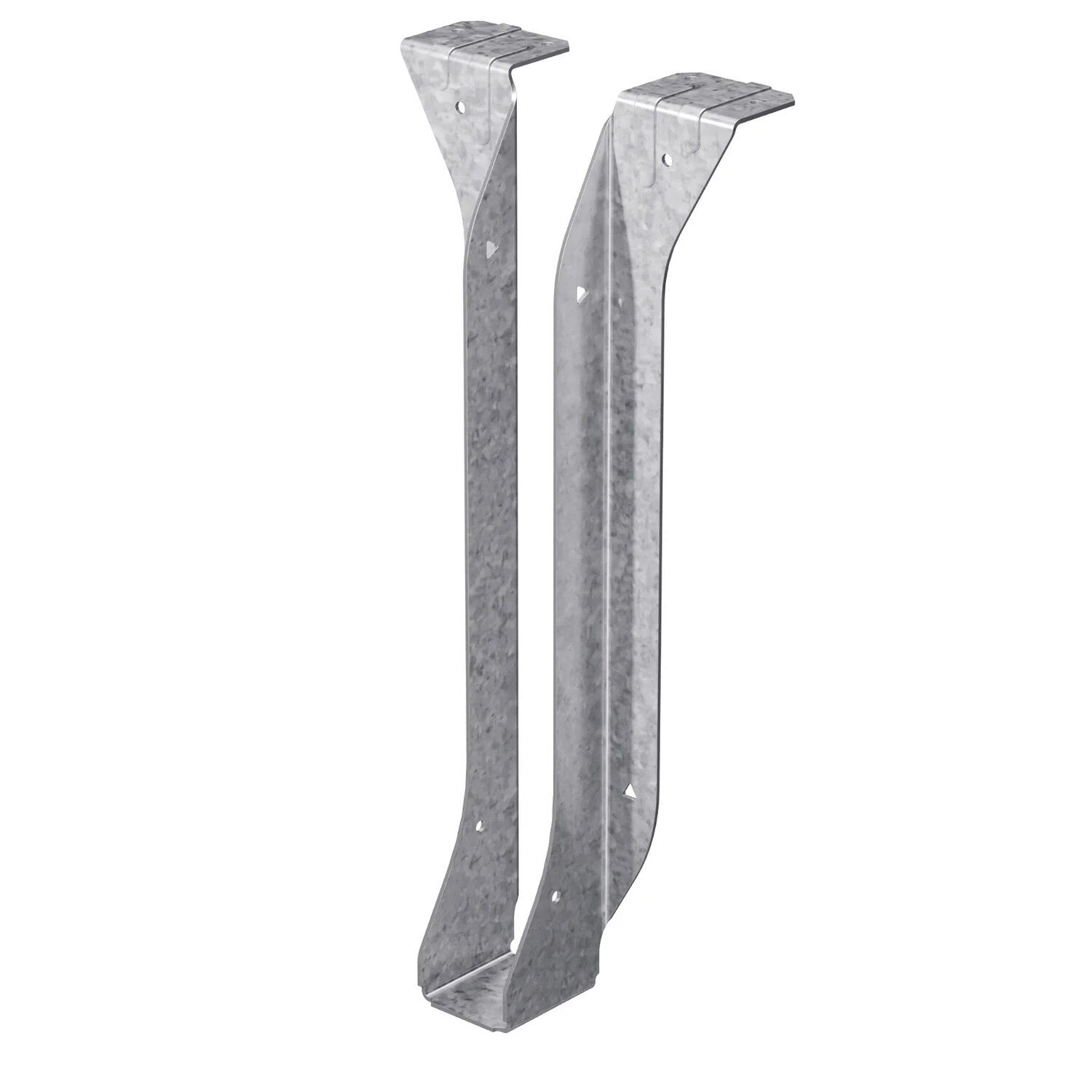

Simpson Strong-Tie LB214AZ (2" x 14") Top Flange Joist Hanger - Zmax Finish
$12.84
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LB214AZ Description
The Simpson LB214AZ 2x14 Top Flange Joist Hanger features a bent top flange design for efficient light-duty joist-to-beam connections in wood framing applications. Made from galvanized steel with a ZMAX finish, it offers enhanced corrosion resistance and is ideal for tight spaces.
Simpson Strong-Tie LB214AZ Includes
- (1) 2x14 Top Flange Joist Hanger
Simpson Strong-Tie LB214AZ Features
- Bent Top-Flange Design for easy installation in limited-space applications
- Lightweight and strong construction for reliable support
- Durable ZMAX finish for superior corrosion resistance
- Versatile mounting options for solid sawn lumber
- Compact design suitable for areas where standard hangers may not fit
Simpson Strong-Tie LB214AZ Applications
- Floor Joist Connections: Secure attachment for joists in light-duty floor framing
- Roof Framing: Ideal for connecting rafters or angled members in limited spaces
- Deck Construction: Supports joist-to-beam connections in light deck framing
- General Wood Framing: Suitable for residential and light commercial construction

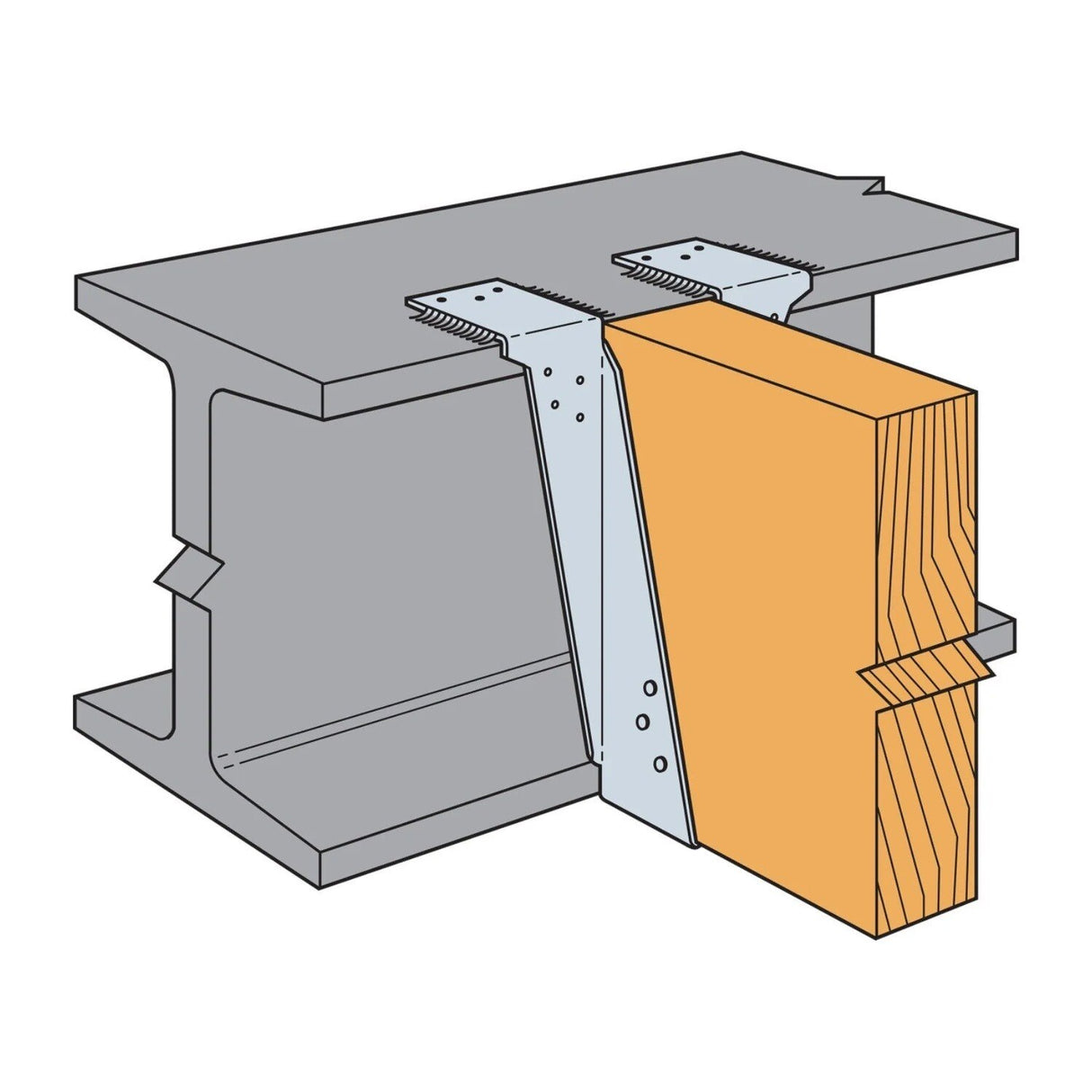

Simpson Strong-Tie LB214AZ Installation Overview
- Attach the hanger to the support beam or header using appropriate nails or structural screws
- Ensure the joist is properly seated within the hanger to maximize load capacity
- Designed for top-flange mounting for a strong, stable connection
- Follow local building codes and manufacturer guidelines for fastener selection and placement

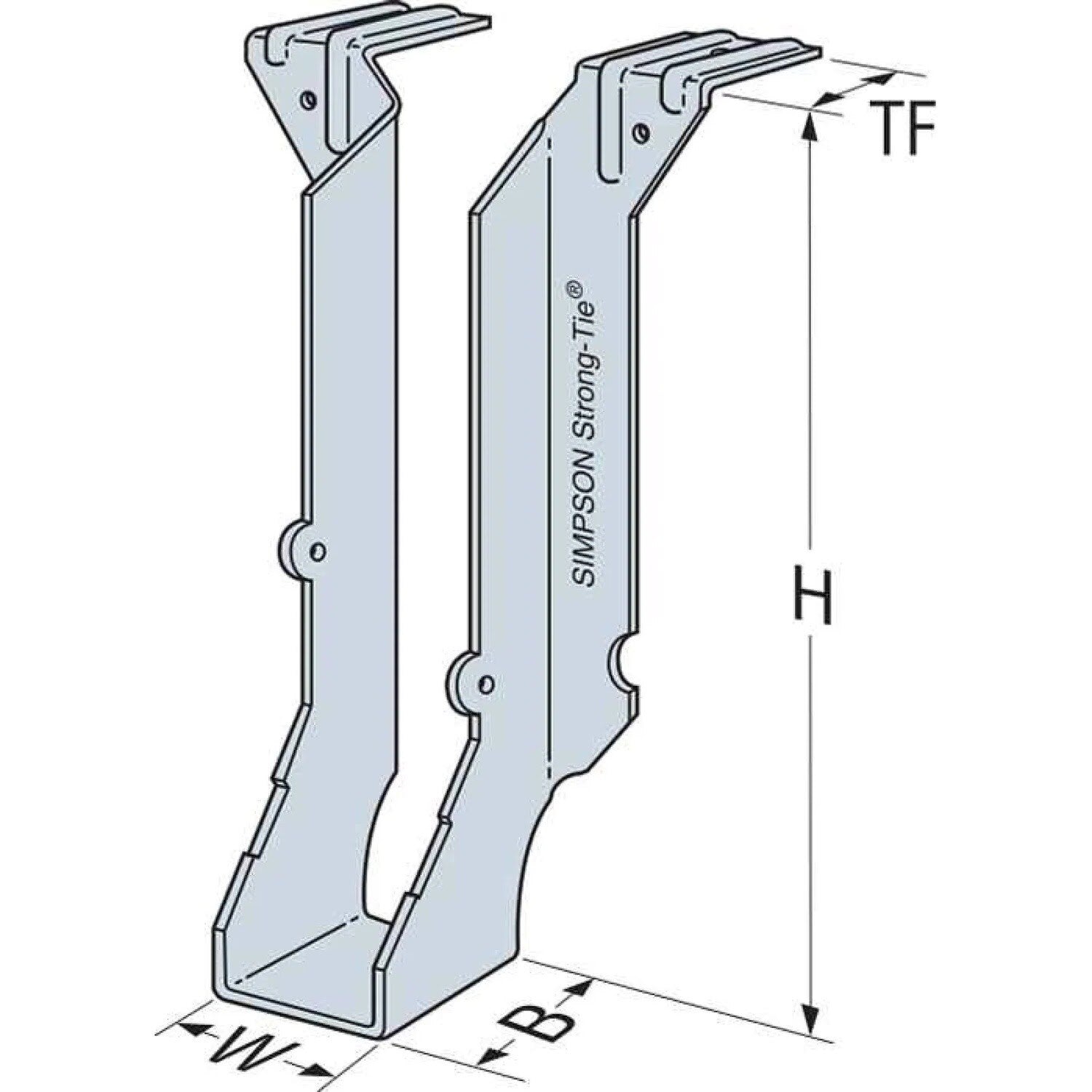

Simpson Strong-Tie LB214AZ Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | Yes |
| Height | 13-1/8" |
| Joist size | 2" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
