Simpson Hangers | SKU:
LB26

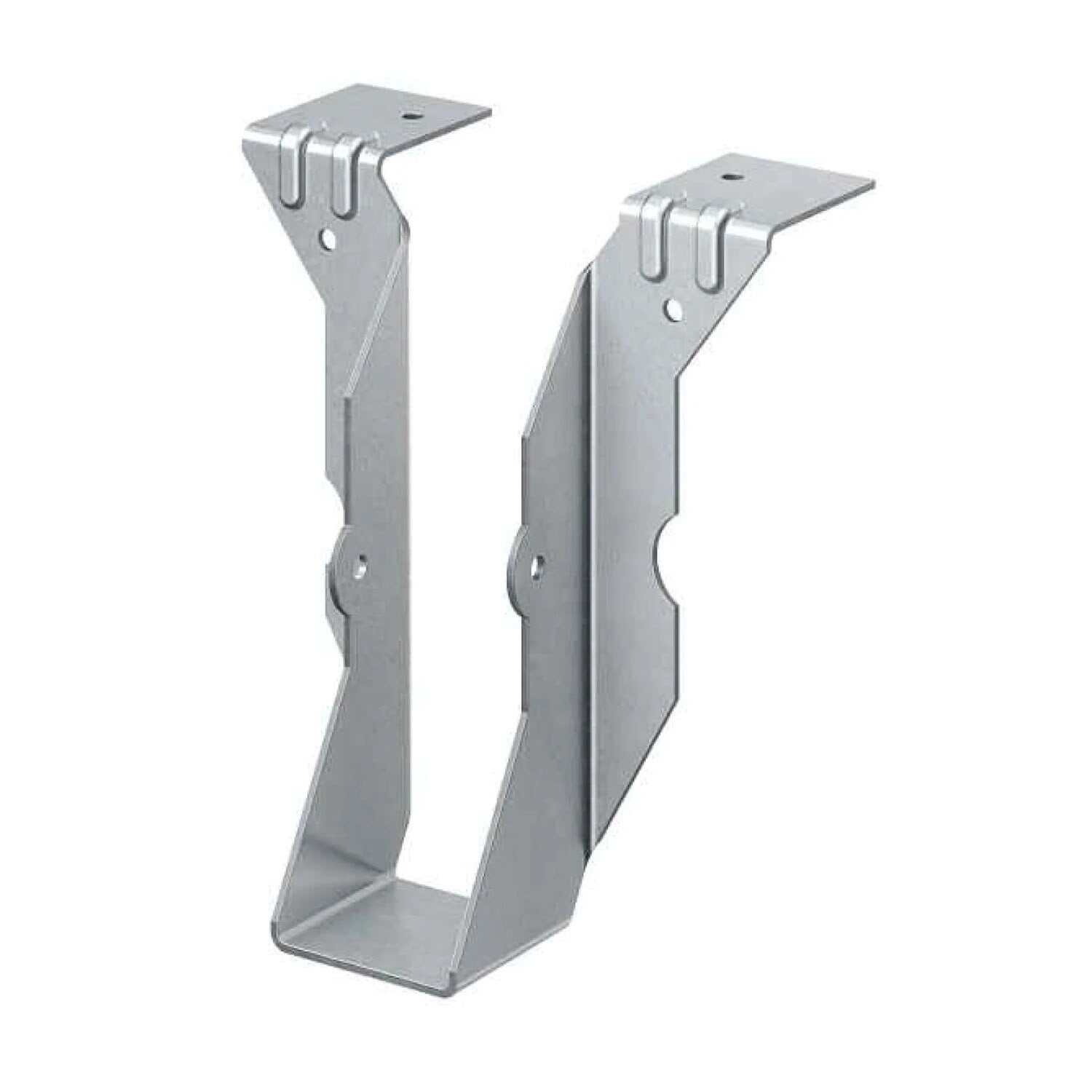

Simpson Strong-Tie LB26 (2" x 6") Top Flange Joist Hanger, G90 Galvanized
$5.67
$8.17
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LB26 Description
The Simpson LB26 2x6 Top Flange Joist Hanger is designed for secure joist-to-beam and rafter-to-wall connections, offering reliable support for light-duty framing applications.
Simpson Strong-Tie LB26 Includes
- (1) 2x6 Top Flange Joist Hanger
Simpson Strong-Tie LB26 Features
- Bent Top-Flange Design: Allows for flexible installation on beams, headers, or wall plates.
- Light-Duty Load Capacity: Designed for joist and rafter connections in smaller structural applications.
- Galvanized Steel Construction: Provides corrosion resistance for long-term durability.
- Compact & Space-Saving: Perfect for installations where traditional hangers won’t fit.
- Designed for Solid Sawn Lumber: Compatible with various wood framing applications.
Simpson Strong-Tie LB26 Applications
- Floor Joist Connections: Supports light-duty joist-to-beam connections in residential floors.
- Roof Framing: Ideal for rafter-to-wall plate connections in sloped roof structures.
- Deck Framing: Provides secure attachment for joists in small deck and patio structures.
- General Light-Duty Framing: Used in residential and light commercial construction where a bent hanger is needed.

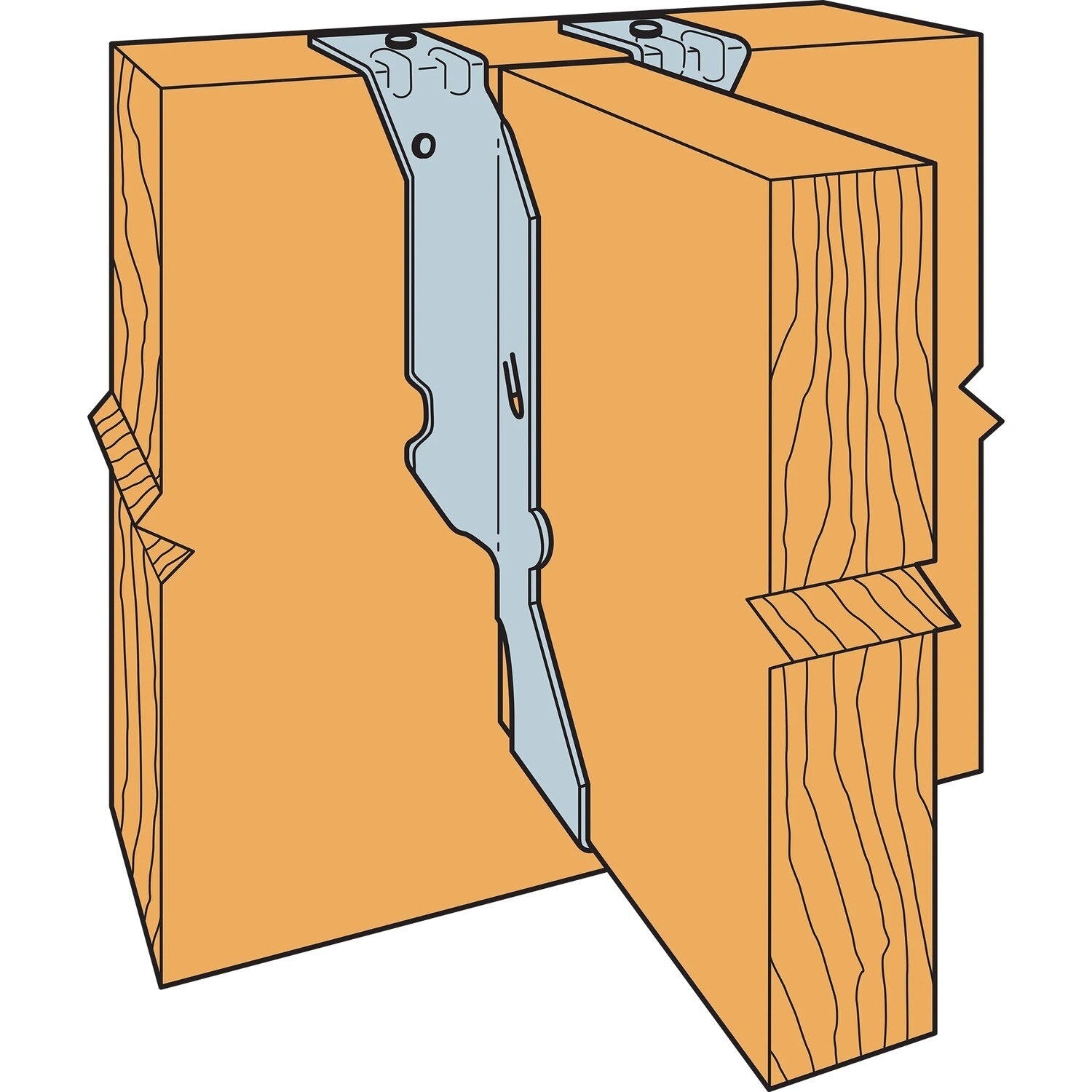

Simpson Strong-Tie LB26 Installation Overview
- Secure the hanger to the supporting beam, header, or wall plate using appropriate nails or structural screws.
- Ensure the joist or rafter is properly seated within the hanger for maximum load-bearing capacity.
- Follow local building codes and manufacturer specifications for fastener selection and placement.
- Suitable for top-flange mounting, providing a stable and reliable connection.

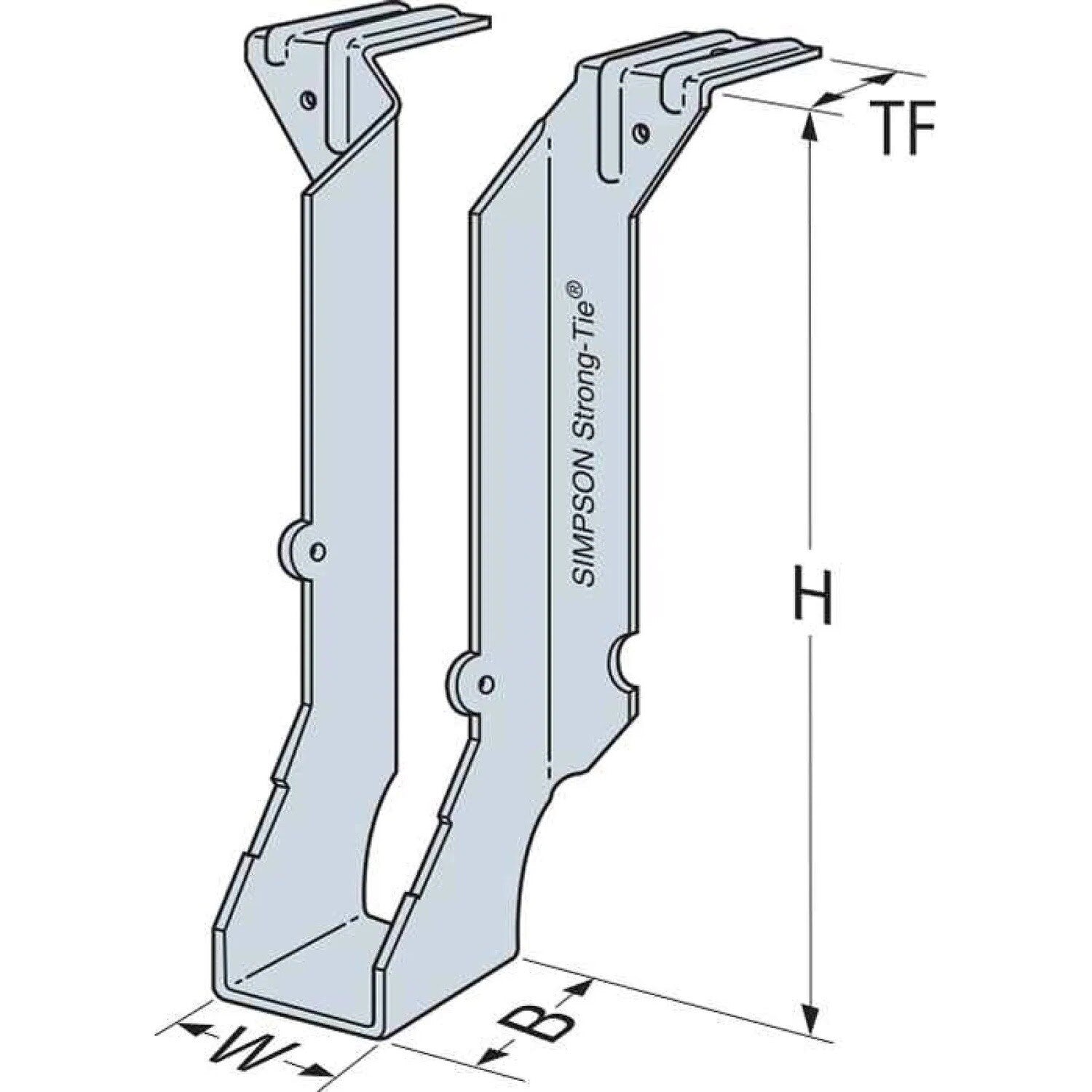

Simpson Strong-Tie LB26 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 5-3/8" |
| Joist size | 2" X 6" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
