Simpson Anchors | SKU:
LBP 1/2

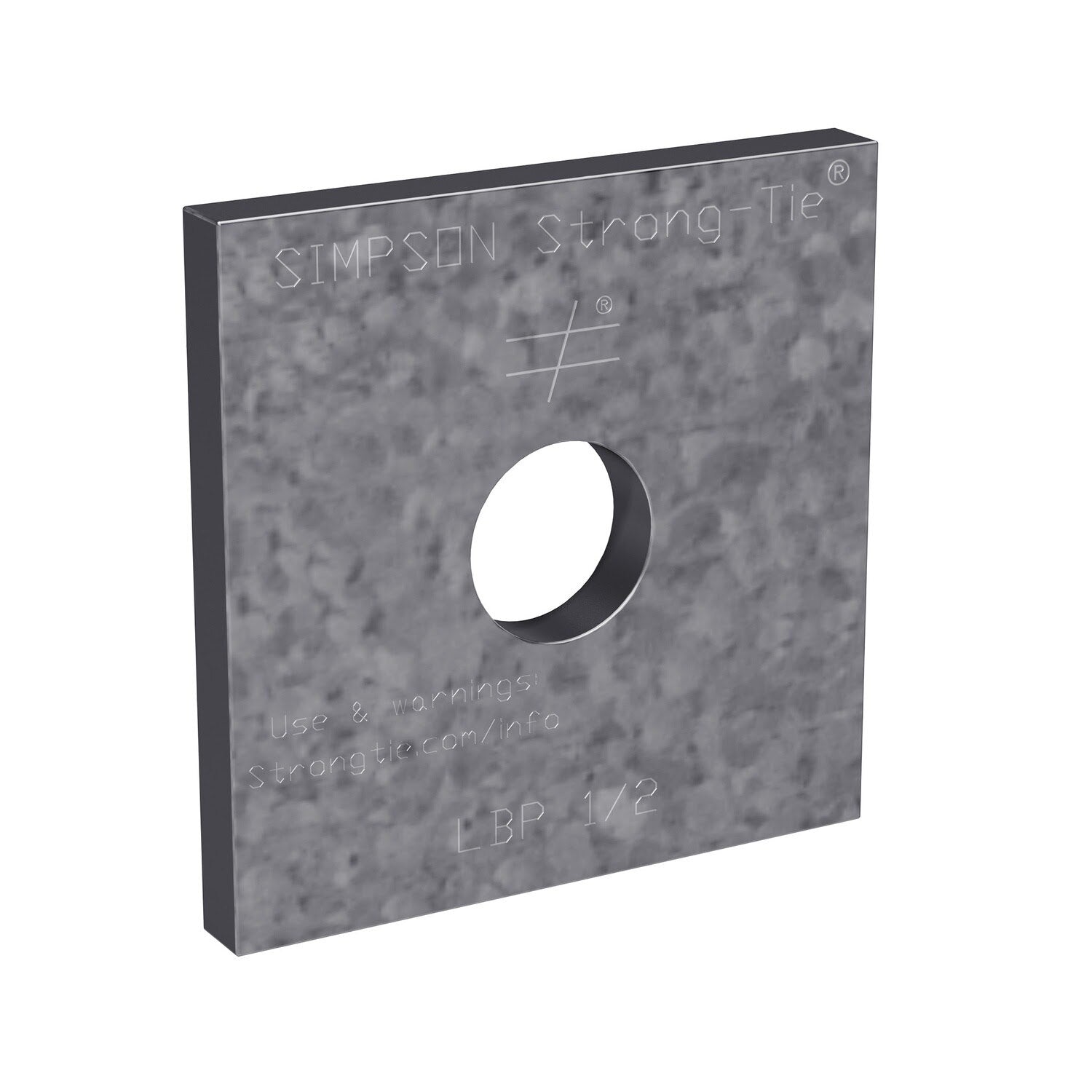

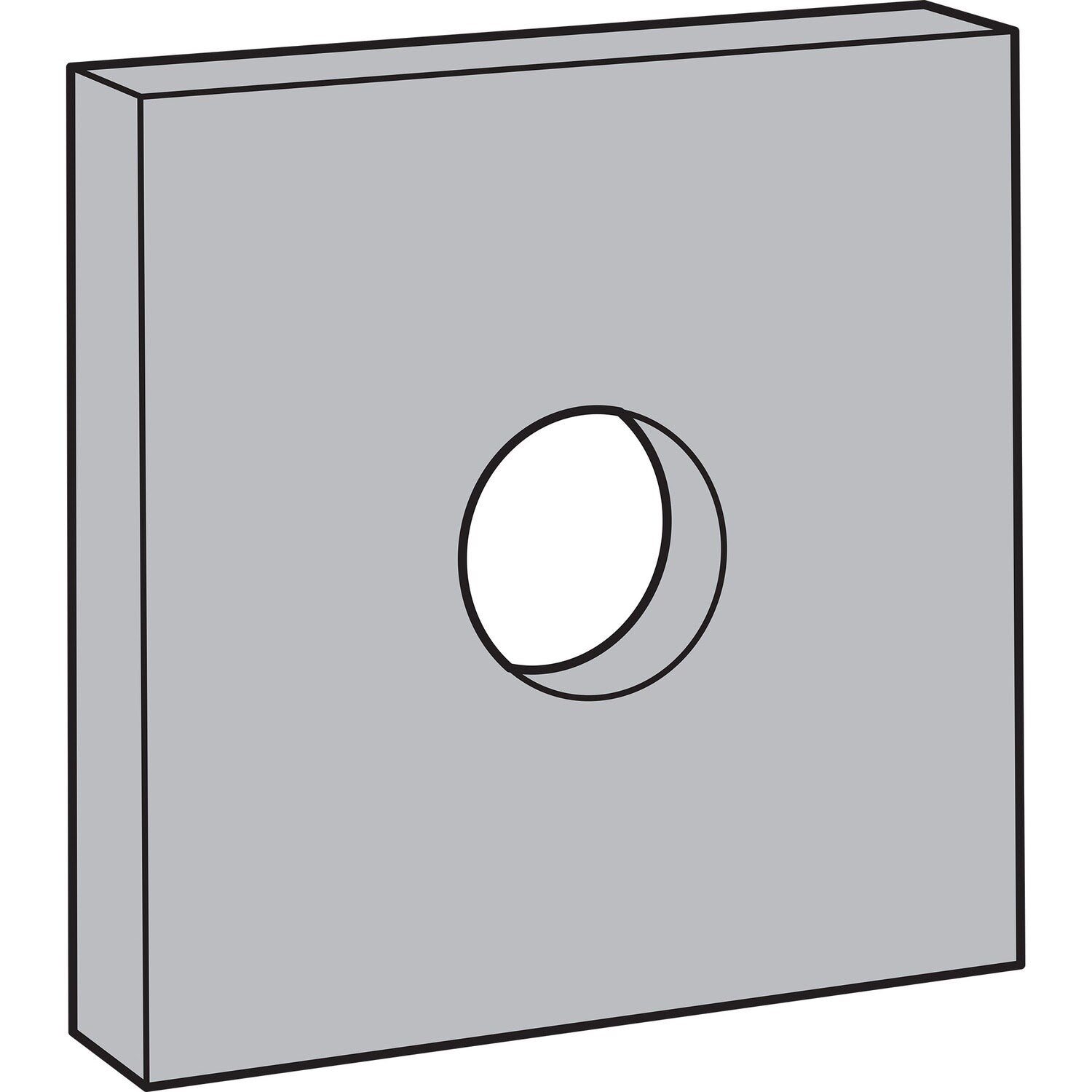

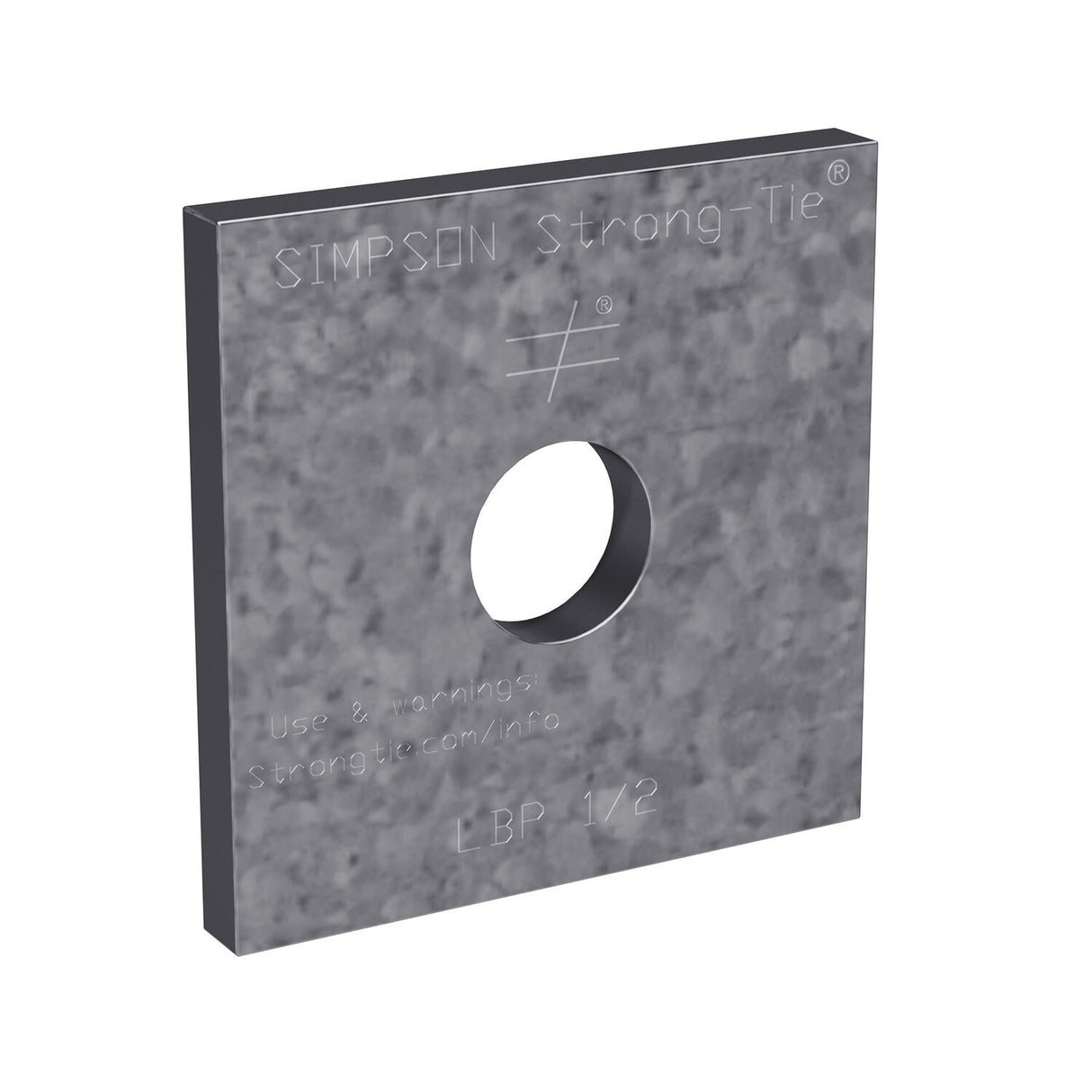

Simpson Strong-Tie LBP 1/2 (2 in. x 2 in.) Bearing Plate for 1/2-in. Dia. Anchor Bolt
$1.13
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LBP 1/2 Description
The Simpson Strong-Tie LBP 1/2 Bearing Plate is designed for 1/2 in. diameter anchor bolts, providing a greater bearing surface and enhanced stability.
Simpson Strong-Tie LBP 1/2 Includes
- (1) Bearing Plate
Simpson Strong-Tie LBP 1/2 Features
- Replaces standard-cut washers while providing a greater bearing surface
- Designed and sized for 1/2 in. and 5/8 in. mudsill anchor bolts
- Standard galvanized finish for extra corrosion resistance
- Heavy-duty construction with 9/64 in. thick steel
- Compact 2 in. x 2 in. size for versatile applications
Simpson Strong-Tie LBP 1/2 Applications
- Reinforcing and stabilizing structural connections in wood and steel construction
- Ideal for commercial buildings, bridges, and heavy-duty framing projects
- Suitable for high-moisture and pressure-treated wood applications

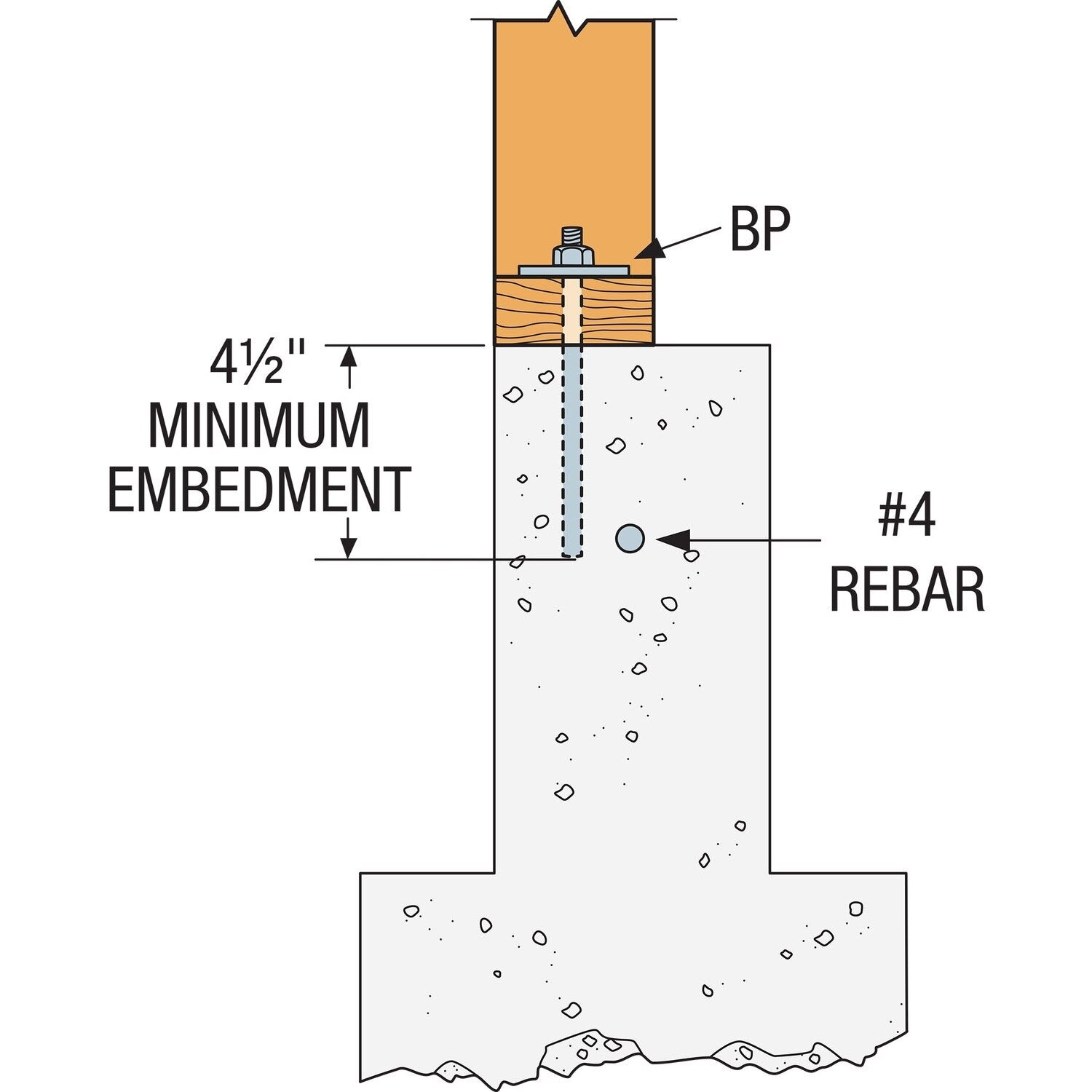

Simpson Strong-Tie LBP 1/2 Installation Overview
- No additional standard cut-washer required
- Tighten each anchor bolt with a nut and LBP
Simpson Strong-Tie LBP 1/2 Specifications
| Material | 9/64 in. steel |
| Finish | Galvanized or ZMAX |
| Bolt Diameter | 1/2 in. |
| Width | 2 in. |
| Length | 2 in. |
| Weight | 0.2 lb |
NOTE: Ensure the correct fasteners are used to achieve the specified load values.
