Simpson Anchors | SKU:
LCC3.5-3.5

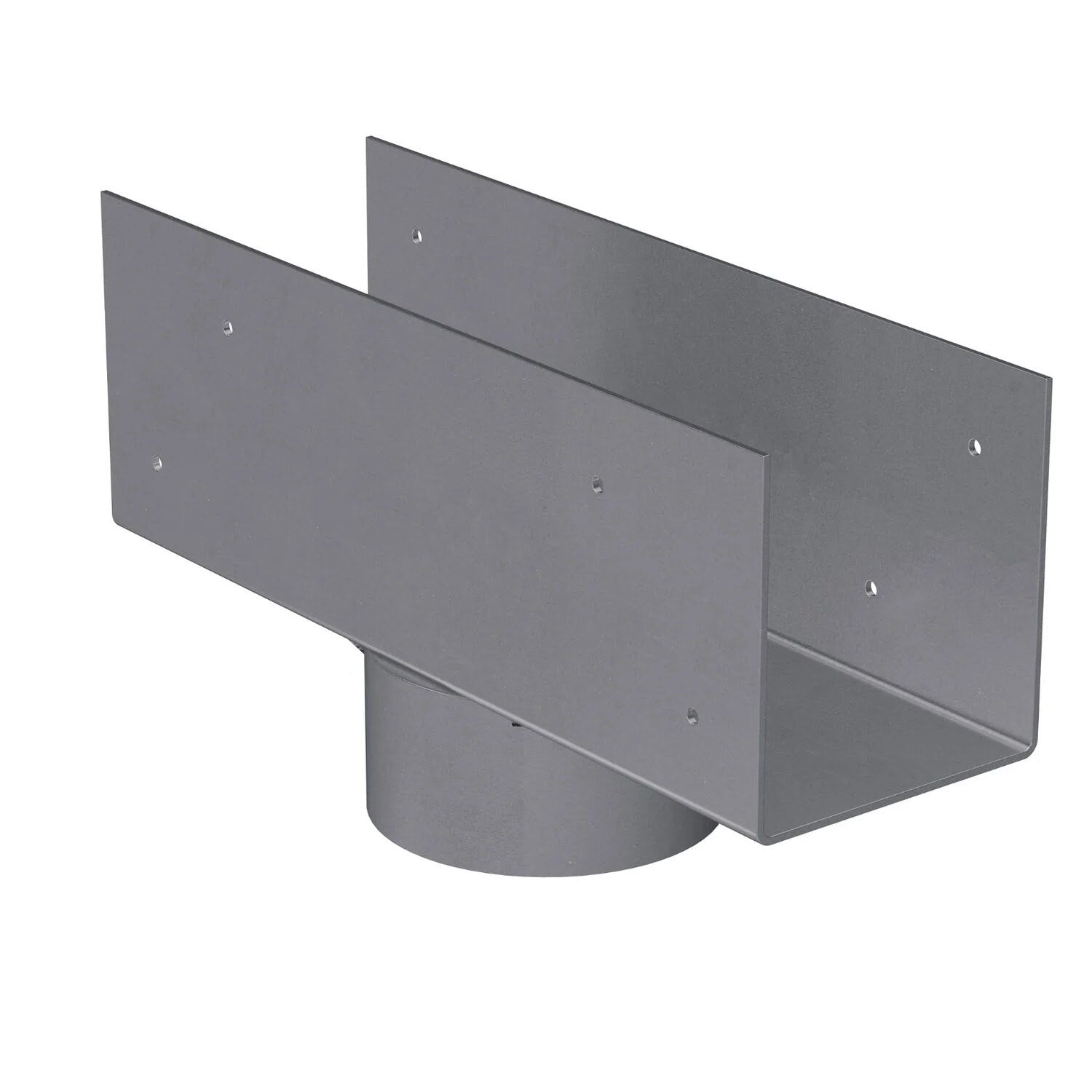

Simpson Strong-Tie LCC3.5-3.5 (3-5/8 in.) Column Cap for 3-1/2 in. Outside Diameter Lally Column
$107.93
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LCC3.5-3.5 Description
The Simpson LCC3.5-3.5 Lally Column Cap enhances the strength and stability of construction projects, providing a high-capacity column-to-beam connection.
Simpson Strong-Tie LCC3.5-3.5 Includes
- (1) Lally Column Cap
Simpson Strong-Tie LCC3.5-3.5 Features
- Provides strong column-to-beam connection
- Designed for 3.5-inch diameter lally columns
- Made from durable steel with gray paint finish
- Extended surface area for additional load distribution
- Diamond holes for temporary fastening during installation
Simpson Strong-Tie LCC3.5-3.5 Applications

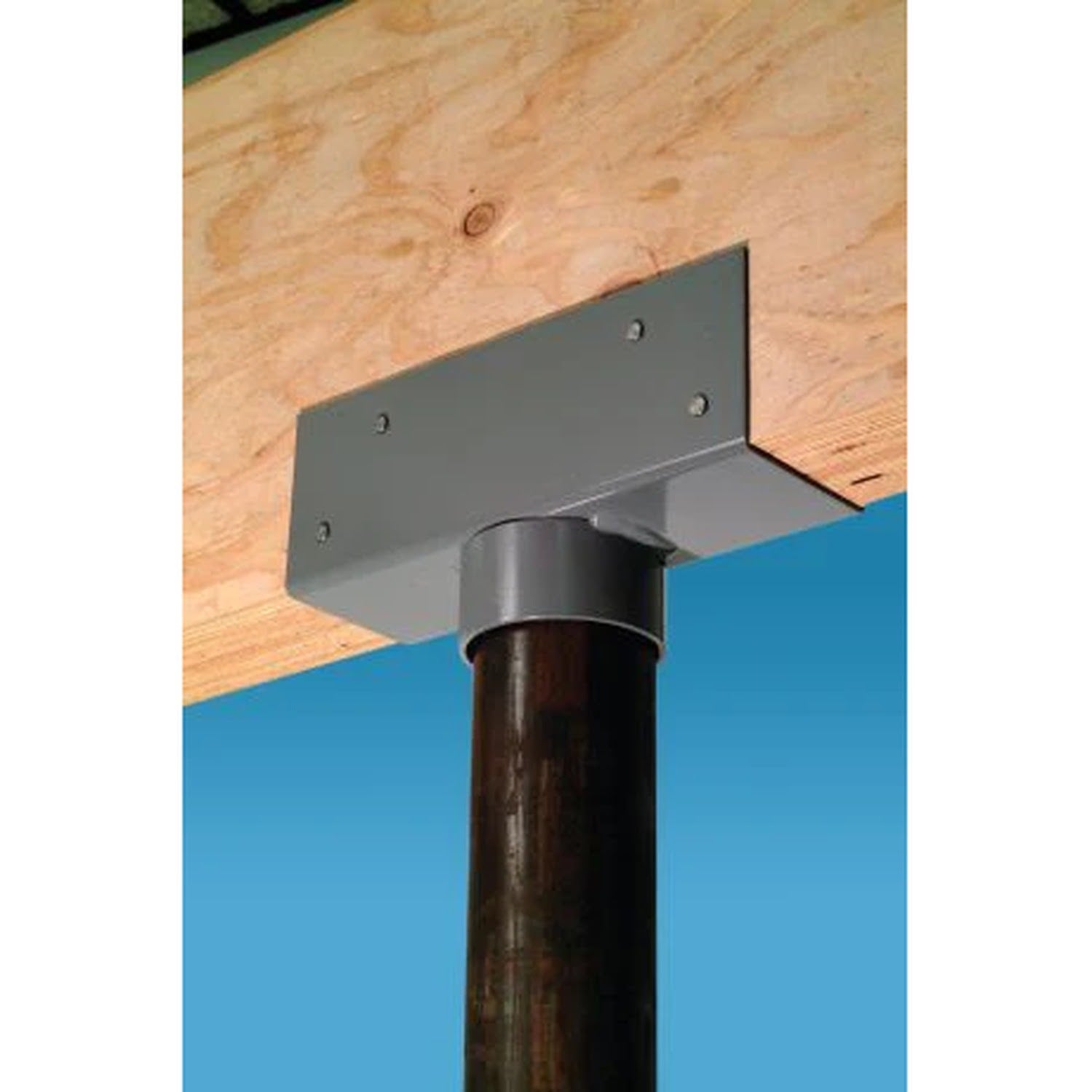

- Column-to-beam connections in construction
- Use with 3.5-inch diameter lally columns and 3.5 LVL/PSL/LSL girders
Simpson Strong-Tie LCC3.5-3.5 Installation Overview
- Fit the lally column cap over the lally column
- Attach the cap to the girder using specified fasteners
Simpson Strong-Tie LCC3.5-3.5 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Gauge | 12 |
| Fasteners required | (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Girder size | 3.5 LVL/PSL/LSL |
