Simpson Anchors | SKU:
LCC4.5-4
Simpson Strong-Tie LCC4.5-4 (4-5/8 in.) Column Cap for 4" Outside Diameter Lally Column
$115.25
Unit price
/
Unavailable
Description
Description

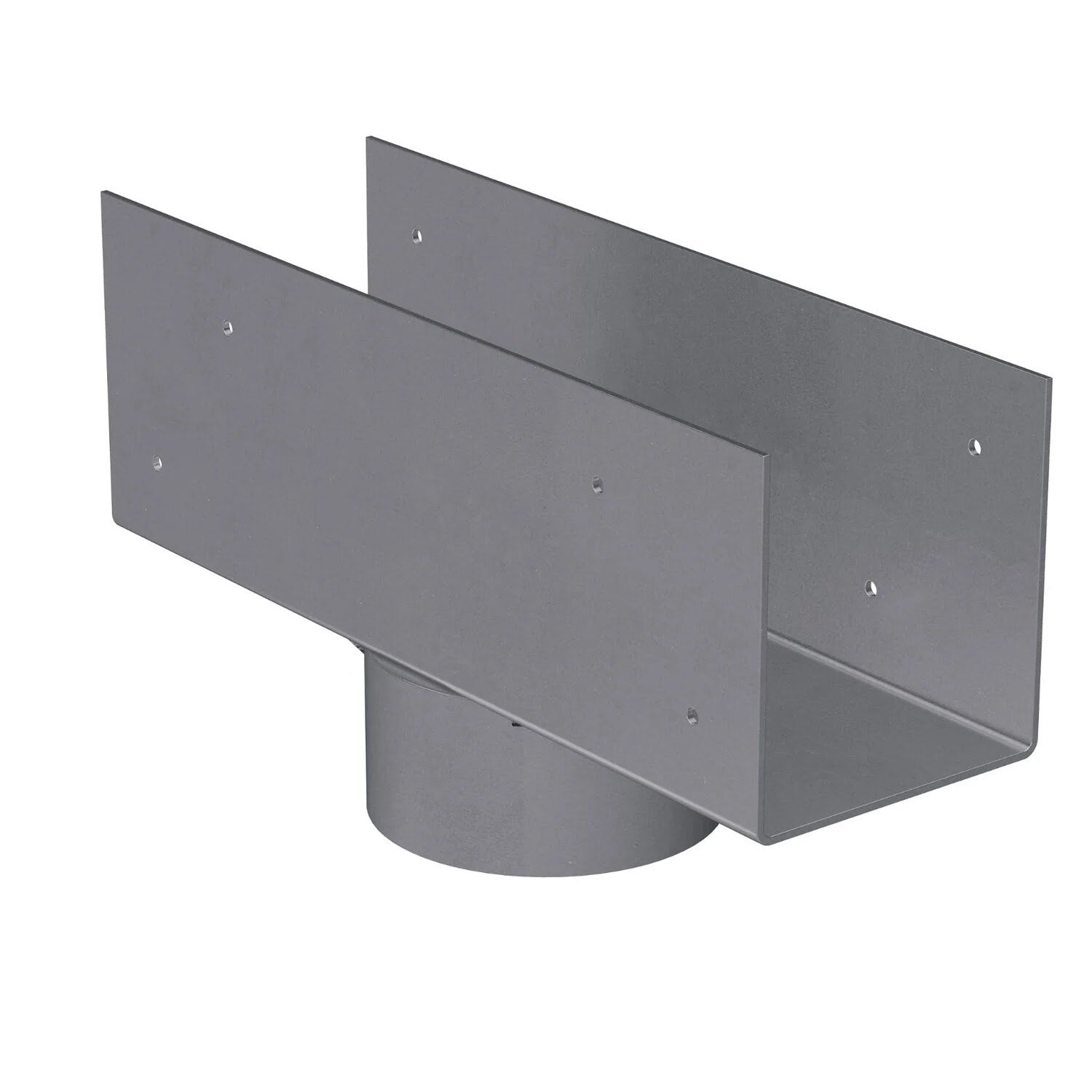

Simpson Strong-Tie LCC4.5-4 Description
The Simpson LCC4.5-4 Lally Column Cap enhances the strength and stability of construction projects, providing a high-capacity column-to-beam connection.
Simpson Strong-Tie LCC4.5-4 Includes
- (1) Lally Column Cap
Simpson Strong-Tie LCC4.5-4 Features
- Provides strong column-to-beam connection
- Designed for 4-inch diameter lally columns
- Made from durable steel with gray paint finish
- Extended surface area for additional load distribution
- Diamond holes for temporary fastening during installation
Simpson Strong-Tie LCC4.5-4 Applications
- Column-to-beam connections in construction
- Use with 4-inch diameter lally columns and Triple 2x10/12 girders

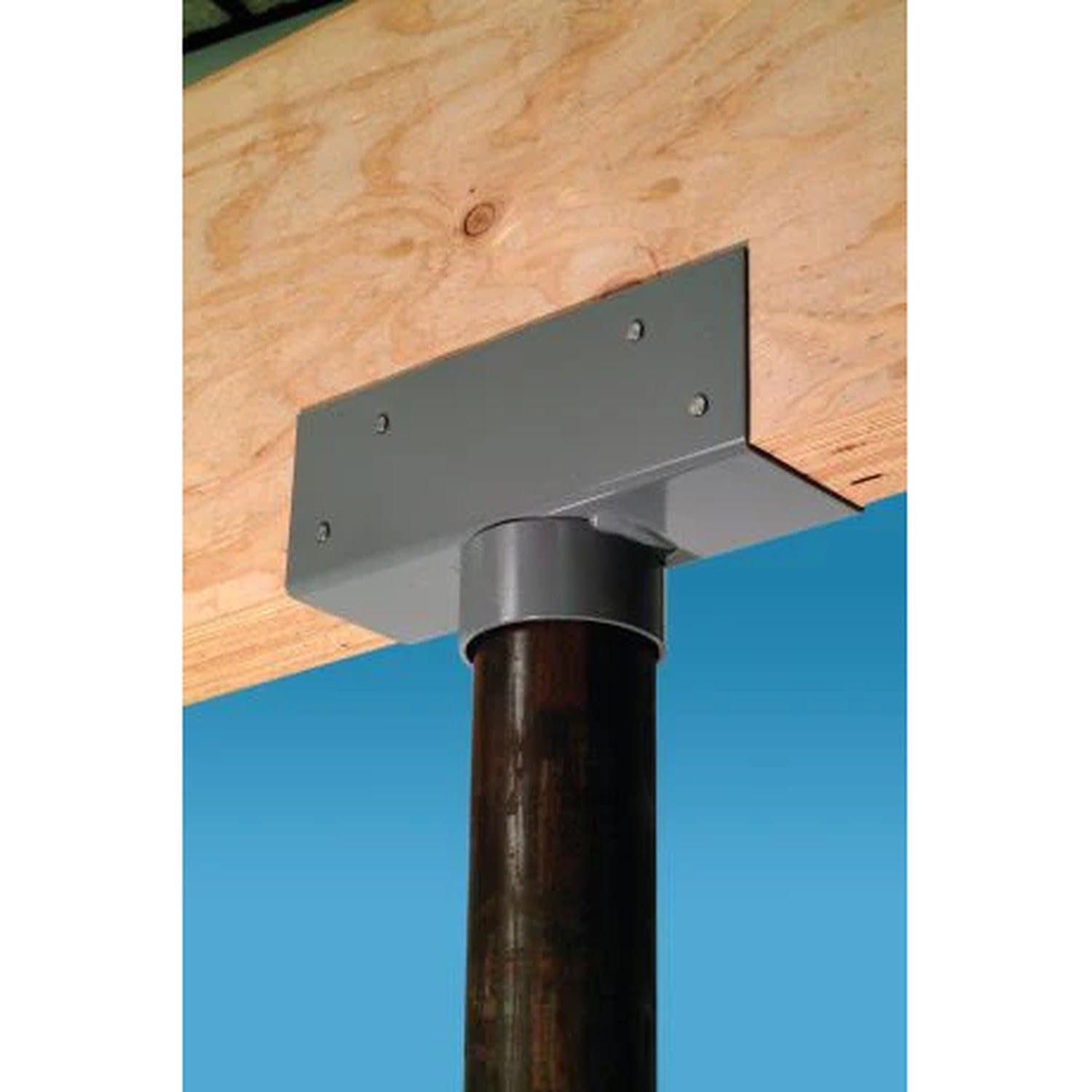

Simpson Strong-Tie LCC4.5-4 Installation Overview
- Fit the lally column cap over the lally column
- Attach the cap to the girder using specified fasteners
Simpson Strong-Tie LCC4.5-4 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Gauge | 12 |
| Weight | 5.2 lb |
| Fasteners required | (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Girder size | Triple 2x10/12 |
