Simpson Anchors | SKU:
LCE4Z
Simpson Strong-Tie LCE4Z (4x) ZMAX Galvanized End Post Cap
$7.85
Unit price
/
Unavailable
Description
Description
Simpson LCE4Z Description

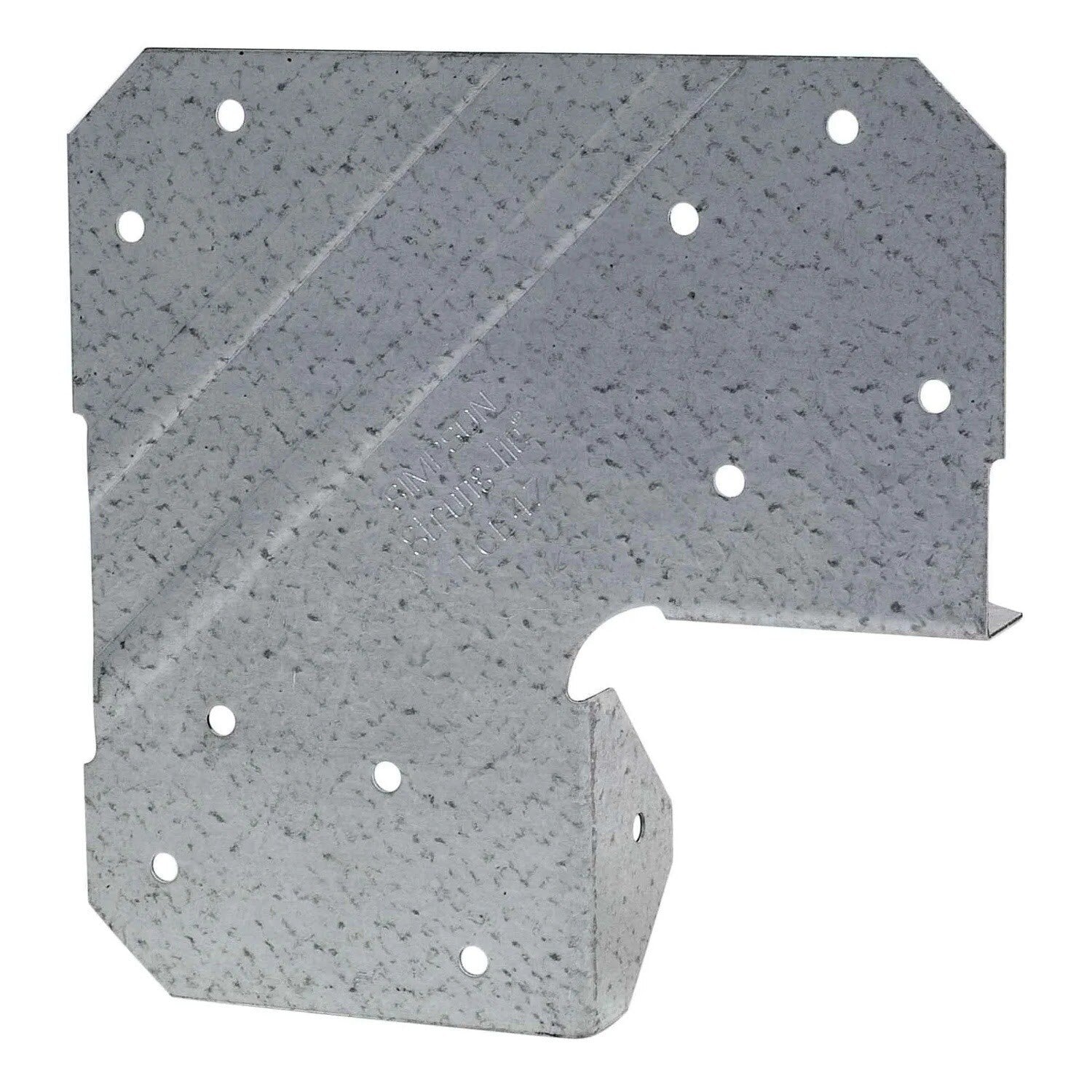

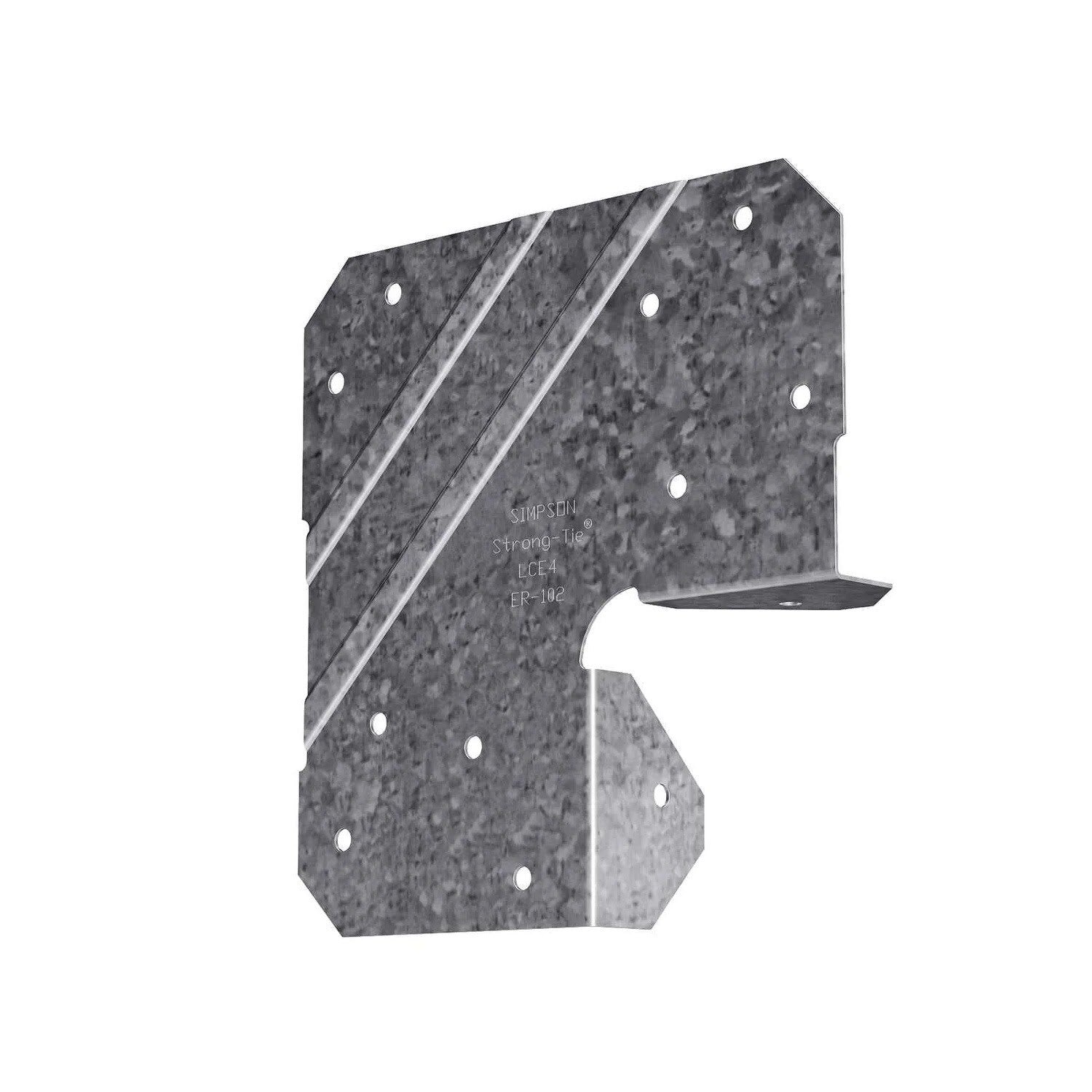

The LCE4Z is a versatile, two-piece light post cap designed to connect the end of a beam to a post, accommodating 4x lumber. It features a ZMAX coating for corrosion resistance and is load-rated when installed in pairs.
Simpson LCE4Z Includes
- (1) ZMAX Galvanized End Post Cap for 4x Lumber
Simpson LCE4Z Features
- Universal design eliminates need for right and left pieces
- Superior strength compared to angled nailing or screw fastening
- Eliminates nailing into end grain
- Tested and approved for mitered end conditions
Simpson LCE4Z Applications

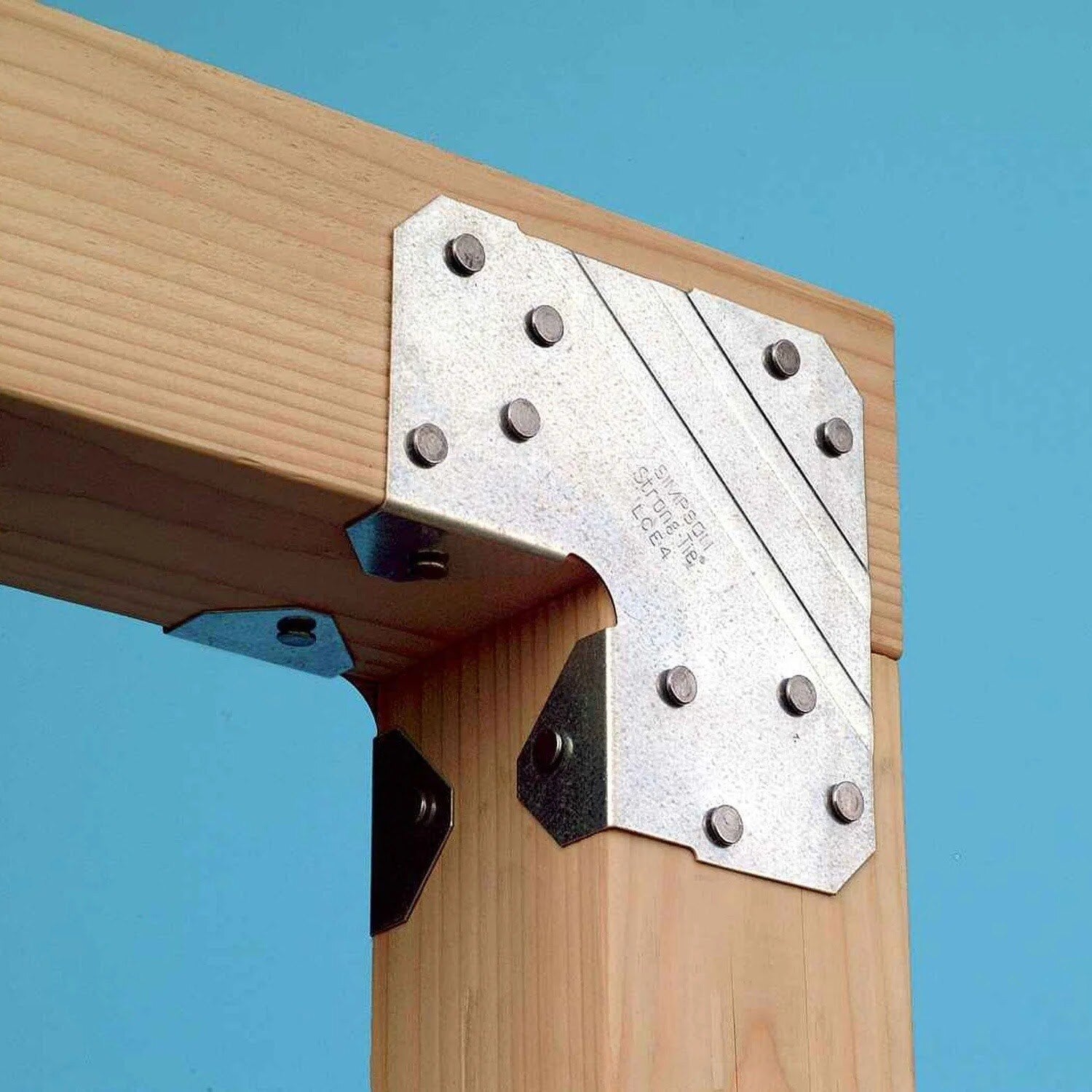

- Connecting the end of a beam to a post in wood construction
- Ideal for both new and retrofit construction
- Suitable for 4x lumber
Simpson LCE4Z Installation Overview
- Install in pairs to achieve allowable loads
- Use all specified fasteners
- Install one LCE4 on each outside face for mitered corners
Simpson LCE4Z Specifications
| Material | 20 Gauge (33 mil) |
| Finish | ZMAX Galvanized |
| Length | 5-3/8" |
| Weight | 0.3 lb |
NOTE: These must be installed in pairs to achieve allowable loads.
