Simpson Anchors | SKU:
LSSJ210LZ
Simpson LSSJ210LZ Strong-Tie Left Side Field Adjustable Jack Hanger - ZMAX Finish
$16.56
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LSSJ210LZ Description

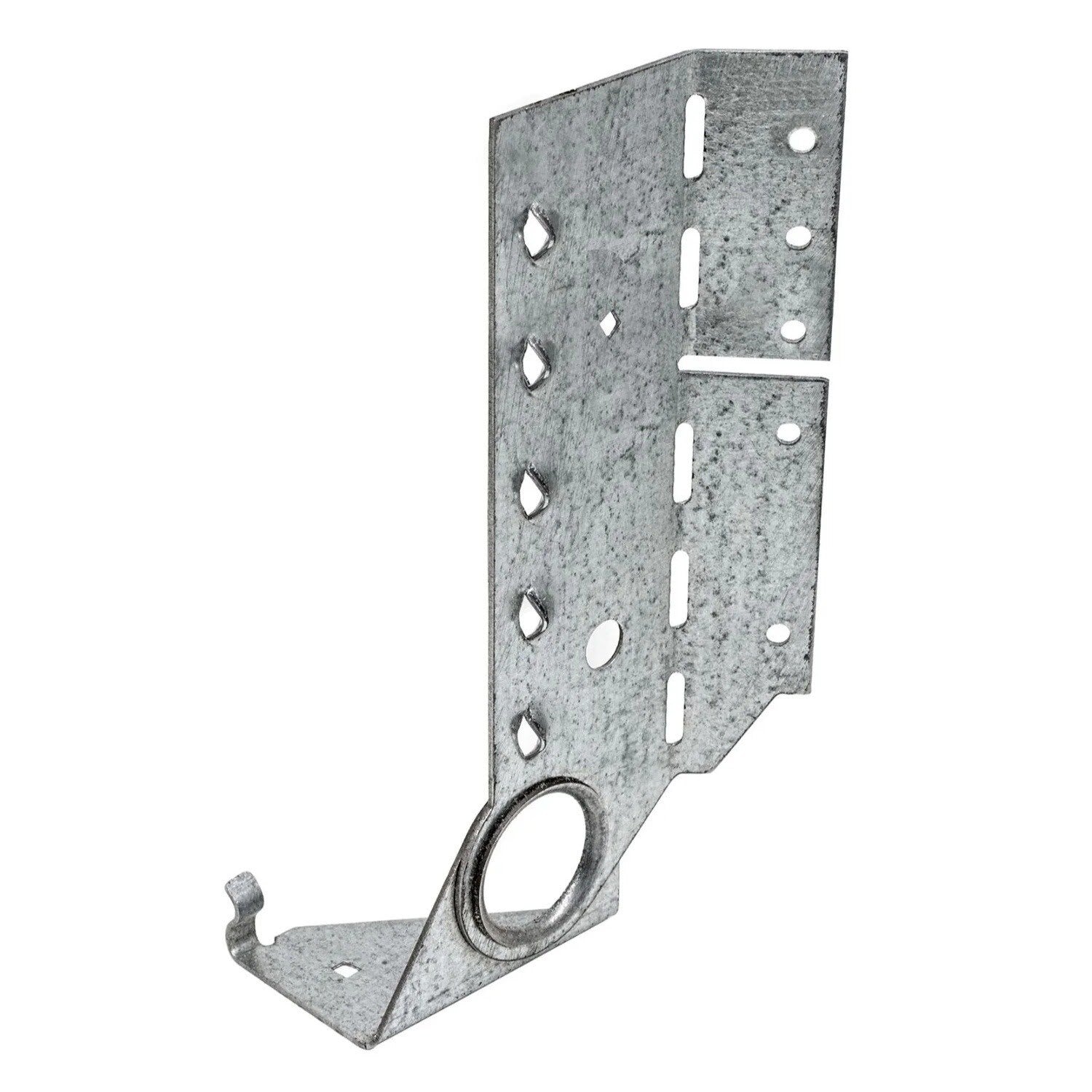

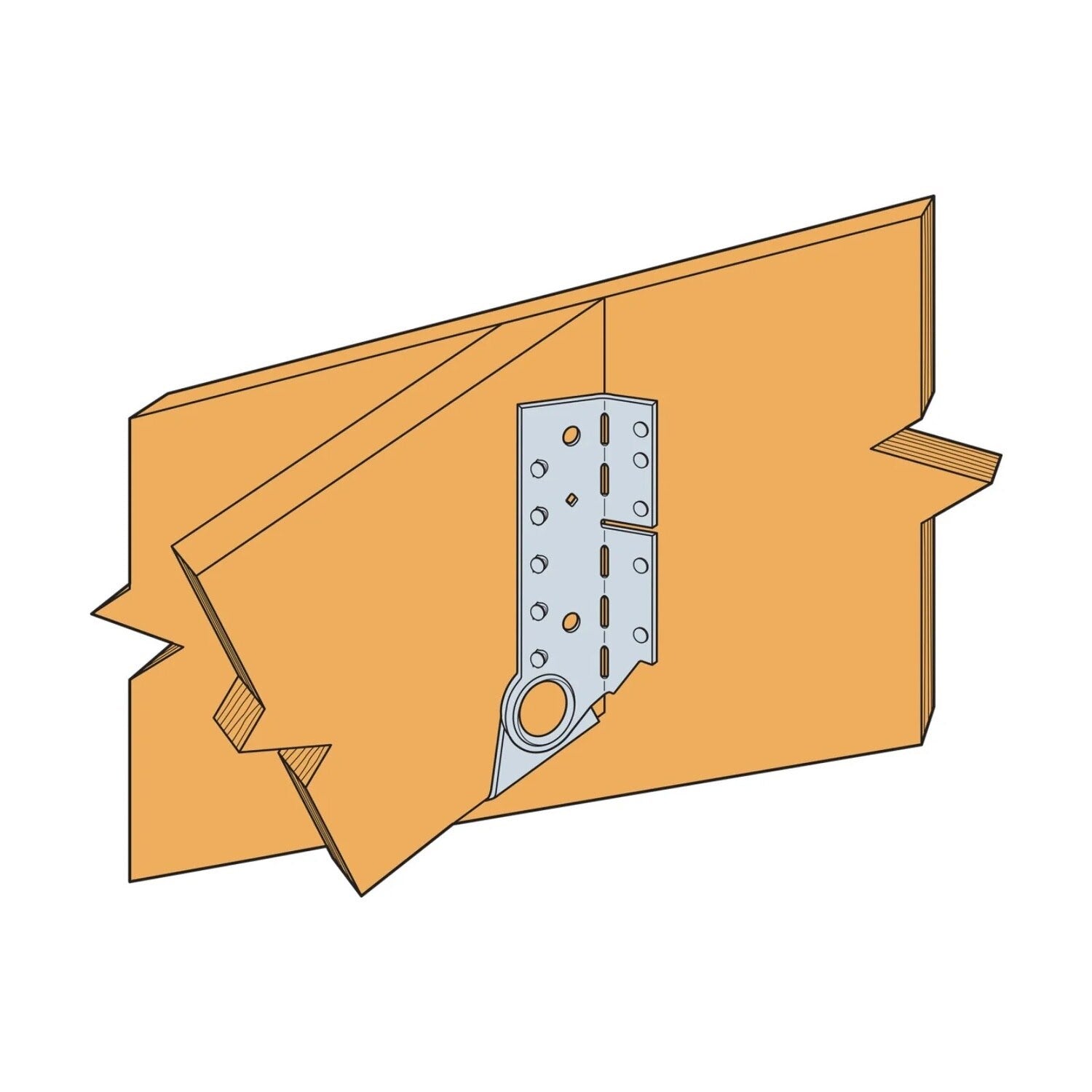

The LSSJ Left-Side Face-Mount Adjustable Jack Hanger is designed for sloped and skewed wood-to-wood connections, offering strong support and corrosion resistance with its ZMAX galvanized finish.
Simpson Strong-Tie LSSJ210LZ Includes
- (1) Left Side Field Adjustable Jack Hanger - ZMAX Finish
Simpson Strong-Tie LSSJ210LZ Features
- Adjustable Slope and Skew: Accommodates up to 45° of slope and skew for flexible framing applications.
- Face-Mount Installation: Provides a strong, stable connection to beams and headers.
- ZMAX Galvanized Finish: Enhances corrosion resistance for protected outdoor and high-moisture environments.
- Solid Sawn Lumber Compatibility: Engineered for use with standard wood framing members.
- Pre-Punched Fastener Holes: Ensures proper fastener placement for a secure and reliable connection.
Simpson Strong-Tie LSSJ210LZ Applications

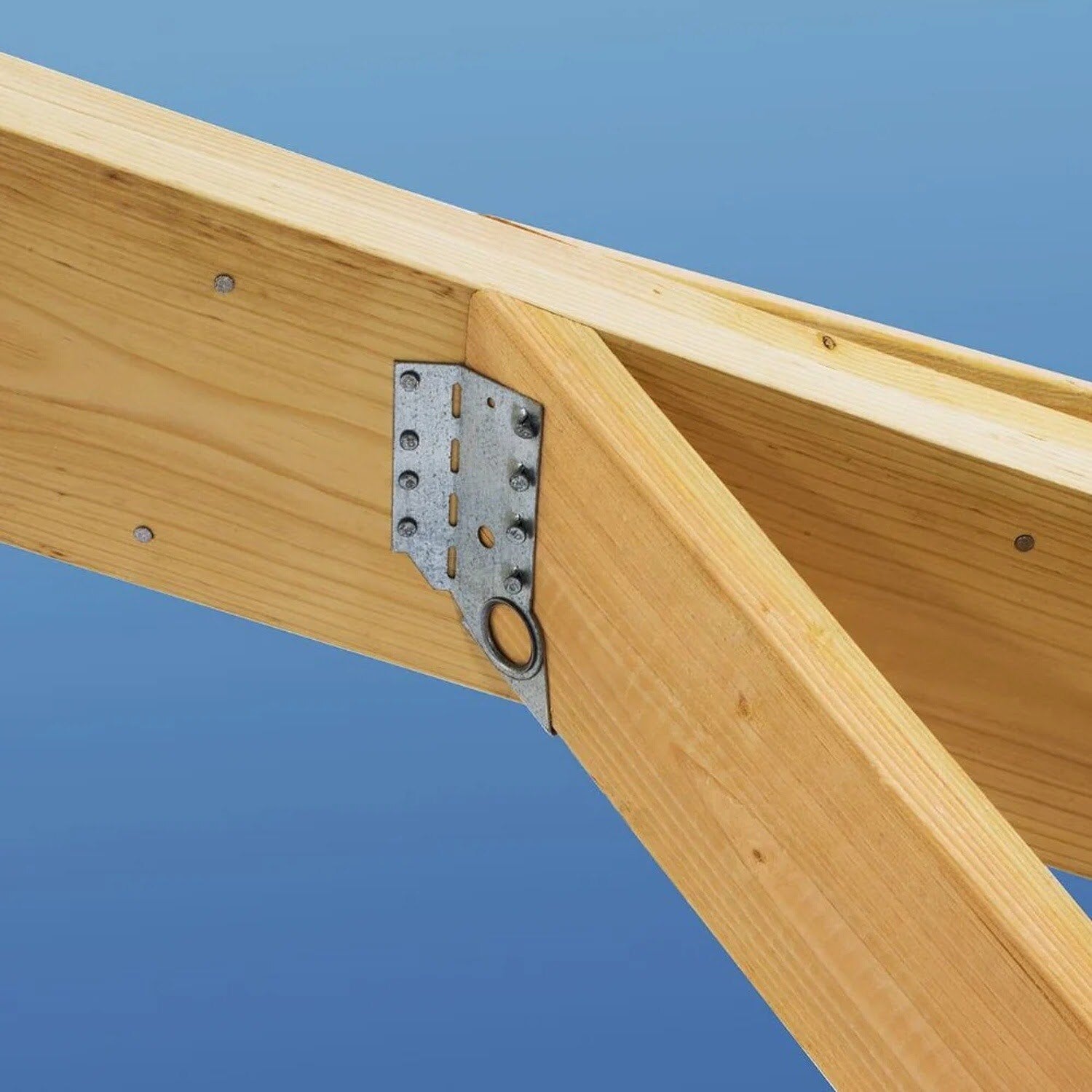

- Hip and Valley Framing: Perfect for complex roof framing projects requiring adjustable angled connections.
- Rafter and Ceiling Joists: Provides strong support for sloped and skewed rafters.
- Deck Framing: Ideal for attaching angled joists in multi-level decks or non-standard layouts.
- Beam-to-Beam Connections: Ensures stability in structures with intersecting beams at various angles.
- General Wood Framing: Versatile solution for residential, commercial, and light industrial wood framing applications.
Simpson Strong-Tie LSSJ210LZ Installation Overview

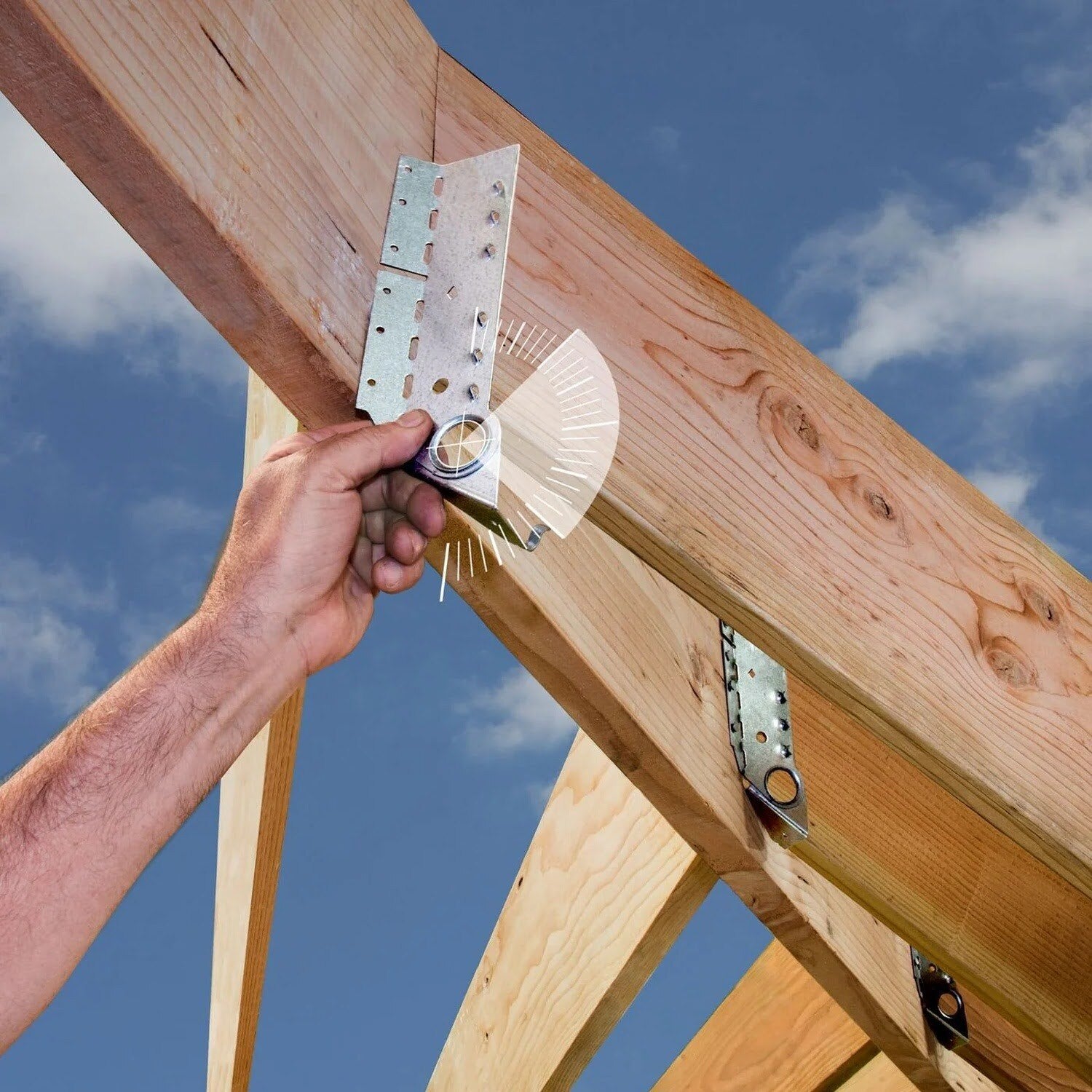

- Adjust the hanger to the required slope and skew angle before securing the joist.
- Use appropriate nails or structural screws for a firm, load-rated connection.
- Ensure full contact between the joist and hanger seat for maximum structural support.
Simpson Strong-Tie LSSJ210LZ Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | Yes |
| Height | 8" |
| Joist size | 2" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
