Simpson Anchors | SKU:
LSSJ26LZ
Simpson Strong-Tie LSSJ26LZ Left Side Field Adjustable Jack Hanger - ZMAX Finish
$7.85
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LSSJ26LZ Description

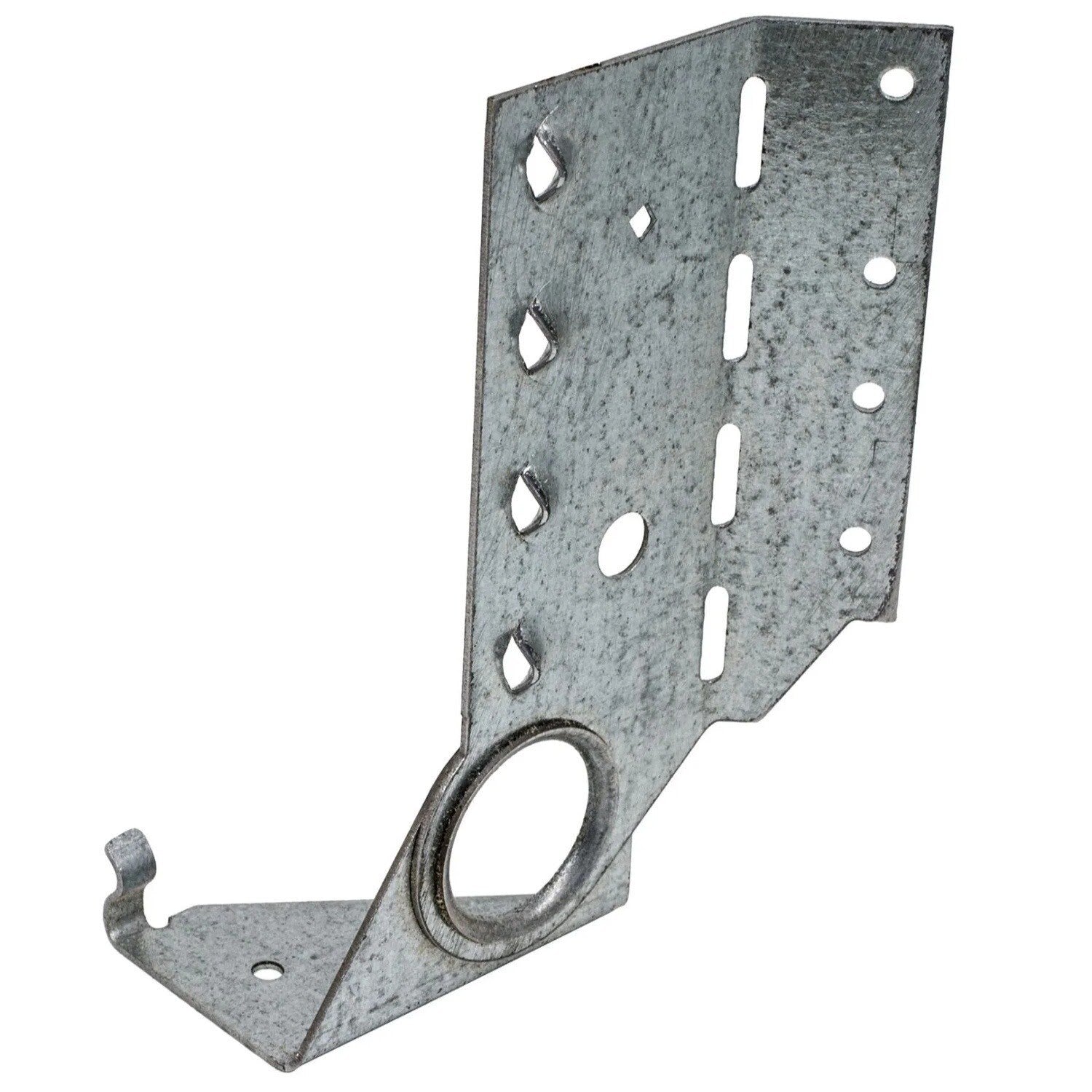

The LSSJ Left-Side Face-Mount Adjustable Jack Hanger is designed for sloped and skewed wood-to-wood connections, offering strong support in framing applications.
Simpson Strong-Tie LSSJ26LZ Includes
- (1) Left Side Field Adjustable Jack Hanger
Simpson Strong-Tie LSSJ26LZ Features
- Adjustable slope and skew up to 45°
- Face-mount installation for strong connections
- ZMAX galvanized finish for corrosion resistance
- Compatible with solid sawn lumber
- Pre-punched fastener holes for secure connections
Simpson Strong-Tie LSSJ26LZ Applications

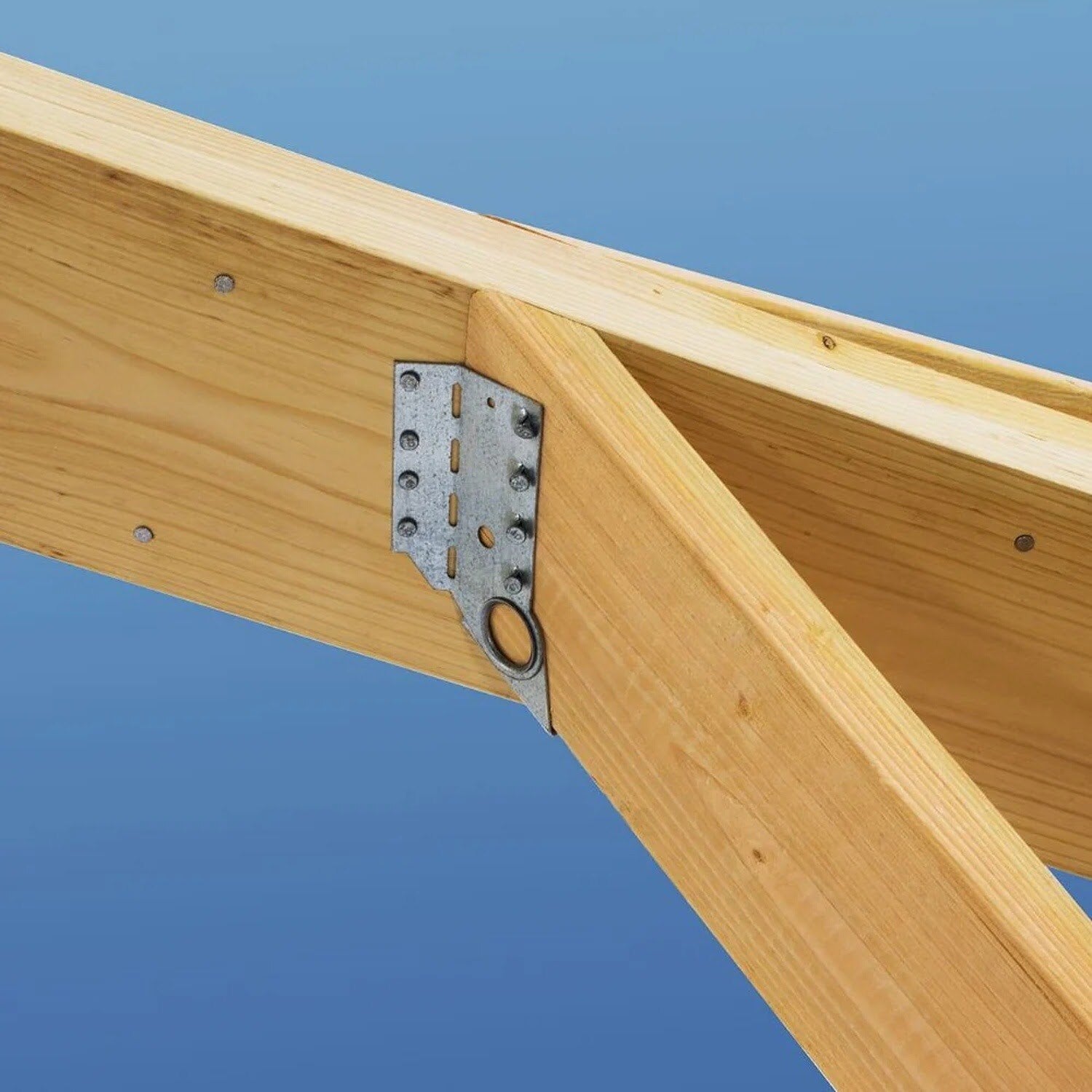

- Hip and valley framing for roof projects
- Rafter and ceiling joists support
- Deck framing for angled joists
- Beam-to-beam connections
- General wood framing in various structures
Simpson Strong-Tie LSSJ26LZ Installation Overview

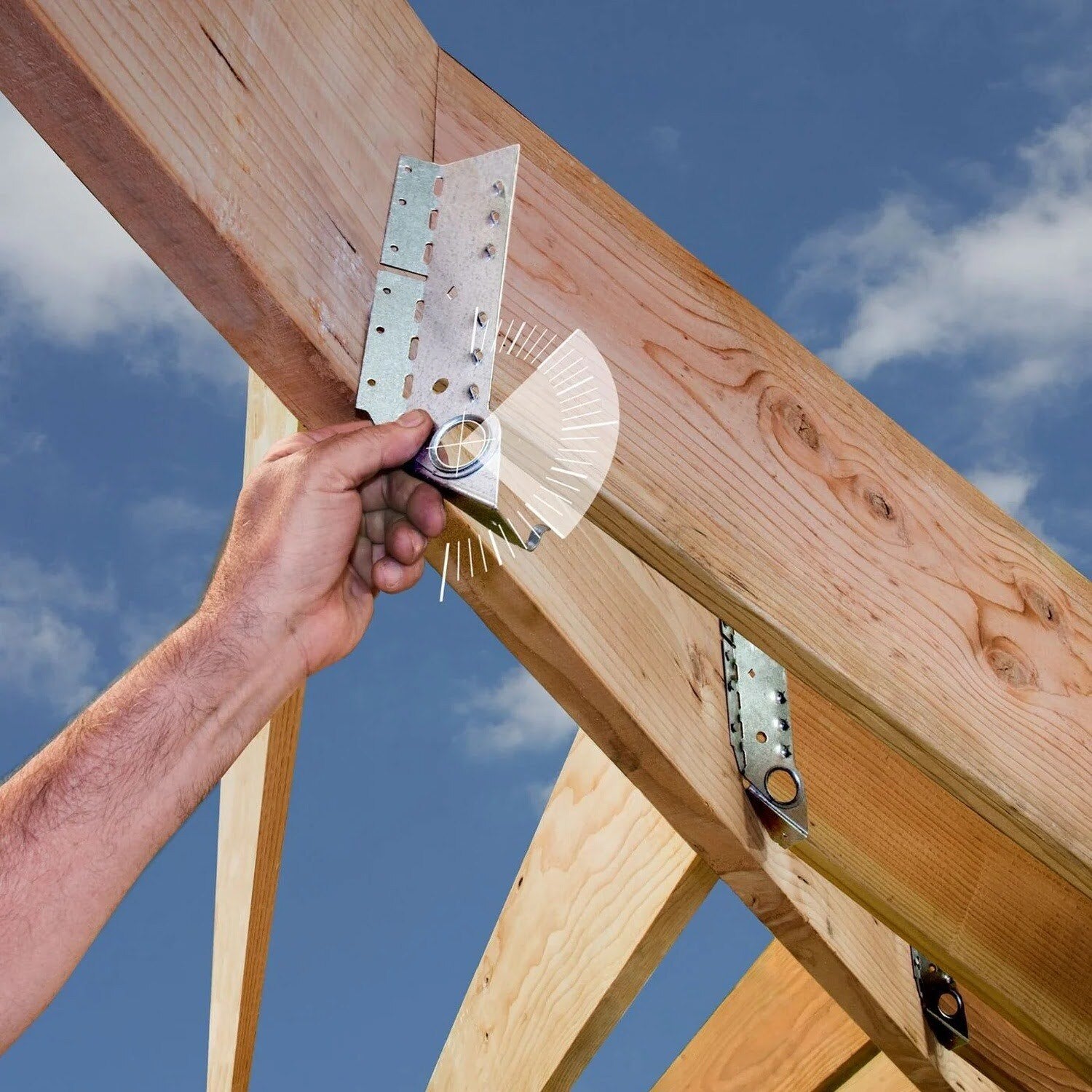

- Adjust the hanger to the required slope and skew angle before securing the joist.
- Use appropriate nails or structural screws for a firm connection.
- Ensure full contact between the joist and hanger seat for maximum support.
Simpson Strong-Tie LSSJ26LZ Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | Yes |
| Height | 4-3/8" |
| Joist size | 2" X 6" |
| Type | Left |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
