Simpson Anchors | SKU:
LSSJ26RZ
Simpson Strong-Tie LSSJ26RZ Face-Mount Adjustable Light Slopeable/Skewable Jack Hanger for 2x6, Right
$7.85
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LSSJ26RZ Description
The LSSJ Right-Side Face-Mount Adjustable Jack Hanger is designed for sloped and skewed jack rafter connections, providing superior strength and flexibility in framing applications.
Simpson Strong-Tie LSSJ26RZ Includes
- (1) LSSJ26RZ Jack Hanger
Simpson Strong-Tie LSSJ26RZ Features
- Right-Side Configuration: Designed for use in framing applications where a right-side attachment is needed.
- Adjustable Slope & Skew: Accommodates non-standard angles for greater installation flexibility.
- Face-Mount Installation: Provides a secure and stable connection to supporting members.
- Durable ZMAX Finish: Offers superior corrosion resistance for added longevity.
- Compatible with Solid Sawn Lumber: Ideal for traditional wood framing applications.
Simpson Strong-Tie LSSJ26RZ Applications
- Roof Framing: Ideal for jack rafters in hip and valley roof structures.
- Floor Framing: Provides a secure connection for angled joists and beams.
- Deck Construction: Supports skewed joist connections in custom deck designs.
- General Wood Framing: Used in residential and commercial framing where non-standard angles are required.
Simpson Strong-Tie LSSJ26RZ Installation Overview
- Install with appropriate nails or structural screws.

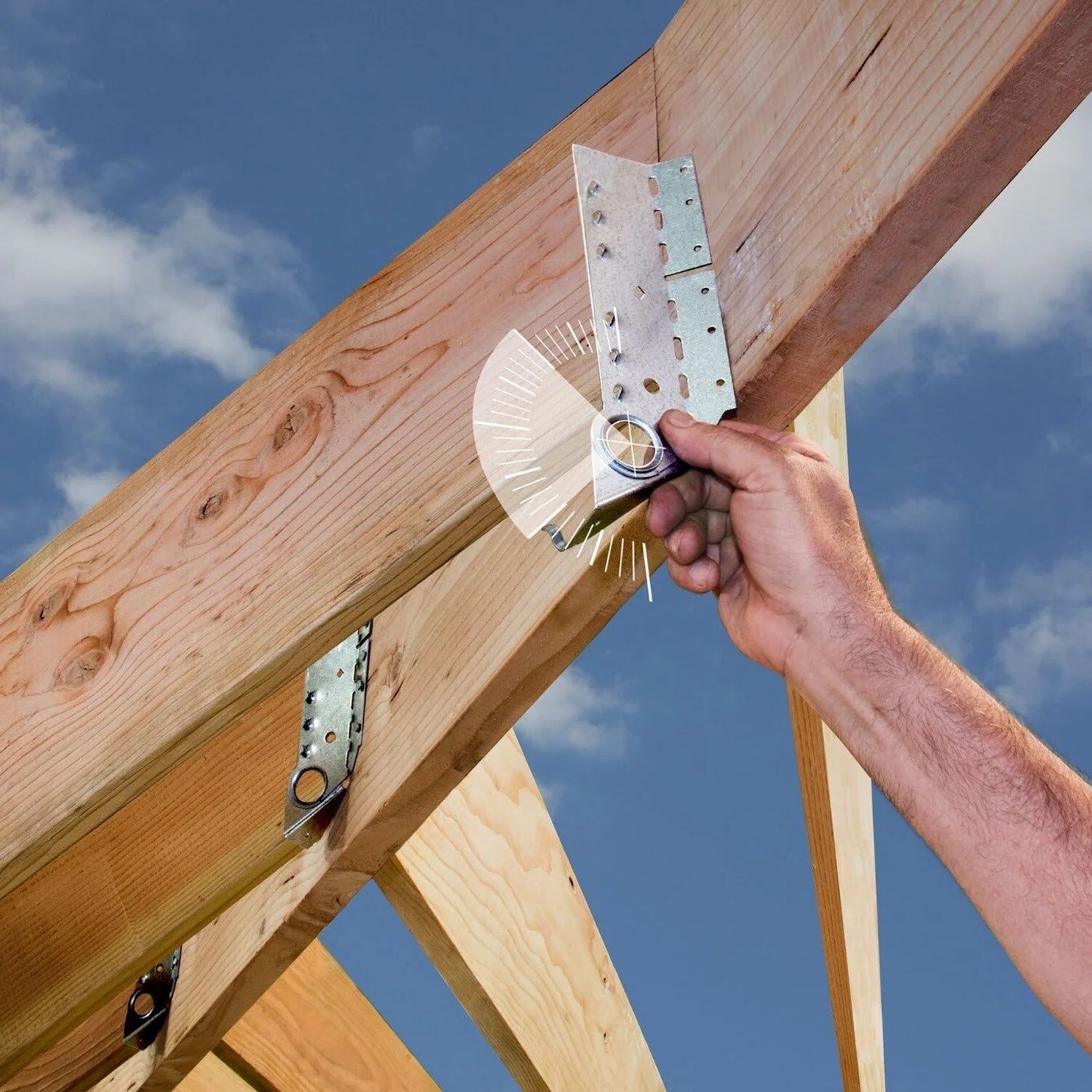

- Adjust the hanger on-site to achieve the required slope and skew angle.
- Ensure proper alignment and secure fastening to maintain structural integrity.
- Suitable for use in roof framing, floor systems, and other angled or offset connections.
Simpson Strong-Tie LSSJ26RZ Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | Yes |
| Height | 4-3/8" |
| Joist size | 2" X 6" |
| Type | Right |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
