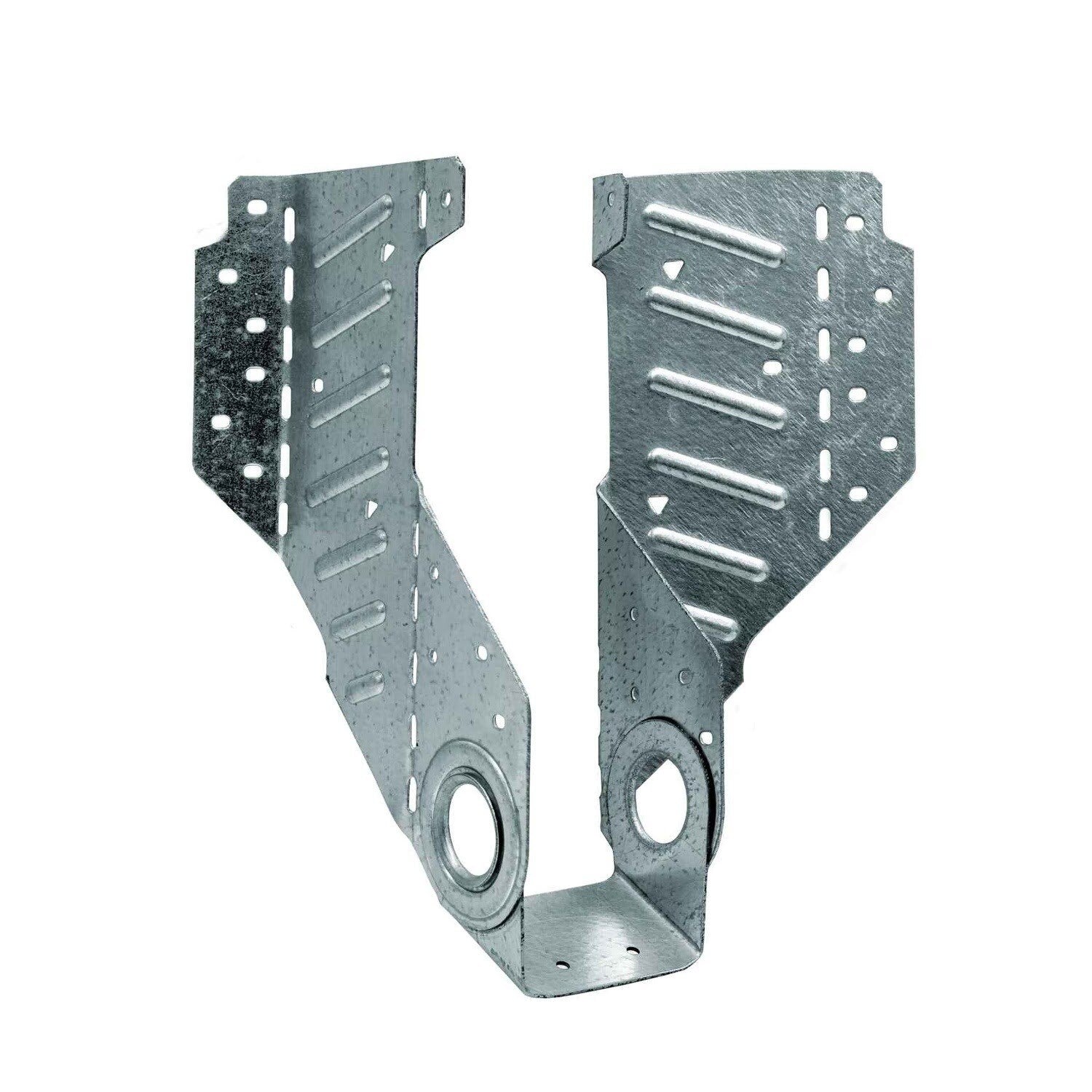

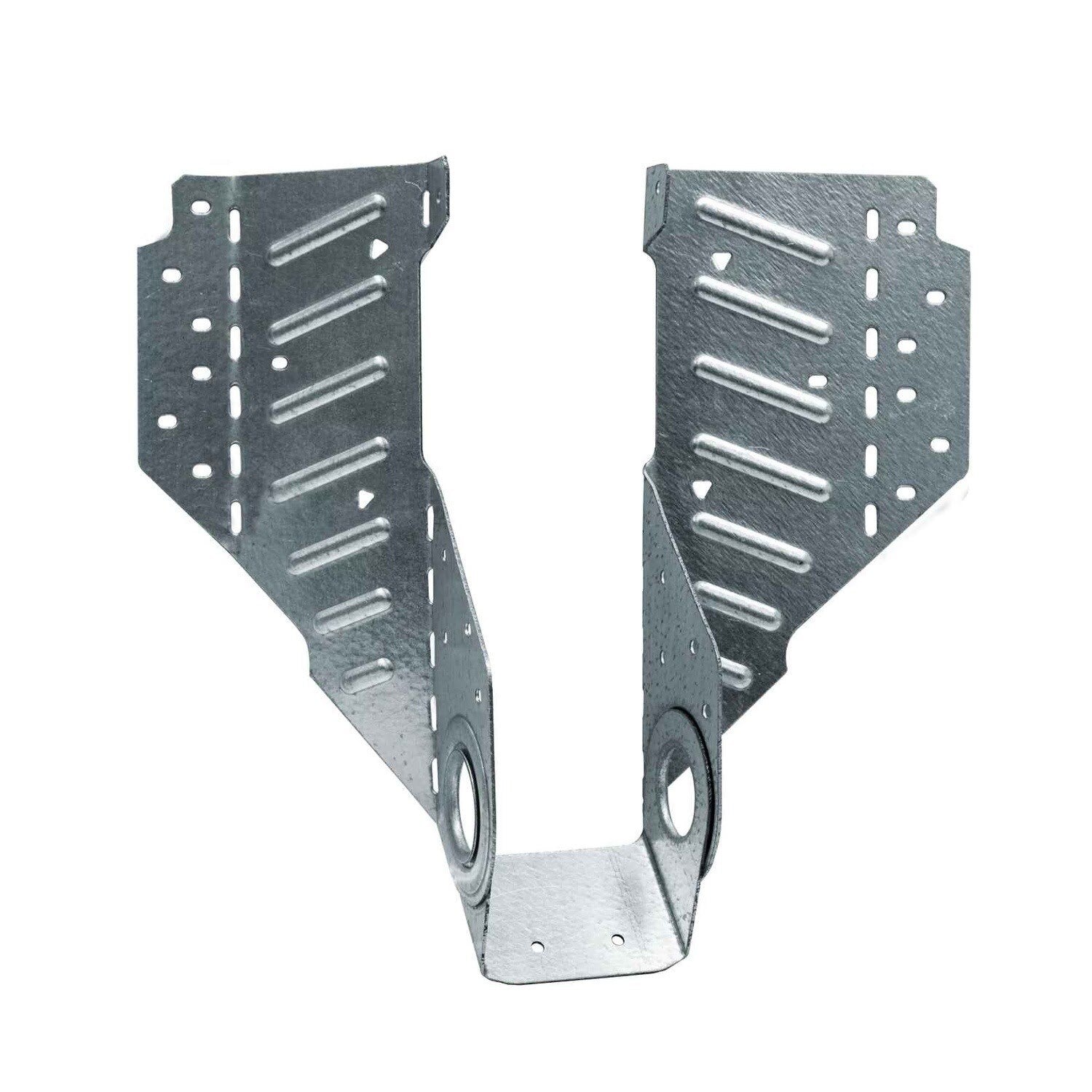

Simpson Strong-Tie LSSR210Z (1-1/2") 18Ga Light Slopeable/Skewable Rafter Hanger - ZMAX Finish

Simpson LSSR210Z Features

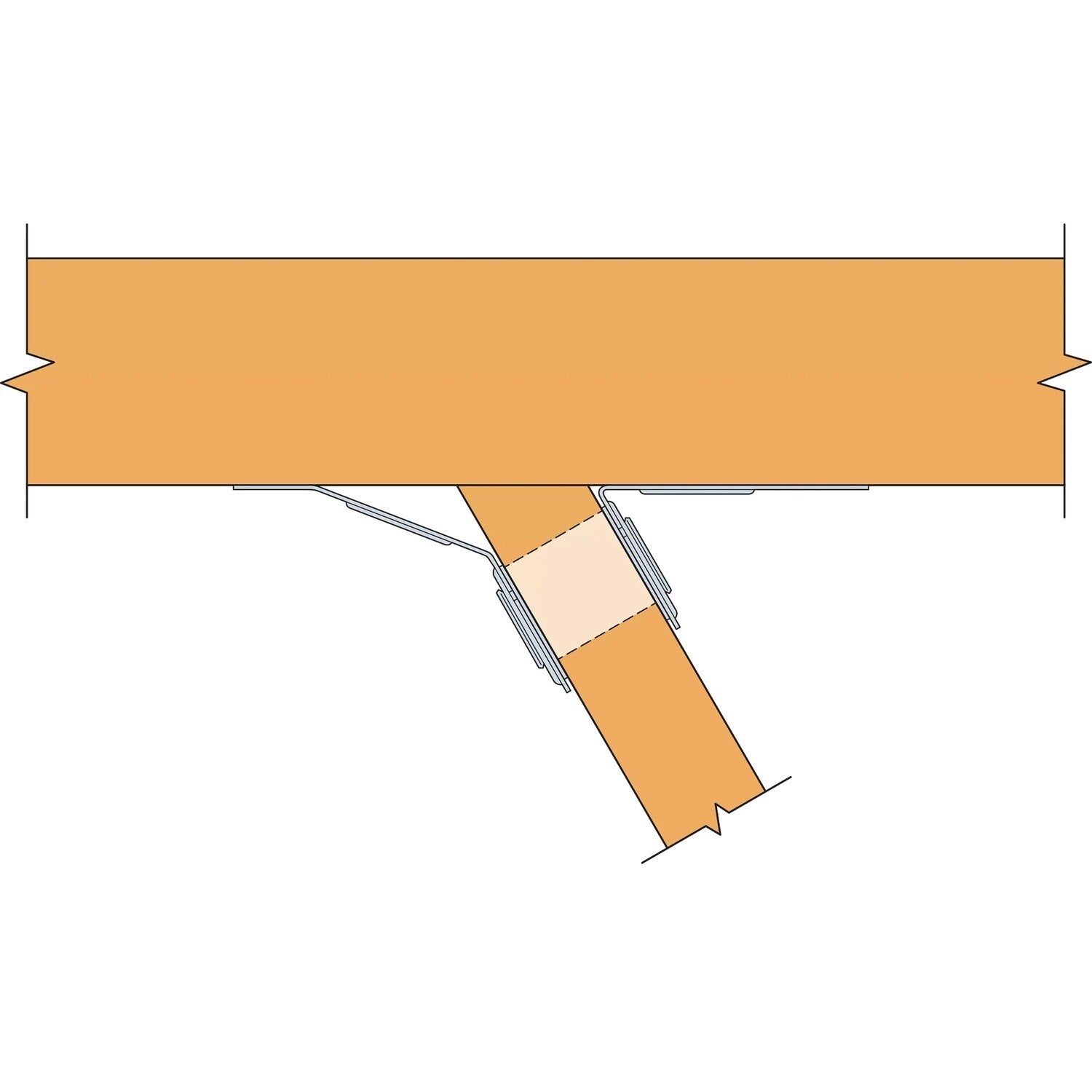

• Slope and Skew Adjustability: Easily adapts to complex angles, accommodating up to a 45° skew and 45° slope.
• ZMAX Coating: Provides enhanced corrosion resistance, making it ideal for exterior and treated-wood applications.
• Reversible Design: Symmetrical construction allows for easy installation on either the left or right side of the rafter.
• No Special Tools Required: The field-adjustable flanges simplify installation with standard framing tools.
• High-Load Capacity: Engineered for strong and reliable rafter-to-wall and beam connections.

Simpson LSSR210Z Applications

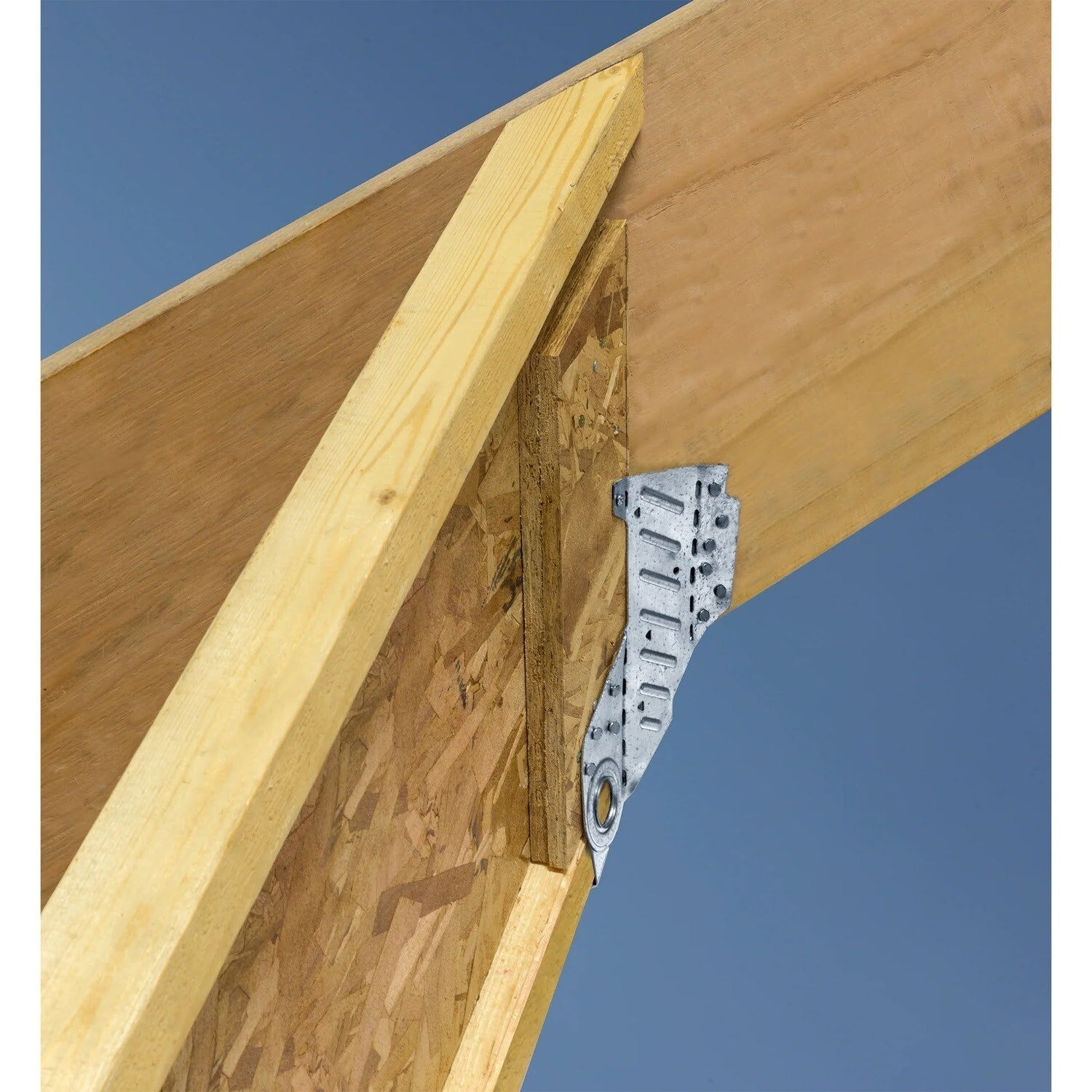

• Roof Framing: Ensures strong, code-compliant rafter-to-wall connections in sloped or skewed roof structures.
• Pergolas & Gazebos: Provides secure, adjustable connections for decorative and functional outdoor structures.
• Deck Construction: Offers reliable support for rafters and beams in deck framing.
• Timber Framing: Enhances stability in solid sawn and engineered wood framing applications.
• Carports & Patio Covers: Delivers strong, corrosion-resistant performance in outdoor structures.

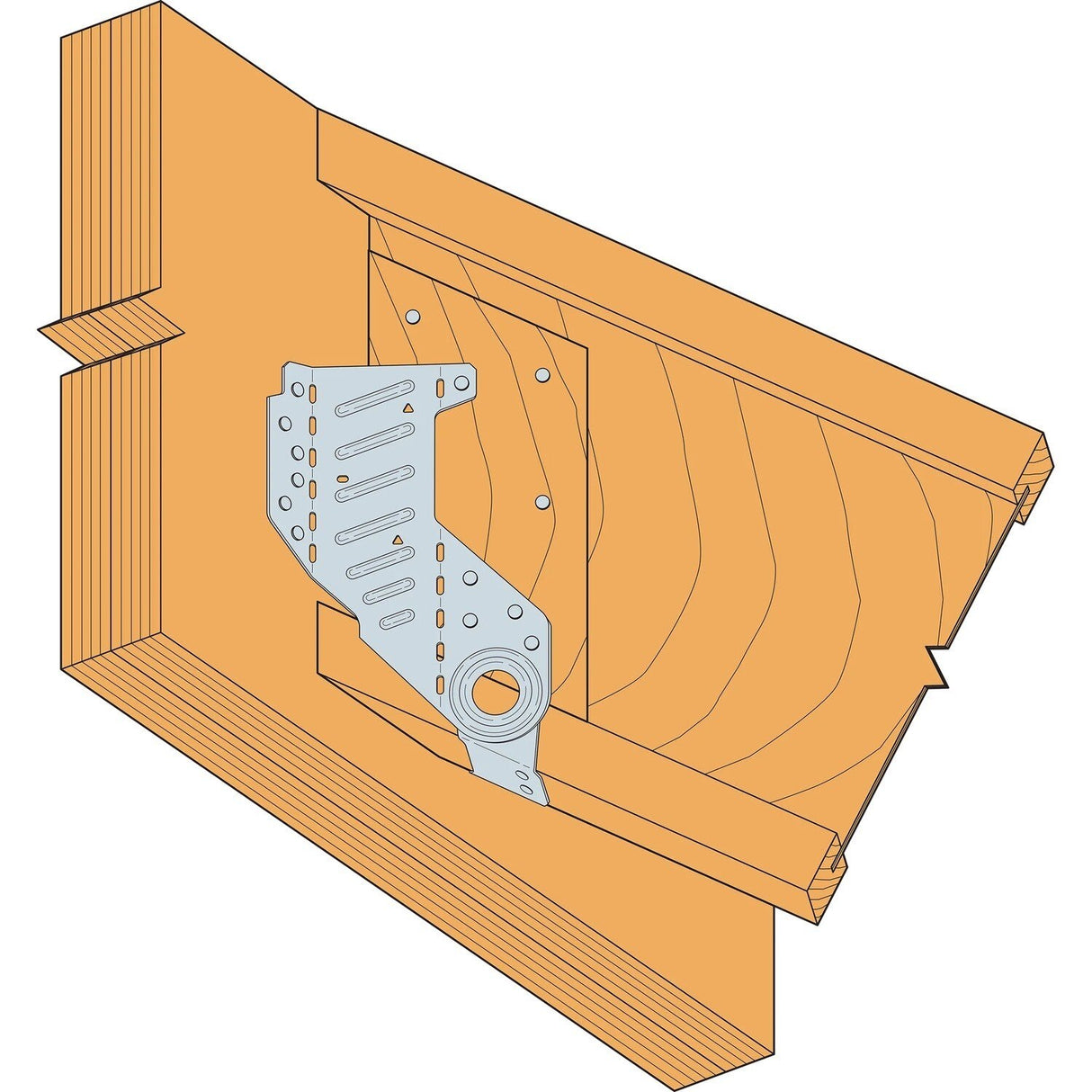

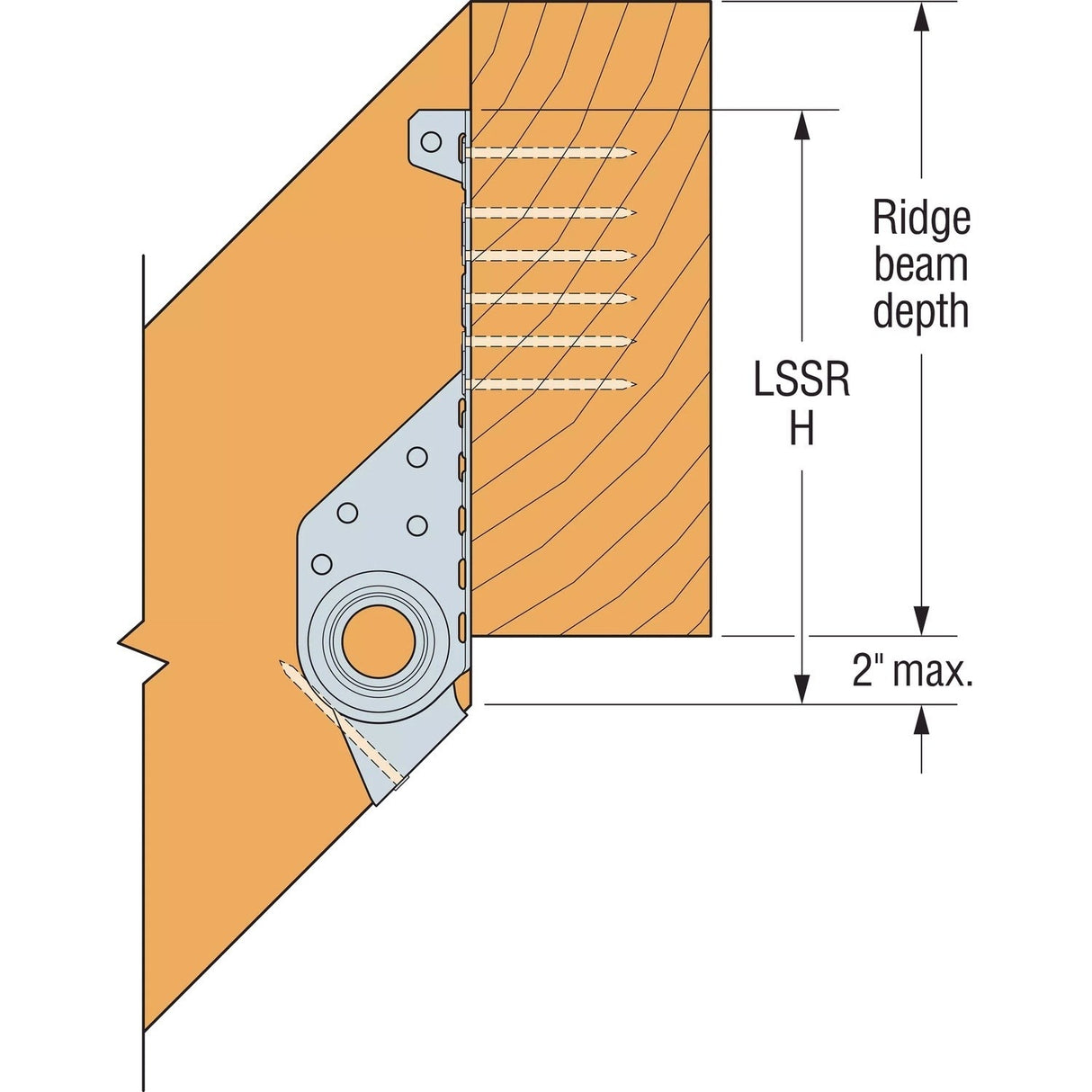

Simpson LSSR210Z Installation Overview

1. Fasteners: Use specified Simpson Strong-Tie nails or screws for optimal performance and load capacity.

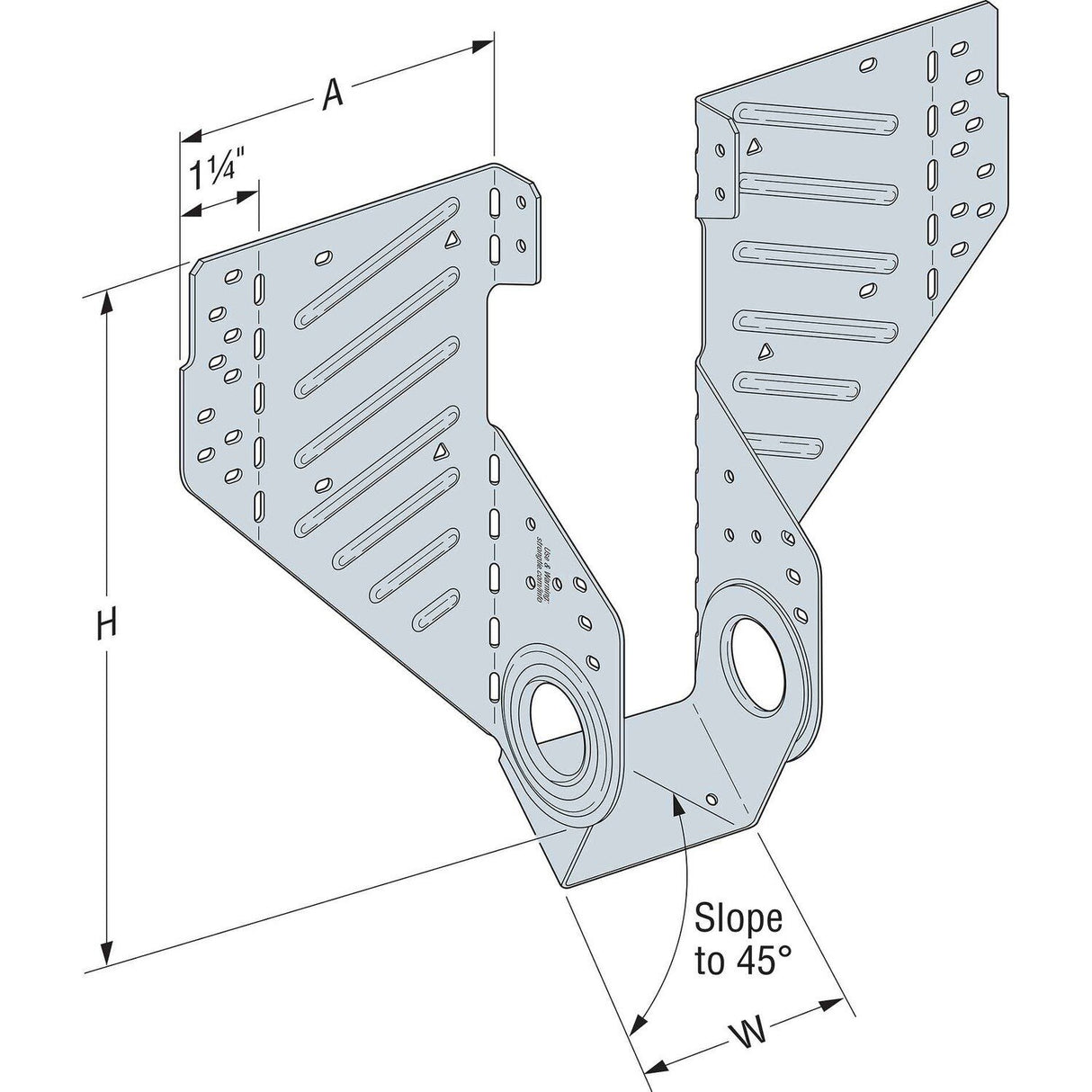

2. Adjustability: Flanges can be field-adjusted up to 45° for both slope and skew applications.
3. Reversible Orientation: The LSSR can be installed on either the left or right side of the rafter, eliminating the need for multiple part variations.
4. Structural Compatibility: Designed for solid sawn and engineered wood, ensuring a secure and compliant connection.
