Simpson Anchors | SKU:
LSTHD8
Simpson Strong-Tie LSTHD8 (18-5/8") Strap-Tie Holdown for Wood and Cold-Formed Steel Construction
$16.11
Unit price
/
Unavailable
Description
Description
Simpson LSTHD8 Description

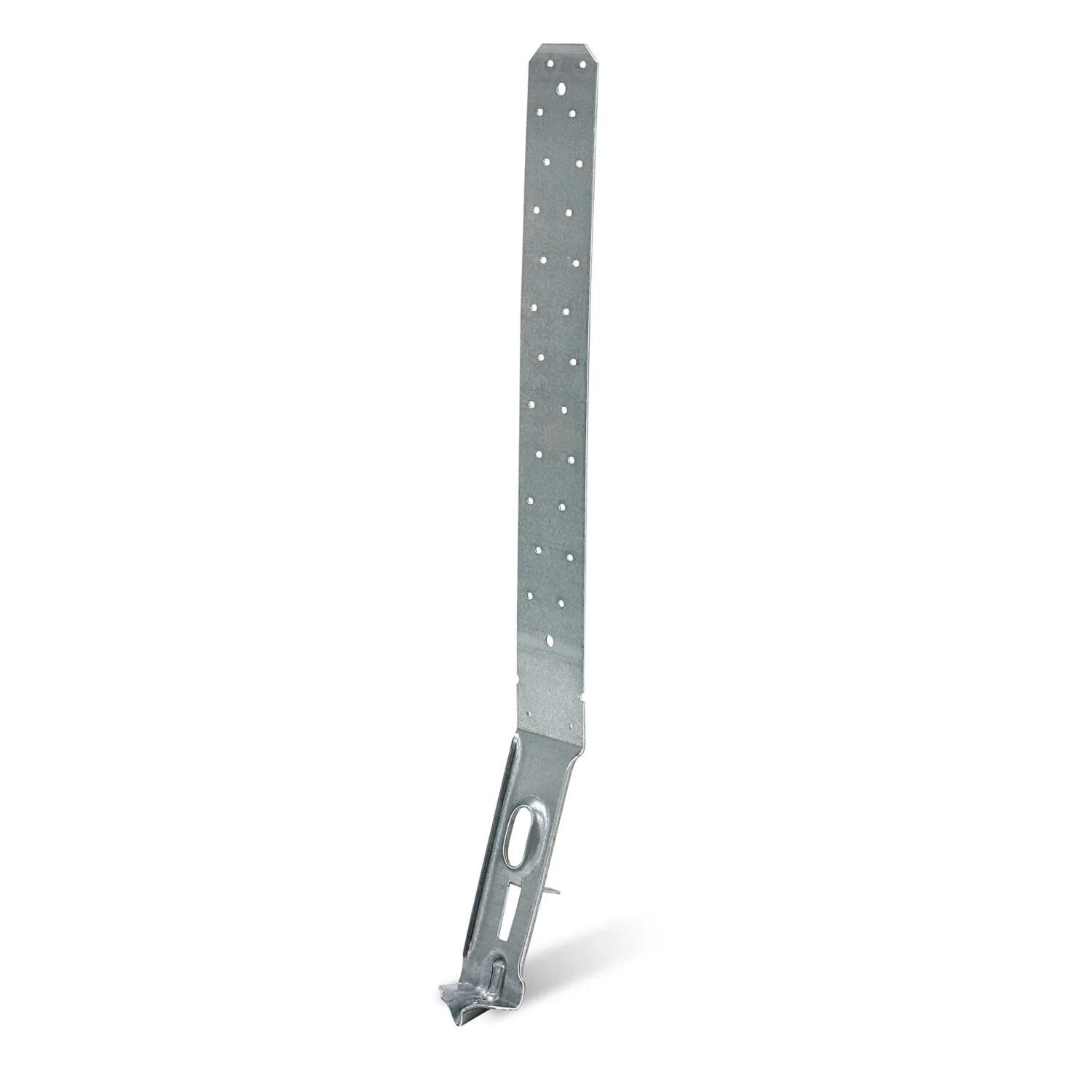

The LSTHD8 Strap-Tie Holdown is designed for wood and cold-formed steel construction, offering high loads and a staggered nail pattern to minimize splitting.
Simpson LSTHD8 Includes
- (1) 18-5/8" Strap-Tie Holdown
Simpson LSTHD8 Features
- Staggered nailing pattern minimizes splitting
- Countersunk strap nail slots for lower nail head profile

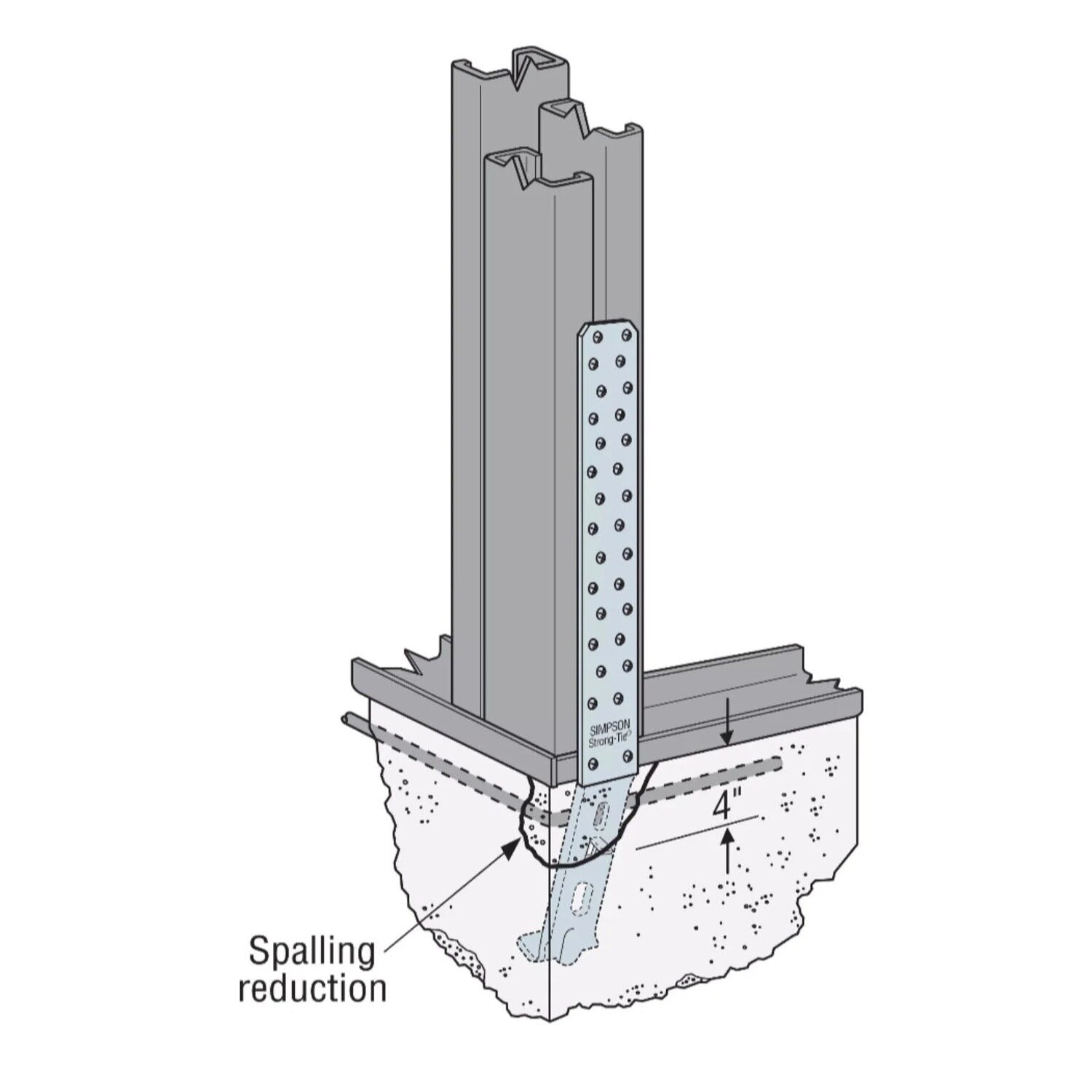

- Slots below embedment line increase concrete bond and reduce spalling
- Made from 14-gauge galvanized steel for durability
Simpson LSTHD8 Applications
- Wood construction requiring high load capacity
- Cold-formed steel construction
- Concrete installations

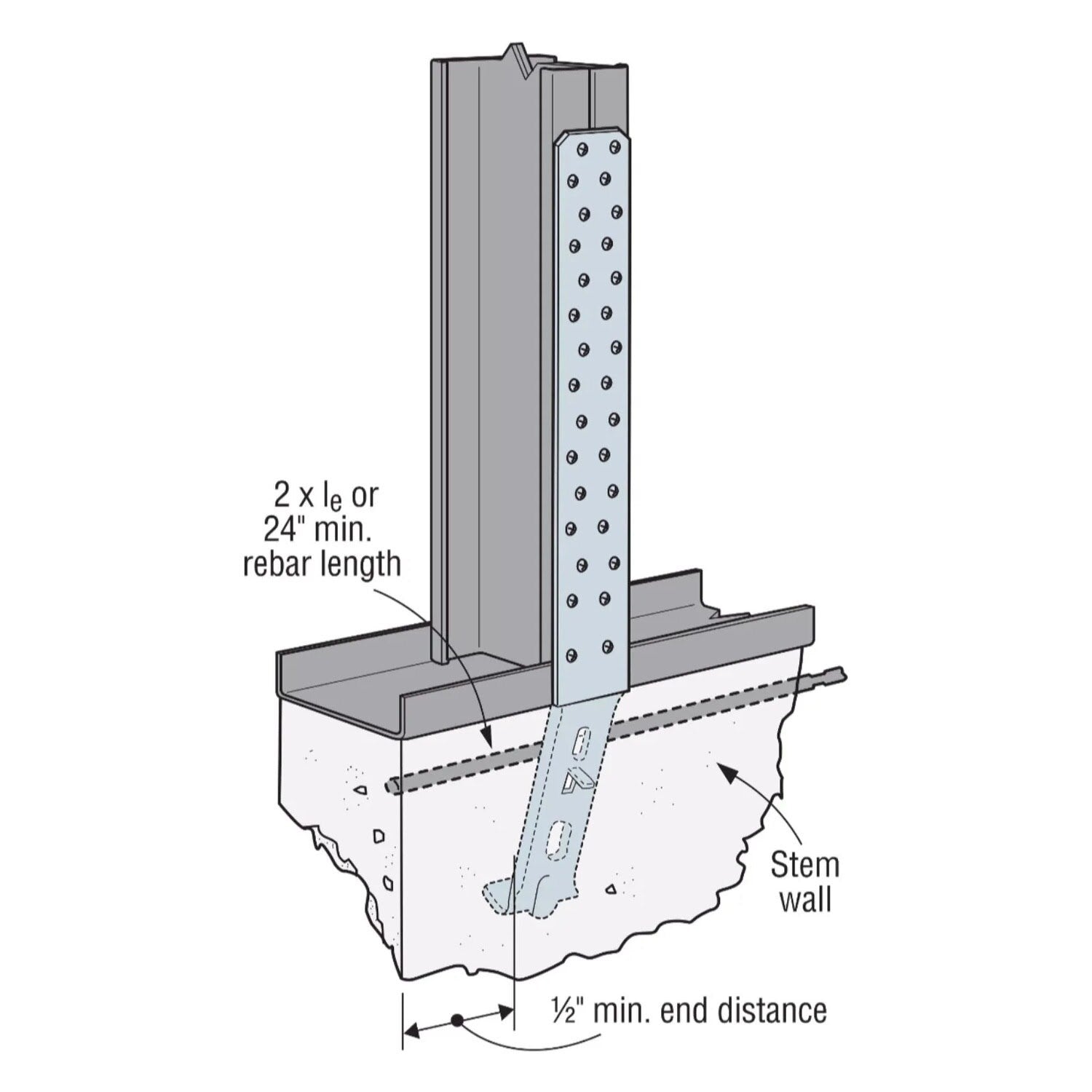

Simpson LSTHD8 Installation Overview
- Verify dimensions and alignment of installation area

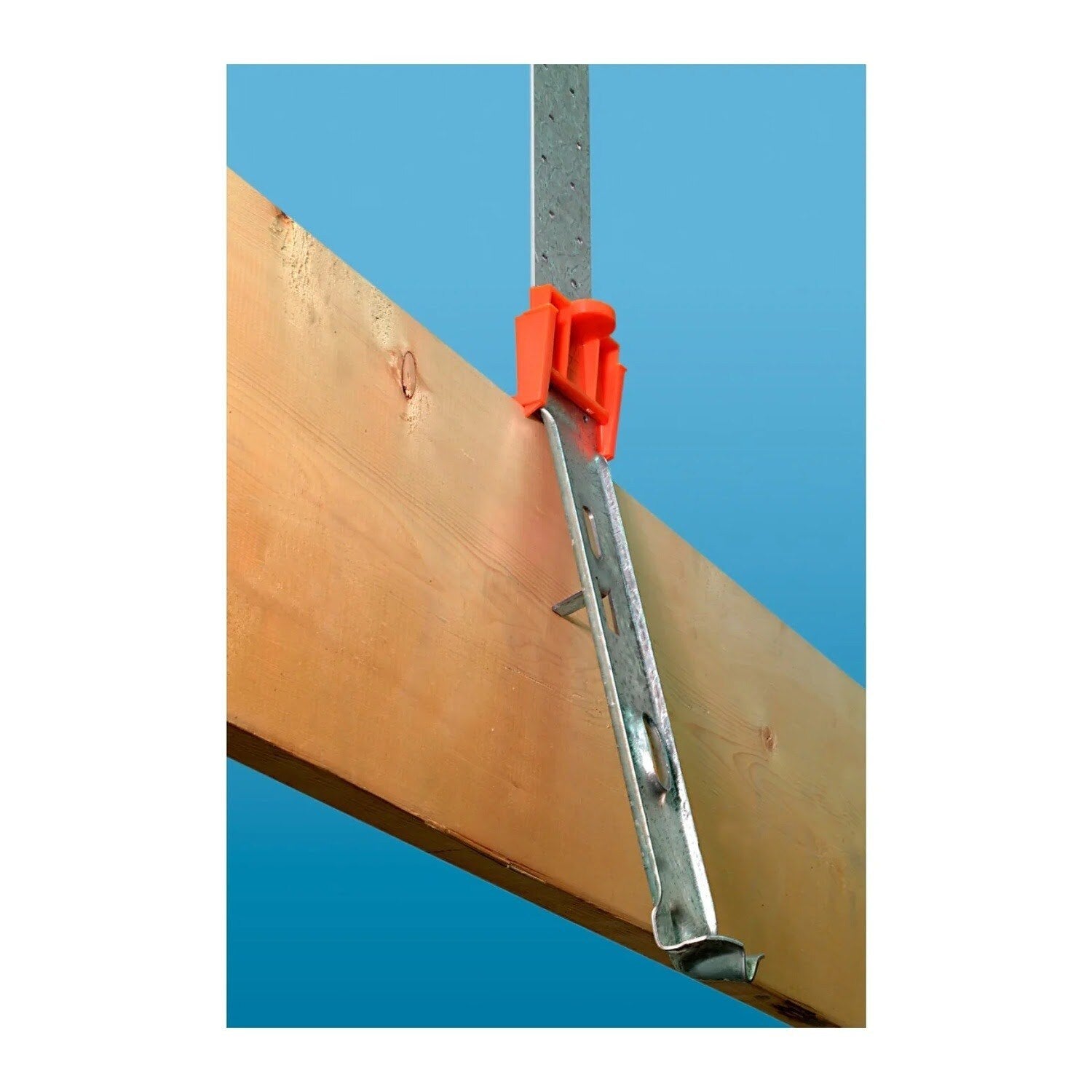

- Install before concrete pour using a StrapMate or similar device
- Nail strap from bottom up and ensure plumb installation
- Protect exposed strap portions against corrosion

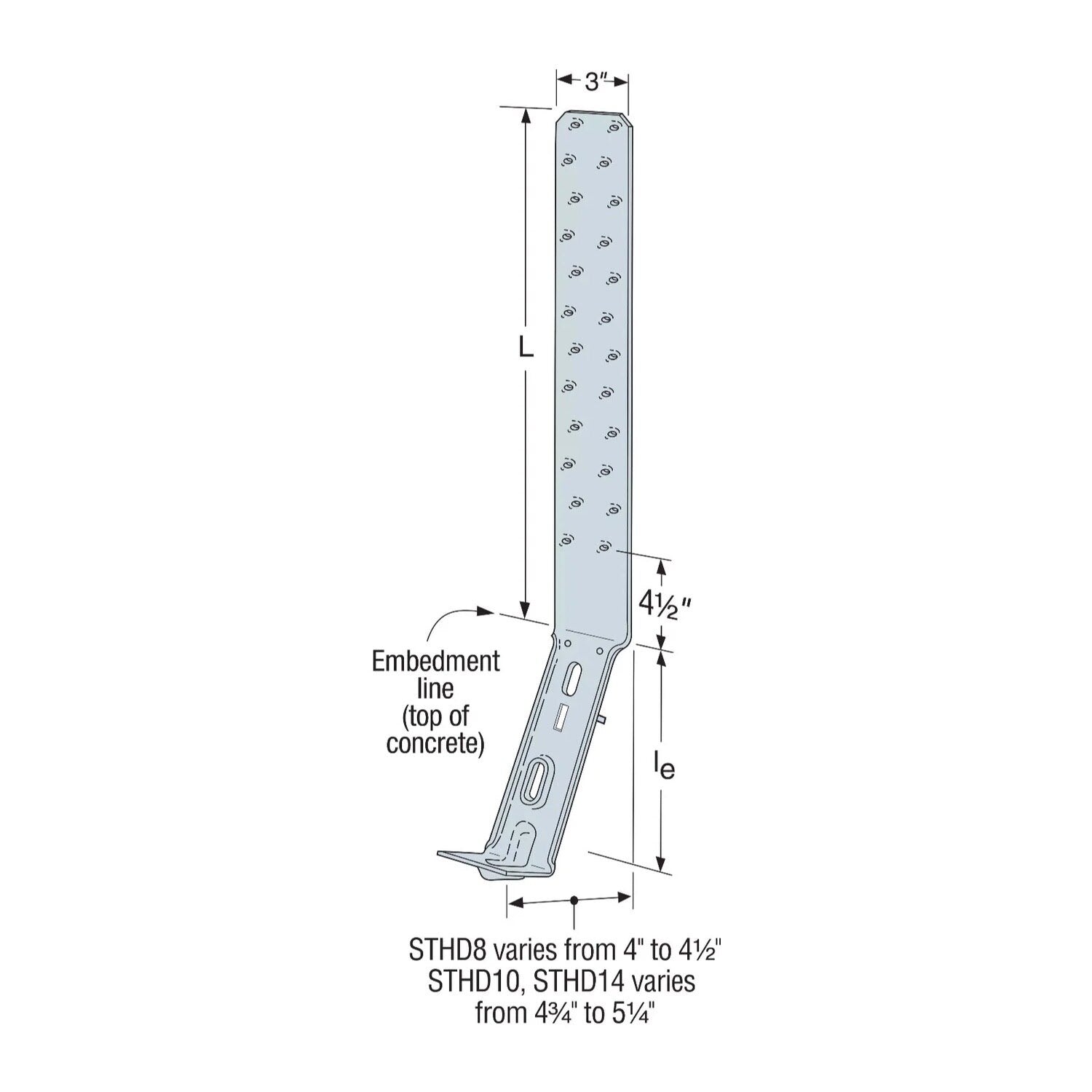

Simpson LSTHD8 Specifications
| Material | 14 gauge galvanized steel |
| Length | 18-5/8" |
| Width | 3" |
| Weight | 1.7 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
