Simpson Anchors | SKU:
LSTHD8RJ

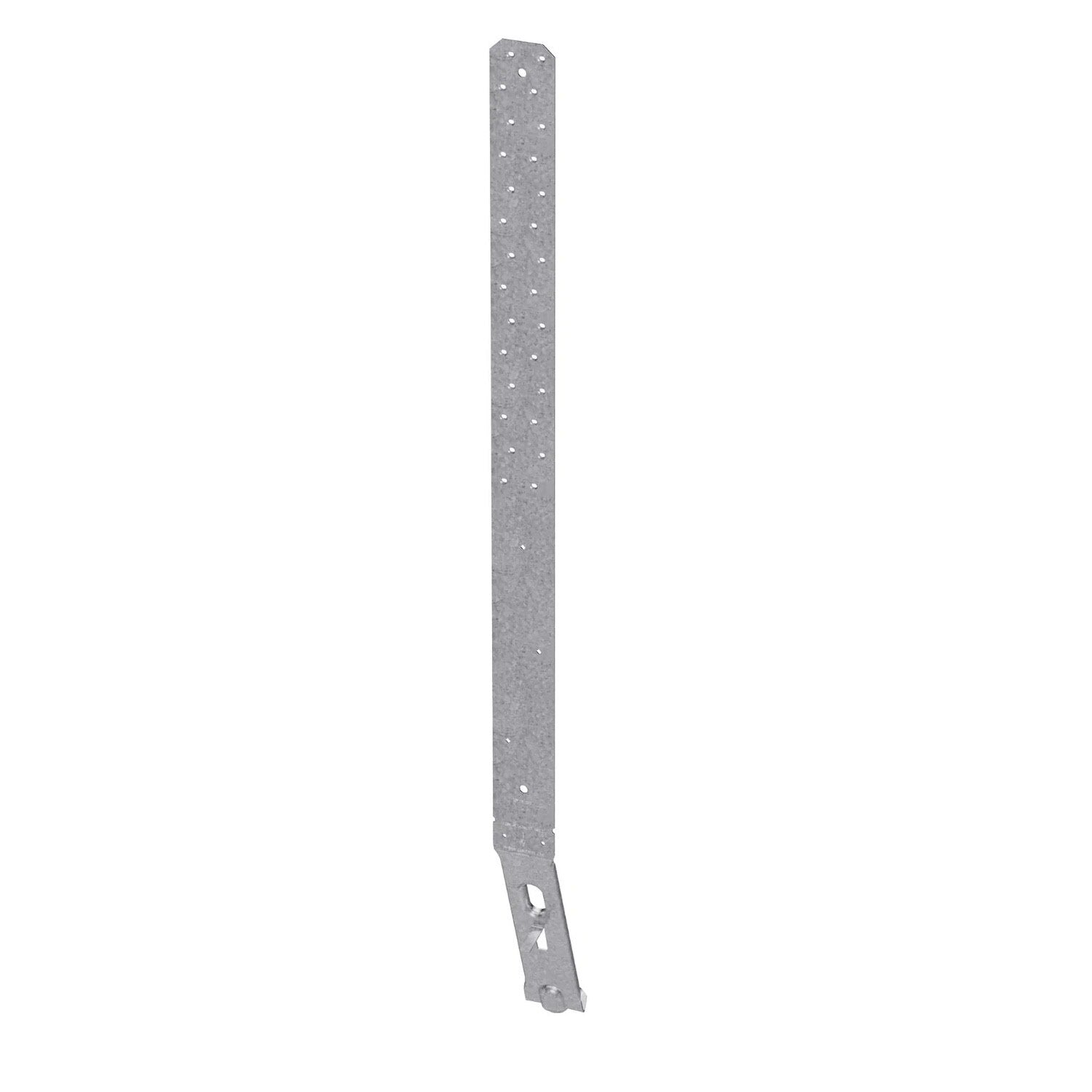

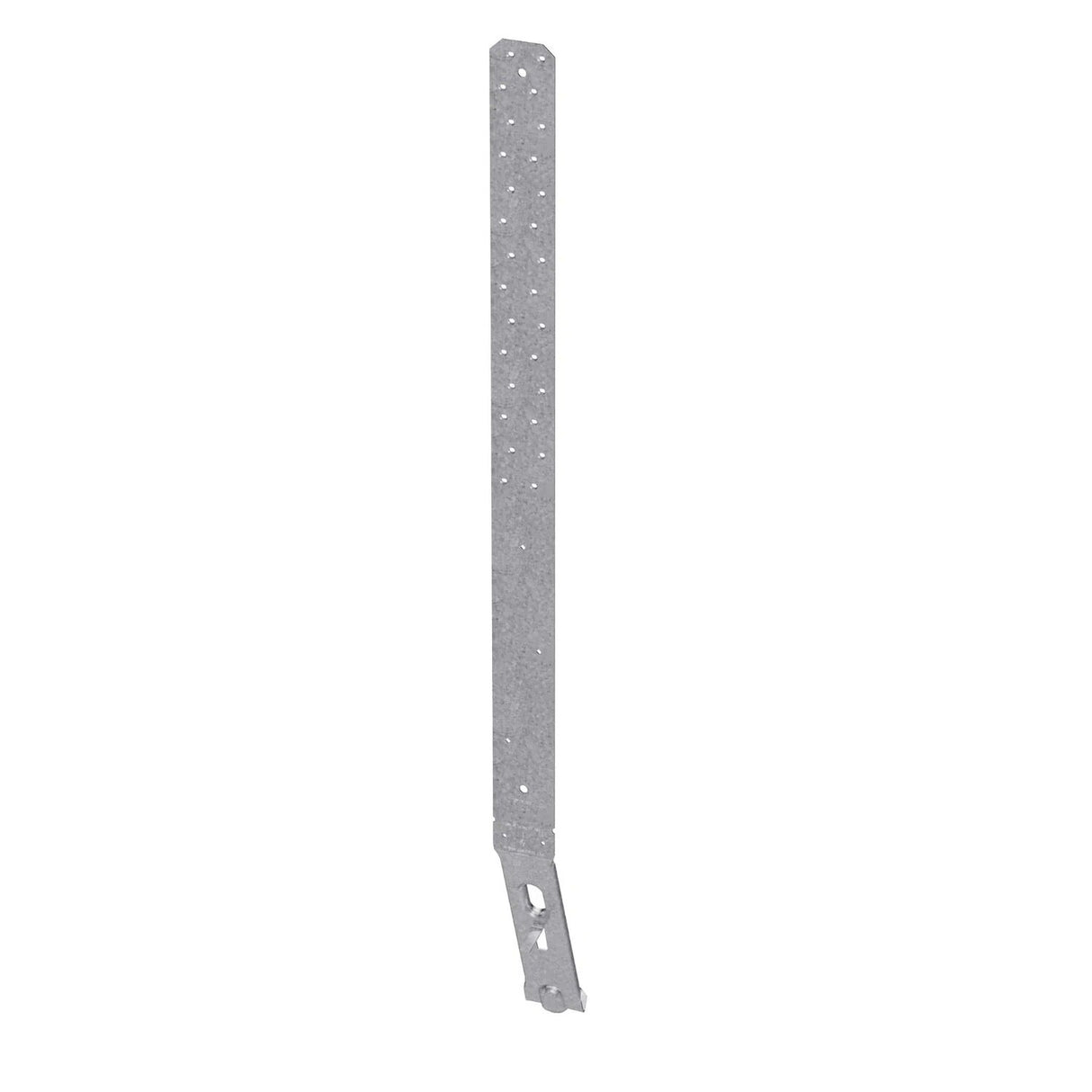

Simpson Strong-Tie LSTHD8RJ (32-1/8 in.) Rim Joist Strap-Tie Holdown, Galvanized
$23.62
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LSTHD8RJ Description
The LSTHD8RJ Rim Joist Strap-Tie Holdown offers high loads and a staggered nail pattern to minimize splitting, with features enhancing installation stability and performance.
Simpson Strong-Tie LSTHD8RJ Includes
- (1) Rim Joist Strap-Tie Holdown Galvanized
Simpson Strong-Tie LSTHD8RJ Features
- High load capacity
- Staggered nail pattern to minimize splitting
- Enhanced stability during installation
- Accurate positioning of the strap
- Reduced possibility of spalling
- Designed for up to a 17" clear span
Simpson Strong-Tie LSTHD8RJ Applications
- Securing rim joists in construction
- Providing structural support in wood framing
- Use in standard concrete and post-tension slab installations
Simpson Strong-Tie LSTHD8RJ Installation Overview
- Use all specified fasteners as per guidelines.
- Install before concrete pour using a StrapMate or similar device.
- Nail strap from the bottom up and ensure it is plumb.
- Strap may be bent one full cycle to aid wall placement.
- Protect exposed portions of the strap against corrosion.
- Avoid installation where horizontal cold joints exist within embedment depth.
Simpson Strong-Tie LSTHD8RJ Specifications
| Length | 32-1/8" |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | Yes |
| Manufacturer name | Simpson Strong-Tie |
| Width | 3" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
