Simpson Strong-Tie LSTI49 Description
The Simpson LSTI49 Light Strap Tie is designed to resist tension loads in various applications, featuring a staggered nail pattern to minimize wood splitting.
Simpson Strong-Tie LSTI49 Includes

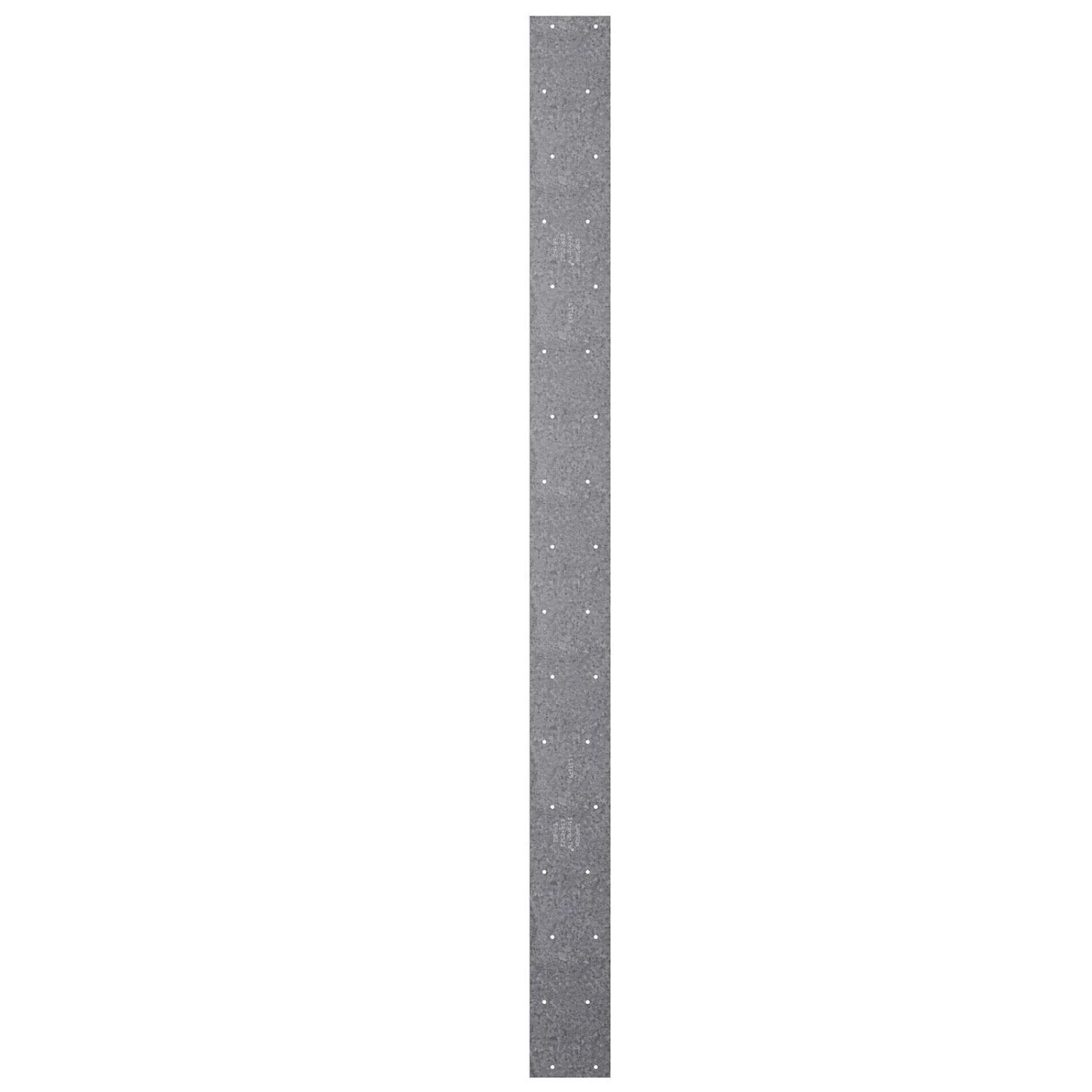

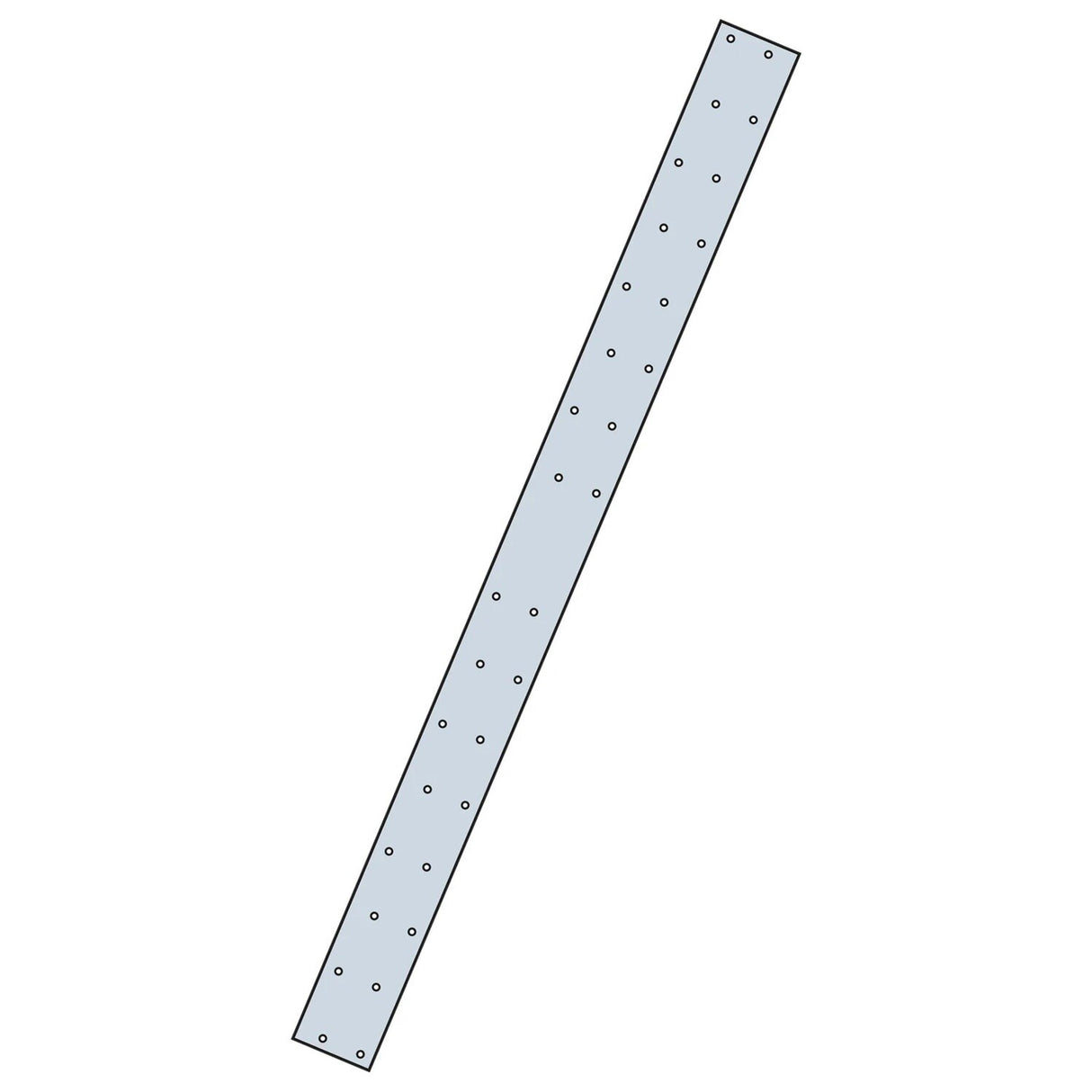

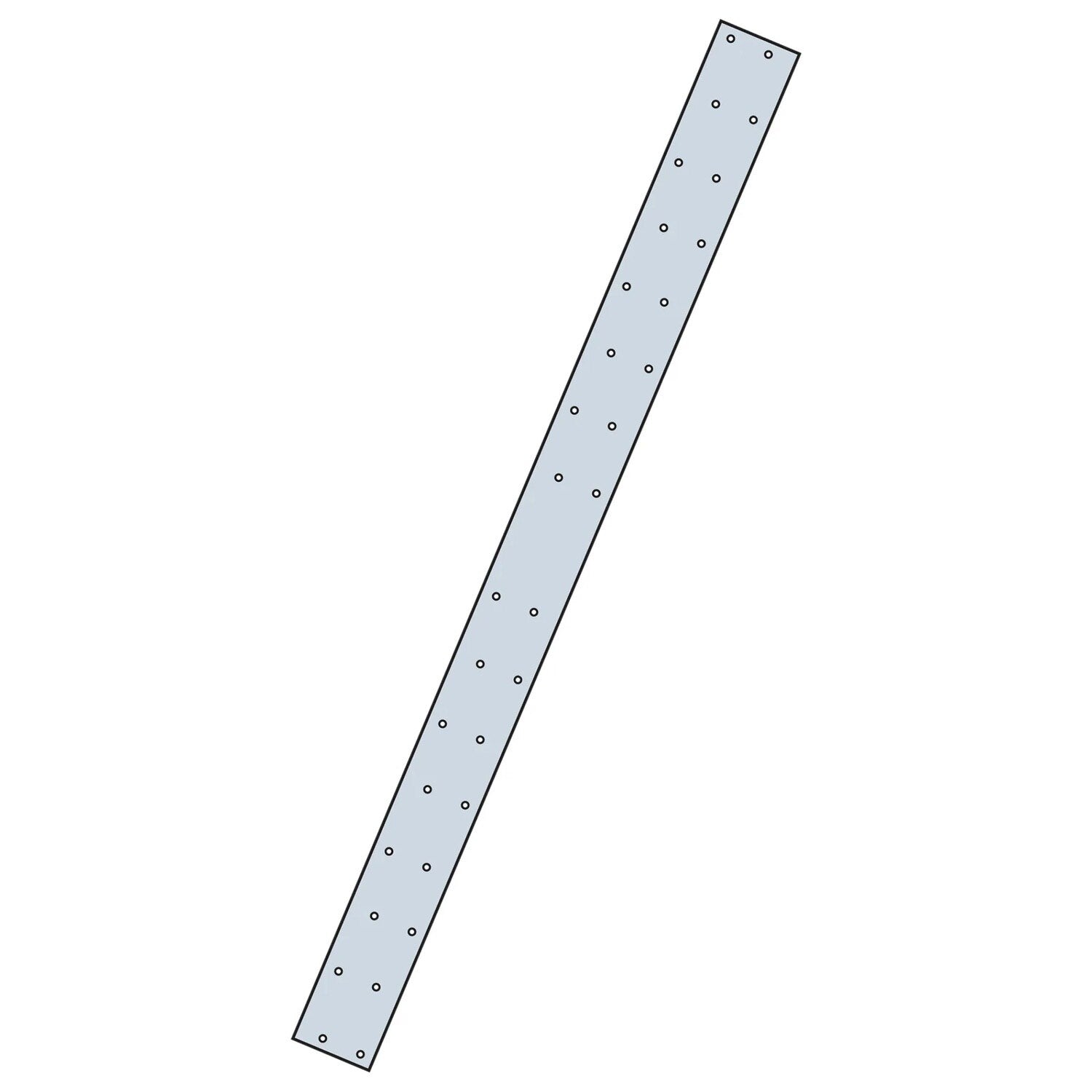

- (1) 49" 18-Gauge Strap Tie
Simpson Strong-Tie LSTI49 Features
- Designed to resist wind and seismic forces
- Suitable for diaphragm decking and wood chord open-web trusses
- Utilizes a staggered nail pattern to minimize wood splitting
Simpson Strong-Tie LSTI49 Applications
- High-Wind Construction

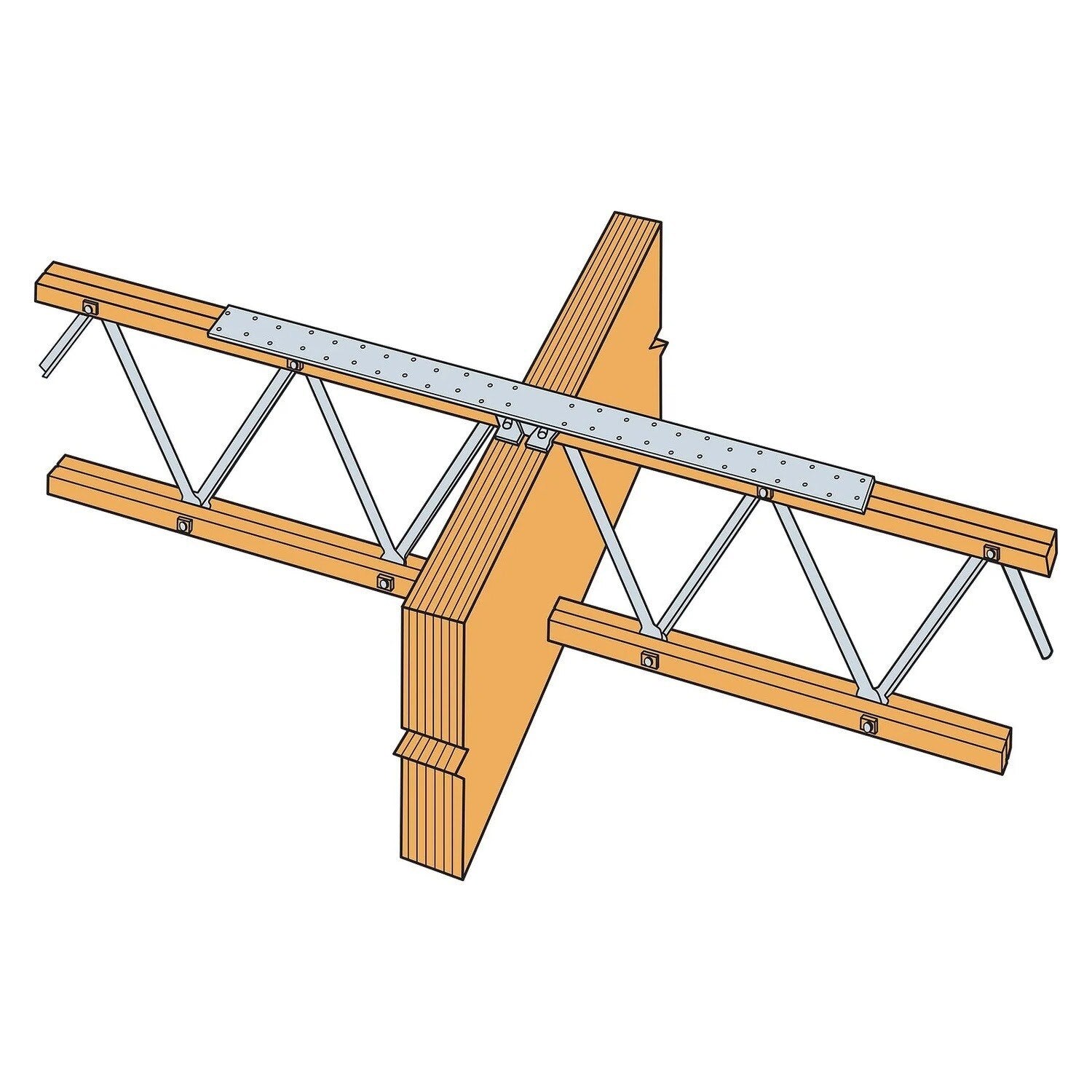

- Diaphragm decking
- Wood chord open-web trusses
Simpson Strong-Tie LSTI49 Installation Overview
- Use all specified fasteners as per the general notes

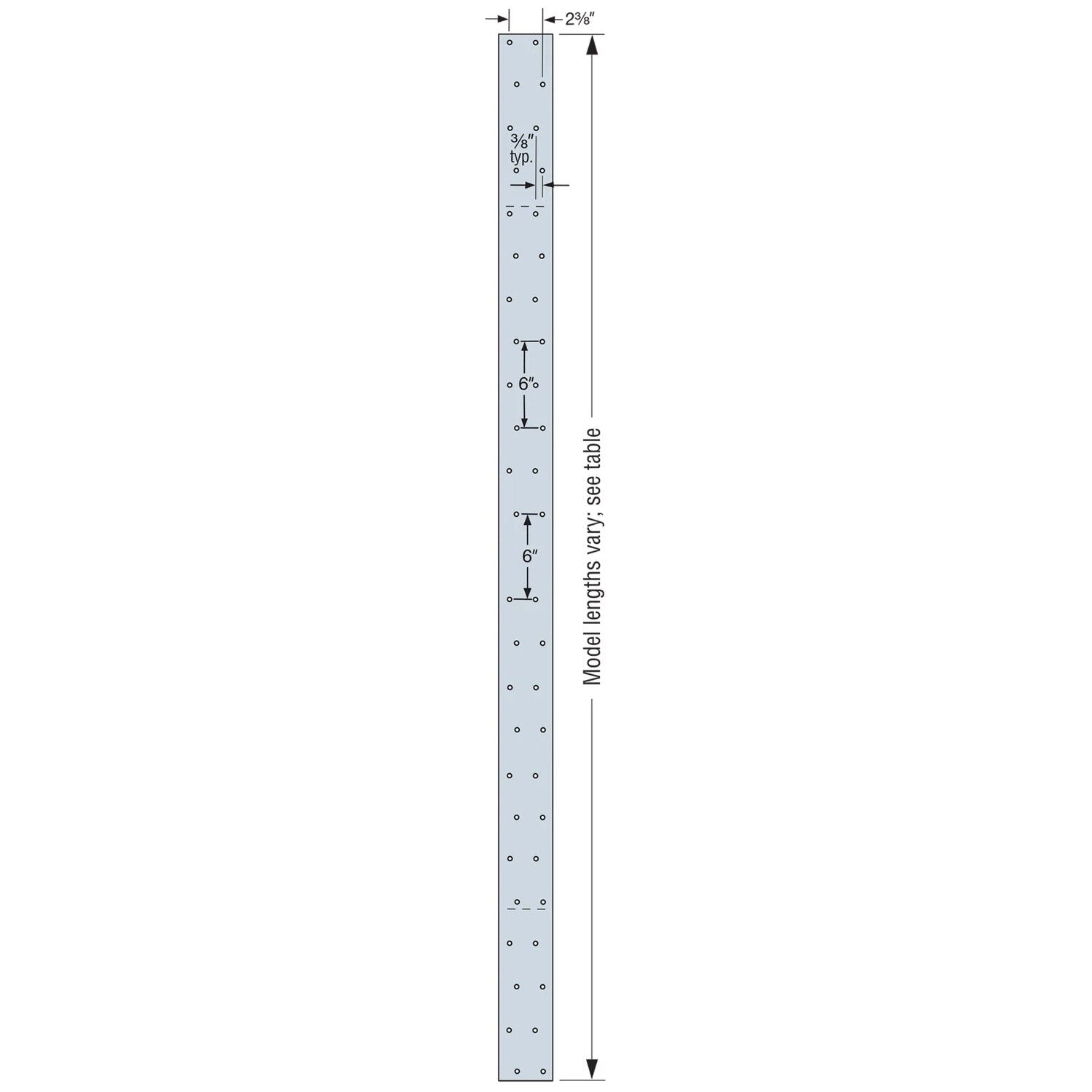

Simpson Strong-Tie LSTI49 Specifications
| Material | 18 ga. (43 mil) |
| Finish | Galvanized |
| Width | 3 3/4" |
| Height | 49" |
| Fasteners required | (32) 0.148 x 1 1/2 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
