Simpson Hangers | SKU:
LSU4.28

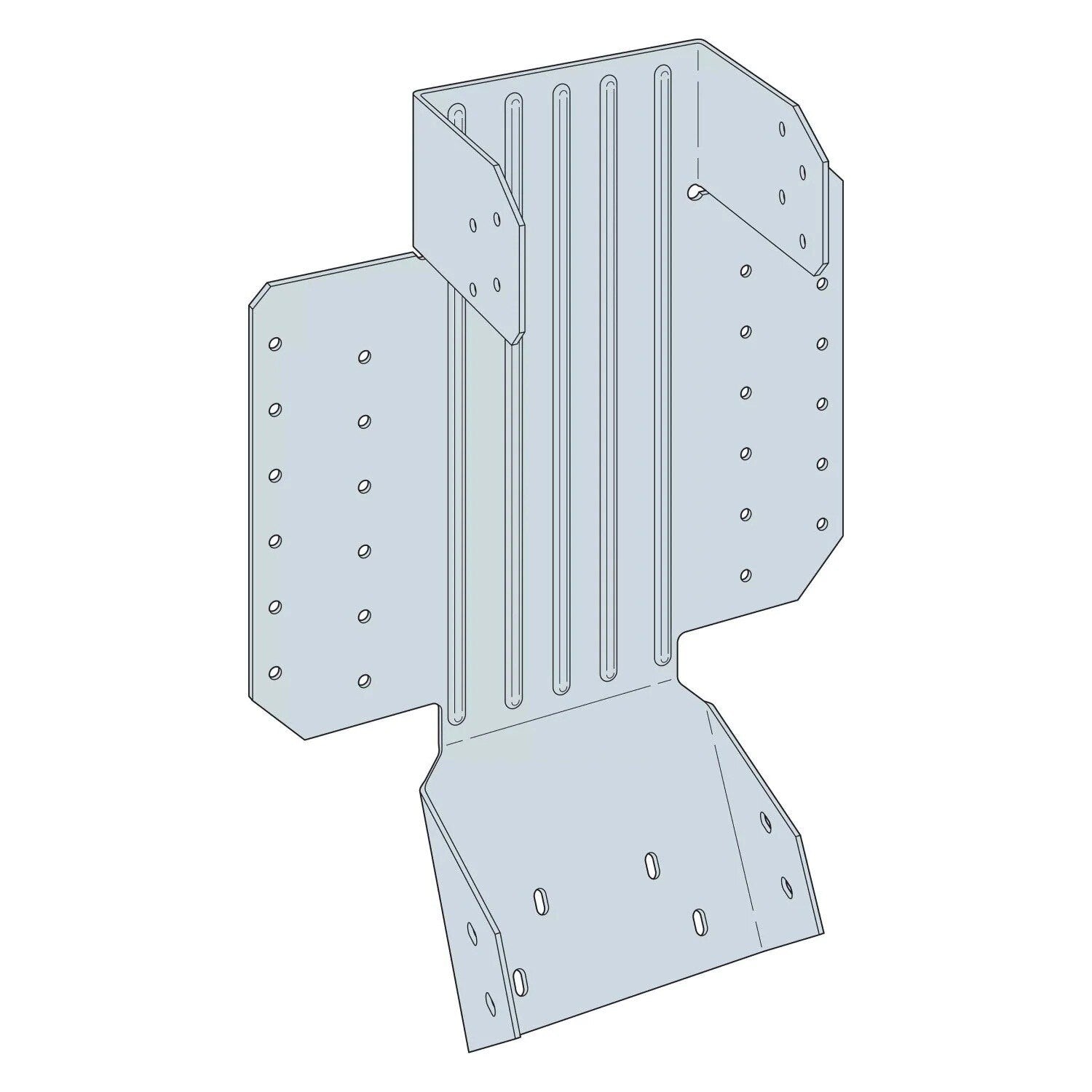

Simpson Strong-Tie LSU4.28 Adjustable Rafter Hanger - G90 Galvanized
$85.16
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LSU4.28 Description
The LSU4.28 Adjustable Rafter Hanger from Simpson Strong-Tie is designed to attach double joists or rafters to headers, accommodating slopes and skews up to 45 degrees. It offers easier installation, higher load capacity, and cost efficiency.
Simpson Strong-Tie LSU4.28 Includes
- (1) Adjustable Rafter Hanger - G90 Galvanized
Simpson Strong-Tie LSU4.28 Features
- Allows installation after rafters are in place
- Supports slopes and skews up to 45 degrees
- Web stiffeners required for I-joist applications
Simpson Strong-Tie LSU4.28 Applications
- Attaching double joists or rafters to headers
- Suitable for sloped and skewed connections in construction
Simpson Strong-Tie LSU4.28 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Face: (24) 0.162 X 3-1/2” Joist: (16) 0.148 X 1-1/2” |
| Height | 9" |
| Thickness | 14 Gauge |
| Width | 4-1/4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
